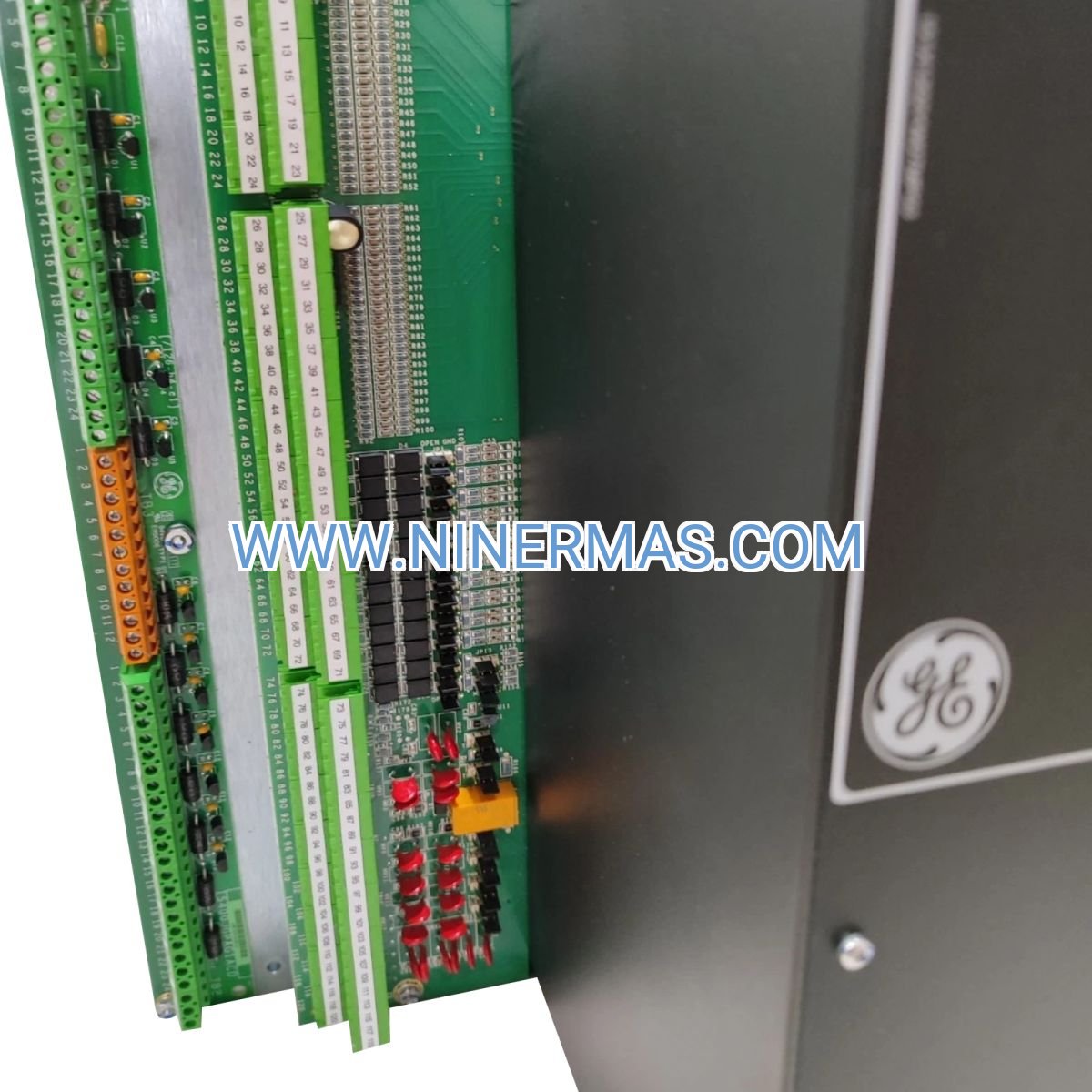

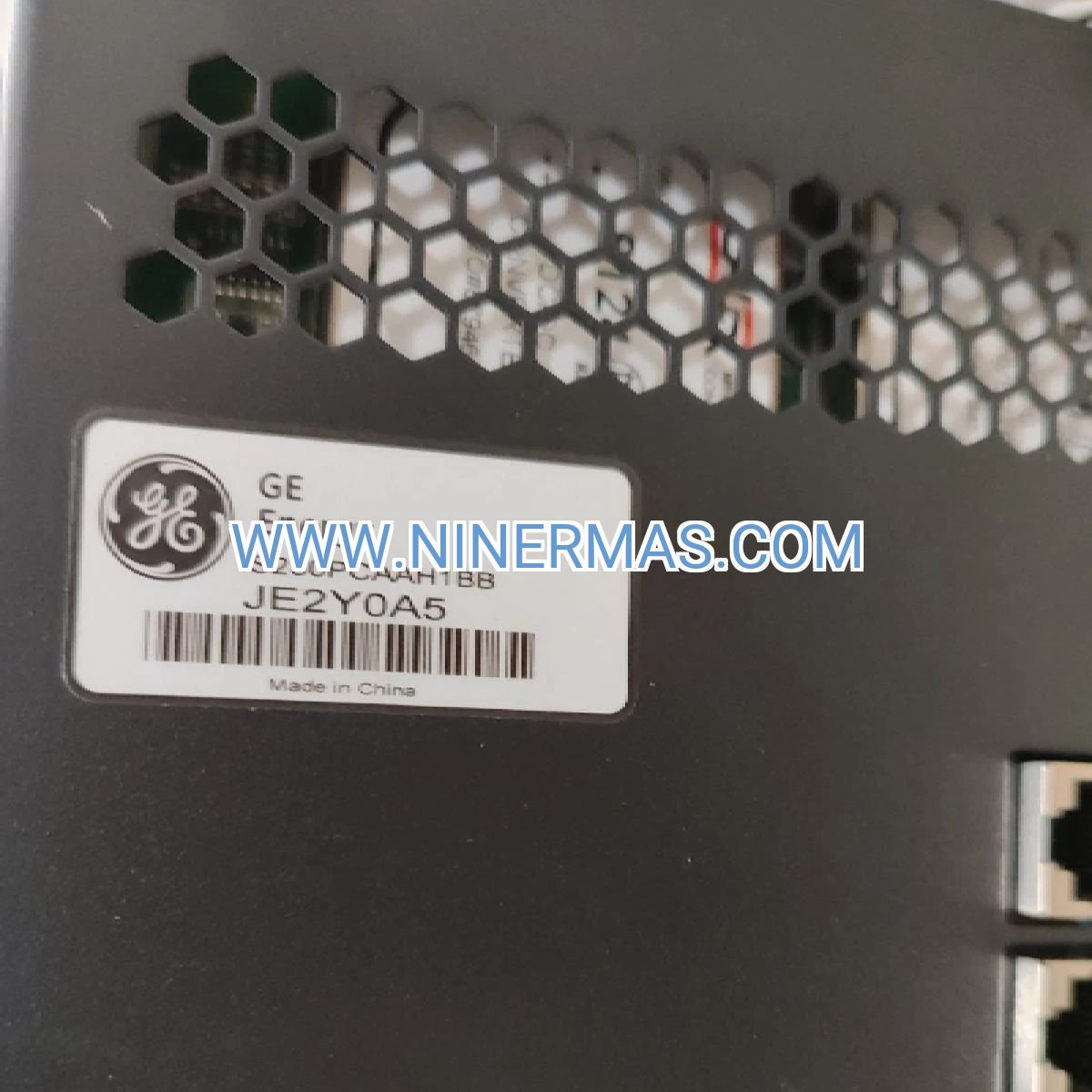

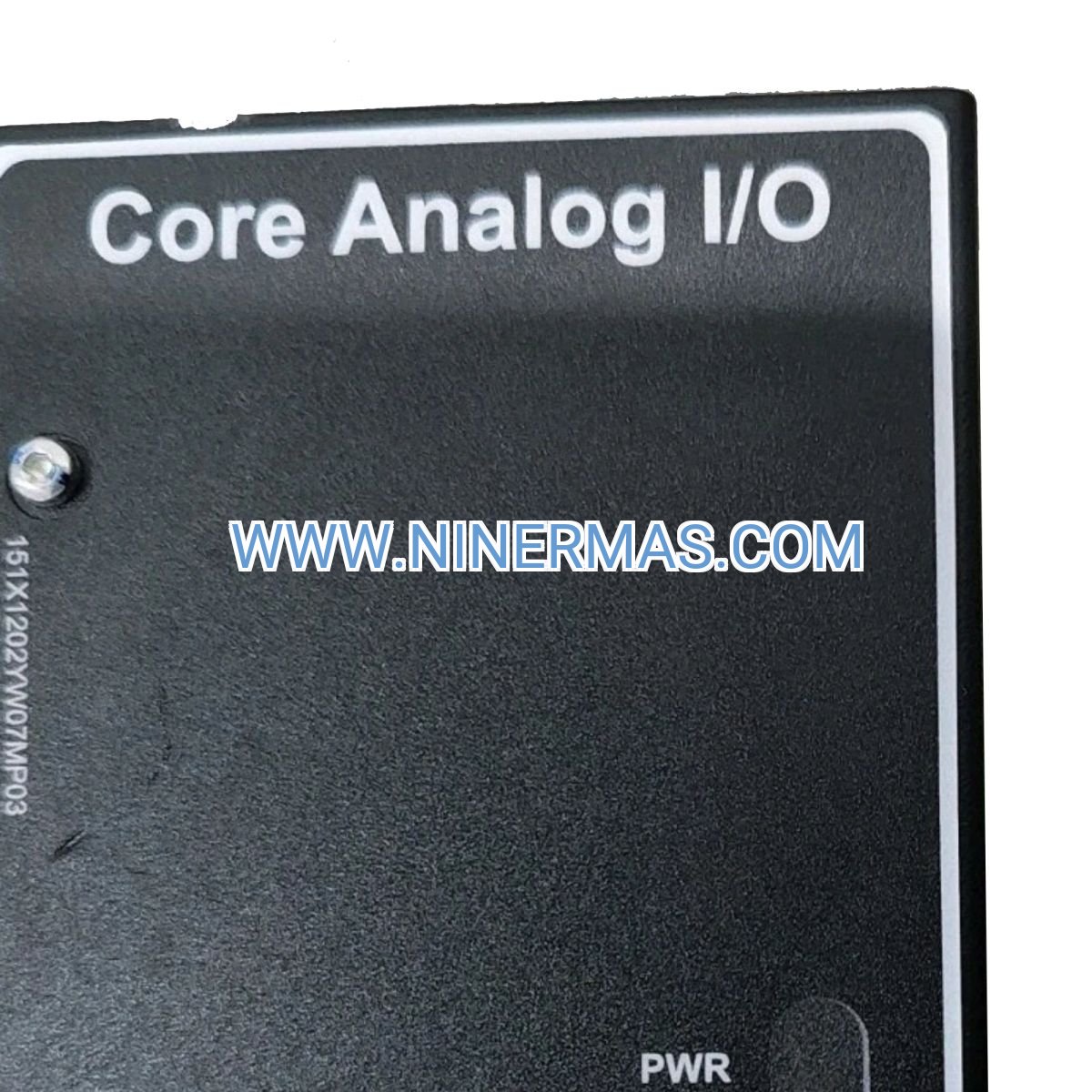

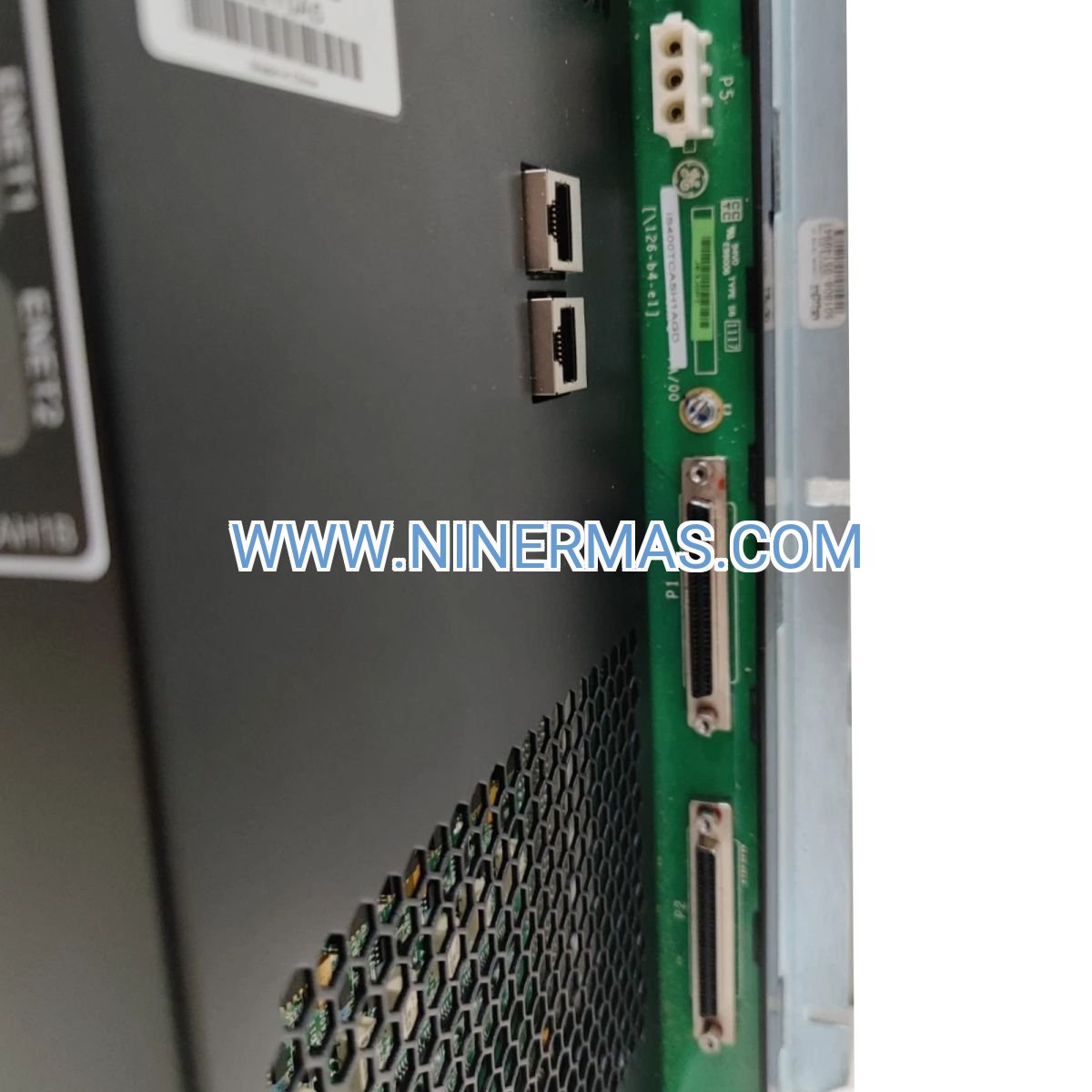

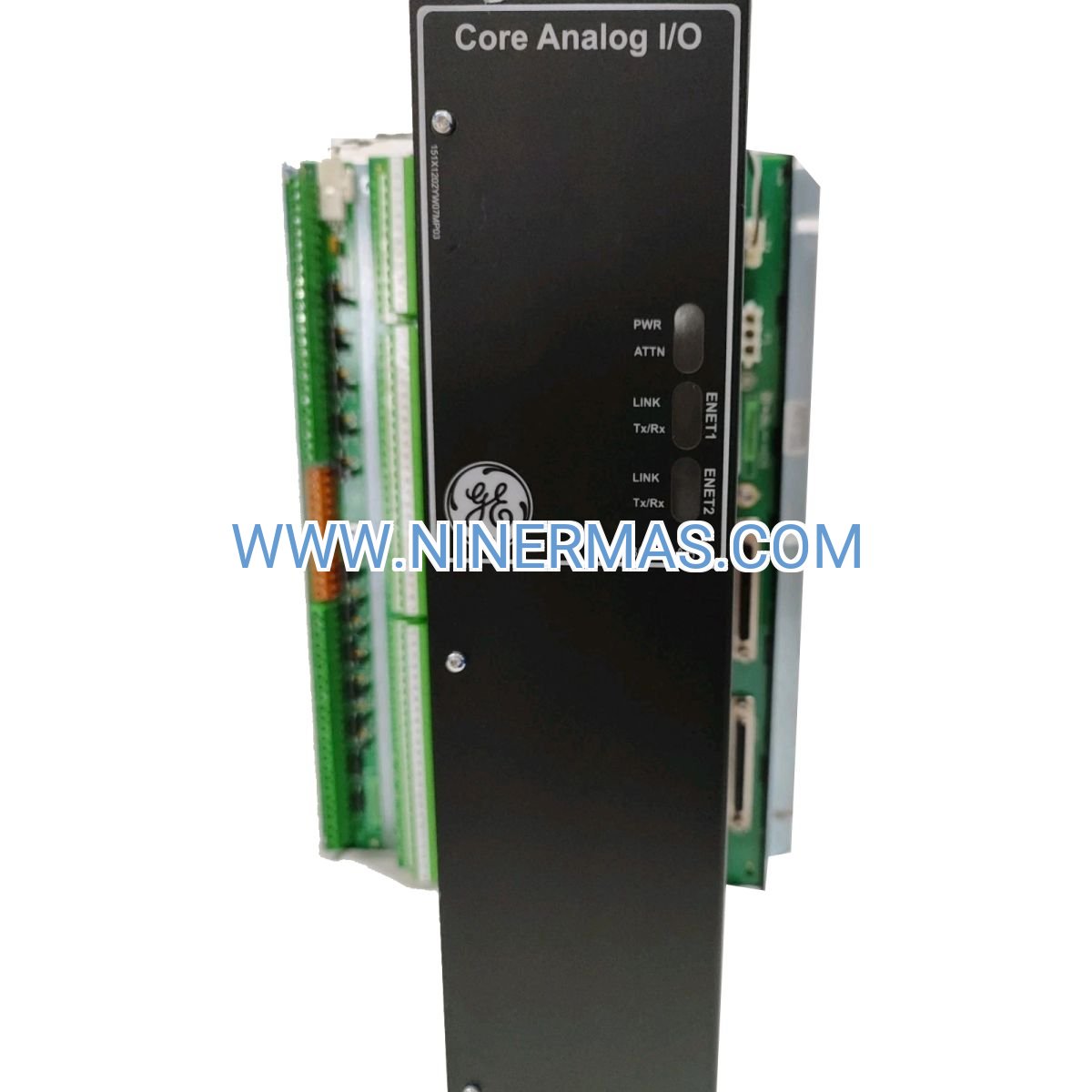

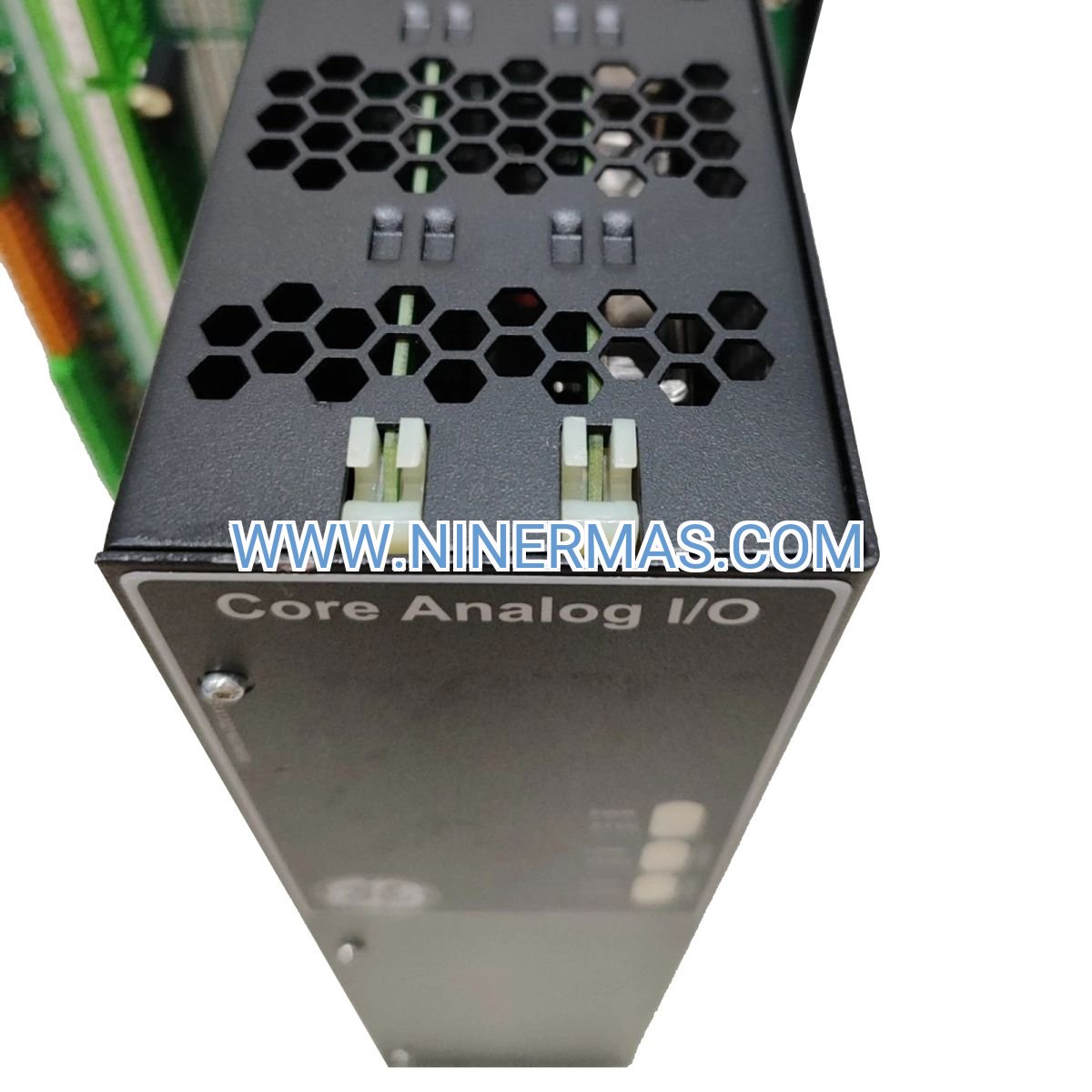

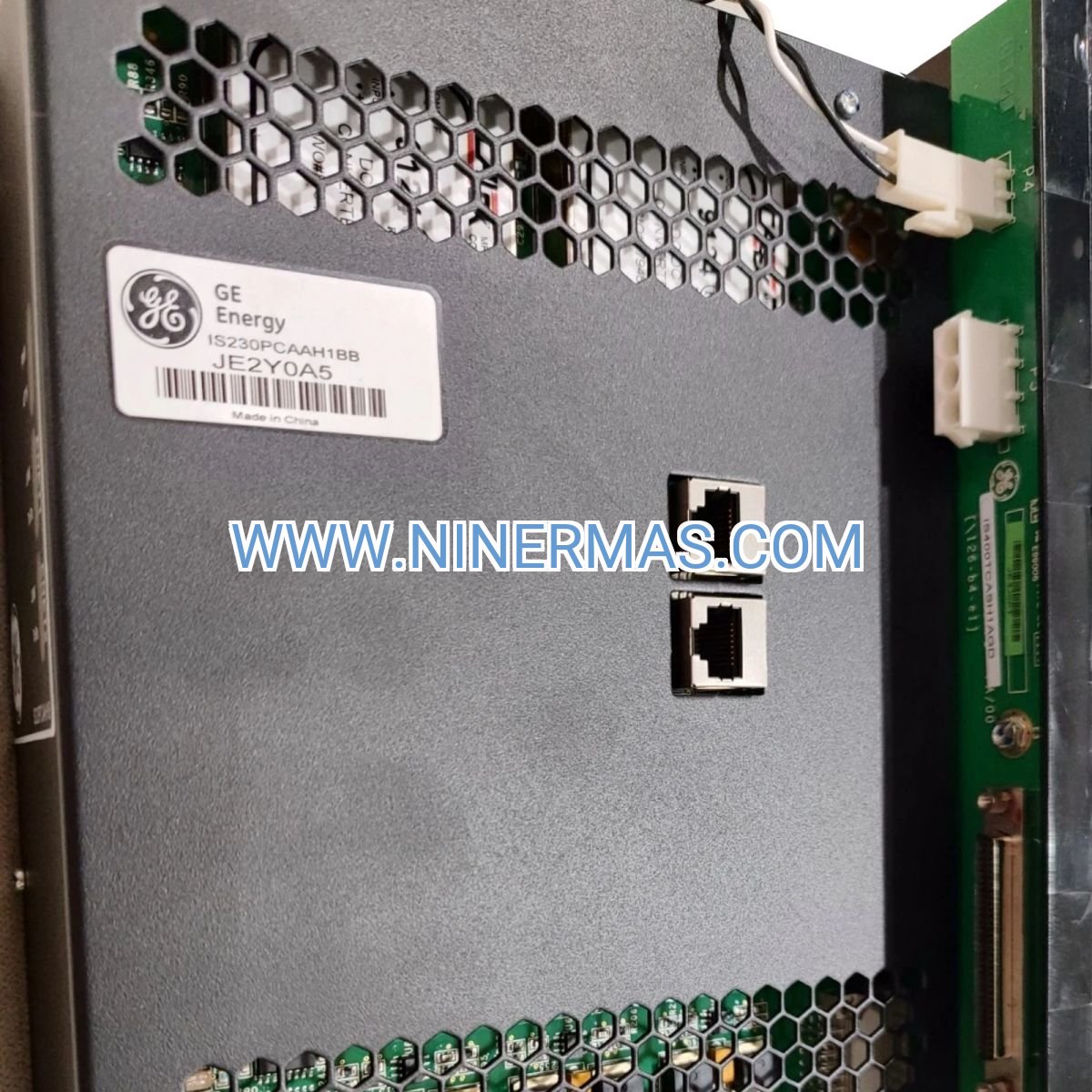

IS230PCAAH1B Core Analog I/O Module – Industrial-Grade Signal Processing for Mark VIe Turbine Control

Engineered for mission-critical power generation environments, the GE IS230PCAAH1B delivers high-fidelity analog signal acquisition and output capabilities within Mark VIe Speedtronic turbine control architectures. This core I/O module combines 16-bit conversion precision with robust diagnostics, enabling reliable operation in both simplex and Triple Modular Redundant (TMR) configurations across gas turbine, steam turbine, and combined-cycle power plants.

Core Capabilities & Business Value

→ 16-Bit Precision Conversion: Captures critical turbine parameters—temperature, pressure, vibration, flow—with exceptional accuracy, reducing measurement uncertainty and enabling tighter control margins for improved efficiency and equipment protection.

→ TMR Fault-Tolerant Design: Seamlessly integrates into triple-redundant control systems, ensuring uninterrupted operation even during module failures. Automatic voting logic and hot-swap capability minimize downtime risk in revenue-critical power generation assets.

→ Universal Signal Flexibility: Configurable inputs accept 4-20mA current loops, 0-10V/±10V voltage signals, RTDs, and thermocouples—eliminating the need for external signal conditioners and reducing installation complexity and cost.

→ Continuous Health Monitoring: Built-in diagnostics detect open circuits, shorts, out-of-range conditions, and communication faults in real time. Predictive maintenance alerts reduce unplanned outages and extend asset life.

→ IONet High-Speed Backplane: Deterministic data transfer with minimal latency ensures synchronized control loop execution, critical for fast-acting turbine protection and load-following applications.

Industrial Applications & Problem-Solving

Heavy-Duty Gas Turbine Monitoring: In Frame 7/9 class gas turbines, the IS230PCAAH1B processes exhaust thermocouple arrays, fuel valve positioning feedback, and compressor inlet guide vane angles. Paired with the IS220PCLAH1B Core Analog I/O Module for expanded channel capacity, it enables comprehensive combustion optimization and emissions control. Integration with the IS220UCSAH1A Controller Module closes the loop for advanced control strategies.

Pain Point Addressed: Eliminates signal drift and noise issues that cause false trips and efficiency losses. Quantified benefit: Up to 0.5% heat rate improvement through tighter temperature control.

Steam Turbine Condition Monitoring: Manages analog feedback from steam pressure transmitters, bearing metal temperature sensors, and valve stem position indicators. Works in concert with the IS200STAIH1A Terminal Board for field wiring termination and the IS220PAOCH1A Analog Output Pack for precise valve actuation.

Pain Point Addressed: Prevents costly bearing failures and blade damage through early detection of abnormal vibration and temperature trends.

Combined-Cycle HRSG Control: Coordinates analog signal processing for heat recovery steam generator drum level, attemperator spray valves, and stack temperature monitoring. The IS230PCAAH1B interfaces with the IS220PAICH1A I/O Pack for distributed control architectures and the IS420ESWBH1A Ethernet Switch for plant-wide data integration.

Pain Point Addressed: Optimizes steam production efficiency while preventing thermal stress damage to HRSG components.

Renewable Energy Wind Turbine Systems: Processes pitch control feedback, generator winding temperatures, and environmental sensors in Mark VIe-based wind installations. Complements the IS215WETAH1A Wind Control Board for complete nacelle control solutions.

Pain Point Addressed: Maximizes energy capture while protecting drivetrain components from overload conditions.

Technical Parameters & Selection Criteria

Selection Guidance: For new installations, specify TMR architecture for critical turbine control loops and simplex for non-essential monitoring. Calculate total channel count requirements including 20% spare capacity for future expansion. Consult Mark VIe system configuration tools to verify I/O rack power budget and slot assignments.

Extended Integration & Customization

✓ SCADA/DCS Integration: Analog data from the IS230PCAAH1B can be mapped to Modbus TCP, OPC UA, or proprietary protocols via the Mark VIe controller for plant-wide monitoring and optimization systems.

✓ Predictive Analytics Connectivity: Export high-resolution analog trends to cloud-based machine learning platforms for predictive maintenance and performance optimization. Compatible with GE Digital APM and third-party analytics tools.

✓ Custom Signal Conditioning: Factory configuration services available for non-standard sensor types, custom scaling requirements, or specialized filtering algorithms. Consult our engineering team for application-specific modifications.

✓ Cybersecurity Hardening: Firmware updates and security patches available to maintain compliance with IEC 62443 industrial cybersecurity standards. Secure boot and encrypted communication options for critical infrastructure applications.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock IS230PCAAH1B modules ship within 1-3 business days via express courier. Typical transit time to major industrial hubs: North America 2-4 days, Europe 3-5 days, Asia-Pacific 4-7 days.

Custom Configuration: Factory-programmed modules with customer-specific settings require 7-10 business days. Expedited processing available for emergency outage support.

Warranty Terms: 12-month comprehensive warranty covers manufacturing defects and workmanship issues. Warranty includes advance replacement service for critical applications—replacement module ships before defective unit return.

Technical Support: Lifetime application engineering support included. Our Mark VIe specialists provide configuration assistance, troubleshooting guidance, system integration consulting, and on-site commissioning support (fees apply).

Documentation Package: Each module ships with installation instructions, configuration templates, terminal board wiring diagrams, and safety certifications. Complete Mark VIe system documentation available upon request.

Frequently Asked Questions

How does the IS230PCAAH1B differ from the IS220PCLAH series modules?
The IS230PCAAH1B is a core analog processing module with integrated intelligence, while IS220PCLAH modules are I/O packs with different channel densities. Core modules typically offer enhanced diagnostic capabilities and newer firmware features. Both integrate within Mark VIe systems but serve different architectural roles—core modules for centralized processing, I/O packs for distributed field I/O.

Can this module operate in non-redundant control systems?
Absolutely. The IS230PCAAH1B supports both simplex (single-module) and TMR (triple-redundant) configurations. Simplex mode is cost-effective for non-critical monitoring applications or smaller turbines. For critical power generation assets, TMR architecture provides fault tolerance and online maintenance capability.

Which terminal boards are required for field wiring?
The module interfaces with Mark VIe terminal boards including the IS200STAIH1A for analog inputs and IS200STAOH1A for analog outputs. Terminal board selection depends on signal types, channel count, and redundancy requirements. Consult your system configuration documentation or contact our engineering team for specific recommendations.

What software is needed to configure signal types and scaling?
Configuration is performed using GE's Mark VIe ToolboxST software during commissioning. Each channel can be individually configured for voltage, current, RTD, or thermocouple inputs with custom scaling, filtering, and alarm setpoints. Configuration changes require proper authorization levels and should be documented in your system configuration management database.

What diagnostic information does the module provide?
The IS230PCAAH1B performs continuous self-diagnostics including power supply health, backplane communication integrity, individual channel status, and out-of-range detection. Diagnostic data is accessible via the Mark VIe HMI and can trigger alarms, initiate redundancy switchovers in TMR systems, or generate maintenance work orders through integrated CMMS systems.

Is online module replacement possible during turbine operation?
In TMR configurations, hot-swap capability allows module replacement without process interruption—the two remaining modules maintain control while the faulty module is replaced. Simplex systems require controlled shutdown for module replacement. Always follow site-specific safety procedures, lockout/tagout protocols, and obtain proper authorization before performing maintenance.
