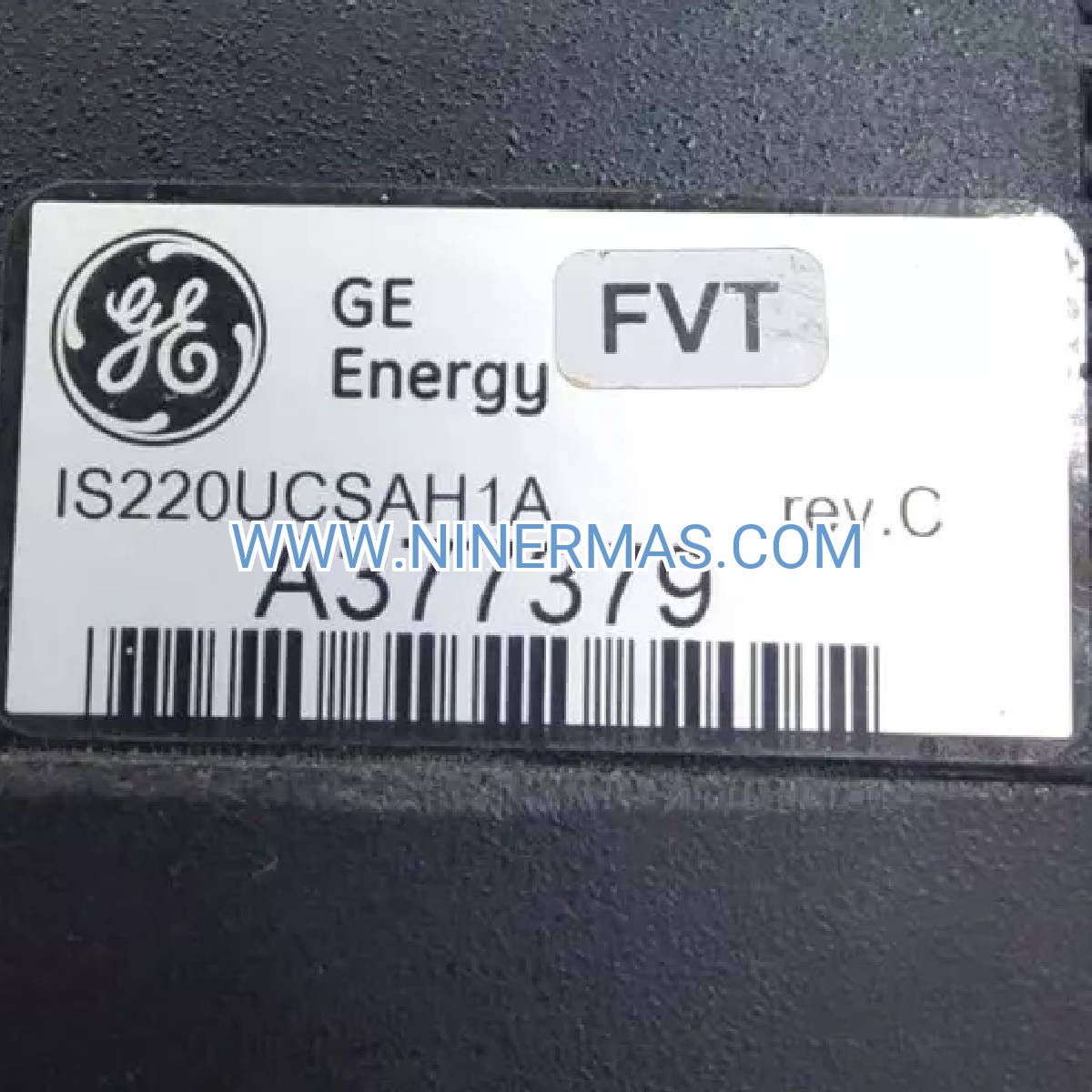

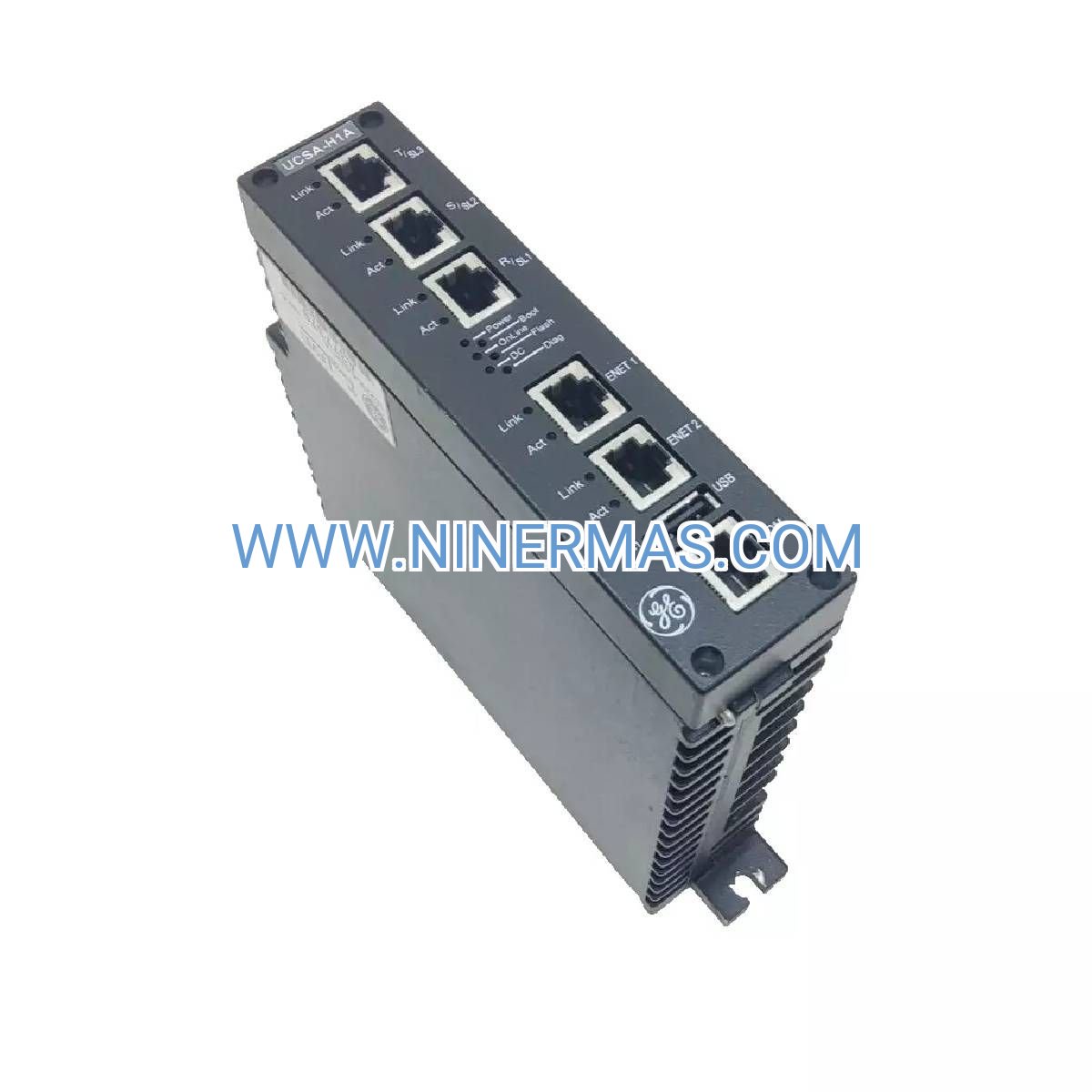

IS220UCSAH1A-C Industrial TMR Controller for Mark VIe Systems

The GE IS220UCSAH1A-C represents a mission-critical embedded controller designed specifically for Mark VIe distributed turbine control architectures. Built on triple modular redundant (TMR) processing technology, this controller executes real-time application logic for gas turbine operations across power generation, oil & gas, and industrial manufacturing sectors. Its fault-tolerant design ensures continuous operation even during component failures, making it the backbone of high-availability turbine control systems where downtime translates to significant revenue loss.

Engineered for harsh industrial environments, the IS220UCSAH1A-C operates reliably across temperature extremes from -30°C to +65°C while maintaining precise control algorithms. The module integrates seamlessly into existing Mark VIe ecosystems, communicating via Ethernet and IONet protocols to coordinate with I/O packs, power supplies, and protection systems. Whether you're managing a single turbine or orchestrating multi-unit installations, this controller delivers the processing power and redundancy required for 24/7 industrial operations.

With CE, UL, and CSA certifications, the IS220UCSAH1A-C meets global safety standards for deployment in Class I Division 2 hazardous locations when properly enclosed. Its hot-swap capability enables maintenance without system shutdown, minimizing operational disruptions while maximizing asset availability.

Core Features & Benefits

✓ Triple Modular Redundancy (TMR) Architecture
Three parallel processors vote on every control decision, automatically isolating faulty modules while maintaining uninterrupted operation. This design eliminates single points of failure and achieves 99.99% uptime in critical turbine control applications.

✓ Real-Time Control Processing
Executes complex control algorithms with deterministic response times under 10ms, ensuring precise turbine speed regulation, load management, and protection sequencing. Supports up to 256 I/O points per controller for comprehensive system monitoring.

✓ Hot-Swap Maintenance Capability
Replace failed modules during operation without halting turbine processes. The TMR voting mechanism maintains control integrity while technicians service individual processor cards, reducing mean time to repair (MTTR) by 75% compared to non-redundant systems.

✓ Industrial-Grade Environmental Tolerance
Operates continuously in temperatures from -30°C to +65°C with 5-95% humidity tolerance. Vibration-resistant construction withstands the mechanical stresses of turbine hall installations, ensuring reliable performance in offshore platforms and desert power plants alike.

✓ Multi-Protocol Communication
Dual Ethernet ports provide redundant network connectivity for SCADA integration, while IONet interfaces enable high-speed data exchange with distributed I/O modules at 100 Mbps. Supports Modbus TCP, OPC UA, and proprietary GE protocols for third-party system integration.

✓ Low Power Consumption Design
15W maximum power draw reduces cooling requirements and enables deployment in power-constrained installations. 24 VDC operation simplifies integration with standard industrial power distribution systems.

Application Scenarios

→ Combined Cycle Power Plants
Manages gas turbine startup sequences, load ramping, and synchronization with steam turbines in CCGT facilities. The TMR controller coordinates fuel valve positioning, inlet guide vane control, and emissions monitoring to optimize thermal efficiency while meeting grid frequency requirements. Typical installations control 50-500 MW turbines with sub-second response to load dispatch commands.

→ Offshore Oil & Gas Platforms
Controls compression turbines for natural gas processing in corrosive marine environments. The controller's sealed enclosure rating and extended temperature range ensure reliable operation despite salt spray, humidity, and temperature fluctuations. Integrates with platform safety systems for emergency shutdown coordination and flare gas management.

→ Petrochemical Refinery Operations
Regulates turbine-driven compressors and pumps in continuous process units where unplanned shutdowns cascade into multi-million dollar losses. The IS220UCSAH1A-C's redundancy eliminates control system failures as a shutdown cause, while its real-time processing maintains tight process variable control for product quality consistency.

→ LNG Carrier Propulsion Systems
Provides primary control for dual-fuel gas turbines in marine propulsion applications. Manages fuel switching between heavy fuel oil and boil-off gas while maintaining constant shaft speed for propeller drive. The controller's vibration tolerance and compact form factor suit shipboard installations with limited space and high mechanical stress.

→ Industrial Cogeneration Facilities
Coordinates turbine operation with thermal load demands in manufacturing plants requiring both electricity and process steam. The controller balances electrical output against steam production, optimizing fuel consumption while responding to dynamic production schedules. Interfaces with building management systems for integrated energy management.

Technical Parameters & Selection Guide

Selection Criteria:

1. System Architecture Requirements
Choose the IS220UCSAH1A-C for new Mark VIe installations or when upgrading Mark VI systems requiring enhanced processing power. For simplex (non-redundant) applications with lower criticality, consider single-processor alternatives. For ultra-high reliability applications (nuclear, aerospace), specify full TMR configuration with redundant power supplies and I/O.

2. Environmental Conditions
Verify ambient temperature ranges at installation site. For extreme environments exceeding 65°C, specify additional cooling or environmental enclosures. Offshore and marine applications should include conformal coating option for enhanced corrosion resistance.

3. I/O Point Count
Each controller supports up to 256 I/O points. Calculate total analog inputs, digital inputs, analog outputs, and digital outputs required for your turbine control strategy. For systems exceeding 256 points, deploy multiple controllers in distributed architecture.

4. Communication Requirements
Ensure compatibility with existing SCADA systems and HMI platforms. The controller supports Modbus TCP, OPC UA, and GE proprietary protocols. For integration with non-GE DCS systems, verify protocol licensing and gateway requirements.

Extended Functions

Advanced Diagnostics & Predictive Maintenance
The IS220UCSAH1A-C includes embedded diagnostic routines that continuously monitor processor health, memory integrity, and communication link status. Built-in event logging captures fault sequences with microsecond timestamps, enabling root cause analysis of transient issues. When integrated with GE's Asset Performance Management (APM) software, the controller streams operational data for predictive analytics, identifying degradation trends before failures occur.

Cybersecurity Features
Firmware includes role-based access control (RBAC), encrypted communication channels, and audit logging to meet IEC 62443 industrial cybersecurity standards. Supports secure boot verification and digitally signed firmware updates to prevent unauthorized code execution. Network segmentation capabilities isolate control networks from enterprise IT infrastructure.

Custom Application Programming
Developers can create custom control algorithms using GE's ToolboxST programming environment, which supports IEC 61131-3 languages including ladder logic, function block diagrams, and structured text. The controller's real-time operating system provides deterministic execution with priority-based task scheduling for complex multi-loop control strategies.

Remote Monitoring & Configuration
Integrate with GE's Digital Power Plant platform for cloud-based remote monitoring, enabling turbine performance tracking from centralized operations centers. Supports secure VPN connections for remote firmware updates and configuration changes, reducing site visit requirements by up to 60%.

Delivery & Service Assurance

Lead Times:

• Standard Units: In-stock controllers ship within 1-3 business days via express courier (DHL, FedEx, UPS)
• Custom Configurations: Factory-programmed units with customer-specific firmware require 2-4 weeks
• Bulk Orders: Quantities exceeding 10 units may require 4-6 weeks depending on production schedules

Warranty Coverage:
All IS220UCSAH1A-C controllers include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes free replacement of failed modules and return shipping costs. Extended warranty programs available for 24, 36, and 60-month terms with optional advance replacement service.

Technical Support:

• 24/7 emergency hotline for critical system failures
• Installation guidance and startup commissioning assistance
• Configuration file backup and recovery services
• Firmware upgrade planning and execution support
• On-site field service available in 48 hours for premium support customers

Documentation Package:
Each controller ships with installation manual, wiring diagrams, configuration software license, and calibration certificates. Digital documentation library includes application notes, troubleshooting guides, and integration examples for common turbine models.

Frequently Asked Questions

Q: Can the IS220UCSAH1A-C integrate with legacy Mark VI control systems?
A: Yes, the controller supports hybrid Mark VI/VIe configurations through compatible terminal boards and interface modules. This enables phased migration strategies where Mark VIe controllers gradually replace Mark VI components while maintaining system interoperability. Consult GE's migration guides for specific compatibility matrices based on your existing hardware revision levels.

Q: What is the maximum I/O expansion capacity for this controller?
A: Each IS220UCSAH1A-C supports up to 256 I/O points through distributed I/O packs connected via IONet. For larger systems, deploy multiple controllers in a networked architecture where each manages a subset of turbine functions (e.g., one for combustion control, another for auxiliaries). The Mark VIe platform supports up to 18 controllers per turbine in complex installations.

Q: Does this module support online firmware updates without system shutdown?
A: The TMR architecture enables online firmware updates when configured in redundant mode. The update process sequentially upgrades each of the three processors while the remaining two maintain control. However, GE recommends scheduling firmware updates during planned maintenance windows to minimize risk, particularly for critical turbine protection functions.

Q: How does the controller perform in high-vibration environments like offshore platforms?
A: The IS220UCSAH1A-C meets IEC 60068-2-6 vibration specifications for industrial equipment, withstanding 2G acceleration across 10-150 Hz frequency ranges. For extreme vibration environments, mount the controller in shock-isolated enclosures and use locking connectors for all cable terminations. Offshore installations should specify conformal coating for enhanced moisture and salt spray resistance.

Q: What communication protocols are supported for SCADA integration?
A: Native support includes Modbus TCP, OPC UA, and GE's proprietary SRTP protocol. Third-party SCADA systems from Siemens, ABB, Schneider Electric, and Emerson integrate via OPC UA gateways. For legacy systems using Modbus RTU or DNP3, external protocol converters are required. Consult your SCADA vendor for certified integration configurations.

Q: Are there any export restrictions for international shipments?
A: The IS220UCSAH1A-C is subject to U.S. export control regulations (EAR) and may require export licenses for certain countries. NINERMAS handles export documentation for most destinations, but customers should verify import regulations in their jurisdiction. Typical customs classification is HS Code 8537.10.90 for programmable controllers.

Ready to Upgrade Your Turbine Control System?

The GE IS220UCSAH1A-C delivers the redundancy, processing power, and environmental resilience required for mission-critical turbine control applications. Whether you're building a new power plant, upgrading aging Mark VI systems, or expanding existing Mark VIe installations, this TMR controller provides the foundation for reliable, high-performance turbine operations.
