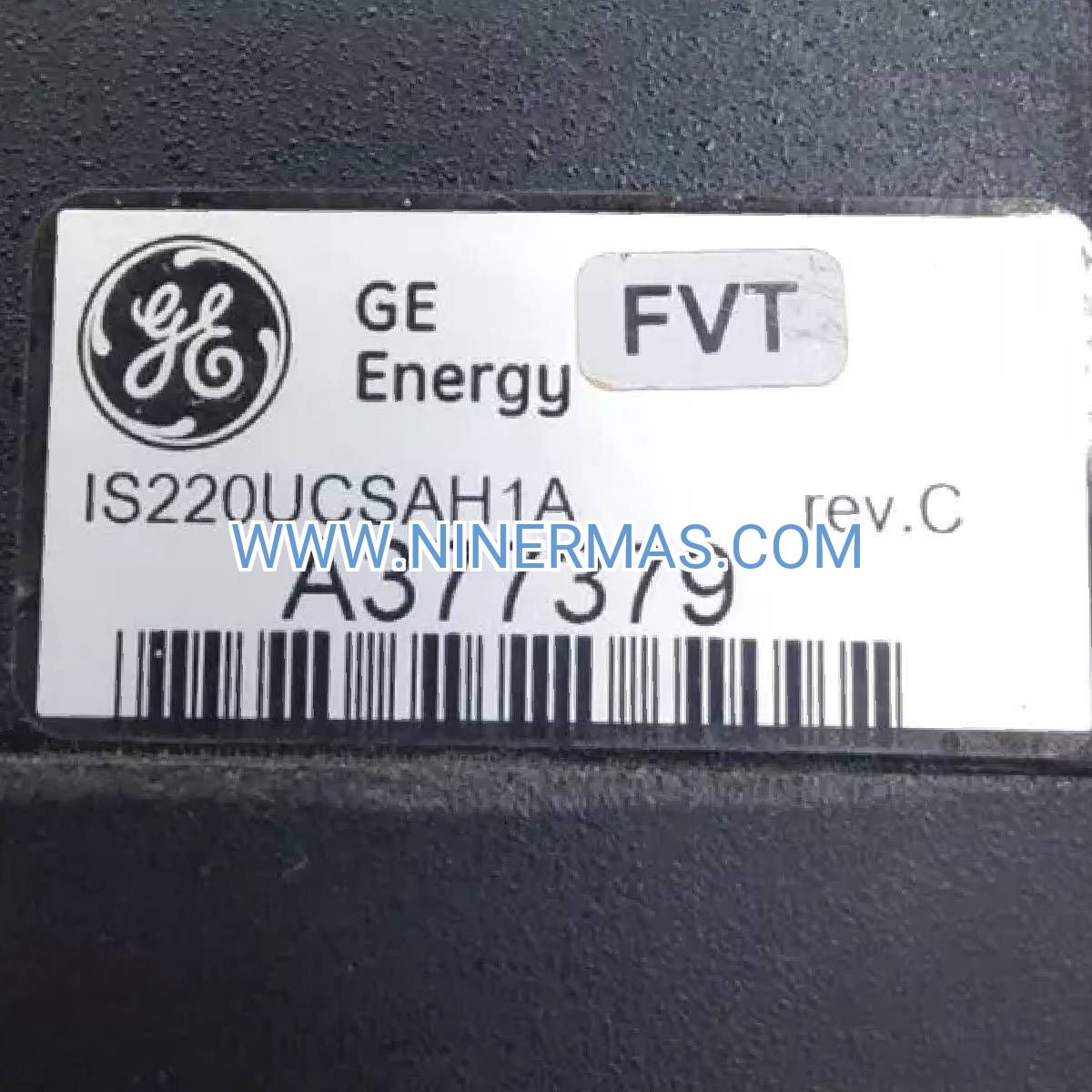

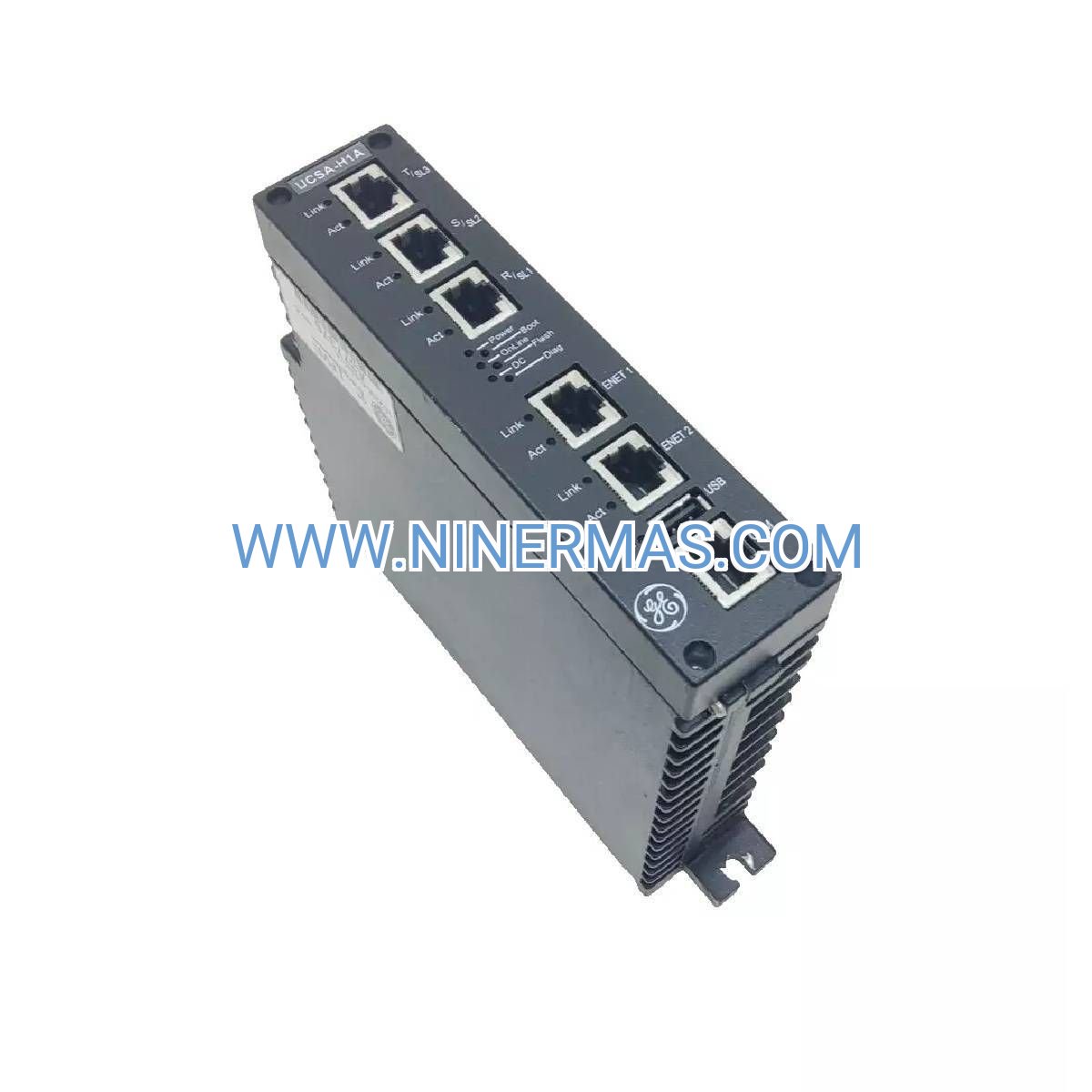

IS220UCSAH1A-C Triple Modular Redundant Controller (Industrial-Grade Mark VIe Platform)

The GE IS220UCSAH1A-C represents a mission-critical processing core within distributed gas turbine control architectures. Engineered for the Mark VIe platform, this TMR (Triple Modular Redundant) controller executes real-time application logic, manages I/O synchronization, and delivers fault-tolerant operation in power generation, oil & gas compression, and marine propulsion environments where unplanned downtime translates to significant revenue loss.

Designed for system integrators and plant engineers managing GE turbomachinery assets, the IS220UCSAH1A-C provides deterministic control loop execution with sub-millisecond response times. Its redundant processing architecture ensures continuous operation even during component-level failures, making it the preferred choice for critical infrastructure applications requiring 99.99%+ availability.

Key differentiators include native IONet protocol support for high-speed I/O communication, hot-swappable design for zero-downtime maintenance, and seamless integration with legacy Mark VI terminal boards—enabling cost-effective system modernization without complete platform replacement.

Core Capabilities & Business Value

→ Triple Modular Redundancy (TMR) Architecture
Three independent processors execute identical control logic simultaneously, with voting logic ensuring fault masking. Eliminates single points of failure while maintaining control integrity during hardware faults—critical for applications where safety shutdowns cost $50K-$500K per incident.

→ Real-Time Deterministic Processing
Guaranteed 10ms control loop execution with <5μs jitter ensures precise fuel valve positioning, vibration monitoring, and temperature regulation. Prevents combustion instability and mechanical damage in high-speed turbomachinery operating at 3,000-15,000 RPM.

→ Hot-Swappable Maintenance Capability
Online module replacement without system shutdown reduces maintenance windows from 8-12 hours to under 15 minutes. Particularly valuable for peaking power plants and offshore platforms where maintenance access is constrained by weather windows or grid demand.

✓ Multi-Protocol Communication Stack
Dual Ethernet ports support Modbus TCP, OPC UA, and proprietary IONet for integration with SCADA systems, historian databases, and third-party PLCs. Enables centralized monitoring across multi-site turbine fleets without vendor lock-in.

✓ Extended Environmental Tolerance
Operates reliably in -30°C to +65°C ambient conditions with 95% humidity resistance. Proven performance in desert solar-hybrid plants, arctic gas compression stations, and tropical offshore installations where conventional controllers require costly climate control.

✓ Backward Compatibility with Mark VI Infrastructure
Interfaces directly with IS200-series terminal boards and I/O packs, protecting existing wiring investments during control system upgrades. Reduces migration costs by 40-60% compared to complete system replacements.

Industrial Application Scenarios

Combined Cycle Power Plants (CCPP)
Challenge: Coordinating gas turbine, steam turbine, and HRSG operations requires microsecond-level synchronization to optimize thermal efficiency and prevent equipment damage during load transitions.
Solution: The IS220UCSAH1A-C manages multi-turbine sequencing, load sharing algorithms, and emissions control while maintaining grid frequency stability. Typical installations achieve 58-62% thermal efficiency with <25ppm NOx emissions.

Offshore Oil & Gas Platforms
Challenge: Compression turbines operating in corrosive marine environments demand fault-tolerant control with minimal maintenance access. Unplanned shutdowns disrupt production and incur $100K-$1M daily losses.
Solution: TMR architecture ensures continuous operation during salt-fog exposure and vibration. Conformal coating and sealed connectors extend MTBF to >150,000 hours in offshore service.

Petrochemical Refinery Cogeneration
Challenge: Process steam demand fluctuates 30-70% hourly, requiring rapid turbine load adjustments without compromising combustion stability or catalyst bed temperatures.
Solution: Adaptive control algorithms adjust fuel flow, inlet guide vanes, and bleed valves in coordinated sequences. Maintains ±2°C steam temperature tolerance while reducing fuel consumption by 8-12% versus fixed-setpoint control.

LNG Carrier Propulsion Systems
Challenge: Dual-fuel turbines switching between HFO and boil-off gas require seamless fuel transition logic to prevent flameout during ocean transit.
Solution: The controller manages fuel crossover sequences, purge cycles, and combustion monitoring with <500ms transition times. Supports IMO Tier III emissions compliance through precise air-fuel ratio control.

District Heating & CHP Facilities
Challenge: Seasonal heat demand variations (10:1 summer-to-winter ratios) require turbine operation across 20-100% load ranges while maintaining electrical grid synchronization.
Solution: Variable geometry control and extraction steam regulation optimize efficiency across the operating envelope. Integrated economic dispatch algorithms minimize fuel costs based on real-time electricity and heat pricing.

Technical Parameters & Selection Criteria

Sizing Guidelines: For single gas turbines (5-50 MW), one IS220UCSAH1A-C typically suffices. Multi-turbine plants or combined cycle configurations may require 2-4 controllers in distributed architectures. Consult I/O point counts, control loop complexity, and redundancy requirements when specifying quantities.

Advanced Integration & Customization

IoT & Predictive Maintenance Connectivity
Native OPC UA server functionality enables direct integration with cloud-based analytics platforms (AWS IoT, Azure Industrial IoT, GE Predix). Stream vibration signatures, thermal profiles, and performance metrics for machine learning-based anomaly detection—reducing unplanned outages by 30-50% through early fault prediction.

Cybersecurity Hardening Options
Supports role-based access control (RBAC), encrypted Ethernet communication (TLS 1.2), and audit logging compliant with NERC CIP / IEC 62443 standards. Optional firewall modules isolate control networks from enterprise IT infrastructure.

Custom Control Algorithm Development
ToolSuite software (sold separately) allows implementation of proprietary control strategies in IEC 61131-3 languages (Ladder, Structured Text, Function Block). Ideal for research institutions and OEMs developing differentiated turbine control IP.

Delivery, Warranty & Technical Support

Lead Times:
→ Stock units (standard firmware): 1-3 business days to dispatch
→ Custom firmware loads: 5-7 business days
→ Refurbished/tested units: 7-10 business days
→ Expedited shipping available for emergency outages (24-48 hour delivery to major hubs)

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Warranty includes advance replacement service—receive swap unit before returning defective module to minimize downtime. Extended 36-month warranties available for new installations.

Technical Support Services:
→ 24/7 emergency hotline for critical system failures
→ Remote diagnostics via secure VPN connection
→ On-site commissioning assistance (quoted separately)
→ Firmware upgrade planning and execution support
→ Comprehensive documentation package: installation manual, wiring diagrams, configuration templates, troubleshooting flowcharts

Frequently Asked Questions

How does the TMR voting mechanism handle processor disagreements during operation?
The controller employs majority voting logic—if one of three processors produces a divergent output, the system uses the two agreeing values and flags a diagnostic alarm. Control continues uninterrupted while maintenance is scheduled. If two processors fail (extremely rare), the system can operate in simplex mode with reduced fault tolerance until repairs are completed.

What is the maximum distance between the controller and remote I/O racks using IONet?
IONet fiber optic links support up to 10 km between controller and I/O packs, enabling distributed architectures where control rooms are separated from turbine enclosures. Copper Ethernet connections are limited to 100 meters per standard but can be extended using industrial switches.

Can this controller interface with non-GE turbine instrumentation and actuators?
Yes—the Mark VIe platform supports industry-standard 4-20mA analog signals, discrete I/O, thermocouples (Types J/K/T/E), RTDs (Pt100/Pt1000), and Modbus devices. Third-party vibration probes, flow meters, and valve positioners integrate seamlessly when paired with appropriate I/O modules.

What cybersecurity certifications does the IS220UCSAH1A-C hold for critical infrastructure deployment?
The controller meets IEC 62443-4-2 (component security requirements) and supports NERC CIP compliance when configured with recommended network segmentation. Firmware undergoes regular vulnerability assessments, with security patches released quarterly. For classified or high-security applications, air-gapped configurations eliminate external network exposure.

How do I migrate control logic from an older Mark VI system to this Mark VIe controller?
GE ToolSuite software includes a Mark VI-to-VIe conversion utility that translates legacy application code with 85-95% automation. Remaining manual adjustments typically involve I/O mapping updates and communication protocol changes. Budget 40-80 engineering hours for a typical single-turbine migration, including simulation testing and commissioning validation.

What environmental qualifications support deployment in hazardous area classifications?
When installed in NEMA 4X / IP66-rated enclosures with proper purge systems, the controller operates safely in Class I Division 2 (Zone 2) environments. For Zone 1 applications, consult factory-certified intrinsically safe barrier configurations. All units carry CE, UL, and CSA certifications for industrial machinery applications.

Ready to Optimize Your Turbine Control System?

Whether you're upgrading aging Mark VI infrastructure, expanding existing Mark VIe installations, or designing new turbine control architectures, the IS220UCSAH1A-C delivers proven reliability backed by decades of GE engineering expertise. Our applications team can assist with system sizing, I/O configuration planning, and integration roadmaps tailored to your operational requirements.

Request a technical consultation: Share your turbine model, control objectives, and site constraints for customized recommendations. Bulk pricing available for multi-unit projects and fleet-wide standardization programs.
