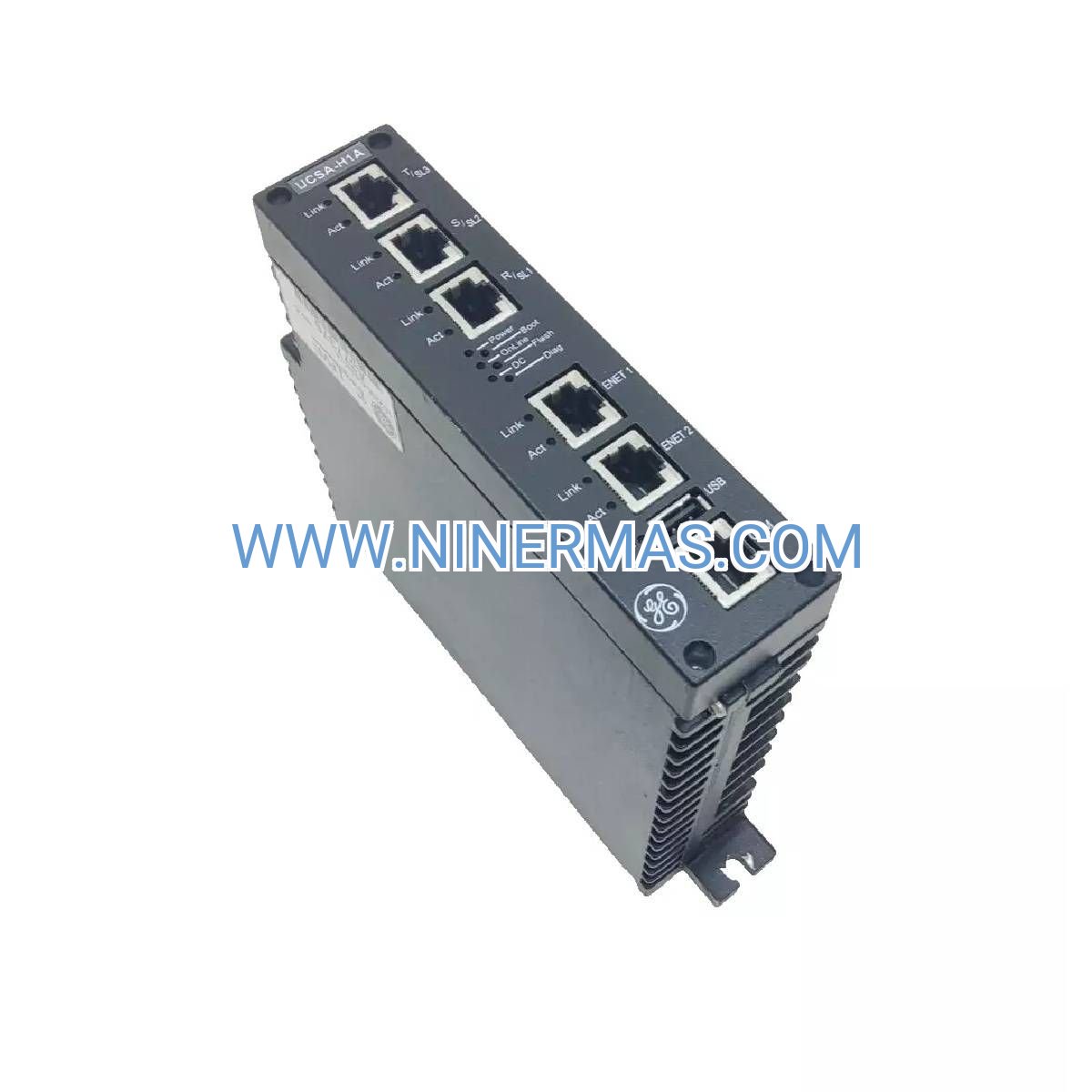

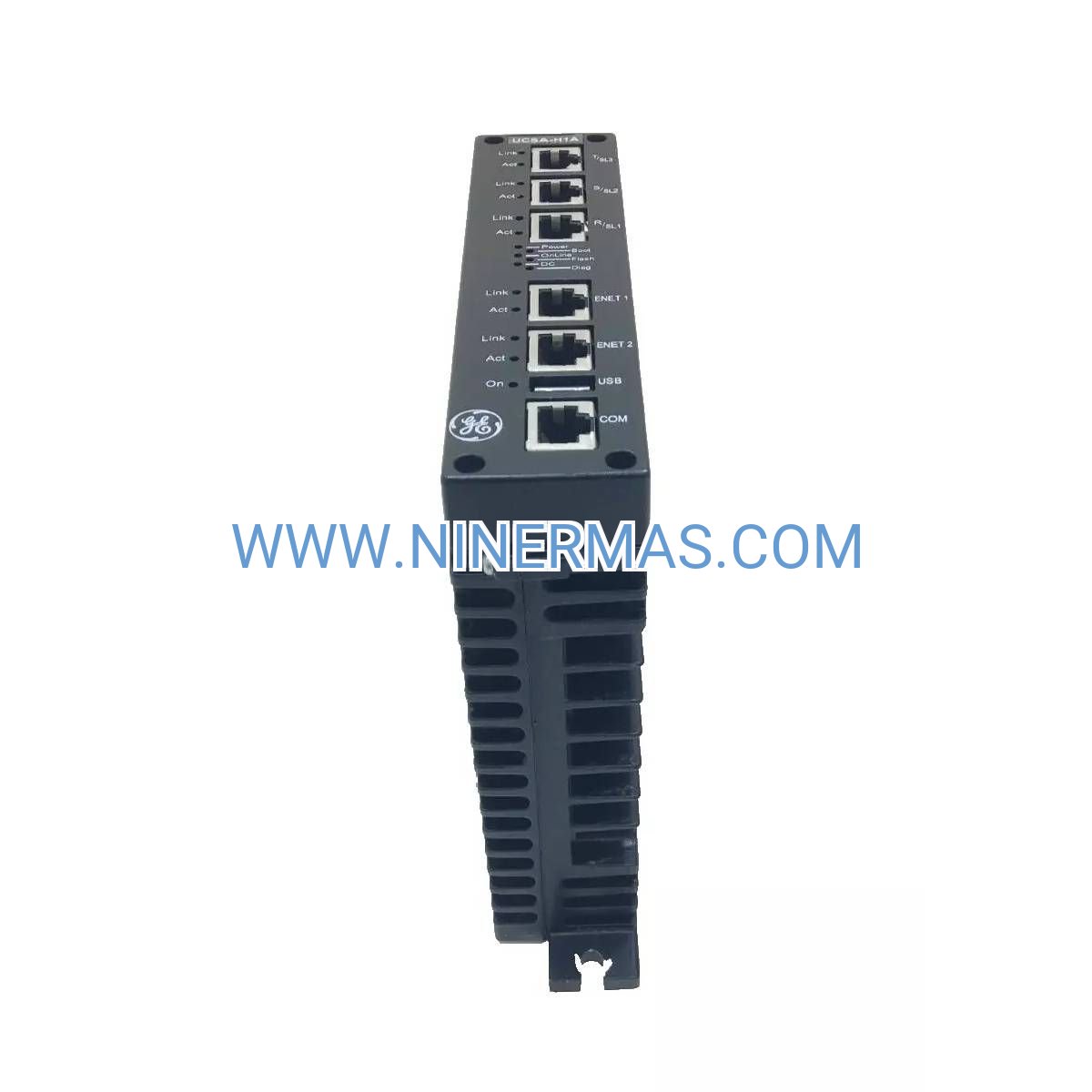

IS220UCSAH1 Triple Modular Redundant Controller (Industrial-Grade Mark VIe Platform)

The IS220UCSAH1 serves as a mission-critical embedded processing unit within GE's Mark VIe Speedtronic turbine control ecosystem, engineered to deliver fault-tolerant automation for gas turbines, steam turbines, and combined-cycle power generation facilities. Built on Triple Modular Redundant (TMR) architecture, this controller guarantees continuous operation through voting logic that maintains system integrity even when individual processing channels experience faults.

Designed for power plant operators and system integrators who demand maximum availability, the IS220UCSAH1 eliminates single points of failure while providing deterministic real-time performance for critical control loops. Its hot-swappable design enables maintenance activities without production interruption, reducing operational risk and maintenance costs across the asset lifecycle.

With proven reliability in harsh industrial environments ranging from -30°C to +65°C, this embedded controller integrates seamlessly into existing Mark VIe control architectures, supporting modernization initiatives and greenfield installations alike. Advanced self-diagnostics and comprehensive fault reporting enable predictive maintenance strategies that maximize turbine availability.

Core Capabilities & Business Value

→ Fault-Tolerant TMR Architecture
Three independent processing channels execute control algorithms simultaneously, with voting logic comparing outputs to detect and isolate faults. This redundancy delivers 99.99% system availability, preventing costly unplanned shutdowns that can exceed $1M per incident in utility-scale power generation.

✓ Deterministic Real-Time Processing
Guaranteed response times ensure precise turbine control during transient conditions such as load changes, grid disturbances, and startup sequences. Predictable execution cycles enable advanced control strategies that optimize fuel efficiency and reduce emissions compliance risk.

✓ Hot-Swap Maintenance Capability
Replace controller modules during operation without process interruption in redundant configurations. This capability reduces maintenance windows by 75% compared to systems requiring full shutdowns, translating to millions in preserved revenue for baseload generation assets.

✓ Multi-Protocol Communication
Native support for Ethernet, IONet, and SNET protocols enables integration with distributed I/O systems, HMI platforms, and plant-wide SCADA networks. Standardized interfaces reduce engineering costs and accelerate commissioning timelines.

✓ Extended Environmental Ratings
Operates reliably across -30°C to +65°C temperature ranges without derating, suitable for outdoor installations, desert climates, and arctic conditions. Conformal coating and industrial-grade components ensure 15+ year service life in corrosive atmospheres.

✓ Comprehensive Self-Diagnostics
Continuous background testing monitors processor health, memory integrity, and communication paths. Early fault detection enables condition-based maintenance that reduces spare parts inventory costs by 40% while improving mean time between failures (MTBF).

Industrial Application Scenarios

Combined-Cycle Power Plants
In natural gas combined-cycle facilities, the IS220UCSAH1 coordinates combustion control, emissions monitoring, and load dispatch functions across multiple gas turbines. The TMR architecture ensures grid stability during peak demand periods when forced outages carry severe financial penalties. Operators achieve NOx emissions compliance within 5 ppm while maximizing fuel efficiency through closed-loop combustion optimization.

Steam Turbine Governor Systems
For steam turbine applications, this controller manages governor valve positioning, extraction pressure control, and overspeed protection with microsecond precision. Integration with vibration monitoring systems enables automated rundown sequences that protect bearing assemblies during abnormal conditions, preventing catastrophic failures that require 6-12 month repair cycles.

Cogeneration & District Heating
Industrial cogeneration plants leverage the IS220UCSAH1 to balance electrical generation with thermal energy delivery, optimizing economic dispatch based on real-time steam demand and electricity pricing. The controller's multi-loop coordination capabilities reduce fuel consumption by 8-12% compared to legacy single-loop systems.

Renewable Hybrid Systems
Wind-solar-gas hybrid installations use this embedded controller for rapid load-following that compensates for renewable intermittency. Sub-second response times enable gas turbines to ramp from 20% to 100% load within 10 minutes, providing grid services that command premium capacity payments.

Legacy System Modernization
Retrofit projects upgrading Mark V or Mark VI platforms to Mark VIe standards utilize the IS220UCSAH1 as a drop-in replacement for obsolete controllers. Migration paths preserve existing I/O infrastructure while gaining access to modern cybersecurity features, remote diagnostics, and IEC 61131-3 programming environments that reduce engineering costs by 30%.

Technical Parameters & Selection Criteria

Configuration Selection Guide: For applications requiring maximum availability (power generation, critical infrastructure), specify TMR configuration with three IS220UCSAH1 modules. Dual redundancy configurations are suitable for non-critical auxiliary systems. Simplex installations are limited to test benches and non-safety applications.

Advanced Integration Capabilities

Cybersecurity Hardening
The IS220UCSAH1 incorporates role-based access control, encrypted communication channels, and secure boot mechanisms that align with NERC CIP and IEC 62443 industrial cybersecurity standards. Firmware authentication prevents unauthorized code execution, while audit logging provides forensic capabilities for compliance reporting.

Condition Monitoring Integration
Native interfaces to vibration sensors, temperature transmitters, and pressure transducers enable real-time asset health monitoring. Embedded algorithms detect bearing wear, combustion instability, and thermal degradation patterns 30-60 days before failure thresholds, optimizing maintenance scheduling.

Remote Diagnostics & Support
Secure VPN connectivity enables OEM technical support teams to perform remote troubleshooting, firmware updates, and performance optimization without site visits. This capability reduces mean time to repair (MTTR) by 60% for geographically distributed assets.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units with factory-sealed packaging and full traceability documentation
Custom Configurations: 2-3 weeks for application-specific firmware loads or special testing requirements
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, with optional extended service agreements available
Technical Support: Lifetime application engineering support including integration guidance, troubleshooting assistance, and configuration optimization
Documentation Package: Installation manual, wiring diagrams, ToolboxST configuration files, and compliance certificates included with every shipment

Frequently Asked Questions

How does the IS220UCSAH1 compare to legacy Mark VI controllers in terms of processing power?
The IS220UCSAH1 delivers 4-5x the computational throughput of Mark VI VCMI controllers, enabling more sophisticated control algorithms such as model predictive control (MPC) and advanced emissions optimization. Migration from Mark VI to Mark VIe typically reduces control loop scan times from 10ms to 2ms, improving transient response and stability margins.

What programming languages are supported for application development?
The controller operates within GE's ToolboxST development environment, supporting all five IEC 61131-3 languages: Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Instruction List (IL), and Sequential Function Chart (SFC). Most turbine control applications utilize FBD for its graphical representation of control logic.

Can I perform online firmware updates without shutting down the turbine?
Yes, in TMR configurations the voting architecture allows sequential module updates while maintaining full control authority. The update process takes approximately 15 minutes per module, with automatic synchronization ensuring all three channels run identical firmware versions upon completion.

What network bandwidth is required for optimal performance?
The IS220UCSAH1 requires 100 Mbps Ethernet connectivity for real-time I/O communication and 10 Mbps for HMI/SCADA interfaces. For distributed control architectures spanning multiple turbines, gigabit backbone networks are recommended to prevent communication latency during simultaneous data logging and remote access sessions.

How do I size the 24V DC power supply for a TMR controller configuration?
Each IS220UCSAH1 module draws approximately 15W at nominal load. For a TMR configuration (three modules), specify redundant 24V DC power supplies rated for minimum 60W continuous output with 100% overload capacity. Power distribution boards should include individual circuit protection and voltage monitoring for each controller channel.

What is the recommended spare parts strategy for critical installations?
For single-turbine installations, maintain one spare IS220UCSAH1 module for emergency replacement. Multi-turbine facilities should stock spares at a ratio of 1:5 (one spare per five installed modules) based on MTBF statistics. Modules have unlimited shelf life when stored in climate-controlled environments (15-30°C, <70% RH).

Get Expert Guidance for Your Turbine Control Project

Selecting the optimal controller configuration requires analysis of your specific application requirements, redundancy needs, and integration constraints. Our application engineering team provides complimentary system architecture reviews, helping you balance performance, reliability, and lifecycle costs.

Contact our turbine control specialists today:
? Email: sale@ninermas.com
? Phone: +0086 187 5021 5667
? Technical Resources: https://ninermas.com

Request a detailed specification comparison, integration checklist, or custom quotation for your Mark VIe modernization project. Same-day response guaranteed for all technical inquiries.
