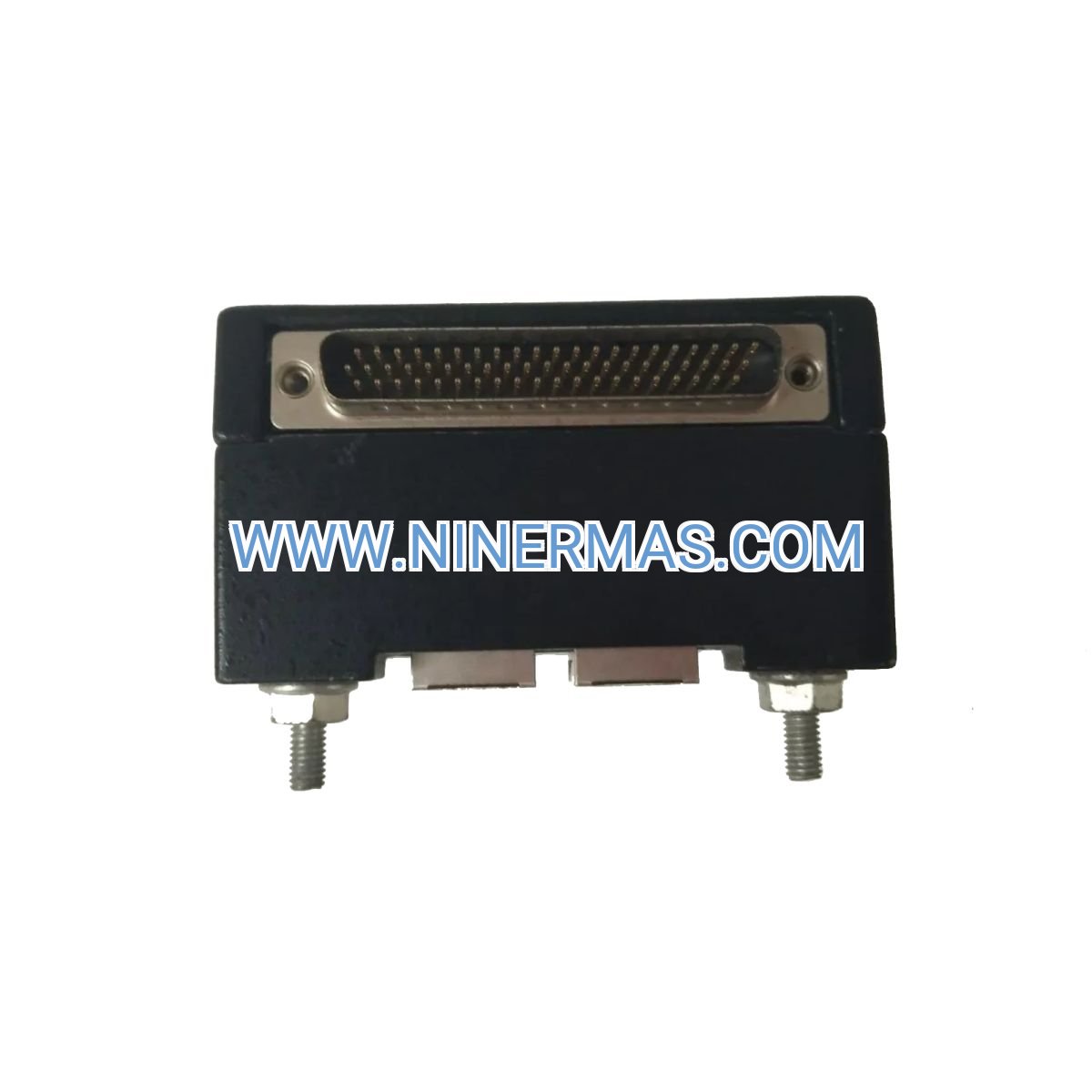

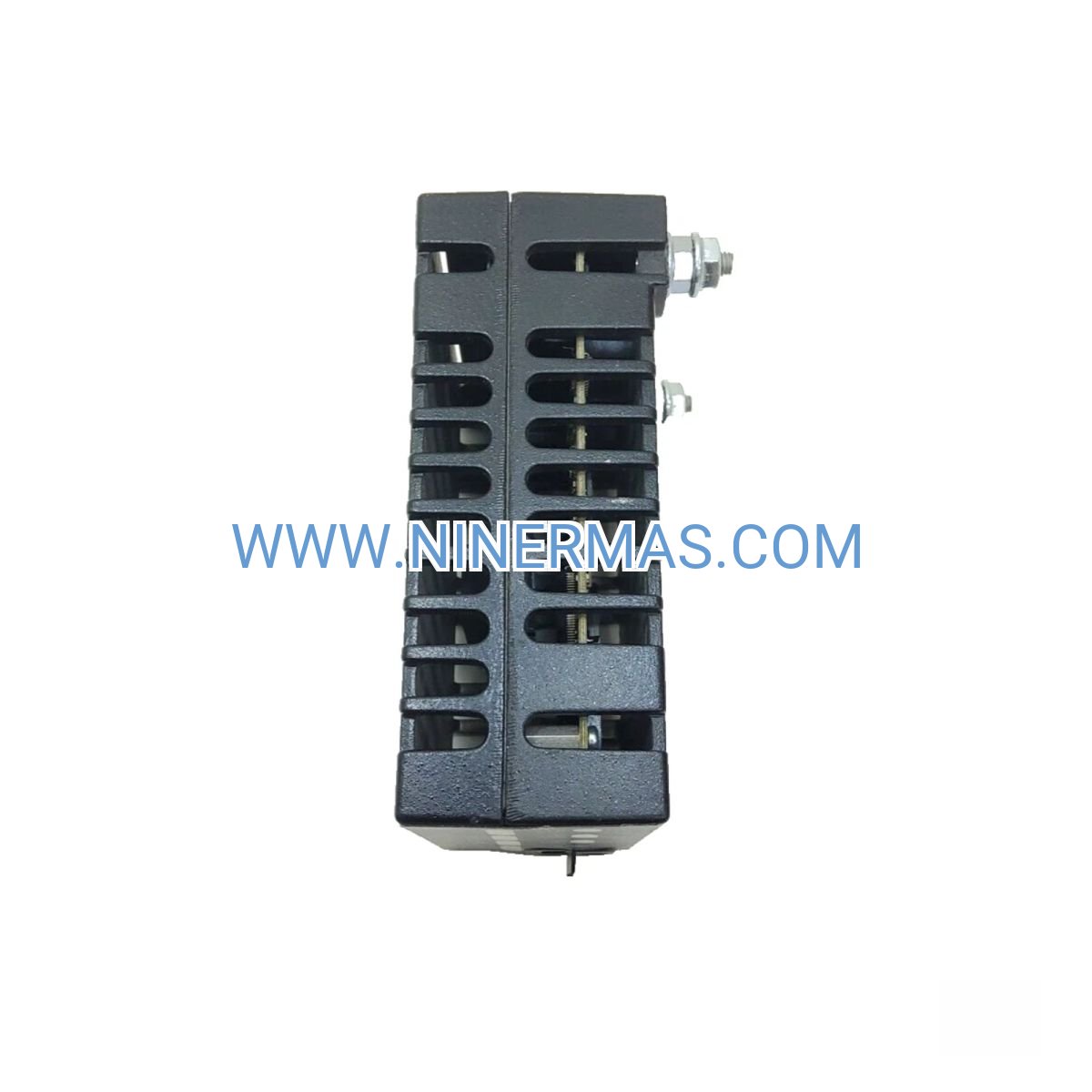

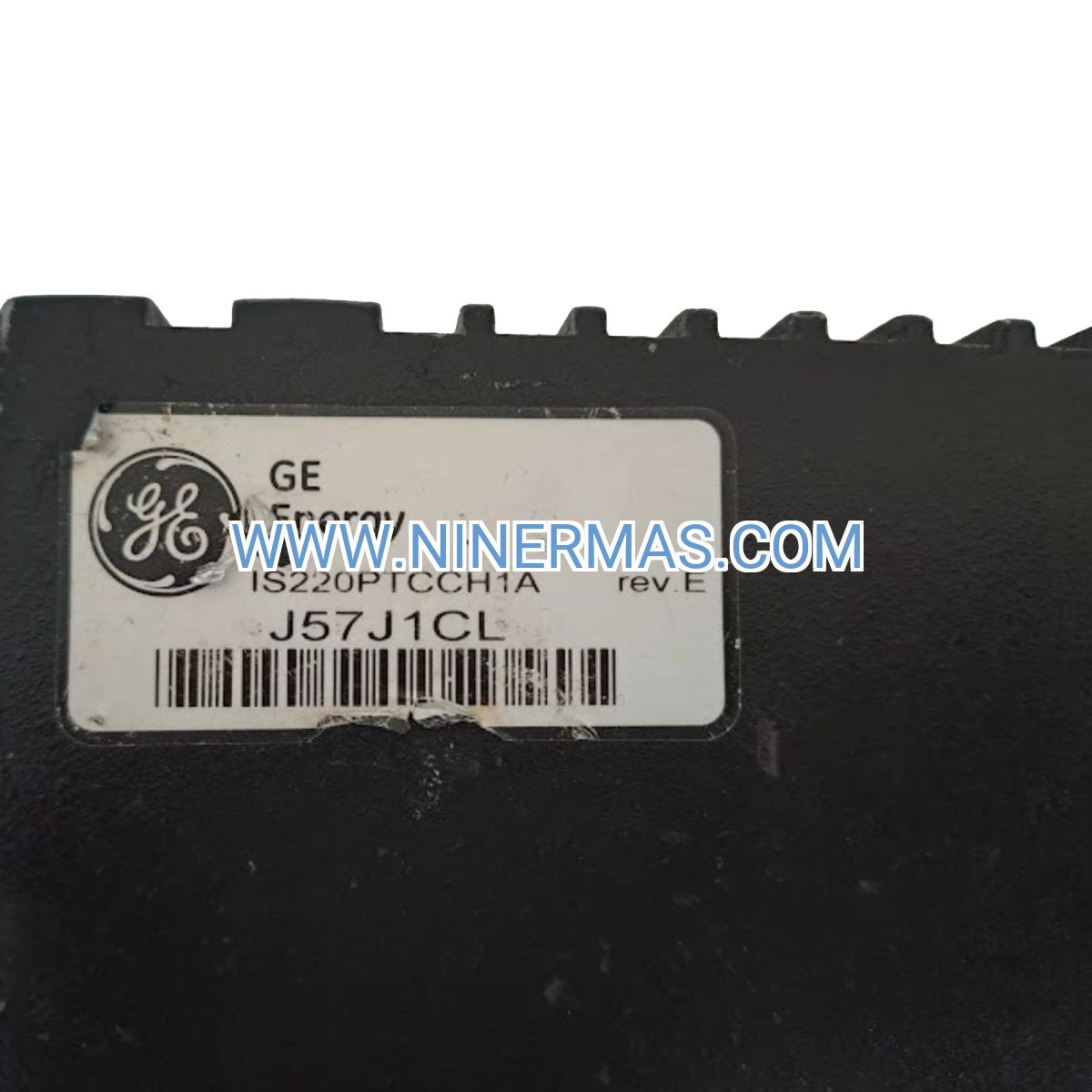

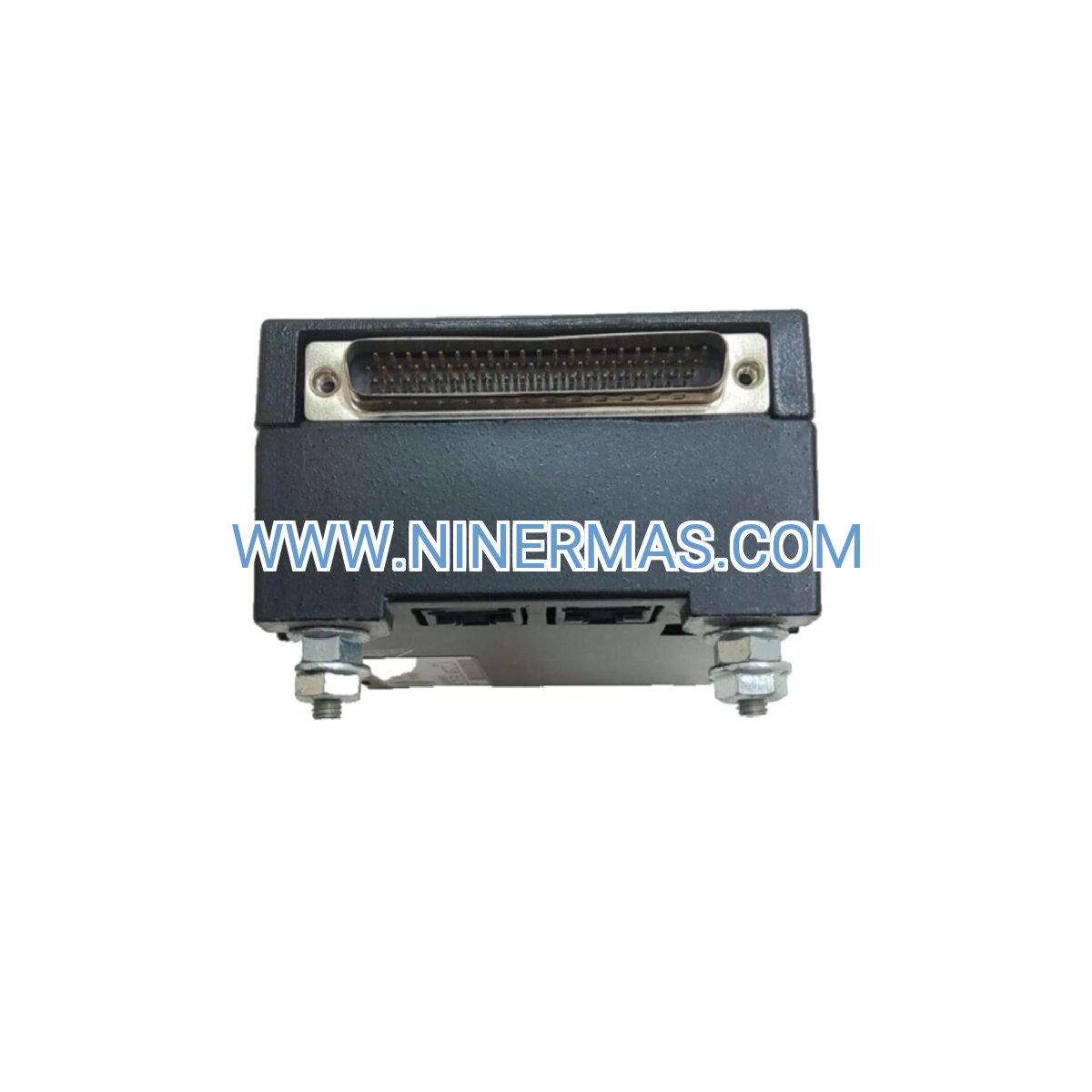

GE IS220PTCCH1A 24-Channel Thermocouple Input Module (Industrial-Grade Thermal Acquisition System)

The GE IS220PTCCH1A REV.E Thermocouple Input Module is a high-density thermal acquisition device designed for Mark VIe turbine control platforms. Through precision analog-to-digital conversion and automatic cold junction compensation, it delivers real-time temperature monitoring across 24 independent channels. This module enables continuous thermal profiling, overheat protection, and process optimization in mission-critical industrial environments.

Suitable for power generation facilities, petrochemical plants, combined-cycle installations, and heavy industrial process control systems, the IS220PTCCH1A addresses challenges such as thermal runaway risk, sensor signal degradation, inadequate channel density, and costly system downtime caused by temperature excursions. It supports gas turbine exhaust monitoring, steam turbine stage temperature tracking, HRSG thermal mapping, and reactor temperature profiling.

Built on a standardized Mark VIe I/O pack architecture with field-customizable thermocouple type assignment, this module offers hot-swap capability, 1500 VDC channel isolation, conformal-coated PCB protection, and comprehensive diagnostic reporting. Ideal for design engineers, system integrators, plant maintenance teams, and OEM equipment suppliers seeking reliable, scalable thermal monitoring solutions. Contact our application engineers for system configuration, wiring diagrams, and project-specific recommendations.

Core Features & Advantages

High-Density Multi-Channel Architecture
Integrates 24 independent thermocouple input channels within a single I/O pack, reducing rack space requirements by up to 60% compared to legacy 8-channel modules while maintaining full electrical isolation and individual channel diagnostics.

Universal Thermocouple Compatibility
Supports all eight standard thermocouple types (J, K, T, E, R, S, B, N) with software-configurable assignment per channel, eliminating the need for multiple module variants and simplifying spare parts inventory management.

Precision Measurement with Automatic Compensation
Delivers ±0.5°C accuracy across -270°C to +1372°C range through 16-bit ADC resolution and per-channel automatic cold junction compensation, ensuring measurement integrity even in high-EMI industrial environments.

Industrial-Grade Electrical Isolation
Provides 1500 VDC channel-to-backplane isolation to eliminate ground loop interference, protect against voltage transients, and maintain signal integrity in electrically noisy turbine halls and process areas.

Hot-Swap Maintenance Capability
Enables field replacement during live operation when deployed in redundant configurations, reducing mean time to repair (MTTR) and eliminating costly turbine shutdowns for routine I/O maintenance.

Comprehensive Diagnostic Intelligence
Incorporates real-time sensor break detection, open-circuit monitoring, short-circuit identification, and out-of-range temperature alarming accessible through Mark VIe ToolboxST interface for proactive maintenance planning.

Extended Environmental Operating Range
-40°C to +70°C operational capability with conformal coating protection against moisture, dust, and chemical contaminants ensures reliable performance in harsh turbine enclosures and outdoor control buildings.

Typical Application Scenarios

This module serves industries and installations requiring high-reliability thermal monitoring with stringent accuracy and uptime requirements:

Gas Turbine Thermal Protection Systems
Monitors exhaust gas temperature (EGT) spreads across combustor cans, turbine inlet temperatures, and bearing metal temperatures in Frame 6B, 7FA, 9E, and aeroderivative gas turbines. Prevents hot gas path damage through early detection of combustion anomalies and cooling system failures.

Steam Turbine Stage Temperature Monitoring
Tracks steam temperature at HP, IP, and LP turbine stages to control thermal expansion rates, prevent rotor bowing, and optimize startup/shutdown ramp rates. Integrates with turbine stress evaluators for remaining life assessment.

Combined-Cycle HRSG Temperature Mapping
Measures economizer inlet/outlet, evaporator saturation, superheater/reheater outlet, and stack temperatures in heat recovery steam generators. Enables precise steam temperature control and thermal efficiency optimization while preventing tube overheating.

Petrochemical Reactor & Distillation Control
Provides multi-point temperature profiling for catalytic reactors, distillation column trays, and heat exchanger tube bundles in refining, chemical synthesis, and polymer production processes. Supports advanced process control (APC) strategies for yield optimization.

Industrial Boiler & Furnace Monitoring
Captures combustion zone temperatures, flue gas profiles, and refractory wall temperatures in industrial boilers, process heaters, and thermal oxidizers. Facilitates emissions compliance and fuel efficiency improvements.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide standardized specifications with customization options for project-specific requirements:

Selection Considerations
When specifying the IS220PTCCH1A for your application, consider: (1) total thermocouple point count and required channel density, (2) thermocouple types and temperature ranges for your process, (3) required measurement accuracy and response time, (4) environmental conditions (temperature, humidity, vibration), (5) redundancy requirements (simplex vs. TMR configurations), (6) terminal board compatibility (IS200STTCH2AAA/2ABA), (7) integration with existing Mark VIe controller and I/O racks. Our application engineers can review your P&ID, I/O list, and environmental specifications to recommend optimal module quantities and system architecture.

System Integration & Compatibility

The IS220PTCCH1A mounts directly into Mark VIe I/O racks (VMIC or VME64x backplane) and requires the IS200STTCH2AAA or IS200STTCH2ABA Thermocouple Terminal Board for field wiring termination. The terminal board provides screw-terminal connections for thermocouple extension wire, incorporates transient voltage suppression, and maintains proper signal conditioning before reaching the I/O pack.

Communication occurs via the Mark VIe backplane to UCSA/UCSB controller modules, which process temperature data for turbine protection logic, sequencing control, and operator interface display. The module integrates seamlessly with other Mark VIe I/O packs including discrete I/O (PDIOH), analog output (PAOCH), RTD input (PRTDH), and vibration monitoring (PVIBH) modules for comprehensive turbine control.

For complete turbine protection architectures, pair with IS220PPROH1A Protection I/O Pack for emergency trip functions, IS220PTURH1A Power Distribution Board for redundant power supply, and IS220PCNOH1B ControlNet Interface for plant DCS integration.

Recommended Complementary Products:

• IS200STTCH2AAA Thermocouple Terminal Board (required for field wiring)
• IS220PRTDH1A RTD/Thermocouple Input Module (for mixed sensor types)
• IS220PVIBH1A Vibration Input I/O Pack (for integrated condition monitoring)
• IS220UCSAH1A Controller Module (primary turbine control processor)
• IS220PDIOH1A Discrete I/O Pack (for valve position feedback and status inputs)
• IS220PAOCH1A Analog Output Pack (for valve control and setpoint outputs)
• IS220PPROH1A Turbine Protection I/O Pack (for emergency shutdown logic)
• IS220PTURH1A Power Distribution Board (for redundant I/O power)

Installation, Commissioning & Maintenance

Installation Requirements
Mount the IS220PTCCH1A in a Mark VIe I/O rack with adequate ventilation (minimum 50mm clearance above/below). Connect to the IS200STTCH2AAA terminal board using the supplied ribbon cable. Terminate thermocouple extension wires to terminal board screw terminals observing proper polarity (+ and - markings). Use shielded thermocouple extension wire with shield grounded at terminal board only (single-point ground). Maximum recommended extension wire length: 100 meters for standard installations, 50 meters for high-EMI environments.

Configuration & Commissioning
Configure thermocouple types, engineering units, alarm limits, and diagnostic parameters using GE Mark VIe ToolboxST software. Perform loop checks by applying calibrated millivolt sources to verify channel accuracy. Validate cold junction compensation by comparing module readings against reference thermometers. Commission diagnostic functions including sensor break detection and out-of-range alarming.

Preventive Maintenance
Inspect terminal board connections quarterly for tightness and corrosion. Verify diagnostic alarm functions annually. Clean module air vents semi-annually to prevent dust accumulation. Monitor ToolboxST diagnostic logs for intermittent sensor faults. Maintain spare modules for critical applications to minimize MTTR.

Common Questions (FAQ)

Q: Can the IS220PTCCH1A be hot-swapped without shutting down the turbine?
A: Yes, when installed in redundant (dual or triple modular redundant) configurations, the module supports online replacement. Always verify backup I/O is active and follow GE's hot-swap procedures in the Mark VIe Maintenance Manual. Simplex configurations require system shutdown for module replacement.

Q: What terminal board is required and how many channels does it support?
A: The IS220PTCCH1A requires the IS200STTCH2AAA or IS200STTCH2ABA terminal board. Each terminal board supports 24 thermocouple channels matching the I/O pack capacity. One terminal board is required per I/O pack.

Q: Is this module backward compatible with Mark VI or Mark VIe Small systems?
A: No, the IS220PTCCH1A is designed exclusively for Mark VIe (full-size) platforms. It is not compatible with legacy Mark VI systems or Mark VIeS (small) controllers. For Mark VI applications, use TCQA or TCEA thermocouple modules.

Q: How do I configure different thermocouple types for each channel?
A: Thermocouple type assignment is performed in Mark VIe ToolboxST software under I/O configuration. Each of the 24 channels can be independently configured for J, K, T, E, R, S, B, or N type thermocouples. Configuration changes require controller download and may require a brief control system interruption.

Q: What is the maximum thermocouple extension wire length?
A: GE recommends maximum extension wire lengths of 100 meters (328 feet) for standard industrial environments. In high electrical noise areas (near VFDs, switchgear, or RF sources), limit extension wire to 50 meters and use twisted-pair shielded cable with proper grounding. Always use thermocouple-grade extension wire matching the sensor type.

Q: Does the module provide built-in diagnostics for sensor failures?
A: Yes, the IS220PTCCH1A includes comprehensive diagnostics: sensor break detection (open thermocouple), short circuit detection, out-of-range temperature alarms, cold junction sensor failure, and ADC fault detection. All diagnostic information is accessible through ToolboxST and can trigger control system alarms.

Q: Can I mix different thermocouple types on the same module?
A: Yes, each channel is independently configurable. You can simultaneously use Type K for exhaust gas, Type J for bearing temperatures, and Type R for high-temperature combustion monitoring on the same IS220PTCCH1A module.

Q: What accuracy degradation occurs at temperature extremes?
A: The specified ±0.5°C or ±0.05% accuracy applies across the full -270°C to +1372°C range. At temperature extremes (below -200°C or above +1200°C), thermocouple sensor accuracy typically becomes the limiting factor rather than module electronics. Consult thermocouple manufacturer specifications for sensor accuracy at extreme temperatures.

Delivery, Warranty & Technical Support

Inventory & Lead Time
Standard IS220PTCCH1A REV.E modules are typically available from stock with 3-5 business day shipping for North America, Europe, and Asia-Pacific regions. Custom-configured modules or large quantity orders may require 2-3 weeks. Expedited shipping options available for emergency replacements.

Warranty Coverage
All GE IS220PTCCH1A modules include a 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes free replacement or repair, return shipping, and technical support for troubleshooting. Extended warranty programs available for critical applications.

Technical Support Services
Our application engineering team provides pre-sale system design consultation, I/O list review, wiring diagram verification, ToolboxST configuration assistance, commissioning support, and post-installation troubleshooting. Support available via email, phone, and remote desktop sessions. On-site commissioning and training services available in major industrial regions.

Documentation Package
Each module ships with: installation quick-start guide, safety precautions sheet, and warranty registration card. Complete documentation including detailed installation manual, wiring diagrams, ToolboxST configuration procedures, and maintenance guidelines available for download or upon request.

Request Engineering Support

For detailed system design assistance, custom configuration, or project quotations, please provide the following information to our engineering team:

• Project Name & Application: Facility type, turbine model, control system scope
• Thermocouple Requirements: Total point count, thermocouple types (J/K/T/E/R/S/B/N), temperature ranges
• System Architecture: Simplex, dual redundant, or TMR configuration
• Environmental Conditions: Ambient temperature range, humidity, vibration levels, hazardous area classification
• Integration Details: Existing Mark VIe controller model, I/O rack configuration, DCS interface requirements
• Delivery Schedule: Required delivery date, installation timeline, commissioning support needs

Our engineers will provide system architecture recommendations, bill of materials with pricing, wiring diagrams, and project timeline within 24-48 hours for standard applications.
