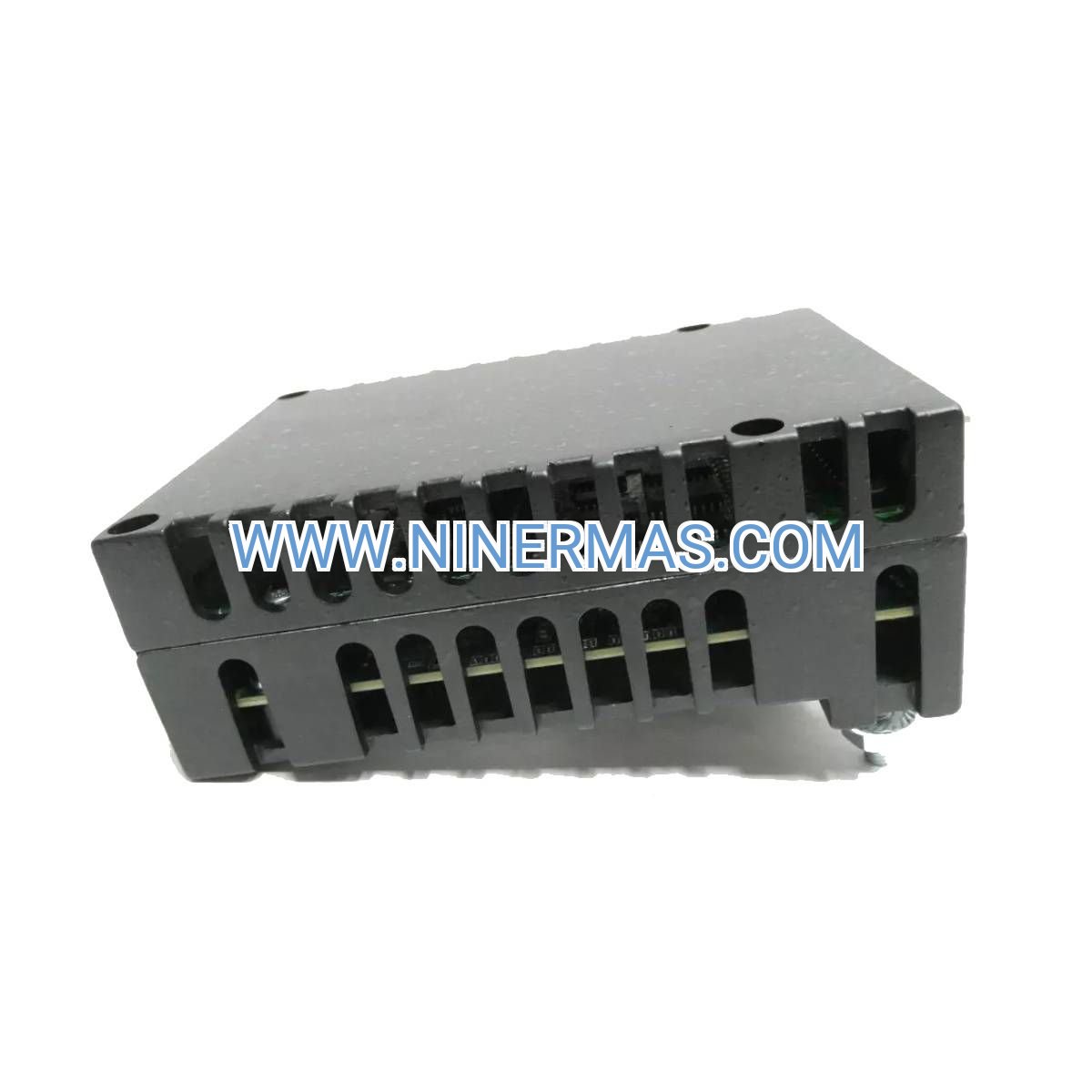

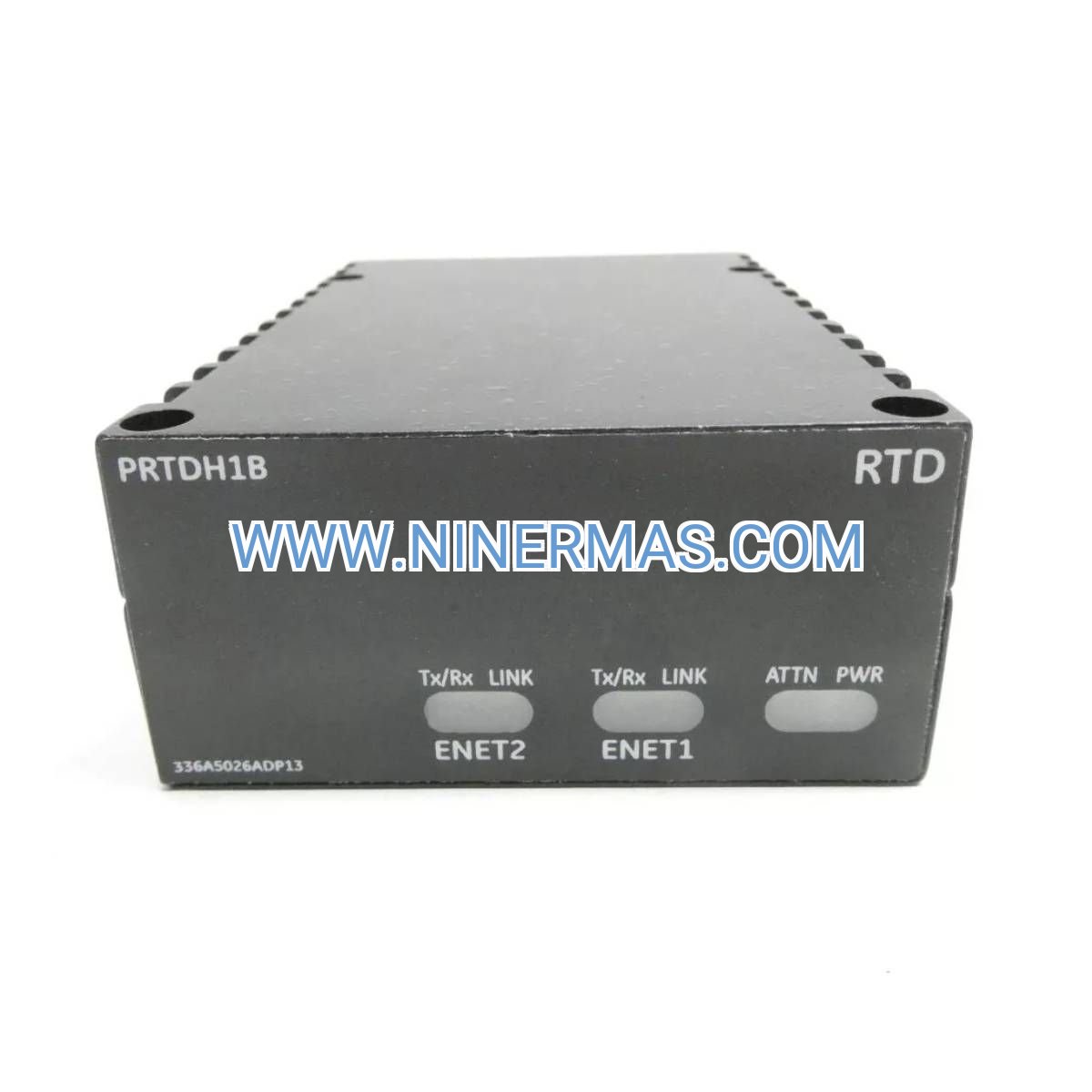

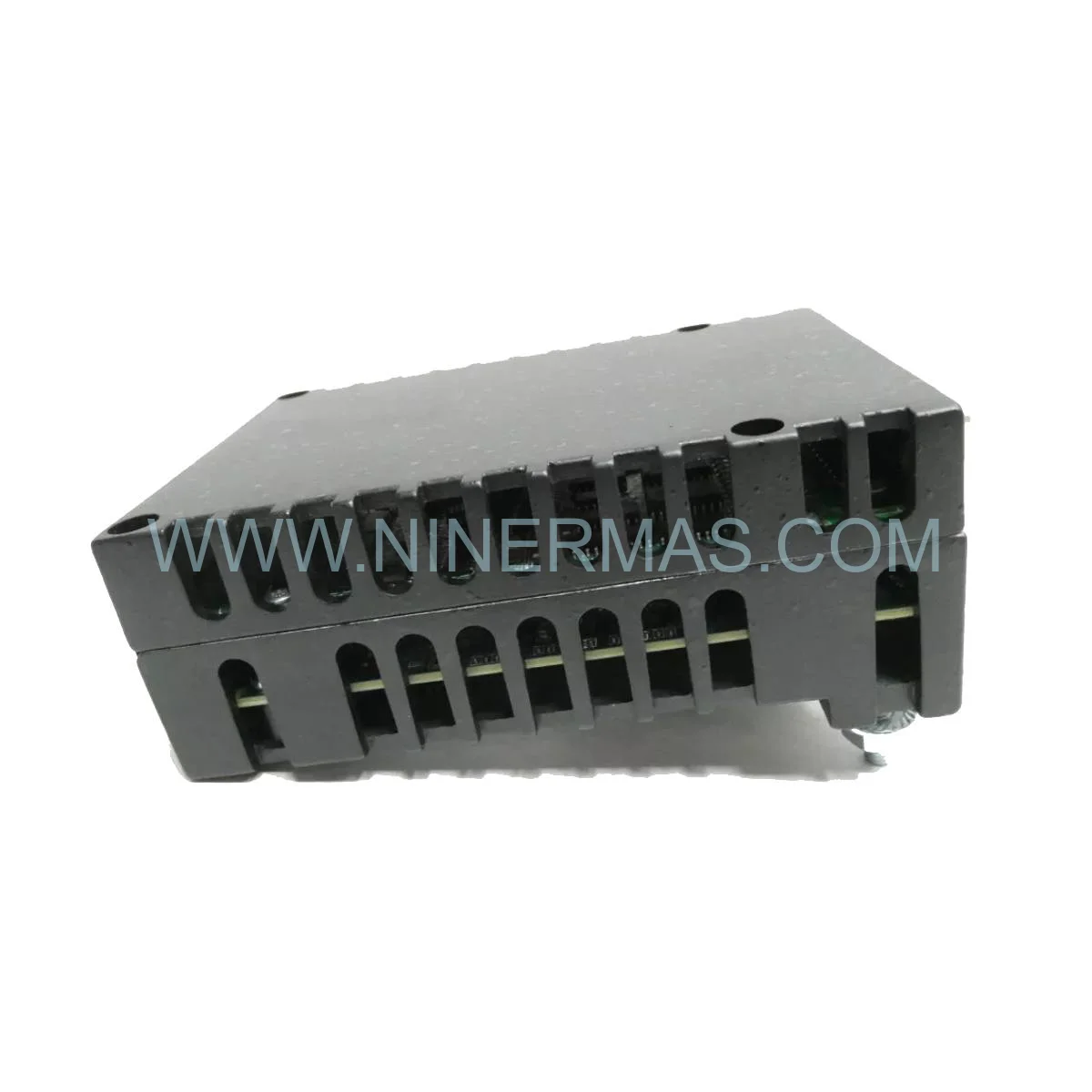

IS220PRTDH1B Industrial RTD Temperature Module (Mark VIe Compatible)

The IS220PRTDH1B represents a professional-grade resistance temperature detector (RTD) input solution engineered for mission-critical turbine control applications. This 8-channel acquisition module integrates seamlessly into GE Mark VIe Speedtronic platforms, delivering laboratory-grade temperature measurement accuracy in the harshest industrial environments.

Built for power generation facilities, petrochemical plants, and heavy industrial operations, this module addresses the fundamental challenge of maintaining thermal stability across rotating machinery and process equipment. Whether monitoring gas turbine bearing temperatures or tracking steam system thermal profiles, the IS220PRTDH1B provides the precision and reliability that critical infrastructure demands.

With support for multiple RTD configurations and built-in diagnostic capabilities, this module eliminates guesswork from temperature monitoring while reducing installation complexity through its compact, hot-swappable design.

Engineering Advantages & Performance Benefits

→ Multi-Configuration RTD Support
Accepts 2-wire, 3-wire, and 4-wire RTD sensors including Pt100, Pt1000, Ni100, and Cu10 types. Automatic linearization algorithms compensate for sensor non-linearity, delivering consistent accuracy across the entire -200°C to +850°C measurement span.

✓ High-Density Channel Architecture
Eight independent input channels reduce panel footprint by 60% compared to single-channel solutions. Each channel features galvanic isolation (channel-to-channel and channel-to-ground), preventing ground loops and electrical interference in noisy industrial environments.

✓ Advanced Fault Detection
Integrated diagnostics continuously monitor for sensor breaks, short circuits, and out-of-range conditions. Real-time alarm generation enables predictive maintenance strategies and prevents unplanned shutdowns caused by sensor failures.

✓ TMR-Ready Architecture
Designed for Triple Modular Redundant configurations when deployed with Mark VIeS controllers. Voting logic ensures continuous operation even during single-point failures, achieving 99.99% system availability in critical applications.

✓ Field-Serviceable Design
Hot-swappable construction allows module replacement without system shutdown or process interruption. Conformal coating and ruggedized components withstand vibration (5G), humidity (95% RH), and electromagnetic interference per IEC 61000-4 standards.

Industrial Application Scenarios

Power Generation - Gas Turbine Thermal Management
Monitor critical temperature points including compressor discharge, turbine exhaust, bearing housings, and lube oil systems. Early detection of thermal anomalies prevents catastrophic failures and extends maintenance intervals by 20-30%.

Steam Turbine Optimization
Track steam inlet/outlet temperatures, rotor thermal expansion, and condenser performance. Precise temperature control maximizes thermal efficiency, reducing fuel consumption by 2-4% in combined-cycle operations.

Petrochemical Process Control
Integrate with reactor temperature control loops, distillation column monitoring, and heat exchanger management systems. Maintains process temperatures within ±0.5°C setpoints for consistent product quality.

Industrial Boiler & HRSG Systems
Continuous monitoring of economizer, evaporator, and superheater sections. Prevents tube overheating and thermal stress failures that account for 40% of unplanned boiler outages.

Technical Parameters & Selection Guide

Selection Criteria: Choose the IS220PRTDH1B when your application requires high-accuracy temperature measurement (±0.1°C) in the -200°C to +850°C range. For higher temperature applications exceeding 850°C, consider thermocouple-based input modules. When deploying in safety-critical systems, specify TMR configurations with redundant modules and terminal boards.

Extended Capabilities & System Integration

ToolboxST Configuration Software
Individual channel programming allows mixed RTD types on a single module. Configure sensor types, temperature units (°C/°F/K), alarm setpoints, and filtering parameters through intuitive graphical interface.

Modbus TCP/IP Connectivity
Ethernet-based communication enables integration with SCADA systems, historians, and third-party HMI platforms. Standard Modbus registers provide universal compatibility with industrial automation ecosystems.

Redundancy Options
Deploy in simplex, dual, or TMR configurations based on application criticality. Automatic failover logic ensures seamless transition during module replacement or failure events.

Calibration & Traceability
Factory calibration with NIST-traceable certification included. Optional field calibration using precision RTD simulators maintains accuracy over 5+ year service life.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL/FedEx/UPS)
Custom Configurations: 7-10 business days for pre-configured modules with specific firmware versions
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures
Technical Support: Lifetime email/phone support for installation, configuration, and troubleshooting
Documentation Package: User manual, wiring diagrams, ToolboxST configuration files, and calibration certificates

Frequently Asked Questions

What RTD wiring configuration provides the best accuracy?
Four-wire RTD connections eliminate lead resistance errors, delivering the full ±0.1°C accuracy specification. Three-wire configurations are acceptable for cable runs under 100 meters where lead resistance remains below 10 ohms.

Can this module interface with legacy Mark VI control systems?
The IS220PRTDH1B is optimized for Mark VIe platforms. For Mark VI compatibility, consult our technical team regarding firmware compatibility and potential adapter requirements.

How does channel isolation prevent measurement errors?
1500 VDC isolation barriers block ground loop currents that can introduce 0.5-2°C measurement errors in electrically noisy environments. Each channel operates independently, preventing cross-talk between sensors.

What terminal boards are required for installation?
The module pairs with GE IS200STTCH2AAA simplex terminal boards or IS200TRTDH2B TMR terminal boards. Terminal board selection depends on redundancy requirements and sensor wiring configuration.

Does the module support remote monitoring and diagnostics?
Yes, all diagnostic data (sensor status, out-of-range alarms, module health) is accessible via Modbus TCP/IP or through the Mark VIe controller's Ethernet interface for remote SCADA integration.

What is the typical calibration interval?
Factory calibration remains stable for 5+ years under normal operating conditions. Annual verification using RTD simulators is recommended for critical safety applications or regulatory compliance.

Request a Quote

Contact our industrial automation specialists for application-specific guidance, volume pricing, or technical consultation. We support system integrators, OEMs, and end-users with expert product selection, configuration assistance, and post-installation support.
