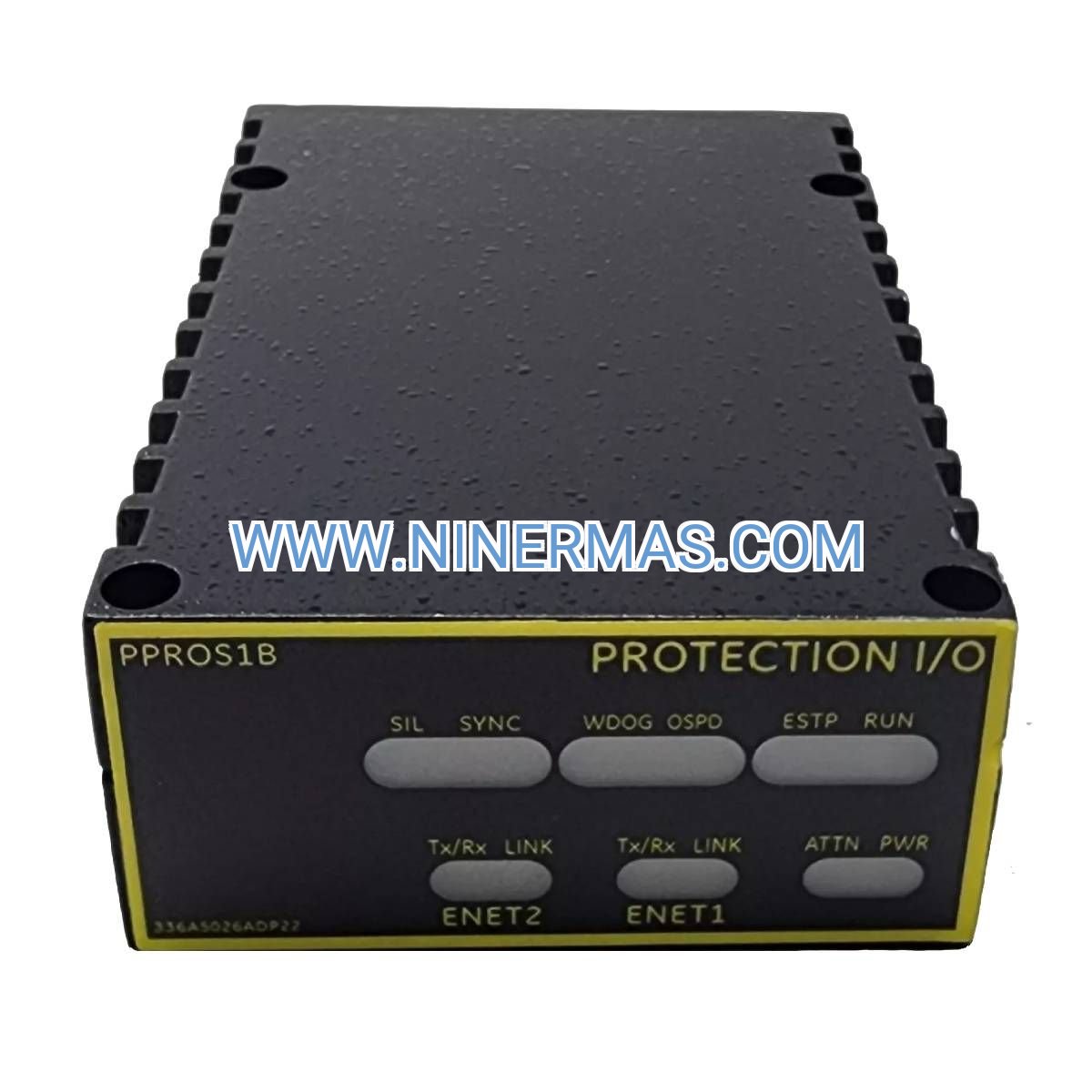

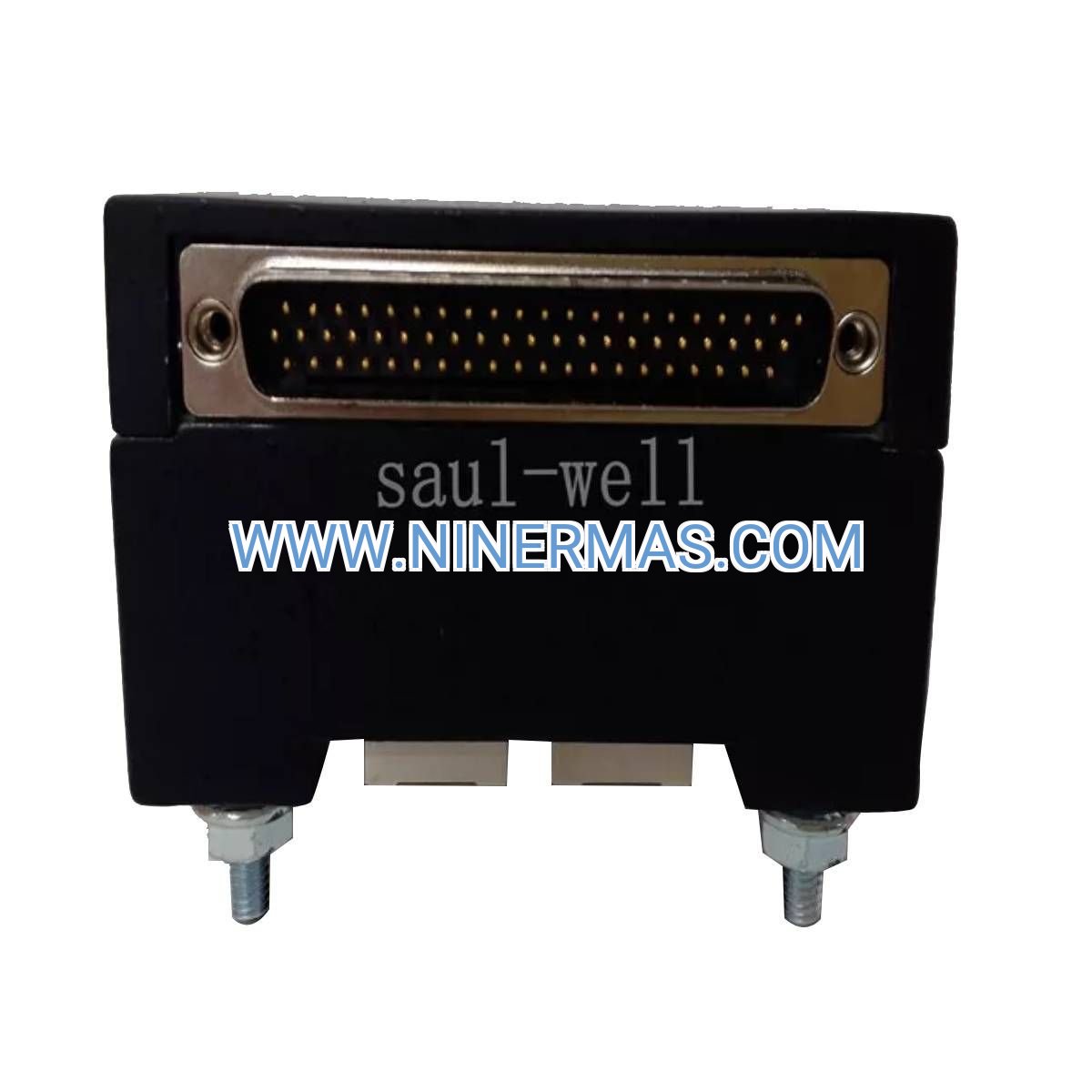

IS220PPROS1B Protection I/O Pack (Industrial-Grade TMR Emergency Module)

The IS220PPROS1B represents a critical safety layer in modern turbine control infrastructure, engineered specifically for Mark VIe Speedtronic platforms where emergency protection cannot tolerate single-point failures. This triple modular redundant I/O pack delivers continuous monitoring of shutdown circuits, overspeed detection, and critical parameter surveillance across gas turbines, steam turbines, and combined-cycle power generation systems.

Designed for power plant operators, turbine OEMs, and industrial facility managers who demand IEC 61508 SIL 3 compliance, this module integrates seamlessly into existing Mark VIe architectures while providing hot-swap capability for zero-downtime maintenance. Its ruggedized construction withstands extreme temperatures (-30°C to +65°C) and harsh industrial environments common in offshore platforms, petrochemical facilities, and utility-scale generation sites.

With proven MTBF exceeding 100,000 hours and built-in diagnostic intelligence, the IS220PPROS1B minimizes unplanned outages while ensuring regulatory compliance for safety instrumented systems. Whether you're upgrading legacy protection circuits or building new turbine control cabinets, this module delivers the reliability and performance critical infrastructure demands.

Core Features & Benefits

→ Triple Modular Redundancy (TMR) Architecture
Three independent processing channels vote on every input signal, automatically masking faulty modules while maintaining full protection coverage. This design eliminates single-point vulnerabilities and enables online module replacement without compromising safety integrity.

→ Hot-Swappable Maintenance Protocol
Replace failed modules during turbine operation without initiating emergency trips or requiring system shutdowns. Reduces maintenance windows by 70% compared to non-redundant architectures and lowers annual operational costs through improved availability.

→ Advanced Diagnostic & Self-Testing
Continuous background diagnostics detect degraded components before failure occurs, triggering predictive maintenance alerts through ToolboxST software. Built-in fault annunciation pinpoints issues to specific circuit cards, reducing troubleshooting time from hours to minutes.

→ Multi-Voltage Input Compatibility
Accepts both 24 VDC and 125 VDC emergency trip signals without external conditioning, simplifying integration with diverse turbine protection schemes and legacy relay panels. Eliminates costly voltage conversion equipment in retrofit applications.

→ Conformal-Coated Industrial Construction
Military-grade conformal coating protects circuitry from moisture, dust, and chemical exposure in harsh environments. IP20-rated enclosure meets global industrial standards while maintaining compact 241mm × 198mm footprint for space-constrained control cabinets.

→ Ethernet & IONet Dual Communication
Simultaneous Ethernet and proprietary IONet connectivity enables real-time data exchange with SCADA systems, HMI workstations, and distributed control networks. Supports remote monitoring and cybersecurity-compliant network segmentation strategies.

Typical Application Scenarios

✓ Combined-Cycle Power Plant Emergency Shutdown
In CCGT facilities, the IS220PPROS1B monitors gas turbine overspeed, flame detection, and steam turbine trip circuits simultaneously. When integrated with redundant controller modules, it creates a fail-safe protection matrix that prevents catastrophic turbine damage during grid disturbances or fuel supply anomalies. Operators achieve 99.97% protection system availability while meeting NERC reliability standards.

✓ Offshore Platform Turbine-Generator Protection
Marine environments demand corrosion-resistant, vibration-tolerant protection systems. This I/O pack's conformal coating and TMR design ensure continuous operation despite salt spray, temperature cycling, and mechanical stress from wave action. Paired with vibration monitoring modules, it detects bearing failures and shaft misalignment before secondary damage occurs, preventing multi-million dollar turbine replacements.

✓ Petrochemical Compressor Train Safety Systems
Gas compression stations require rapid response to surge conditions, seal failures, and lube oil pressure loss. The IS220PPROS1B processes emergency trip signals within 10 milliseconds, coordinating with anti-surge valves and auxiliary systems to execute controlled shutdowns. This prevents compressor wheel damage and reduces unplanned maintenance costs by 40% annually.

✓ District Heating Cogeneration Units
CHP plants serving municipal heating networks cannot tolerate extended outages during winter months. Hot-swappable TMR modules enable technicians to replace degraded components during peak demand periods without interrupting heat supply. Diagnostic alerts provide 72-hour advance warning of potential failures, allowing scheduled maintenance during low-demand windows.

✓ Industrial Steam Turbine Retrofits
Upgrading aging mechanical overspeed governors to electronic protection requires reliable I/O interfaces. This module accepts signals from magnetic pickups, proximity probes, and RTD sensors while maintaining compatibility with existing Mark VIe controllers. Retrofit projects achieve SIL 3 certification without replacing functional turbine instrumentation, reducing capital expenditure by 60%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the IS220PPROS1B when your application requires SIL 3-rated emergency protection with online maintenance capability. For non-critical monitoring applications, consider simplex I/O modules. For applications demanding SIL 4 or higher, consult GE engineering for quadruple modular redundant (QMR) solutions. Verify Mark VIe controller compatibility before ordering—this module does not interface with Mark VI or earlier platforms.

Extended Functions

IoT Integration & Remote Diagnostics: The module's Ethernet interface supports integration with cloud-based condition monitoring platforms via OPC UA protocol. Stream real-time protection system health data to centralized NOC facilities for fleet-wide analysis. Predictive analytics algorithms identify degradation patterns across multiple sites, enabling proactive component replacement before failures impact operations.

Cybersecurity-Hardened Communication: Firmware includes role-based access control (RBAC) and encrypted communication channels compliant with IEC 62443 industrial cybersecurity standards. Network segmentation features isolate critical protection circuits from enterprise IT networks, preventing unauthorized access while maintaining SCADA connectivity.

Custom Firmware Configuration: GE-certified system integrators can modify voting logic, alarm thresholds, and diagnostic parameters through ToolboxST software to match specific turbine protection philosophies. Custom configurations support unique trip matrices for specialized applications like mechanical drive turbines or experimental power cycles.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 1-3 business days via DHL/FedEx express. Custom-configured modules require 5-7 business days for factory programming and testing. Expedited same-day shipping available for emergency outage support (additional fees apply).

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and firmware issues. Warranty includes free firmware updates and technical support via email/phone. Extended 36-month warranty plans available for critical infrastructure applications.

Technical Support: Certified GE automation engineers provide installation guidance, configuration assistance, and troubleshooting support Monday-Friday 8AM-6PM EST. Emergency 24/7 hotline available for critical outages. Remote diagnostic services via secure VPN connection included with all purchases.

Documentation Package: Every module ships with installation manual, wiring diagrams, ToolboxST configuration files, and IEC 61508 safety certification documents. CAD drawings and 3D STEP models available for download to support cabinet design and retrofit planning.

Frequently Asked Questions

Can the IS220PPROS1B interface with legacy Mark VI turbine controllers?
No, this module is exclusively designed for Mark VIe architecture. The communication protocols, backplane interfaces, and firmware are incompatible with Mark VI systems. For Mark VI upgrades, consider migration to Mark VIe platform or contact our engineering team for hybrid integration solutions using protocol converters.

What is the maximum cable length for emergency trip inputs?
Shielded twisted-pair cables up to 300 meters are supported for 125 VDC signals. For 24 VDC inputs, limit cable runs to 100 meters to prevent voltage drop issues. Use 18 AWG minimum wire gauge and maintain proper grounding to avoid electromagnetic interference in high-noise industrial environments.

How does hot-swapping work without causing false turbine trips?
The TMR voting logic continues operating on the two remaining modules while the third is removed. The system automatically reconfigures to 2oo2 voting during replacement, then returns to 2oo3 mode when the new module synchronizes. Total swap time is typically under 60 seconds with no interruption to protection coverage.

Is special training required for installation and commissioning?
Basic installation can be performed by electricians familiar with industrial control systems. However, ToolboxST configuration and safety validation require GE-certified technicians or completion of Mark VIe training courses. We offer remote commissioning support and can recommend qualified service partners in your region.

What diagnostic information is available through the Ethernet interface?
Real-time data includes module temperature, power supply voltages, input signal status, voting discrepancies, communication health, and firmware version. Historical fault logs capture the last 500 events with timestamps. SNMP traps can trigger alarms in building management systems when diagnostic thresholds are exceeded.

Can I use this module in hazardous area Zone 1 applications?
The standard IS220PPROS1B carries ATEX Zone 2 certification only. For Zone 1 installations, the module must be mounted in a purged/pressurized enclosure meeting IEC 60079-2 standards. Alternatively, GE offers intrinsically safe barrier modules for direct Zone 1 field device interfaces.
