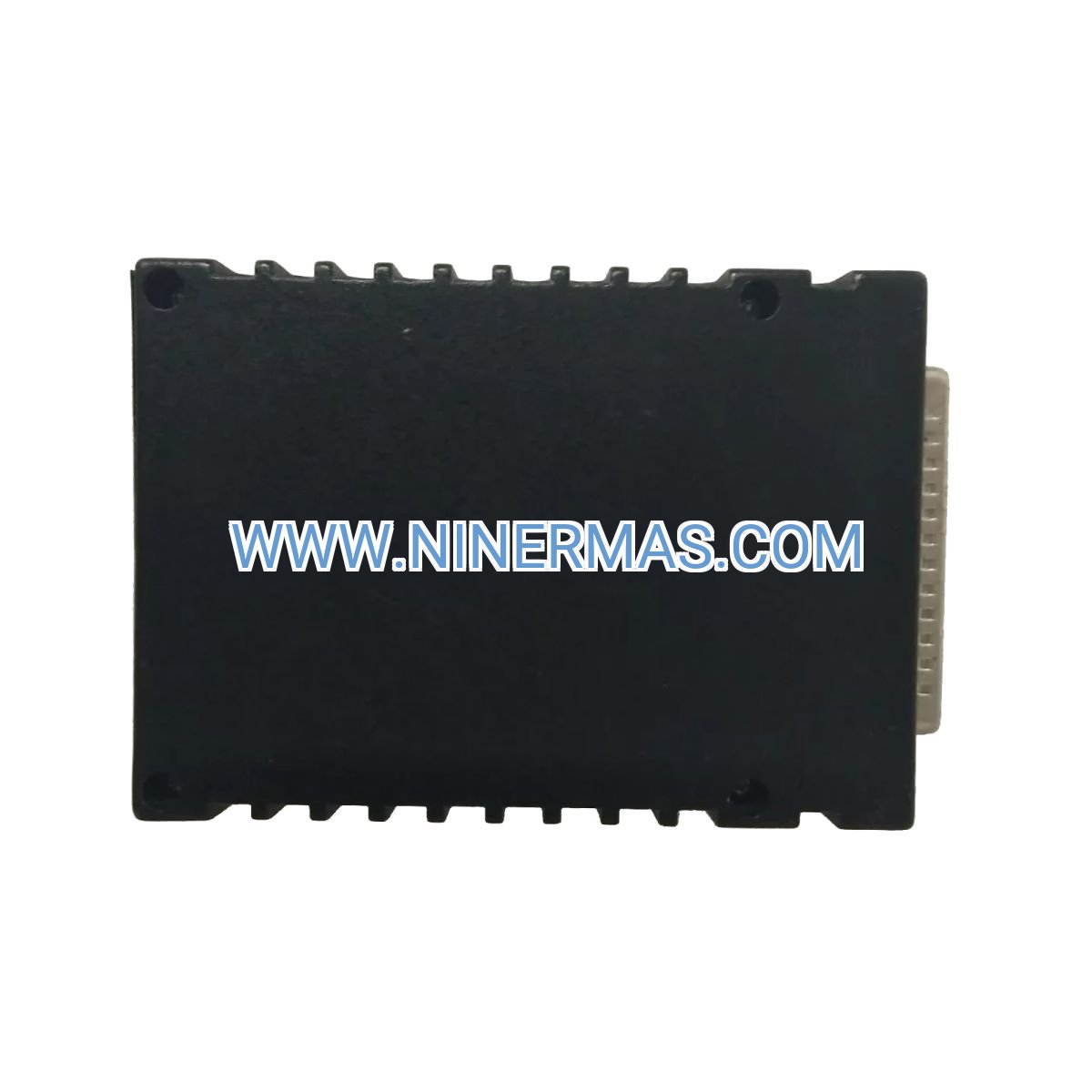

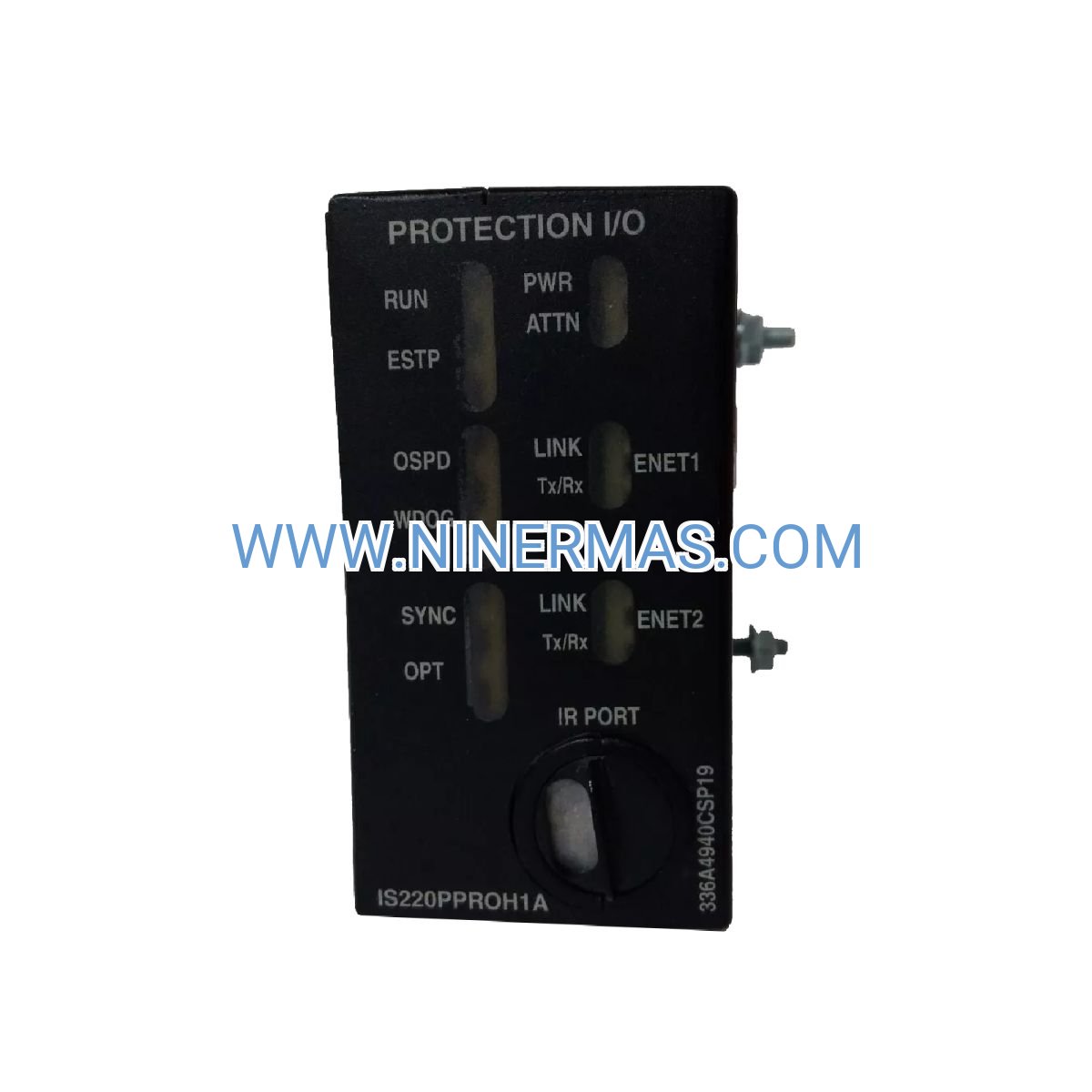

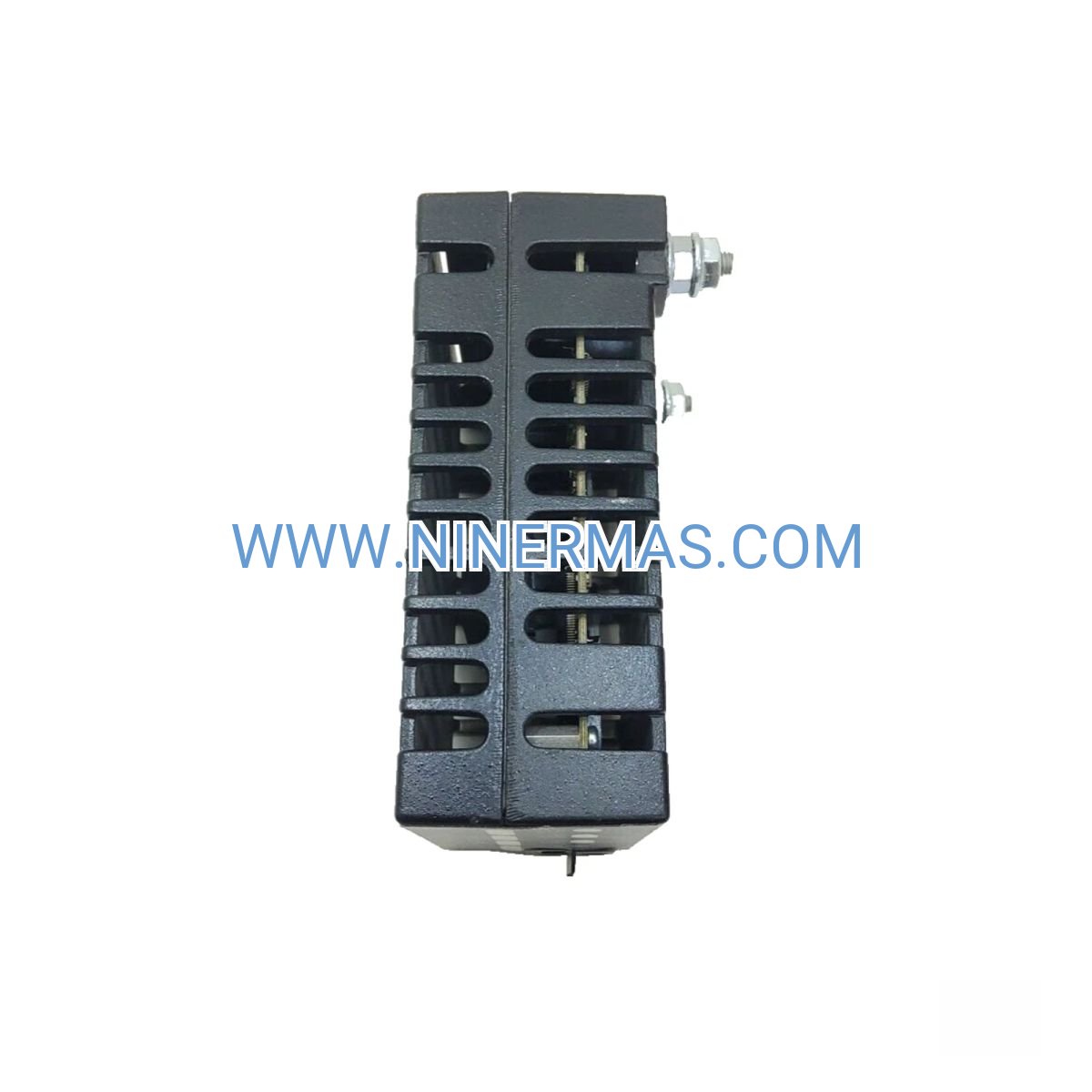

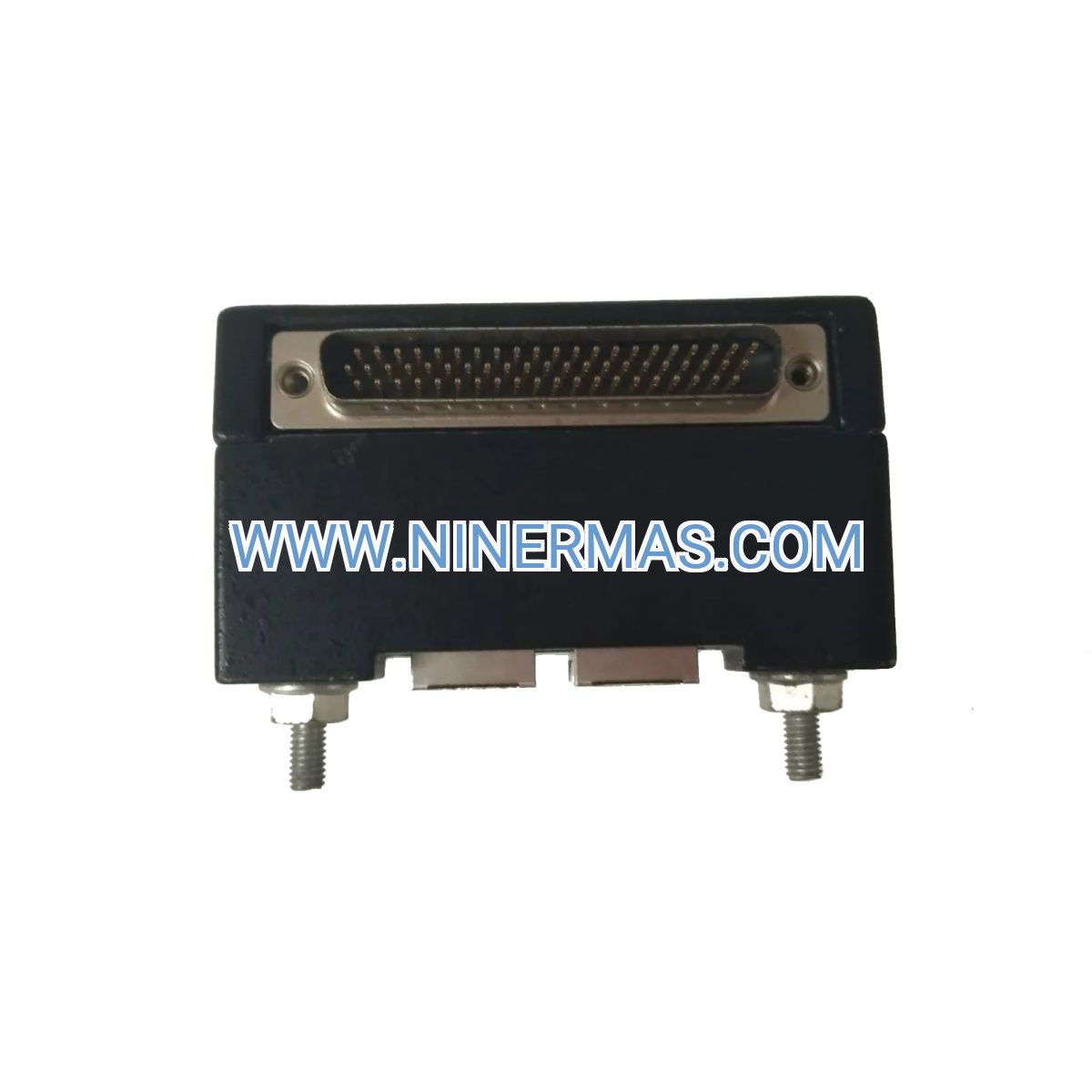

GE IS220PPROH1A REV.E Turbine Protection I/O Pack (Industrial-Grade TMR Control Module)

The GE IS220PPROH1A REV.E is an industrial-grade Turbine Protection I/O Pack engineered for the Mark VIe Speedtronic control platform. Through triple modular redundant (TMR) architecture and sub-millisecond response capabilities, this module delivers real-time overspeed protection, vibration monitoring, and emergency shutdown control for gas and steam turbines in power generation, oil & gas, and industrial cogeneration facilities.

Designed for mission-critical applications where turbine safety cannot be compromised, the IS220PPROH1A addresses common operational challenges including pressure fluctuations, bearing temperature anomalies, excessive vibration, and emergency trip scenarios. It serves design engineers, system integrators, plant maintenance teams, and OEM partners who require certified protection solutions with proven field reliability.

With standardized configuration templates and customizable I/O mapping, this protection pack offers rapid commissioning, hot-swap serviceability, and seamless integration with existing Mark VIe infrastructure. Contact our application engineers for system-specific selection guidance, wiring diagrams, and competitive quotations.

Core Functions & Advantages

Triple Modular Redundant Architecture
Employs three independent processing channels with majority voting logic to eliminate single points of failure. When one channel experiences a fault, the remaining two maintain full protection coverage, ensuring continuous turbine operation and preventing costly unplanned shutdowns.

Sub-Millisecond Protection Response
Detects critical events such as overspeed conditions or vibration thresholds within 0.5 milliseconds and executes emergency shutdown sequences in under 2 milliseconds, significantly faster than conventional relay-based systems, minimizing mechanical damage and safety risks.

Comprehensive Diagnostic Capabilities
Integrated self-test routines continuously monitor input signal integrity, communication health, and TMR voting status. Diagnostic data streams to the Mark VIe controller via IONet protocol, enabling predictive maintenance and reducing mean time to repair (MTTR) by up to 40%.

Hot-Swappable Field Replacement
Supports online module replacement without system shutdown or turbine trip. Technicians can replace faulty units during operation, maintaining protection integrity through redundant channels and eliminating the need for scheduled maintenance windows.

Backward Compatibility & Ecosystem Integration
Fully compatible with Mark VIe controller families including IS420UCSCH1A, IS420UCSCH1C, and IS220UCSAH1A modules. Shares common configuration databases with existing installations, simplifying upgrades from REV.D to REV.E without firmware migration or extensive re-commissioning.

Industrial-Grade Environmental Resilience
Operates reliably in harsh industrial environments with extended temperature range (0°C to 60°C), vibration resistance per IEC 60068-2-6, and conformal coating protection against humidity, dust, and corrosive atmospheres typical in power plants and offshore platforms.

Typical Application Scenarios

This protection module is essential for applications demanding high availability, rapid fault response, and regulatory compliance in turbine control systems, particularly in:

Combined-Cycle & Simple-Cycle Power Plants
Monitors critical parameters including turbine overspeed (typically 110% rated speed), axial/radial vibration levels, bearing metal temperature, and lube oil pressure. Coordinates with IS200TURH1BED terminal boards to provide comprehensive protection coverage across Frame 6, 7, and 9 series gas turbines, ensuring compliance with NERC/FERC grid reliability standards.

Oil & Gas Mechanical Drive Applications
Protects turbines driving centrifugal compressors in natural gas processing, LNG liquefaction, and pipeline booster stations. Interfaces with IS220PDIOH1A discrete I/O packs to integrate third-party safety instrumented systems (SIS) and emergency shutdown valves, meeting API 670 and API 612 machinery protection requirements.

Industrial Cogeneration & District Heating
Ensures safe operation of steam and gas turbines in combined heat and power (CHP) facilities serving chemical plants, refineries, and district heating networks. Works alongside IS210BPPCH1A power pulse modules to coordinate generator synchronization, load control, and thermal load management while maintaining turbine protection integrity.

Marine & Offshore Platform Propulsion
Provides certified protection for turbine-driven LNG carriers, FPSO vessels, and offshore platform power generation. Meets DNV-GL, ABS, and Lloyd's Register marine classification requirements with enhanced EMI/RFI immunity and salt-fog resistance for harsh maritime environments.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide standardized specifications and application-specific configuration options. Custom I/O mapping and extended temperature variants are available for specialized installations.

Selection Considerations
When specifying the IS220PPROH1A for your turbine control project, consider the following factors: turbine frame size and rated speed, number and type of protection sensors (proximity probes, RTDs, pressure transmitters), existing Mark VIe controller model and firmware version, available panel space and DIN rail capacity, site ambient temperature and environmental conditions, and required certifications (ATEX for hazardous areas, marine classification for offshore). For assistance with system architecture design, I/O channel allocation, or compatibility verification with legacy installations, please provide your turbine model, current control system configuration, and site-specific requirements. Our application engineers will recommend the optimal configuration and provide detailed wiring diagrams within 24 hours.

Extended Functionality & Integration Options

Advanced Diagnostic & Predictive Maintenance
Beyond standard protection functions, the IS220PPROH1A supports condition-based monitoring through continuous trend analysis of vibration signatures, bearing temperature drift, and sensor health metrics. Data logging capabilities enable integration with GE Digital APM (Asset Performance Management) platforms for predictive analytics and remaining useful life (RUL) estimation.

Cybersecurity & Network Segmentation
For installations requiring IEC 62443 compliance, the module supports VLAN segmentation, MAC address filtering, and encrypted IONet communication when paired with IS420ESWBH3A managed Ethernet switches. Firmware updates utilize cryptographic signature verification to prevent unauthorized modifications.

Third-Party System Integration
Modbus TCP/IP and OPC UA gateway options enable data exchange with distributed control systems (DCS), SCADA platforms, and plant historians from vendors including Honeywell, Emerson, Siemens, and Schneider Electric. Pre-configured function blocks simplify integration with Triconex and Yokogawa safety systems.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard IS220PPROH1A REV.E modules ship from our certified warehouse within 1–3 business days for in-stock items. Custom-configured units with extended temperature ratings or specialized I/O mapping require 7–14 days for factory programming and testing. Expedited shipping options (overnight, 2-day) are available for emergency replacements.

Warranty Coverage
All modules include a comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Warranty service includes free replacement, return shipping labels, and technical root-cause analysis. Extended warranty plans (24/36 months) are available for critical applications.

Technical Support & Commissioning Assistance
Our Mark VIe-certified engineers provide remote configuration support via TeamViewer/AnyDesk, on-site commissioning services (subject to location and scheduling), ToolboxST software guidance for I/O mapping and diagnostics, and troubleshooting assistance for integration with IS420UCSCH1A controllers, IS410JPDDG1A power supplies, and IS220PDIOH1A discrete I/O packs. Support is available via email, phone, and WeChat during business hours (GMT+8), with emergency hotline access for critical outages.

Documentation Package
Each module ships with complete technical documentation including installation manual with DIN rail mounting instructions, electrical wiring diagrams and terminal block layouts, ToolboxST configuration file templates, dimensional drawings (PDF/DWG formats), and material certifications (RoHS, REACH compliance). Additional resources such as Mark VIe system integration guides and cybersecurity hardening checklists are available upon request.

Common Questions (FAQ)

Q: Can the IS220PPROH1A REV.E replace older REV.C or REV.D modules in existing Mark VIe installations?
A: Yes, REV.E is fully backward compatible with REV.C and REV.D installations. The module uses identical connector pinouts and IONet protocol versions. However, we recommend verifying your Mark VIe controller firmware version (minimum R07.60 required) and updating ToolboxST configuration files to recognize REV.E hardware identifiers. Our technical team can provide a pre-migration compatibility checklist.

Q: What is the maximum cable length between the IS220PPROH1A and field sensors?
A: For discrete inputs (proximity probes, contact closures), maximum cable length is 300 meters using shielded twisted-pair cable. For analog inputs (4–20mA transmitters), up to 500 meters is supported with proper grounding and cable shielding. Longer distances require signal conditioners or isolated barriers. Refer to GE document GEH-6855 for detailed cable specifications.

Q: Does this module support SIL-rated safety functions for functional safety applications?
A: The IS220PPROH1A is designed for turbine protection (high availability) rather than certified safety instrumented functions (SIF). For SIL 2/3 applications per IEC 61508, consider integrating with dedicated safety PLCs such as Triconex Tricon or GE RX3i Safety controllers. The module can provide non-safety monitoring data to these systems via hardwired discrete outputs or Modbus TCP.

Q: How do I perform TMR channel diagnostics and identify which redundant channel has failed?
A: Connect to the Mark VIe controller using ToolboxST software and navigate to the I/O Health Monitor screen. The software displays real-time voting status for each TMR channel (A, B, C) with color-coded indicators (green = healthy, yellow = degraded, red = faulted). Detailed fault codes identify specific issues such as input signal loss, communication timeout, or power supply anomaly. The module's front-panel LEDs also provide quick visual status indication.

Q: What is the typical power consumption, and can it be powered from the IS410JPDDG1A distribution board?
A: The IS220PPROH1A consumes approximately 12W during normal operation (18W maximum during startup). It is fully compatible with the IS410JPDDG1A 24V DC power distribution board, which provides up to 240W total capacity. Each distribution board can power up to 15 IS220PPROH1A modules with adequate margin. Ensure proper circuit breaker sizing (2A recommended per module) and use separate power feeds for TMR redundancy.

Q: Are there any known compatibility issues with third-party vibration monitoring systems?
A: The module accepts standard 4–20mA and 0–10V analog signals from most vibration transmitters including Bently Nevada 3300 XL, SKF CMSS, and Emerson CSI series. For proximity probe inputs, ensure sensor output voltage matches the module's input range (0–24V DC). Some legacy Metrix sensors may require signal conditioning. Contact our team with your specific sensor model numbers for compatibility verification.

Q: Can I purchase a pre-configured module with custom I/O mapping for faster commissioning?
A: Yes, we offer factory pre-configuration services where our engineers load your specific I/O mapping, scaling parameters, and alarm setpoints into the module before shipment. This requires providing your ToolboxST configuration file (.zip export) or detailed I/O assignment spreadsheet. Pre-configured modules typically add 5–7 days to standard lead time but can reduce on-site commissioning time by 60–80%.

Request Technical Consultation & Quotation

To receive a detailed selection proposal, competitive pricing, or technical support for your Mark VIe turbine control project, please provide the following information to our engineering team:

• Project name and application type (power generation, mechanical drive, marine, etc.)
• Turbine manufacturer and model (e.g., GE Frame 7EA, Siemens SGT-800)
• Current Mark VIe controller model and firmware version
• Number of protection I/O packs required and desired redundancy level
• Types and quantities of field sensors (proximity probes, RTDs, pressure transmitters)
• Site environmental conditions (ambient temperature range, altitude, hazardous area classification)
• Required certifications (ATEX, IECEx, marine class, seismic qualification)
• Preferred delivery timeline and shipping destination

Our application engineers will respond within 24 hours with a customized system architecture recommendation, detailed quotation, and technical documentation package. For urgent inquiries or emergency replacement needs, contact our hotline directly.
