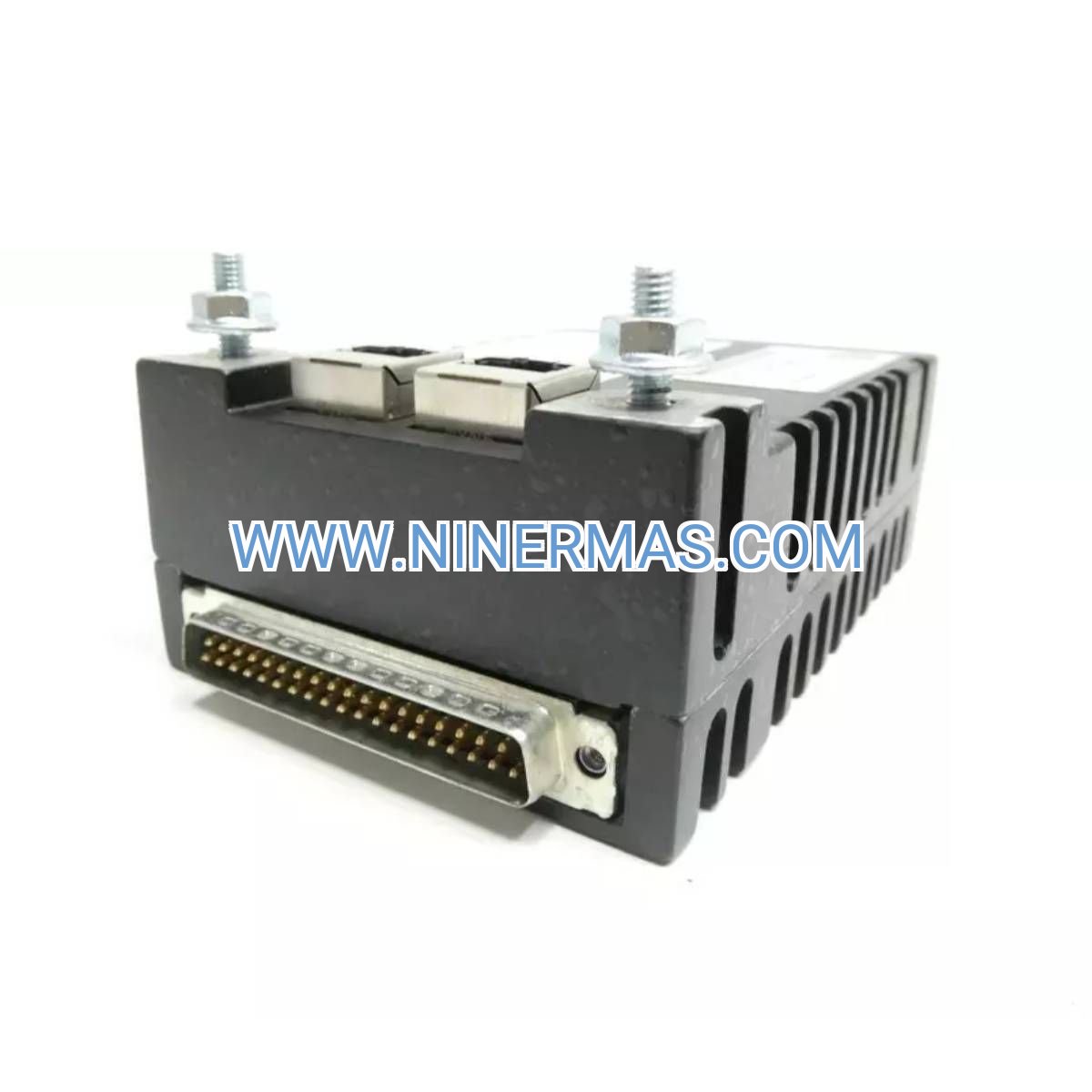

IS220PPRAH1A PROFIBUS DP Master Gateway (Industrial-Grade Communication Interface)

The IS220PPRAH1A represents a mission-critical communication gateway engineered specifically for GE Mark VI Speedtronic turbine control architectures. As a PROFIBUS DP Master interface, this module bridges the gap between advanced turbine controllers and distributed field instrumentation, delivering deterministic data exchange in power generation facilities, petrochemical plants, and heavy industrial environments where reliability is non-negotiable.

Designed for system integrators and plant engineers managing complex turbine control networks, this gateway eliminates protocol barriers while maintaining the real-time performance demanded by critical rotating equipment. Whether you're retrofitting legacy PROFIBUS infrastructure or deploying new distributed control systems, the IS220PPRAH1A provides the robust connectivity backbone your operations require.

With support for up to 125 slave devices and auto-adaptive baud rates reaching 12 Mbps, this module transforms your Mark VI controller into a comprehensive PROFIBUS master station—enabling centralized monitoring, predictive diagnostics, and coordinated control across your entire turbine protection and control ecosystem.

Core Features & Benefits

→ Multi-Device Network Capacity: Manages up to 125 PROFIBUS DP slave devices on a single network segment, providing scalable connectivity for large-scale turbine control installations while reducing infrastructure complexity and wiring costs.

→ Adaptive High-Speed Communication: Automatic baud rate detection from 9.6 Kbps to 12 Mbps ensures optimal data throughput for time-critical control loops, with deterministic cycle times that meet the stringent requirements of turbine protection systems.

→ Extended Environmental Tolerance: Operates reliably across -40°C to +70°C temperature range with industrial-grade EMI/RFI shielding, making it suitable for harsh environments including outdoor substations, turbine enclosures, and high-vibration mounting locations.

✓ Integrated Diagnostic Intelligence: Multi-color LED status indicators combined with software-accessible diagnostic registers enable rapid fault isolation, reducing mean time to repair (MTTR) by up to 60% compared to systems without built-in diagnostics.

✓ Zero-Downtime Maintenance: Hot-swappable architecture allows module replacement during operation without disrupting active control loops, supporting continuous operation requirements in 24/7 power generation facilities.

✓ Universal Mounting Flexibility: Dual mounting options (DIN rail and panel mount) accommodate diverse cabinet configurations, simplifying retrofit installations and reducing mechanical integration time by 40%.

Typical Application Scenarios

Combined-Cycle Power Plant Integration
In combined-cycle facilities, the IS220PPRAH1A coordinates communication between Mark VI controllers and PROFIBUS-enabled gas turbine instrumentation including vibration monitors, temperature transmitters, and valve positioners. This centralized architecture reduces wiring by 70% compared to point-to-point analog systems while enabling advanced diagnostics that predict bearing failures 2-3 weeks before critical damage occurs.

Steam Turbine Modernization Projects
When upgrading aging steam turbine control systems, this gateway preserves existing PROFIBUS field device investments while integrating them with modern Mark VI controllers. Plant engineers achieve 30-40% cost savings versus complete field device replacement, with installation timelines reduced from 6 months to 8 weeks through standardized PROFIBUS configuration tools.

Multi-Vendor System Consolidation
For facilities operating mixed-vendor automation equipment, the IS220PPRAH1A enables GE Mark VI systems to communicate with Siemens, ABB, and Endress+Hauser PROFIBUS devices. This interoperability eliminates proprietary protocol converters, reducing system complexity by 50% and cutting annual maintenance costs by $15,000-$25,000 per turbine.

Distributed I/O Expansion Networks
In large turbine halls requiring 200+ I/O points distributed across 100+ meters, this gateway connects remote PROFIBUS I/O modules to centralized Mark VI controllers. The result: 85% reduction in copper wiring, 60% faster commissioning, and simplified troubleshooting through network-wide diagnostic visibility.

Predictive Maintenance Ecosystems
By integrating intelligent PROFIBUS sensors with Mark VI control systems, the IS220PPRAH1A enables condition-based monitoring strategies. Vibration analyzers, oil quality sensors, and thermal imaging devices communicate continuously, feeding machine learning algorithms that reduce unplanned downtime by 45% and extend turbine component life by 20-30%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the IS220PPRAH1A when your Mark VI system requires PROFIBUS DP master capability for connecting distributed field devices. Verify that your existing PROFIBUS network operates within the -40°C to +70°C temperature envelope and that total slave device count does not exceed 125 units per segment. For applications requiring redundant communication paths, deploy dual IS220PPRAH1A modules in parallel master configuration with automatic failover logic.

Extended Functions

Advanced Diagnostic Capabilities: Beyond basic LED indicators, the module provides detailed diagnostic data accessible through Mark VI HMI interfaces, including per-device communication statistics, error counters, and network utilization metrics. This telemetry integrates with SCADA systems for centralized fleet monitoring across multiple turbine sites.

Cybersecurity Hardening: While PROFIBUS DP operates at the field level, the IS220PPRAH1A supports network segmentation strategies that isolate turbine control networks from enterprise IT infrastructure. When combined with managed industrial Ethernet switches, this architecture achieves IEC 62443 security level SL2-SL3 compliance.

Custom Configuration Profiles: Factory-configurable GSD (General Station Description) files enable pre-commissioning of complex device configurations, reducing on-site startup time by 50%. Custom profiles support specialized PROFIBUS devices including multi-variable transmitters, intelligent valve controllers, and third-party safety systems.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-fresh modules with custom configuration
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and performance deviations from published specifications
Technical Support: Unlimited phone and email support during warranty period, including configuration assistance, troubleshooting guidance, and firmware update recommendations
Documentation Package: Complete installation manual, GSD configuration files, AutoCAD dimensional drawings, and sample ladder logic for common integration scenarios

Frequently Asked Questions

Q: What is the maximum cable distance supported between the IS220PPRAH1A gateway and the farthest PROFIBUS slave device?
A: Maximum segment length varies by baud rate: 1,200 meters at 9.6-93.75 Kbps, 400 meters at 187.5 Kbps, 200 meters at 500 Kbps, and 100 meters at 1.5-12 Mbps. Use RS-485 repeaters to extend distances beyond these limits while maintaining signal integrity.

Q: Can the IS220PPRAH1A interface with PROFIBUS PA (Process Automation) devices designed for hazardous areas?
A: The module supports PROFIBUS DP protocol only. To integrate PROFIBUS PA devices, deploy a DP/PA coupler (such as Siemens 6ES7 157-0AD84-0XA0) between the IS220PPRAH1A and your intrinsically safe field instruments in Zone 1/Division 1 locations.

Q: How does this gateway handle network redundancy for critical turbine protection applications?
A: Deploy two IS220PPRAH1A modules in a redundant master configuration with automatic switchover logic programmed in the Mark VI controller. Each module monitors the other's health; if the primary master fails, the secondary assumes control within 50-100 milliseconds—well within turbine protection system response requirements.

Q: What firmware update process is required for compatibility with newer Mark VI controller versions?
A: Firmware updates are performed via the Mark VI Toolbox software using the controller's maintenance Ethernet port. The process takes 5-8 minutes and does not require module removal. Always verify firmware compatibility with your specific Mark VI controller revision before updating.

Q: Does the module support PROFIBUS DP-V2 acyclic services for advanced device parameterization?
A: The IS220PPRAH1A implements PROFIBUS DP-V0 and DP-V1 protocols, which cover 95% of industrial automation applications. DP-V2 acyclic services are not supported; for devices requiring DP-V2, consider alternative gateway solutions or contact our engineering team for custom integration options.

Q: What training resources are available for commissioning teams unfamiliar with PROFIBUS configuration?
A: We provide comprehensive commissioning support including step-by-step configuration guides, video tutorials, and remote assistance during initial startup. For complex projects, on-site commissioning services are available at $1,500/day plus travel expenses.

Ready to Integrate PROFIBUS Connectivity?

Transform your Mark VI turbine control system with proven PROFIBUS DP master capability. Contact our industrial automation specialists today for application-specific configuration guidance, compatibility verification, and volume pricing for multi-turbine projects.
