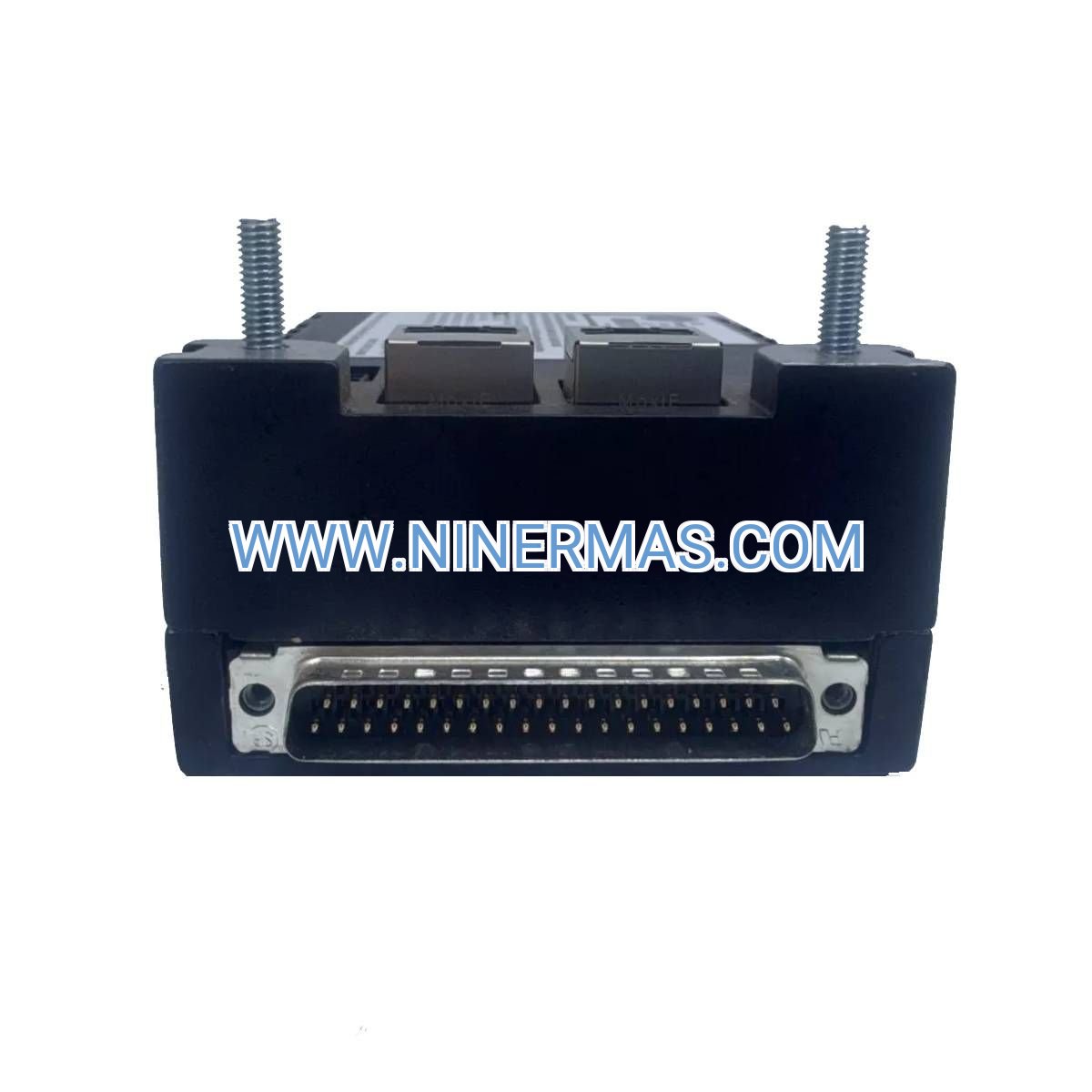

IS220PDOAH1BC 12-Channel Relay Output Module (Industrial-Grade Mark VIe Component)

The IS220PDOAH1BC represents GE's advanced discrete output technology for Mark VIe Speedtronic turbine control platforms. Engineered with 12 independent Form-C relay channels, this module delivers precision switching control for gas turbines, steam turbines, and critical process automation systems across power generation, oil & gas, and heavy industrial sectors.

Designed for environments where reliability is non-negotiable, this output pack features conformal coating protection, dual redundant IONet Ethernet communication, and hot-swappable architecture. Whether you're upgrading legacy Mark VI systems or building new Mark VIe installations, the IS220PDOAH1BC provides the robust discrete output capability your turbine control strategy demands.

With LED diagnostics on every channel, DIN-rail mounting flexibility, and certification for safety-critical applications, this module integrates seamlessly into distributed control architectures while maintaining the high availability standards required for 24/7 industrial operations.

Core Features & Benefits

→ 12 Independent Relay Outputs
Form-C contact configuration rated at 2A @ 30V DC or 125V AC enables direct control of solenoid valves, motor starters, alarm annunciators, and auxiliary equipment without external interface relays.

→ Conformal Coating Protection (Type C)
Factory-applied protective coating shields circuitry from moisture ingress, chemical vapors, and particulate contamination—extending operational life in coastal, offshore, and high-humidity installations by up to 40%.

→ Dual IONet Ethernet Architecture
Redundant network paths ensure continuous communication with Mark VIe controllers even during single-point network failures, supporting system availability targets exceeding 99.95%.

→ Hot-Swap Capability
Replace failed modules without system shutdown when configured in redundant mode, minimizing unplanned downtime and enabling maintenance during production windows.

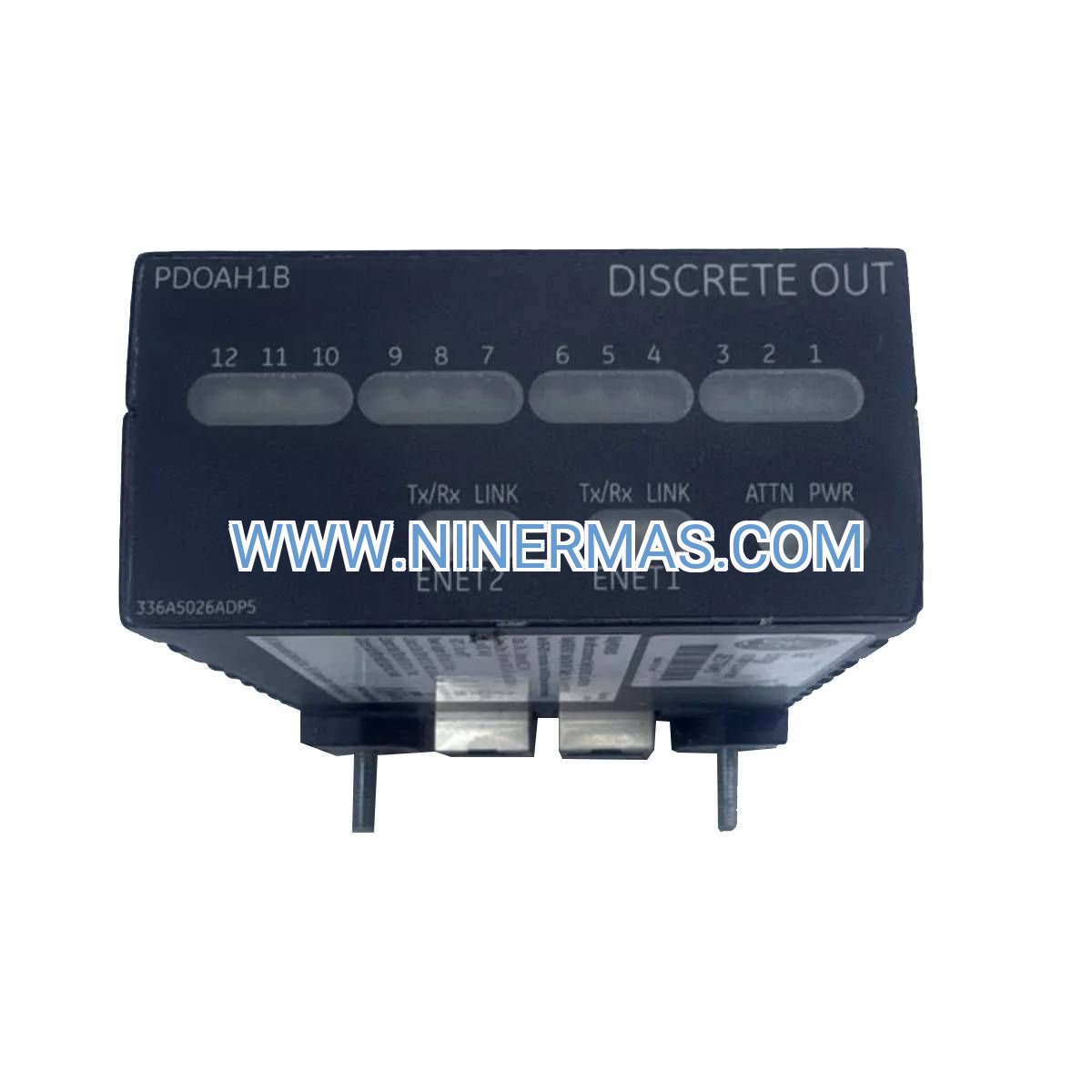

→ LED Status Indication
Per-channel visual feedback accelerates troubleshooting by 60%, allowing technicians to verify output states without multimeter testing or controller software access.

→ Wide Operating Temperature Range
-30°C to +65°C specification supports installations in extreme climates from Arctic gas fields to Middle Eastern desert facilities without supplemental cooling.

Technical Parameters & Selection Guide

Selection Criteria: Choose the IS220PDOAH1BC when your application requires discrete relay outputs for controlling external devices in Mark VIe turbine control systems. For applications needing solid-state outputs or higher channel density, consult our technical team for alternative I/O pack recommendations. Verify compatibility with your specific Mark VIe controller firmware revision before ordering.

Typical Application Scenarios

✓ Combined-Cycle Power Plants
In CCGT facilities, the IS220PDOAH1BC controls fuel gas valve actuators, ignition transformers, and auxiliary cooling pumps for Frame 7 and Frame 9 gas turbines. Integration with Mark VIe controllers enables coordinated start sequences that reduce thermal stress and extend hot gas path component life by 15-20%.

✓ Petrochemical Compressor Stations
Drives anti-surge valve solenoids, lube oil pump contactors, and emergency shutdown relays in centrifugal compressor trains. The conformal coating withstands H2S and hydrocarbon vapor exposure common in upstream gas processing, maintaining contact integrity over 100,000+ switching cycles.

✓ Cogeneration Steam Turbines
Manages extraction valve positioning, gland seal steam controls, and condenser vacuum breaker actuation in industrial cogeneration units. Dual IONet connectivity ensures governor control continuity during network maintenance, preventing costly process interruptions.

✓ Offshore Platform Power Generation
Operates in salt-fog environments on FPSO vessels and fixed platforms, controlling generator breaker trip circuits, blackstart sequencing relays, and load-shedding contactors. Wide temperature rating accommodates unheated equipment rooms in North Sea and Gulf of Mexico installations.

✓ Safety Instrumented Systems (SIS)
When configured in redundant 2oo3 voting architectures, achieves SIL 2 certification for turbine overspeed protection, flame detection interlocks, and emergency fuel shutoff valves—meeting IEC 61508 functional safety requirements.

Extended Functions

Remote Diagnostics Integration: Module health data streams to GE's Asset Performance Management (APM) platform via Predix connectivity, enabling predictive maintenance alerts for relay contact degradation before failures occur.

Cybersecurity Features: Firmware supports encrypted IONet communication and role-based access control when paired with Mark VIe controllers running security-hardened software revisions, addressing NERC CIP and IEC 62443 compliance requirements.

Custom I/O Mapping: ToolboxST software allows flexible assignment of relay outputs to specific turbine control functions, supporting both standard GE control strategies and customer-specific logic modifications without hardware changes.

Delivery & Service Assurance

Lead Time: Stock units ship within 24-48 hours via express courier. Custom-configured modules with specific firmware loads require 5-7 business days for factory programming and testing.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and workmanship issues. Extended warranty options available for critical spares inventory.

Technical Support: Our GE-certified engineers provide phone and email support for installation guidance, configuration assistance, and troubleshooting. On-site commissioning services available for multi-module projects.

Documentation Package: Every shipment includes installation manual, wiring diagrams, ToolboxST configuration templates, and material traceability certificates for quality assurance compliance.

Frequently Asked Questions

How does the IS220PDOAH1BC differ from the IS220PDIOH1A combined I/O module?
The IS220PDOAH1BC provides 12 relay outputs only, while the IS220PDIOH1A combines discrete inputs and outputs in a single module. Choose the PDOAH1BC when you need maximum output density or when separating input and output functions improves system architecture.

What relay contact life can I expect in high-cycle applications?
At rated load (2A resistive), expect 100,000 mechanical cycles minimum. Inductive loads (solenoid valves) may reduce life to 50,000-75,000 cycles. Use external snubber circuits for highly inductive loads to maximize contact longevity.

Can this module interface with 24V DC PLC systems outside the Mark VIe platform?
While physically possible, the module requires Mark VIe controller communication for operation. For standalone PLC integration, consider GE's RX3i or VersaMax I/O families designed for third-party controller compatibility.

Is firmware upgradeable in the field?
Yes, firmware updates deploy through ToolboxST software during scheduled maintenance windows. Always verify firmware compatibility with your Mark VIe controller version before updating to avoid communication protocol mismatches.

What cable specifications are required for relay output wiring?
Use 18-14 AWG (0.75-2.5mm²) stranded copper wire with 600V insulation rating. Shielded twisted-pair recommended for installations near VFDs or high-power switching equipment to minimize EMI coupling.

Does the conformal coating affect terminal block access?
No, terminal blocks remain fully accessible for wiring. The coating protects PCB traces and components only, not connection points. Standard screwdriver tools work without modification.

Request a Quote

Ready to enhance your Mark VIe turbine control system with proven discrete output technology? Contact our industrial automation specialists for pricing, technical specifications, and application engineering support. We maintain factory-fresh inventory for immediate shipment and offer volume discounts for multi-unit projects.

Email: sale@ninermas.com
Phone: +0086 187 5021 5667
Response Time: Technical inquiries answered within 4 business hours
