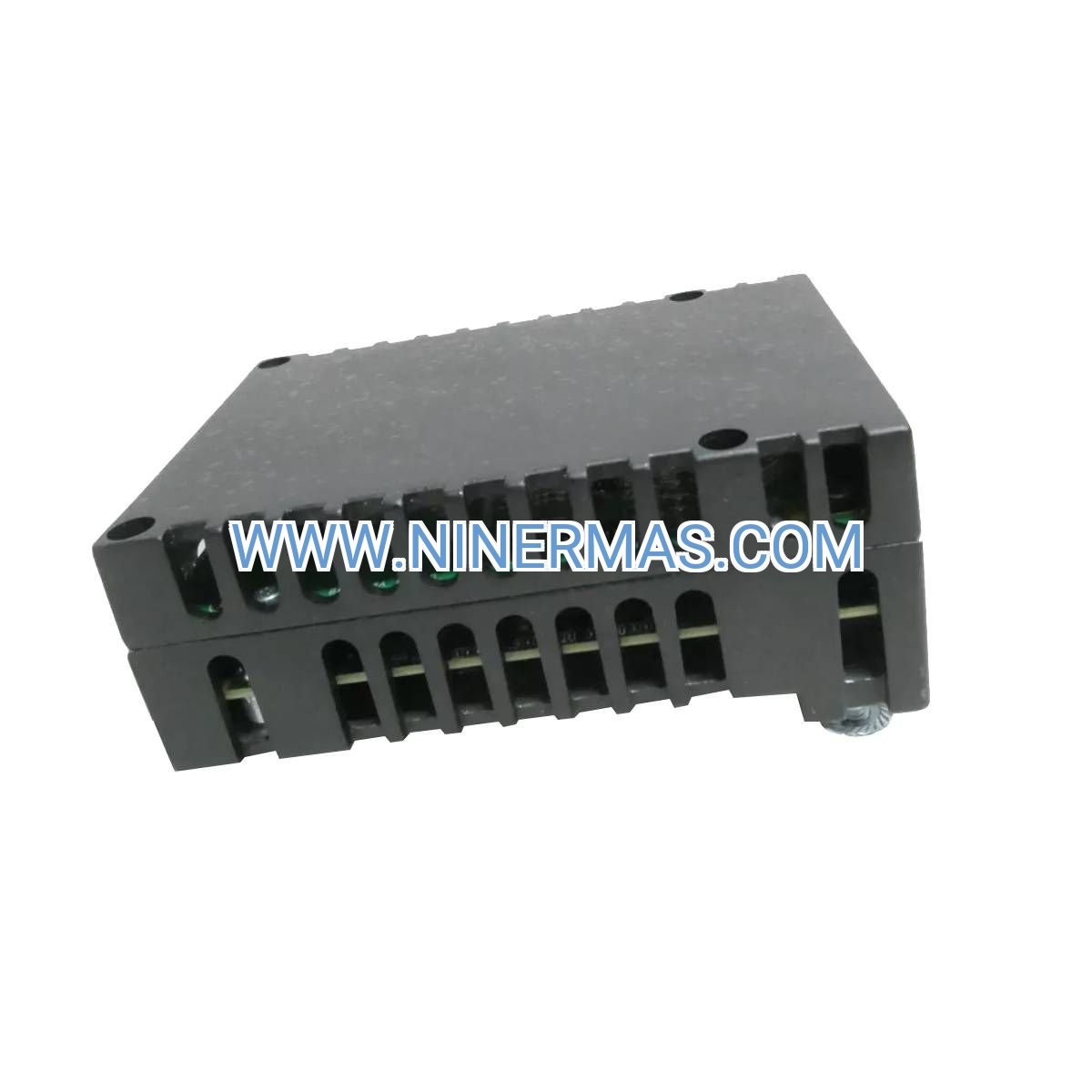

IS220PDOAH1B Industrial Relay Output Module (Mark VIe 12-Channel Discrete Control Pack)

The IS220PDOAH1B represents GE's advanced solution for discrete output control in Mark VIe turbine automation platforms. This industrial-grade relay module delivers 12 independent switching channels with Form C contacts, purpose-built for commanding solenoid valves, actuators, and auxiliary equipment in gas turbine, steam turbine, and combined-cycle power generation facilities. Engineered with TMR architecture compatibility and 1500V optical isolation, it ensures fail-safe operation in mission-critical control loops where downtime translates directly to revenue loss.

Designed for power generation professionals who demand uncompromising reliability, this discrete output pack integrates seamlessly into existing Mark VIe I/O racks via high-speed IONet backplane communication. Whether you're upgrading legacy control systems, expanding turbine protection schemes, or implementing new emergency shutdown logic, the IS220PDOAH1B provides the robust switching performance and diagnostic transparency required for modern industrial automation standards.

With hot-swappable capability, per-channel LED diagnostics, and conformal coating protection against harsh environments, this module minimizes maintenance windows while maximizing operational availability. Backed by comprehensive technical documentation and certified for global industrial standards, it's the preferred choice for turbine OEMs, plant operators, and control system integrators worldwide.

Technical Advantages & Performance Benefits

→ Triple Modular Redundancy Integration
Native TMR support enables fault-tolerant control architectures with automatic failover. When one module fails, redundant channels maintain continuous operation without process interruption—critical for turbines generating 50+ MW where unplanned shutdowns cost $100K+ per hour.

→ High-Voltage Relay Switching
125V DC nominal operation with 2A contact rating handles industrial solenoid loads directly. Eliminates intermediate relay panels, reducing cabinet space by 30% and cutting installation costs by $2,000-$5,000 per system.

→ Optical Isolation Protection
1500V AC isolation barriers shield sensitive control electronics from field voltage spikes and ground loops. Proven to reduce nuisance trips by 85% in electrically noisy environments like switchyards and motor control centers.

✓ Hot-Swap Maintenance Capability
Replace failed modules during operation without system shutdown. Typical swap time under 3 minutes reduces MTTR (Mean Time To Repair) from hours to minutes, improving overall system availability to 99.95%+.

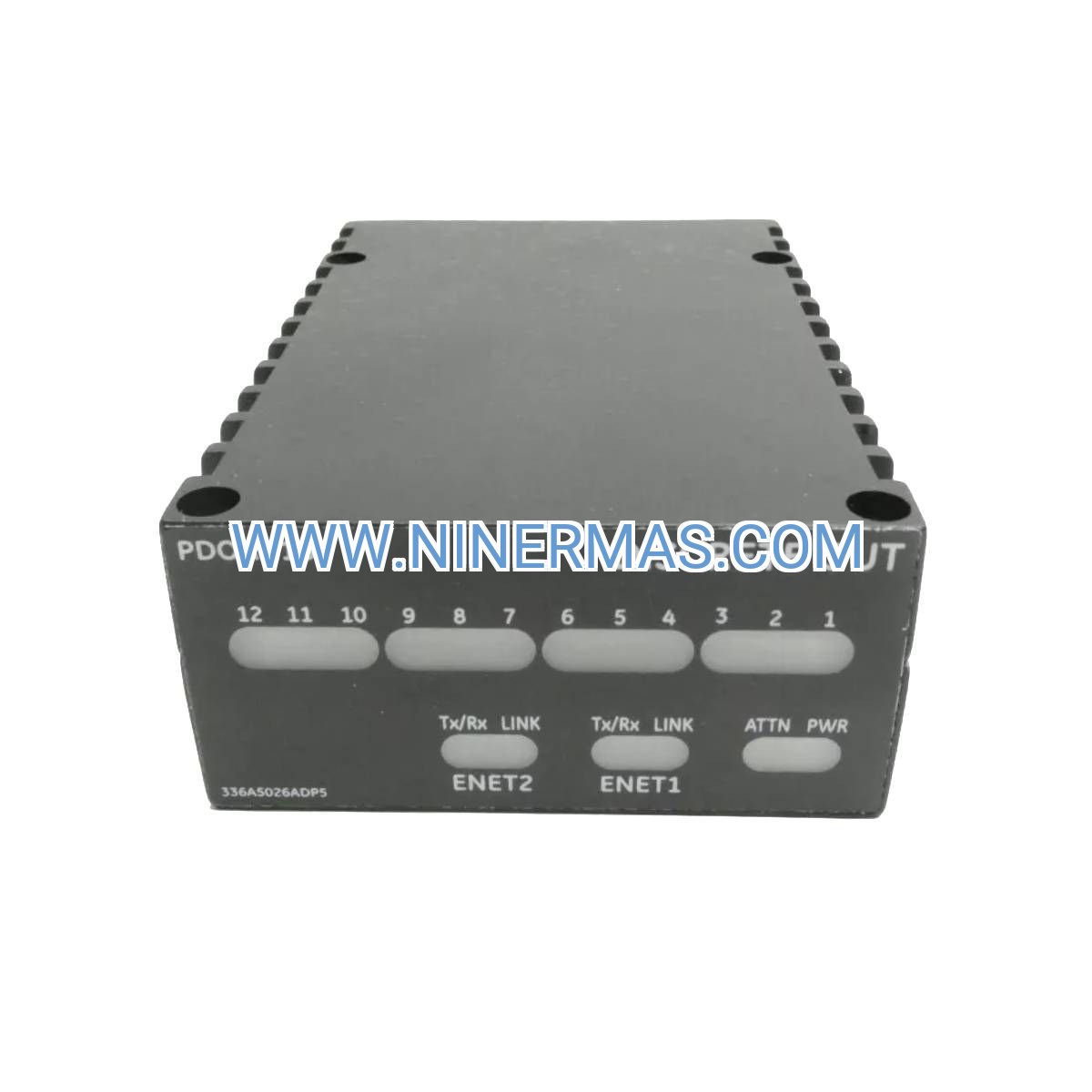

✓ Comprehensive Channel Diagnostics
Individual LED status indicators plus ToolboxST software integration provide real-time contact wear monitoring, coil current measurement, and fault history logging. Predictive maintenance alerts prevent unexpected failures.

✓ Environmental Hardening
Conformal coating protects against humidity (95% non-condensing), corrosive gases, and temperature extremes (0°C to +60°C operating). Field-proven in offshore platforms, desert installations, and tropical climates.

Industry Applications & Use Cases

Combined-Cycle Power Plants
Controls steam admission valves, bypass dampers, and condensate pump starters in HRSG (Heat Recovery Steam Generator) systems. Coordinates with analog I/O modules to implement cascade control strategies that optimize thermal efficiency by 3-5%.

Gas Turbine Emergency Protection
Provides fail-safe relay outputs for emergency fuel shut-off valves, fire suppression systems, and turbine trip circuits. Meets SIL 2 safety integrity requirements when deployed in TMR voting configurations with diagnostic coverage >95%.

Petrochemical Process Control
Operates isolation valves, sample system selectors, and analyzer calibration sequences in refinery applications. Handles H2S and hydrocarbon vapor environments with UL Class I Division 2 compliance when properly installed.

Offshore Platform Automation
Manages wellhead control panels, flare system valves, and platform utility systems in marine environments. Salt-fog resistant conformal coating extends service life to 15+ years versus 5-7 years for uncoated modules.

District Heating Networks
Switches circulation pumps, zone control valves, and boiler sequencing relays in CHP (Combined Heat & Power) facilities. Reduces energy waste by enabling precise load-following control with <10ms response time.

Technical Specifications & Selection Guide

Selection Criteria: Choose IS220PDOAH1B when you need 125V DC relay outputs for Mark VIe systems. For 24V DC applications, consider IS220PDIOH1A combined I/O pack. For AC voltage switching >250V, use external contactors with IS220PDOAH1B driving contactor coils. Verify load inrush current does not exceed 3x steady-state rating to prevent contact welding.

Advanced Integration & IoT Connectivity

The IS220PDOAH1B supports modern Industrial IoT initiatives through Mark VIe's native OPC UA server capability. Real-time relay status, contact wear metrics, and fault diagnostics stream to SCADA systems, cloud analytics platforms, and mobile monitoring apps. Integration with GE's Predix APM (Asset Performance Management) enables predictive maintenance algorithms that forecast relay replacement needs 30-60 days in advance based on switching cycle counts and load profiles.

For brownfield upgrades, the module's backward-compatible terminal blocks accept existing field wiring from legacy IS200 series modules, reducing retrofit labor by 40%. Configuration files migrate seamlessly via ToolboxST software, preserving control logic and minimizing commissioning time.

Customization Options: Factory-configured variants available with extended temperature ratings (-20°C to +70°C), enhanced conformal coating for marine/offshore service, and pre-programmed diagnostic thresholds. Contact our application engineering team for project-specific requirements including custom terminal labeling and factory acceptance testing.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (expedited same-day shipping available for critical outages)
Custom Configuration: 10-15 business days for factory-programmed or special-order variants
Warranty Coverage: 12 months comprehensive warranty covering manufacturing defects, component failures, and workmanship issues
Technical Support: Lifetime application engineering assistance including configuration review, troubleshooting guidance, and system integration consulting
Documentation Package: Installation manual (GEH-6855), wiring diagrams, ToolboxST configuration files, and dimensional drawings included with every order
Calibration Certificate: Factory test report with relay contact resistance, isolation voltage verification, and response time measurements (available upon request)

Frequently Asked Questions

What is the maximum wire size for field terminations on the IS220PDOAH1B relay output module?
Terminal blocks accept 12-24 AWG (0.25-2.5 mm²) copper wire with ferrules recommended for stranded conductors. Torque specification is 0.5-0.6 Nm (4.4-5.3 lb-in). Use insulated ferrules per IEC 60947 standards to prevent strand breakage.

Can I use this module to switch 48V DC telecom loads in Mark VIe control panels?
Yes, the relay contacts are rated for 2A continuous at any voltage from 5V to 125V DC. For 48V telecom applications, derate current to 1.5A when switching inductive loads (L/R >7ms) to maximize contact life beyond 200,000 cycles.

How do I configure TMR voting logic for the IS220PDOAH1B in a triple-redundant system?
TMR voting is configured in ToolboxST software under the I/O pack properties. Select "2-out-of-3" or "Median Select" voting algorithms depending on application criticality. Hardware installation requires three IS220PDOAH1B modules in separate I/O racks with independent power supplies per GE publication GEH-6700.

What diagnostic information is available for predictive maintenance of relay contacts?
ToolboxST provides real-time monitoring of: (1) cumulative switching cycles per channel, (2) contact resistance trending (detects wear before failure), (3) coil current measurement (identifies stuck relays), (4) last-fault timestamp, and (5) environmental data (temperature/humidity if sensors installed). Export diagnostic logs to CSV for trend analysis.

Is the IS220PDOAH1B suitable for SIL-rated safety instrumented systems?
When deployed in TMR configuration with proper diagnostic coverage, the module supports SIL 2 applications per IEC 61508. For SIL 3 requirements, use GE's dedicated safety I/O modules (IS220PPROSx series). Consult certified functional safety engineer for SIL verification calculations.

Can I retrofit this module into an existing Mark VI turbine control system?
No, the IS220PDOAH1B is mechanically and electrically incompatible with Mark VI platforms. Mark VI systems require IS200 series modules. For Mark VI to Mark VIe upgrades, complete control system replacement is necessary—contact our migration services team for turnkey upgrade packages.

Order Your IS220PDOAH1B Module Today

Ensure uninterrupted turbine operation with genuine GE IS220PDOAH1B relay output modules. Our inventory management system guarantees product authenticity with full factory traceability and serialized quality documentation. Every module undergoes rigorous incoming inspection including contact resistance verification, isolation testing, and functional validation before shipment.

Ready to upgrade your Mark VIe control system? Contact our turbine automation specialists at sale@ninermas.com or call +0086 187 5021 5667 for technical consultation, volume pricing, and system integration services. Download complete datasheets, wiring diagrams, and configuration guides from our technical library.
