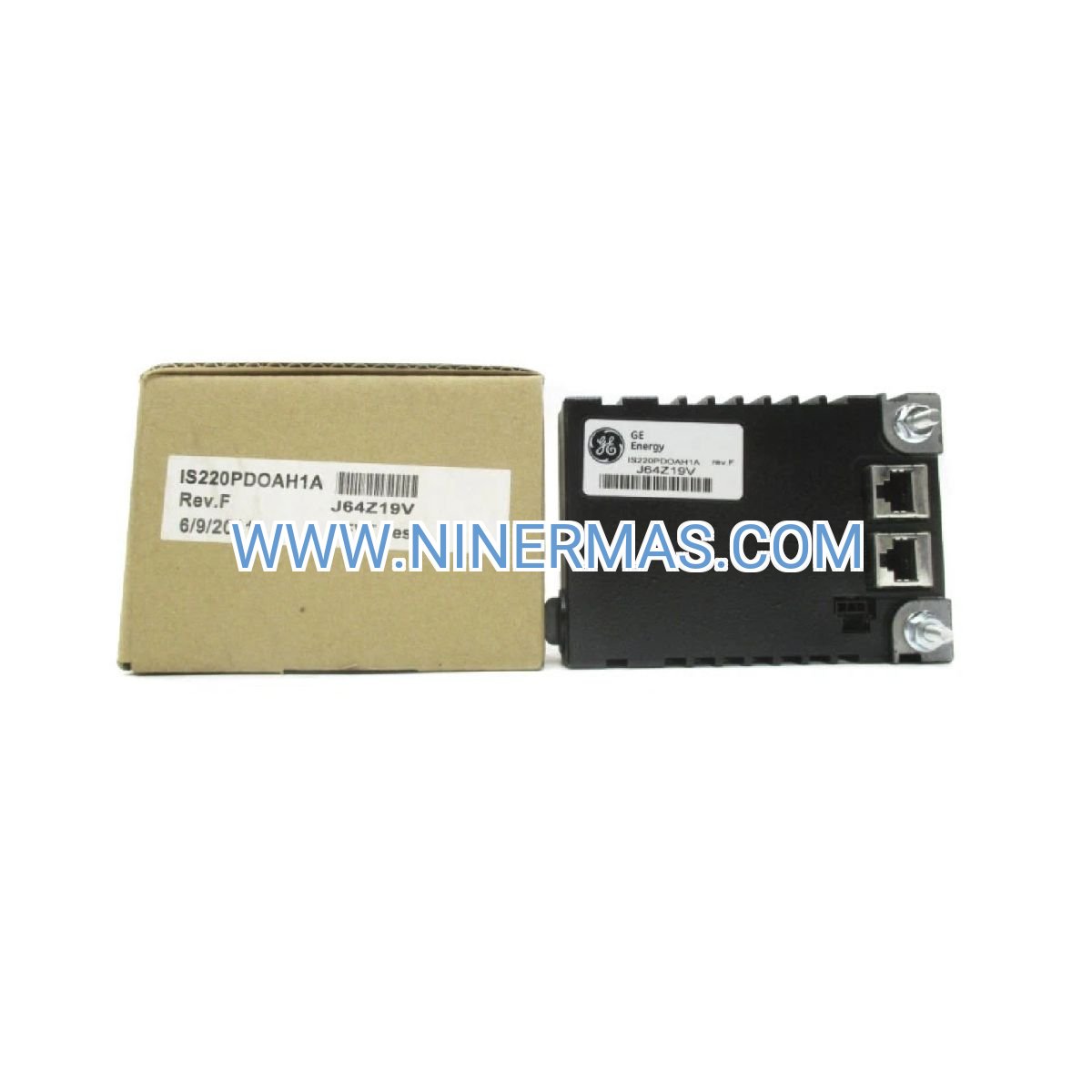

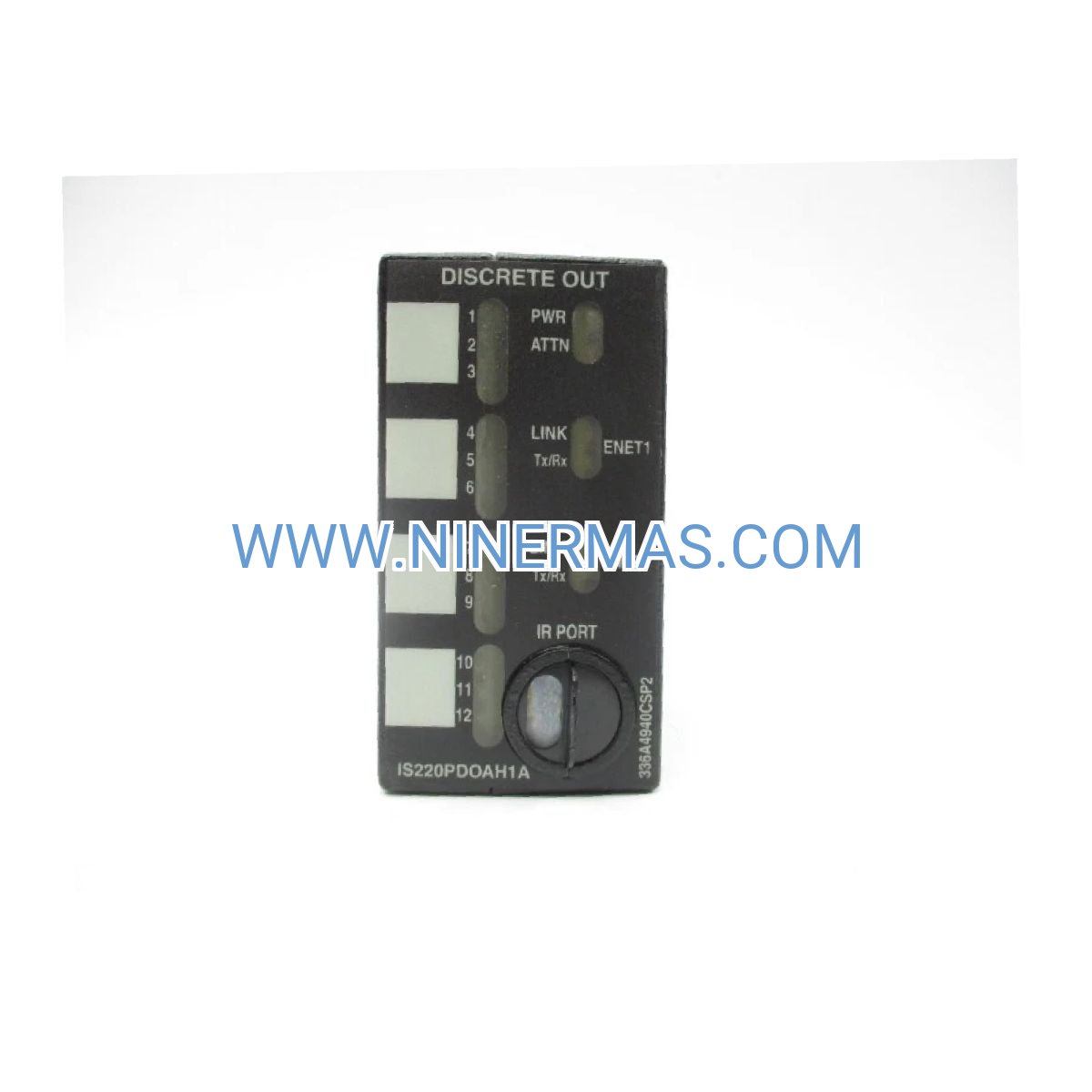

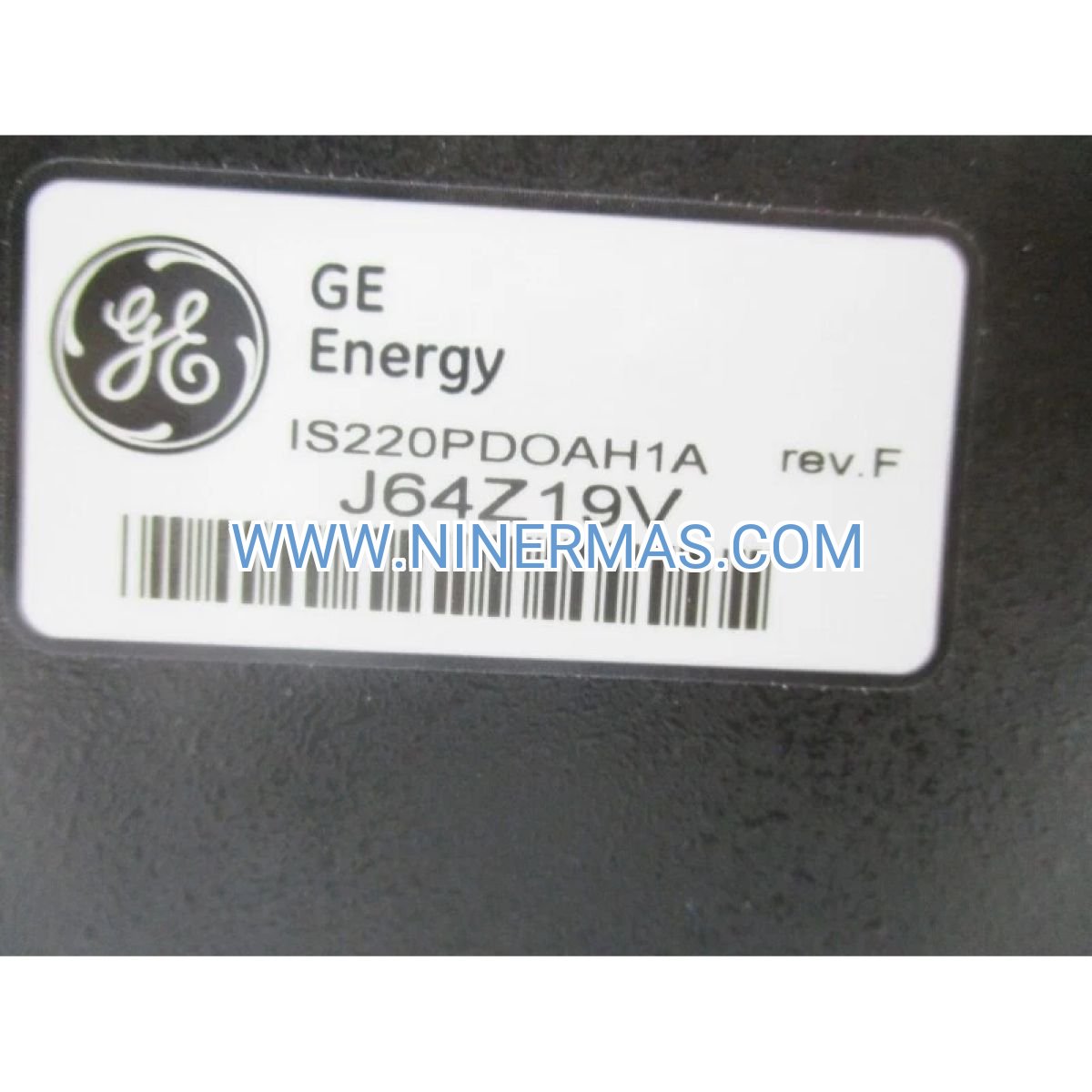

IS220PDOAH1A Discrete Output Pack (Industrial-Grade Mark VIe I/O Module)

The IS220PDOAH1A represents GE's advanced discrete output technology for Mark VIe turbine control platforms. Engineered for mission-critical applications, this output pack delivers precise 24VDC switching control across multiple channels, ensuring reliable actuation of valves, relays, and safety systems in power generation and heavy industrial environments.

Designed for seamless integration with Mark VIe control architectures, the IS220PDOAH1A combines robust hardware design with intelligent diagnostics, enabling operators to maintain uptime in demanding conditions. Whether managing gas turbine auxiliaries or coordinating combined-cycle plant operations, this module provides the foundation for dependable discrete control.

With hot-swappable construction and comprehensive fault detection, the IS220PDOAH1A minimizes maintenance windows while maximizing system availability—critical factors for continuous process industries where every minute of downtime translates to lost revenue.

Application Scenarios

→ Power Generation Facilities
In utility-scale power plants, the IS220PDOAH1A controls critical auxiliary equipment including lube oil pumps, cooling water valves, and emergency shutdown relays. The module's channel isolation prevents fault propagation, while its wide temperature range (-40°C to +70°C) ensures operation in both outdoor enclosures and climate-controlled control rooms.

→ Oil & Gas Compression Stations
Compressor control systems demand rapid, reliable output switching for anti-surge valves, blowdown systems, and safety interlocks. The IS220PDOAH1A's fast response time and noise immunity make it ideal for electrically harsh environments common in upstream and midstream facilities.

→ Industrial Cogeneration Plants
Combined heat and power installations leverage the IS220PDOAH1A to coordinate multiple turbine units, managing load sharing, synchronization signals, and process steam control. Integration with Mark VIe controllers enables sophisticated sequencing logic for optimal efficiency.

→ Marine Propulsion Systems
Shipboard gas turbine installations require I/O modules that withstand vibration, humidity, and temperature extremes. The IS220PDOAH1A's rugged construction and conformal coating protection deliver reliable performance in maritime applications.

→ Petrochemical Process Control
Refineries and chemical plants use the IS220PDOAH1A for discrete control of pumps, motors, and isolation valves within distributed control architectures. The module's diagnostic capabilities support predictive maintenance programs, reducing unplanned shutdowns.

Core Features & Benefits

✓ Multi-Channel 24VDC Output Architecture – Drives industrial relays, solenoids, and indicator circuits with channel-to-channel isolation preventing cross-talk and fault propagation

✓ Hot-Swap Capability Without System Interruption – Replace modules during operation without halting turbine control processes, reducing maintenance downtime by up to 75%

✓ Integrated Self-Diagnostics & Health Monitoring – Real-time channel status reporting, short-circuit detection, and power supply fault alerts enable proactive maintenance strategies

✓ Extended Industrial Temperature Range – Operates reliably from -40°C to +70°C, suitable for outdoor installations and high-ambient environments without derating

✓ Mark VIe Native Protocol Support – Plug-and-play integration with GE ToolboxST configuration software eliminates custom programming and accelerates commissioning

✓ Compliance with Global Safety Standards – CE, UL, and CSA certifications ensure regulatory compliance across North America, Europe, and Asia-Pacific markets

Technical Parameters & Selection Guide

Selection Criteria: Choose the IS220PDOAH1A when your application requires discrete output control within a Mark VIe ecosystem. For analog signal processing, consider pairing with IS220PAICH series modules. For legacy Mark VI systems, verify compatibility or explore migration pathways with our technical team.

Extended Functions

Advanced Diagnostics Integration: The IS220PDOAH1A streams real-time health data to Mark VIe controllers, enabling condition-based maintenance strategies. Diagnostic parameters include output current monitoring, thermal status, and communication integrity checks.

Scalable I/O Expansion: Build distributed control architectures by combining multiple IS220PDOAH1A modules with analog input packs, thermocouple modules, and RTD interfaces. The Mark VIe backplane supports mixed I/O configurations for comprehensive process monitoring.

Cybersecurity-Ready Design: Firmware updates and configuration changes utilize encrypted communication protocols, aligning with IEC 62443 industrial cybersecurity standards for critical infrastructure protection.

Customization Options: Factory configuration services available for pre-programmed channel assignments, custom cable assemblies, and application-specific testing protocols. Contact our engineering team for project-specific requirements.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days. Custom-configured modules require 4-6 weeks for factory programming and testing.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for critical applications.

Technical Support: Lifetime access to our automation specialists for installation guidance, troubleshooting assistance, and configuration optimization. Remote support available via phone, email, and video consultation.

Documentation Package: Each module includes installation manual, wiring diagrams, ToolboxST configuration guide, and compliance certificates. Digital documentation library accessible 24/7 through customer portal.

Frequently Asked Questions

How does the IS220PDOAH1A integrate with existing Mark VIe control racks?
The module features a standardized Mark VIe backplane connector that enables plug-and-play installation. Simply insert the module into an available I/O slot, secure the retention clips, and configure channel assignments through ToolboxST software. No custom wiring harnesses required for backplane communication.

What output current capacity does each discrete channel provide?
Each channel is rated for 24VDC operation with sufficient current capacity to drive standard industrial control relays, pilot solenoids, and LED indicators. Consult the technical datasheet for exact current ratings and inductive load derating factors.

Can I replace the IS220PDOAH1A while the turbine control system is running?
Yes, the hot-swap design allows online module replacement without interrupting control system operation. The Mark VIe controller automatically detects module removal and insertion, maintaining output states during the swap process to prevent process upsets.

Is the IS220PDOAH1A compatible with Mark VI turbine control platforms?
The IS220PDOAH1A is engineered specifically for Mark VIe systems and is not backward-compatible with Mark VI platforms due to different backplane architectures and communication protocols. For Mark VI applications, legacy-compatible modules are available.

What diagnostic information can I monitor from the output module?
The module provides comprehensive diagnostics including per-channel output status, short-circuit detection, open-load detection, power supply voltage monitoring, and communication health indicators. All diagnostic data is accessible through the Mark VIe HMI and ToolboxST interface.

How do I configure output channel assignments and logic?
Configuration is performed using GE's ToolboxST software, which provides graphical tools for channel mapping, output logic definition, and alarm threshold setting. Pre-built function blocks simplify common control strategies such as pump sequencing and valve interlocking.

Ready to Optimize Your Turbine Control System?

Enhance your Mark VIe control architecture with the proven reliability of the IS220PDOAH1A discrete output pack. Our automation specialists are ready to assist with module selection, system design, and technical integration.

Contact us today for:

• Application-specific configuration recommendations
• Volume pricing for multi-unit projects
• Technical compatibility verification
• Expedited shipping options
