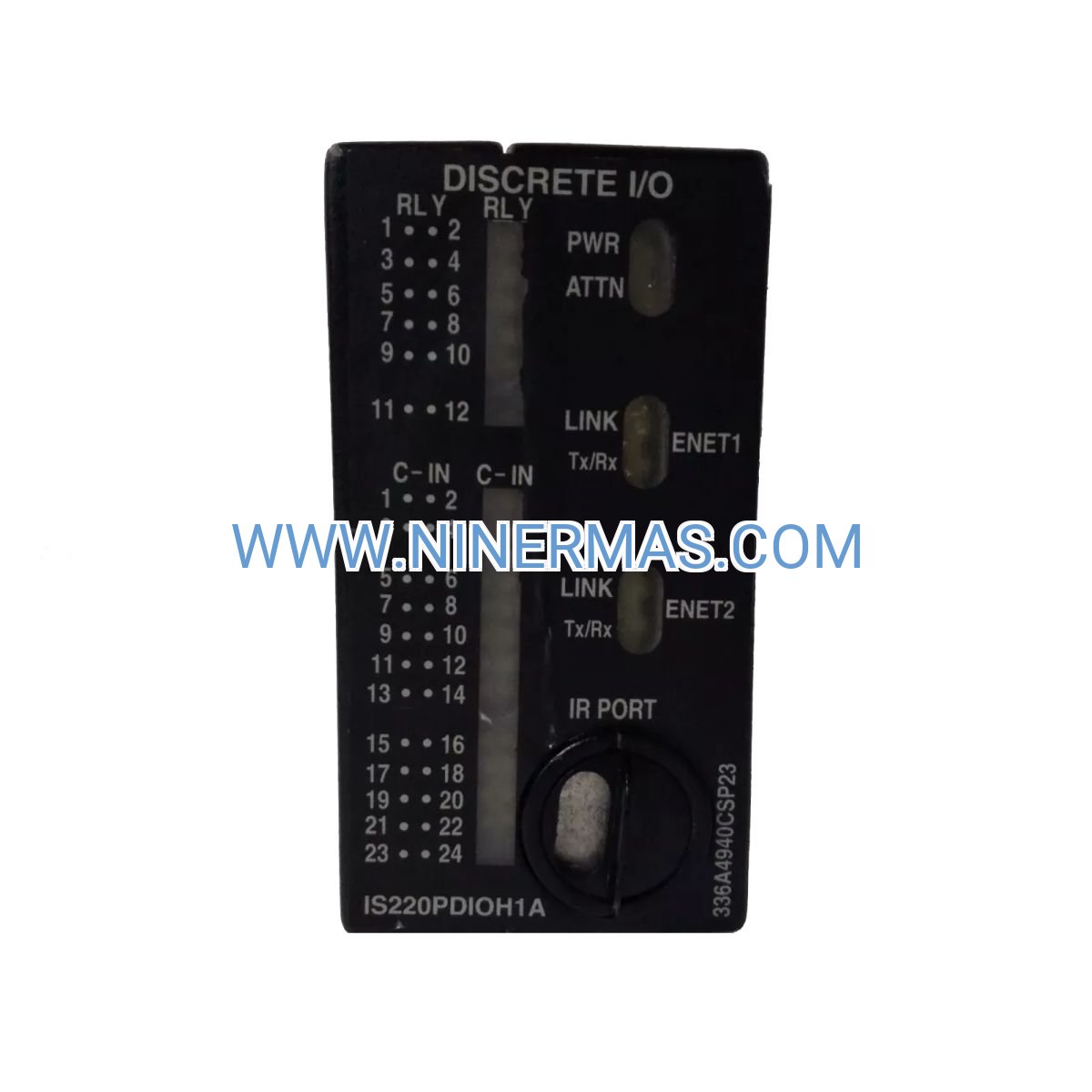

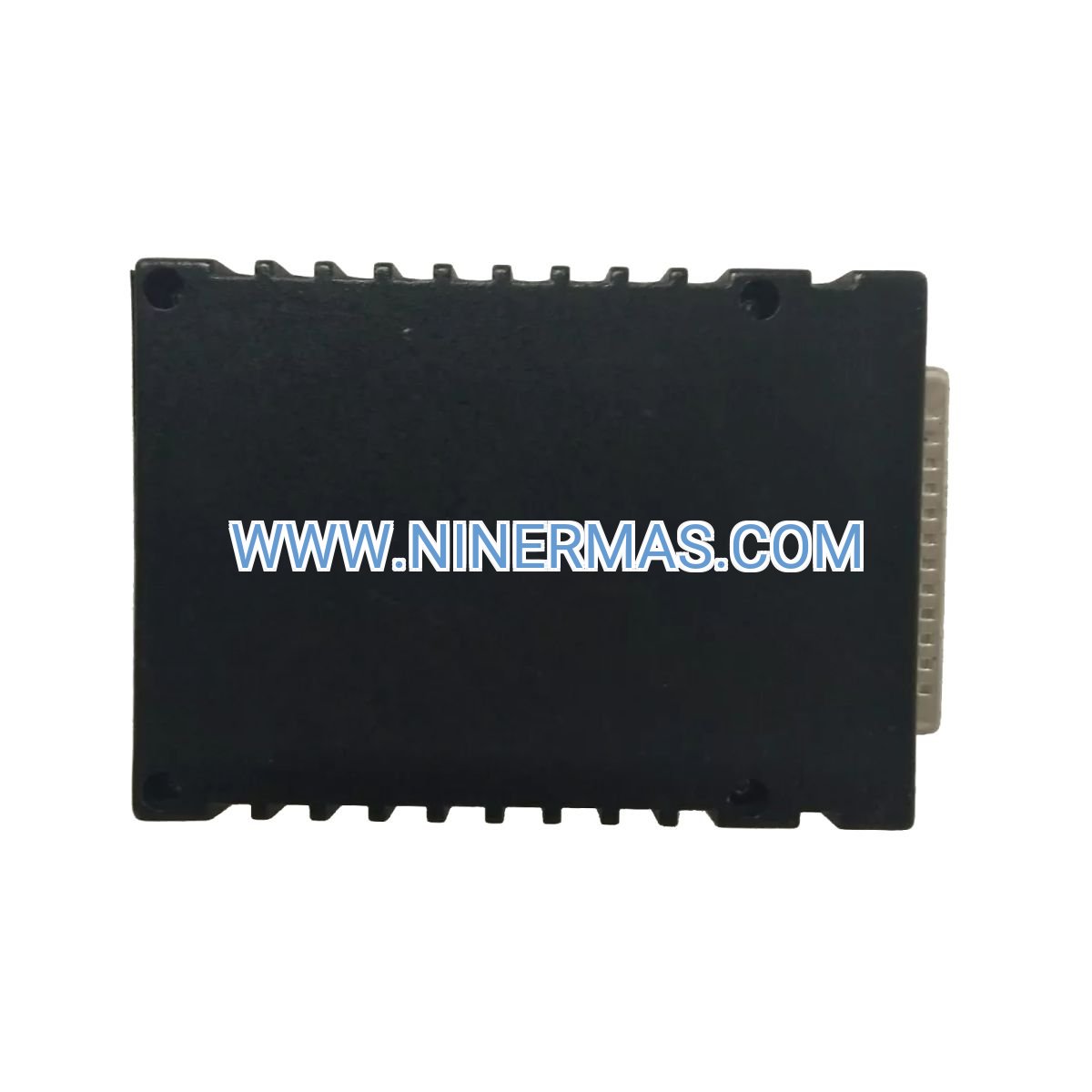

IS220PDIOH1A Digital I/O Module – Industrial-Grade Discrete Control for Mark VIe Systems

Designed for demanding power generation environments, the IS220PDIOH1A REV.E delivers robust discrete signal processing within GE's Mark VIe Speedtronic control platform. This dual-channel I/O pack combines 16 configurable inputs with 16 solid-state outputs, enabling precise monitoring and actuation across gas turbines, steam turbines, and hybrid power systems where millisecond-level response and 24/7 reliability define operational success.

Built on GE Vernova's proven IONet architecture, this module serves as the critical interface between field devices and distributed control logic, translating sensor states and executing control commands with optical isolation and per-channel diagnostics that minimize false trips and maximize uptime in mission-critical applications.

Core Capabilities & Business Value

✓ High-Density Signal Processing
32 total I/O points in a compact footprint reduce panel space requirements by 40% compared to legacy relay-based systems while delivering faster scan rates (≤5ms) for time-sensitive protection circuits.

✓ Hot-Swap Serviceability
Online module replacement during operation eliminates scheduled downtime for maintenance, translating to 99.7%+ availability in continuous-duty power plants where every hour of generation represents significant revenue.

✓ Configurable Logic & Isolation
Software-selectable positive/negative logic adapts to diverse field wiring standards, while 1500VAC optical isolation protects control systems from ground loops and electrical transients common in high-voltage switchyards.

→ Deterministic IONet Communication
Ethernet-based protocol ensures predictable data exchange with controller modules, supporting redundant network topologies for fault-tolerant architectures in critical infrastructure applications.

→ Environmental Hardening
-30°C to +65°C operating range and conformal coating enable deployment in outdoor enclosures, offshore platforms, and industrial environments with temperature extremes and corrosive atmospheres.

Industry Applications & Problem-Solving

Combined-Cycle Power Generation
Coordinate HRSG damper control, duct burner sequencing, and steam bypass valve actuation across multi-unit facilities. The module's fast I/O response enables precise load-following during grid frequency regulation, reducing fuel consumption by 2-3% through optimized combustion phasing.

Petrochemical Process Control
Monitor emergency shutdown valves, flame detection circuits, and compressor anti-surge systems in refineries and chemical plants. Pair with analog I/O modules for integrated process control where safety instrumented systems (SIS) require certified discrete inputs.

Renewable Energy Hybrid Systems
Interface wind turbine pitch actuators and solar inverter status signals with conventional generation assets, enabling seamless transitions between renewable and fossil sources during variable weather conditions.

Marine Propulsion & Offshore Drilling
Control thruster systems, ballast pumps, and dynamic positioning equipment on vessels and platforms where vibration, humidity, and salt spray demand ruggedized electronics with proven maritime certifications.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the IS220PDIOH1A when your application requires discrete I/O density exceeding 24 points per rack slot, or when hot-swap capability is mandatory for high-availability systems. For analog signal processing, consider pairing with IS220PAOCH1A or IS230PCAAH1B modules. Verify Mark VIe controller firmware compatibility (minimum R07.00) before deployment.

Advanced Integration & Customization

Redundant Architecture Support: Deploy dual IS220PDIOH1A modules in TMR (Triple Modular Redundant) configurations with automatic failover, ensuring uninterrupted operation during single-point failures. Requires IS420UCSCH1C controller modules and redundant IONet switches.

Remote Monitoring Integration: IONet diagnostics stream real-time I/O health data to SCADA systems via Modbus TCP or OPC UA gateways, enabling predictive maintenance through trend analysis of contact resistance and switching frequency.

Custom Signal Conditioning: Factory-configurable input filtering (10-500ms debounce) and output pulse-stretching accommodate legacy sensors and actuators without external signal conditioners, reducing BOM costs by 15-20% in retrofit projects.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units | 4-6 weeks for factory-fresh modules with custom firmware
Warranty Coverage: 12 months against manufacturing defects, extendable to 36 months with premium service plan
Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and system optimization
Documentation Package: Installation manual (GEH-6855), wiring diagrams, IONet configuration files, and calibration certificates included

Frequently Asked Questions

How does the IS220PDIOH1A handle input signal debouncing for mechanical contacts?
The module provides software-configurable debounce filters (10-500ms range) through the Mark VIe ToolboxST configuration utility, eliminating false triggers from relay chatter or switch bounce without external RC networks.

What is the maximum permissible cable run for 24VDC discrete signals?
GE recommends 300 meters (984 feet) maximum using 18 AWG shielded twisted-pair cable with proper grounding. For longer distances, deploy IS200VCRCH1BBB terminal boards with built-in signal repeaters or consider fiber-optic I/O extenders.

Can this module replace IS200EDIOH1A from older Mark VI systems?
No – the IS220PDIOH1A uses IONet protocol incompatible with Mark VI's WDIO bus. Migration requires controller upgrade to Mark VIe platform. Contact our engineering team for system migration planning and compatibility assessments.

What diagnostic capabilities differentiate this from standard PLC I/O modules?
Beyond basic LED indicators, the module reports per-channel open-circuit detection, short-circuit faults, power supply deviations (±10%), and communication latency to the controller, enabling condition-based maintenance strategies unavailable in conventional I/O systems.

Does the module require external 24VDC power supplies for field devices?
Yes – field power is customer-supplied. The module draws control logic power from the Mark VIe backplane (5VDC @ 1.2A typical). Use IS410JPDDG1A or IS200JPDDG1AAA power distribution boards for centralized field power management with overcurrent protection.

What is the expected service life in continuous-duty applications?
GE rates the IS220PDIOH1A at 20+ years operational life in controlled environments (25°C, <60% RH). Solid-state outputs eliminate relay wear, while conformal coating extends lifespan in harsh industrial atmospheres with sulfur dioxide or chlorine exposure.

Request Technical Consultation

Unsure whether the IS220PDIOH1A fits your control architecture? Our application engineers provide complimentary system assessments, including I/O point mapping, network topology design, and lifecycle cost analysis. Contact us with your project specifications for tailored recommendations and volume pricing.
