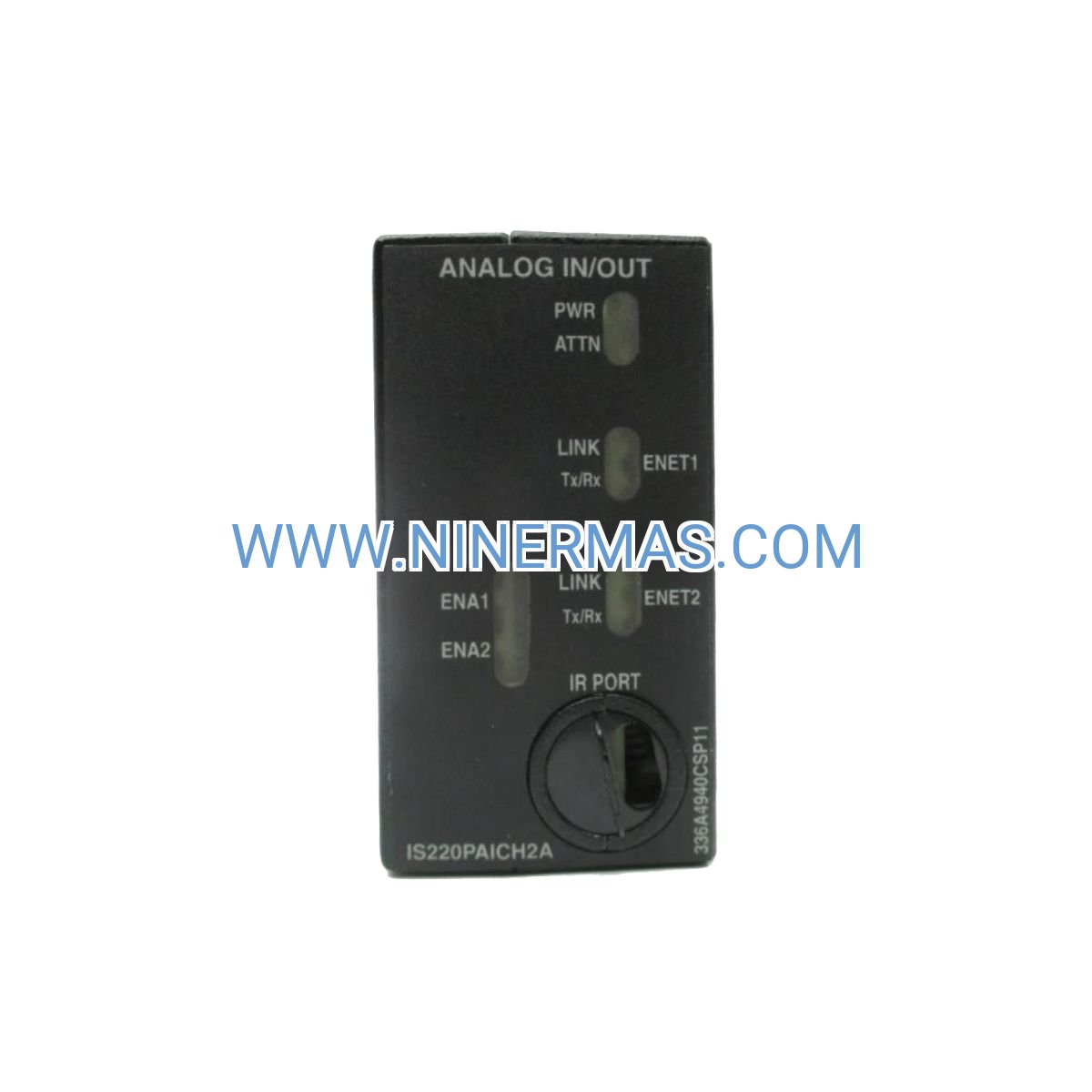

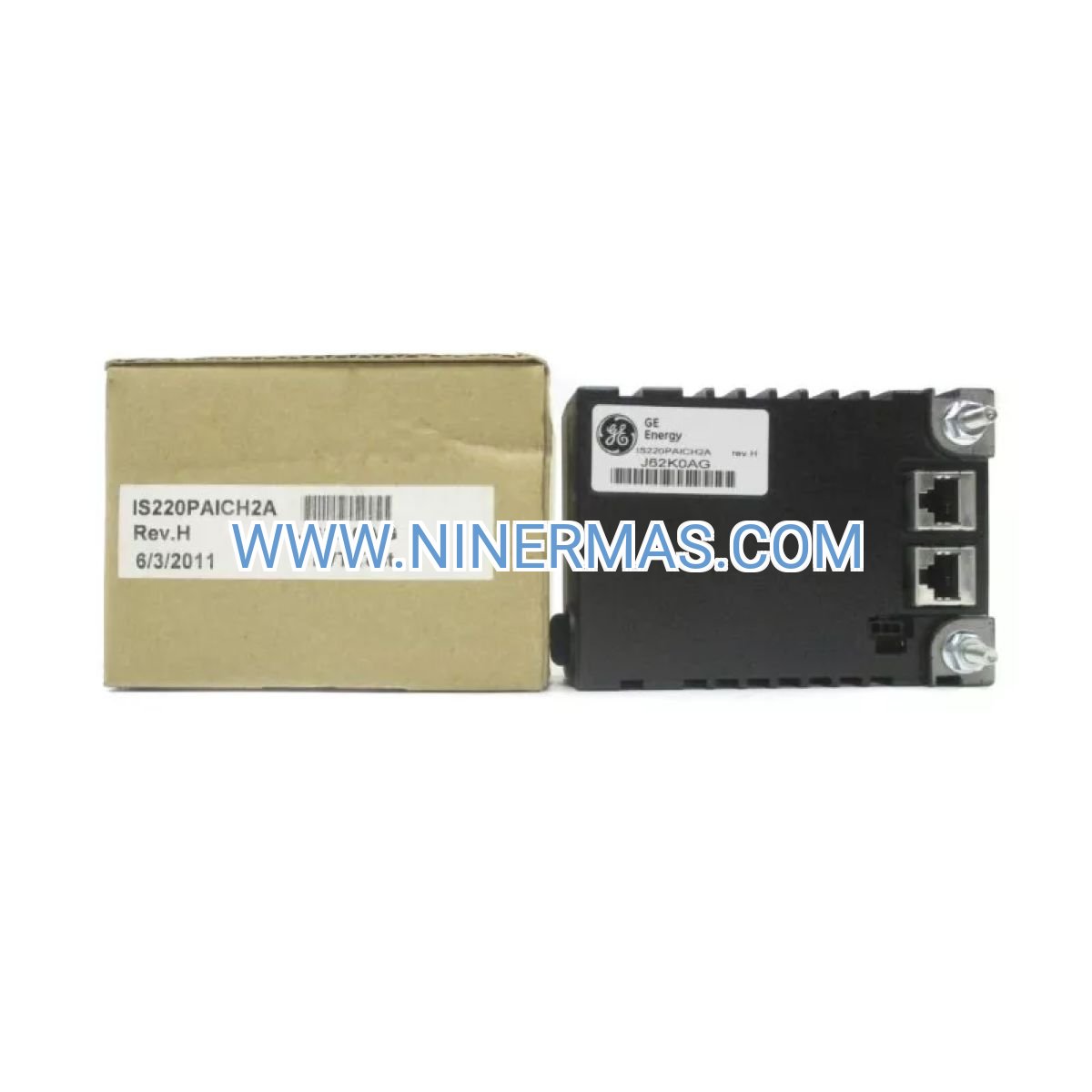

IS220PAICH2A Industrial-Grade Analog I/O Pack for Mark VIe Control Architecture

The IS220PAICH2A represents GE's advanced analog signal processing solution engineered specifically for Mark VIe turbine control platforms. This industrial I/O module combines high-resolution data acquisition with robust field-proven reliability, enabling precise monitoring and control of critical process parameters in power generation, oil & gas, and heavy industrial environments.

Designed for mission-critical applications where measurement accuracy directly impacts operational safety and efficiency, the IS220PAICH2A integrates seamlessly into distributed control architectures. Plant engineers and automation specialists rely on this module to bridge the gap between field instrumentation and digital control systems, converting analog sensor signals into actionable data while maintaining signal integrity across harsh industrial conditions.

Whether you're upgrading legacy turbine control systems or building new power generation facilities, the IS220PAICH2A delivers the precision, durability, and diagnostic capabilities required for 24/7 continuous operation. Its hot-swappable design minimizes maintenance downtime while built-in fault detection ensures proactive system health management.

Core Features & Benefits

✓ 16-Bit Signal Resolution
Captures minute process variations with 0.0015% full-scale accuracy, enabling precise control of turbine parameters including temperature, pressure, flow, and vibration. Superior resolution translates to tighter process control and reduced operational variability.

✓ Extended Temperature Performance
Operates reliably from -40°C to +70°C without derating, making it suitable for outdoor enclosures, desert installations, and arctic environments. Conformal coating protects circuitry from moisture, dust, and corrosive atmospheres.

✓ Hot-Swap Capability
Replace failed modules during live operation without system shutdown or process interruption. Reduces mean time to repair (MTTR) by up to 75% compared to traditional I/O architectures, directly improving plant availability.

✓ Integrated Diagnostics
Continuous self-monitoring detects open circuits, short circuits, out-of-range signals, and module failures. Diagnostic data streams to Mark VIe controllers for predictive maintenance scheduling and alarm management.

✓ Multi-Channel Architecture
Handles multiple analog inputs and outputs in a single compact module, reducing panel space requirements by 40% versus discrete signal conditioners. Simplifies wiring, lowers installation costs, and improves system maintainability.

✓ Backplane Communication
High-speed proprietary protocol ensures deterministic data transfer with sub-millisecond latency. Synchronized sampling across multiple I/O packs enables coordinated control strategies for complex turbine protection algorithms.

Typical Application Scenarios

→ Gas Turbine Power Plants
Monitors combustion temperatures, fuel flow rates, and compressor pressures in Frame 6, Frame 7, and Frame 9 gas turbines. Processes signals from thermocouples, RTDs, and pressure transmitters to optimize combustion efficiency while preventing hot gas path damage. Reduces fuel consumption by 2-3% through precise air-fuel ratio control.

→ Steam Turbine Control Systems
Acquires data from steam pressure sensors, bearing temperature monitors, and valve position feedback devices. Enables coordinated control of admission valves, extraction points, and condenser vacuum systems. Prevents turbine trips caused by overspeed, vibration, or thermal stress conditions.

→ Combined-Cycle Facilities
Integrates gas turbine, heat recovery steam generator (HRSG), and steam turbine control into unified Mark VIe architecture. Manages complex sequencing during startup, load changes, and shutdown while maximizing thermal efficiency across operating modes.

→ Industrial Co-Generation Plants
Balances electrical generation with process steam delivery in chemical plants, refineries, and manufacturing facilities. Coordinates turbine output with facility thermal loads, maintaining optimal efficiency across varying demand profiles.

→ Mechanical Drive Applications
Controls turbines driving compressors, pumps, and generators in pipeline compression stations and offshore platforms. Processes vibration, thrust bearing, and seal oil pressure signals to protect high-value rotating equipment.

Technical Parameters & Selection Guide

Selection Criteria: Choose the IS220PAICH2A when your application requires high-precision analog signal processing within Mark VIe distributed control systems. This module is ideal for applications demanding better than 0.1% accuracy, extended temperature operation, or hot-swap maintenance capability. For discrete (on/off) signals, consider the IS220PDIOH1A discrete I/O pack. For thermocouple inputs, pair with IS200STTCH terminal boards for optimal signal conditioning.

Extended Functions

Advanced Calibration Features: Field-adjustable zero and span calibration allows fine-tuning to match specific sensor characteristics without replacing hardware. Software-based linearization supports non-linear sensors including thermocouples and RTDs.

Redundancy Support: Operates in simplex, dual, or triple modular redundant (TMR) configurations for SIL 2/SIL 3 safety-rated applications. Automatic failover ensures continuous operation during module failures.

Remote Monitoring Integration: Diagnostic data accessible via GE's ToolboxST software enables remote troubleshooting and performance trending. Integration with plant SCADA systems provides centralized alarm management and historical data logging.

Customization Options: Factory configuration services available for application-specific signal ranges, filtering parameters, and diagnostic thresholds. Custom firmware loads support specialized control algorithms.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 1-3 business days via express courier. Typical delivery to major industrial centers: North America 2-4 days, Europe 3-5 days, Asia-Pacific 4-7 days.

Custom Configuration: Factory-configured modules with pre-loaded parameters available with 7-10 business day lead time. Includes configuration documentation and test certificates.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for critical applications.

Technical Support: Direct access to application engineers with Mark VIe expertise. Support includes installation guidance, configuration assistance, troubleshooting, and integration consulting. Response time: 4 hours for critical issues, 24 hours for standard inquiries.

Documentation Package: Every module ships with installation manual, wiring diagrams, configuration guide, and compliance certificates. Digital documentation library includes CAD drawings, 3D models, and software utilities.

Frequently Asked Questions

Can the IS220PAICH2A interface directly with 4-20mA transmitters without external barriers?
Yes, the module includes built-in current loop power and accepts 4-20mA signals directly. For hazardous area installations requiring intrinsic safety barriers, use approved isolators between field devices and the I/O module.

What is the maximum cable length between the module and field sensors?
For 4-20mA current loops, cable runs up to 1000 meters are supported with minimal signal degradation. Voltage inputs (0-10V, ±10V) should be limited to 100 meters unless using shielded twisted-pair cable with proper grounding.

How does the module perform in high-vibration environments?
The IS220PAICH2A is qualified for 2G vibration per IEC 60068-2-6, suitable for turbine control panels mounted near rotating equipment. Conformal coating and ruggedized connectors ensure reliable operation in industrial environments.

Is firmware upgradeable in the field?
Yes, firmware updates are performed via the Mark VIe controller using GE's ToolboxST software. Updates can be applied during scheduled maintenance windows without removing the module from the rack.

What diagnostic information is available for troubleshooting?
The module reports channel-level diagnostics including open circuit detection, short circuit detection, out-of-range signals, over-temperature conditions, and power supply status. Diagnostics are accessible via controller HMI and ToolboxST software.

Can I mix IS220PAICH2A modules with other I/O types in the same rack?
Yes, Mark VIe racks support mixed I/O configurations. You can combine analog I/O packs (IS220PAICH2A), discrete I/O packs (IS220PDIOH1A), and specialized modules in a single chassis based on application requirements.

Get Started with Your Turbine Control Upgrade

Ready to enhance your Mark VIe system with precision analog I/O? Our technical team is available to discuss your specific application requirements, recommend optimal configurations, and provide detailed quotations. Contact us today for fast delivery, expert support, and the reliability your critical operations demand.

Request a Quote | Technical Consultation Available | Same-Day Shipping on Stock Items
