Description
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | Mark VIe |

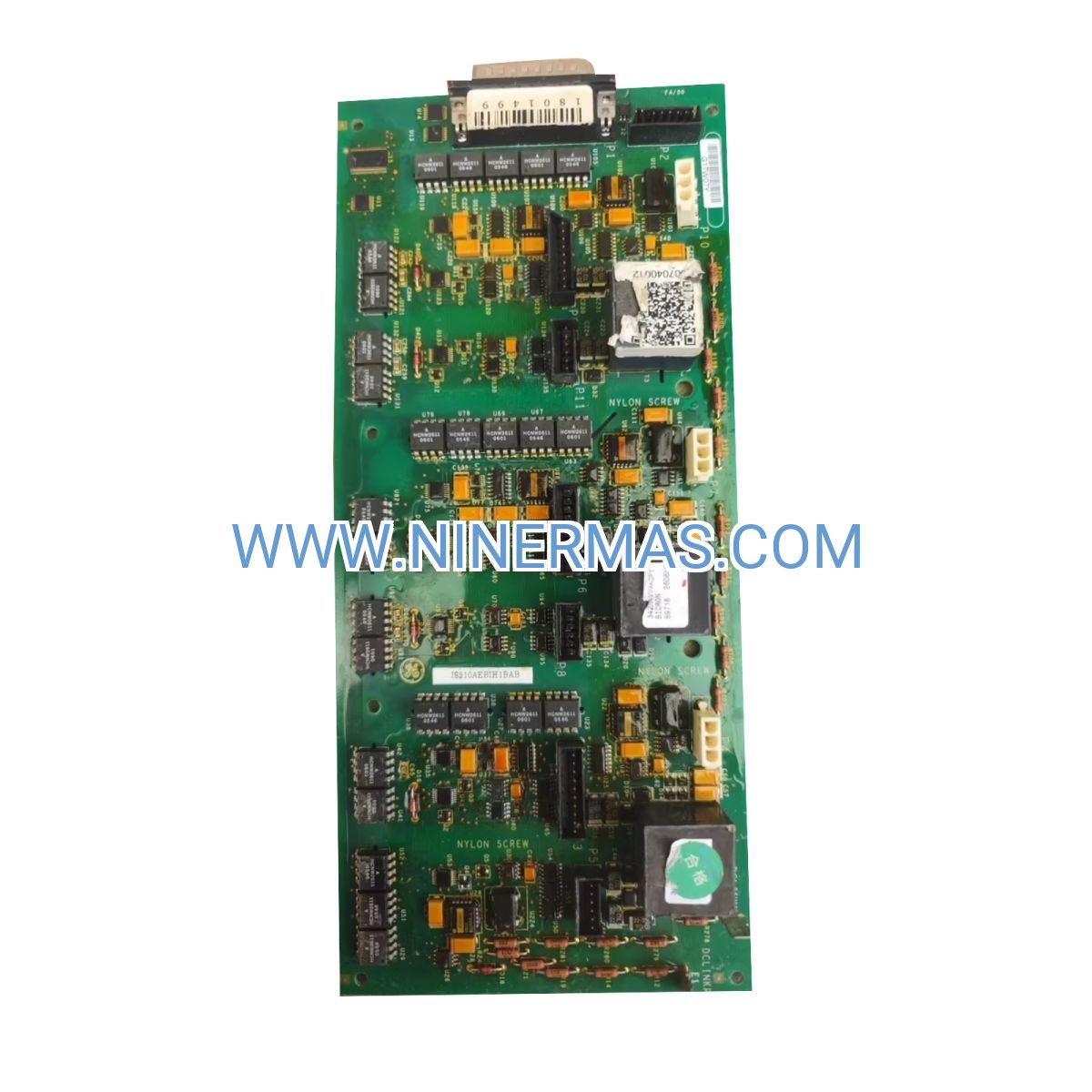

| Model/Part Number | IS210AEBIH1BAA |
| Model Type | Bridge Interface Board |
| Function | Interfaces with bridge-type sensors for signal processing |
| Display | LED indicators (status, power) |
| Inputs | Analog signals from bridge-type sensors (e.g., strain gauges, vibration sensors) |
| Outputs | Digital data to Mark VIe control system |
| Communication Interfaces | Mark VIe system backplane |
| Signal Conditioning | Internal analog-to-digital conversion, excitation for bridge sensors |
| Accuracy | ±0.1% of full scale (typical) |
| Resolution | 16 bits (typical) |
| Redundancy | Non-redundant (simplex configuration) |
| Diagnostics | LED status indicators, fault reporting to control system |
| Compatibility | GE Mark VIe turbine control systems |
| Power Supply | 5 VDC, 24 VDC (from Mark VIe backplane), excitation for sensors |
| Power Consumption | 5 W max (typical) |
| Environmental Specifications | Operating Temperature: -30°C to +65°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in control cabinet) |
| Dimensions | Approx. 200 mm (H) x 100 mm (W) x 40 mm (D) |
| Weight | 0.5 kg (approx.) |
| Mounting | Plugs into Mark VIe control rack |
| Certifications | CE, UL, cULus, RoHS |
