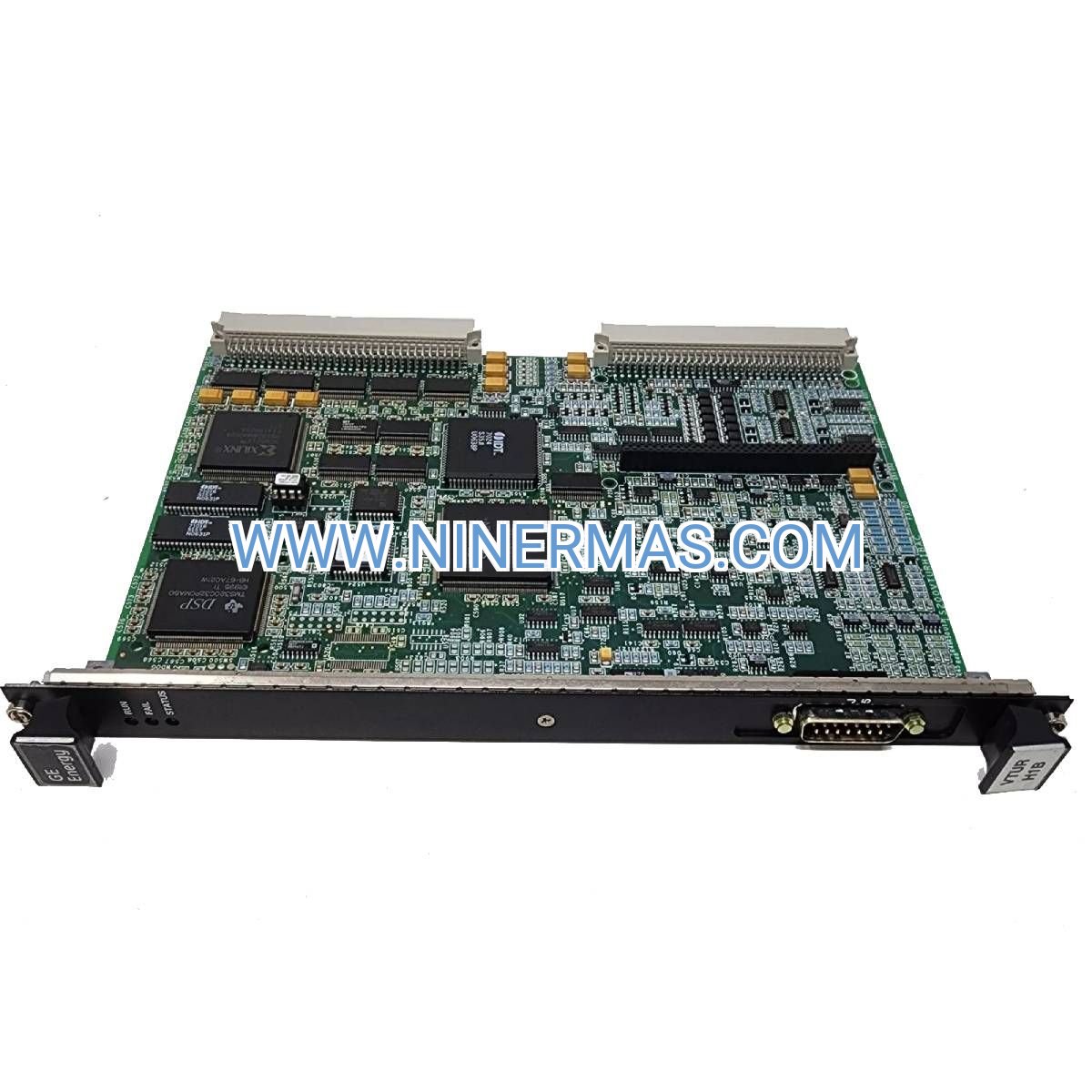

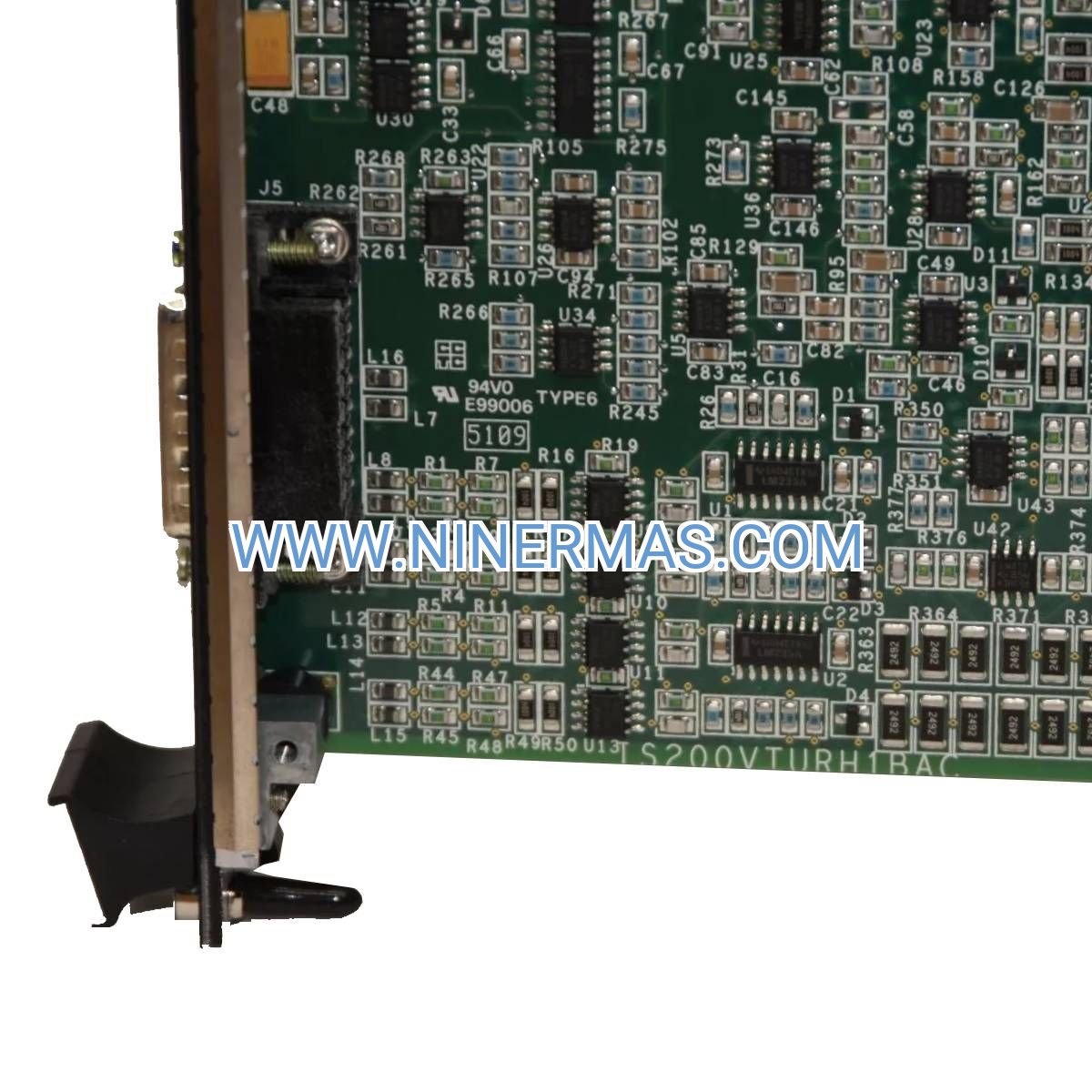

IS200VTURH1BAC Primary Trip Protection Board (Industrial-Grade Turbine Safety Module)

The IS200VTURH1BAC represents GE's advanced approach to turbine safety engineering—a dedicated primary trip protection board built exclusively for Mark VI Speedtronic control platforms. Designed to prevent catastrophic overspeed failures in gas and steam turbines, this module delivers triple-modular redundant logic with sub-10-millisecond response times across power generation, petrochemical, and marine propulsion installations.

Industrial operators face constant pressure to balance production uptime with equipment protection. The IS200VTURH1BAC solves this challenge by providing fail-safe emergency shutdown coordination that activates only when genuine hazard conditions exist, eliminating nuisance trips while maintaining absolute protection integrity. Whether you're managing a 300MW combined-cycle plant or a mechanical drive compressor train, this board serves as your first line of defense against turbine destruction.

Key advantages include hot-swap capability for zero-downtime maintenance, built-in diagnostic reporting to upstream controllers, and seamless integration with existing Mark VI architectures—making it the preferred choice for facility managers who demand both reliability and operational flexibility.

Core Features & Benefits

✓ Triple-Modular Redundant Architecture
Three independent processing channels continuously cross-check speed measurements and trip logic. If one channel fails, the system maintains full protection capability while alerting operators to the fault—ensuring your turbine never operates without safeguards.

✓ Sub-10-Millisecond Emergency Response
When turbine speed exceeds programmed thresholds, the IS200VTURH1BAC initiates fuel valve closure and steam admission shutdown in under 10 milliseconds—fast enough to prevent mechanical damage even during sudden load rejection events.

✓ Integrated Self-Diagnostics
Continuous background testing verifies relay coil integrity, power supply stability, and communication bus health. Fault codes transmit automatically to HMI displays, enabling predictive maintenance before failures occur.

✓ Hot-Swap Maintenance Support
In redundant configurations, technicians can remove and replace the board during operation without compromising protection—critical for facilities operating under continuous production contracts.

✓ Multi-Channel Trip Relay Outputs
Independent relay contacts control fuel valves, steam admission, and auxiliary shutdown devices simultaneously, providing defense-in-depth protection against single-point failures.

✓ VME Rack Compatibility
Standard VMEbus interface ensures drop-in replacement capability and simplifies integration with existing Mark VI control cabinets—no custom mounting hardware required.

Typical Application Scenarios

→ Combined-Cycle Power Plants
Challenge: Gas turbines in CCGT facilities must respond instantly to grid frequency disturbances and load rejections that can cause dangerous overspeed conditions.
Solution: The IS200VTURH1BAC monitors turbine speed through multiple sensor inputs, coordinating with fuel control valves and inlet guide vanes to execute controlled shutdowns that protect both the turbine and generator from mechanical overstress.
Value: Prevents turbine blade failures that typically cost $2-5 million in repairs plus months of lost generation revenue.

→ Petrochemical Mechanical Drives
Challenge: Turbines driving compressors and pumps experience rapid load changes during process upsets, creating overspeed risk when downstream equipment trips offline.
Solution: Integrated with servo control systems, the trip board detects abnormal acceleration rates and initiates staged shutdown sequences that prevent equipment damage while allowing safe process depressurization.
Value: Maintains process safety integrity while reducing unplanned shutdowns by 40% through intelligent trip discrimination.

→ Marine Propulsion Systems
Challenge: Ship propulsion turbines operate in harsh environments with salt spray, vibration, and temperature extremes that challenge electronic protection systems.
Solution: Conformal-coated circuitry and ruggedized relay assemblies withstand marine conditions while providing the same millisecond-level protection as land-based installations.
Value: Ensures vessel safety compliance with classification society requirements (ABS, DNV, Lloyd's) for redundant turbine protection.

→ Cogeneration Facilities
Challenge: Industrial cogen plants must maintain steam production even during electrical grid disturbances that could trigger turbine trips.
Solution: Programmable trip setpoints allow operators to balance protection requirements with process continuity, enabling controlled operation during transient grid events.
Value: Reduces steam supply interruptions that can force costly production line shutdowns in manufacturing facilities.

Technical Parameters & Selection Guide

Selection Criteria: Verify your control system is Mark VI (not Mark VIe or Mark V) before ordering. Check existing trip board part numbers—the "H1B" suffix indicates specific firmware and I/O configurations that must match your turbine model. For retrofit applications, consult factory documentation to confirm backplane compatibility and power budget availability in your VME rack.

Extended Functions

Advanced Diagnostic Integration: The IS200VTURH1BAC supports GE's ToolboxST diagnostic software, enabling remote monitoring of trip circuit continuity, relay coil resistance, and voting logic status. Maintenance teams can verify protection system health without physical access to control cabinets—ideal for offshore platforms and remote generation sites.

Customizable Trip Setpoints: While factory-configured for standard turbine models, the board accepts field-programmable trip thresholds through the Mark VI controller interface. This allows operators to adjust protection levels for seasonal ambient conditions, fuel quality variations, or modified operating envelopes without hardware changes.

Sequence-of-Events Recording: High-resolution timestamping (1-millisecond resolution) captures the exact sequence of events leading to trip activation, providing forensic data for root cause analysis after emergency shutdowns.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 1-2 business days via express courier. Custom-configured boards with specific firmware versions require 2-3 weeks for factory programming and testing.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and firmware issues. Extended warranty programs available for critical spares inventory.

Technical Support: Our Mark VI specialists provide installation guidance, configuration assistance, and troubleshooting support via phone, email, and remote desktop sessions. Emergency support available 24/7 for critical outages.

Documentation Package: Each unit includes installation manual, wiring diagrams, configuration worksheets, and certificate of conformity. Digital copies of all documentation provided via secure download link.

Frequently Asked Questions

Q: Can this trip board be retrofitted into older Mark V turbine control systems?
A: No, the IS200VTURH1BAC is engineered specifically for Mark VI architectures and uses different communication protocols than Mark V systems. For Mark V upgrades, consider a full control system migration to Mark VI or Mark VIe platforms.

Q: What is the expected operational lifespan in typical power plant environments?
A: With proper environmental controls (clean, climate-controlled cabinets), these boards typically provide 12-15 years of reliable service. We recommend maintaining spare units on-site for installations older than 10 years to ensure rapid replacement capability.

Q: Does the board require firmware updates when replacing a failed unit?
A: Replacement boards ship with current firmware, but version compatibility with your existing Mark VI controller must be verified. Our technical team can cross-reference your system software version and provide pre-configured boards that ensure plug-and-play replacement.

Q: How does the triple-modular redundancy function during partial failures?
A: The three processing channels continuously compare results using 2-out-of-3 voting logic. If one channel produces different results, the system uses the majority vote while flagging the discrepancy to operators. Protection remains fully functional even with one failed channel.

Q: Are there any special installation requirements for marine applications?
A: Marine installations should use conformal-coated versions (verify with part number suffix) and ensure VME rack enclosures meet IP54 or higher ingress protection ratings. Shock mounting may be required for vessels operating in heavy seas.

Q: Can I test the trip circuit without shutting down the turbine?
A: Yes, the board supports online testing of individual relay channels when configured in redundant architectures. The ToolboxST software provides test sequences that verify trip circuit integrity without activating actual shutdown devices.

Secure Your Turbine Investment Today

Turbine protection failures don't announce themselves—they reveal their consequences through catastrophic equipment damage and extended outages. The IS200VTURH1BAC provides the proven, redundant safeguards that keep your critical assets operating safely year after year.

Ready to order or need technical specifications for your specific turbine model? Contact our Mark VI specialists for application-specific recommendations, volume pricing, or expedited delivery options for urgent replacements.
