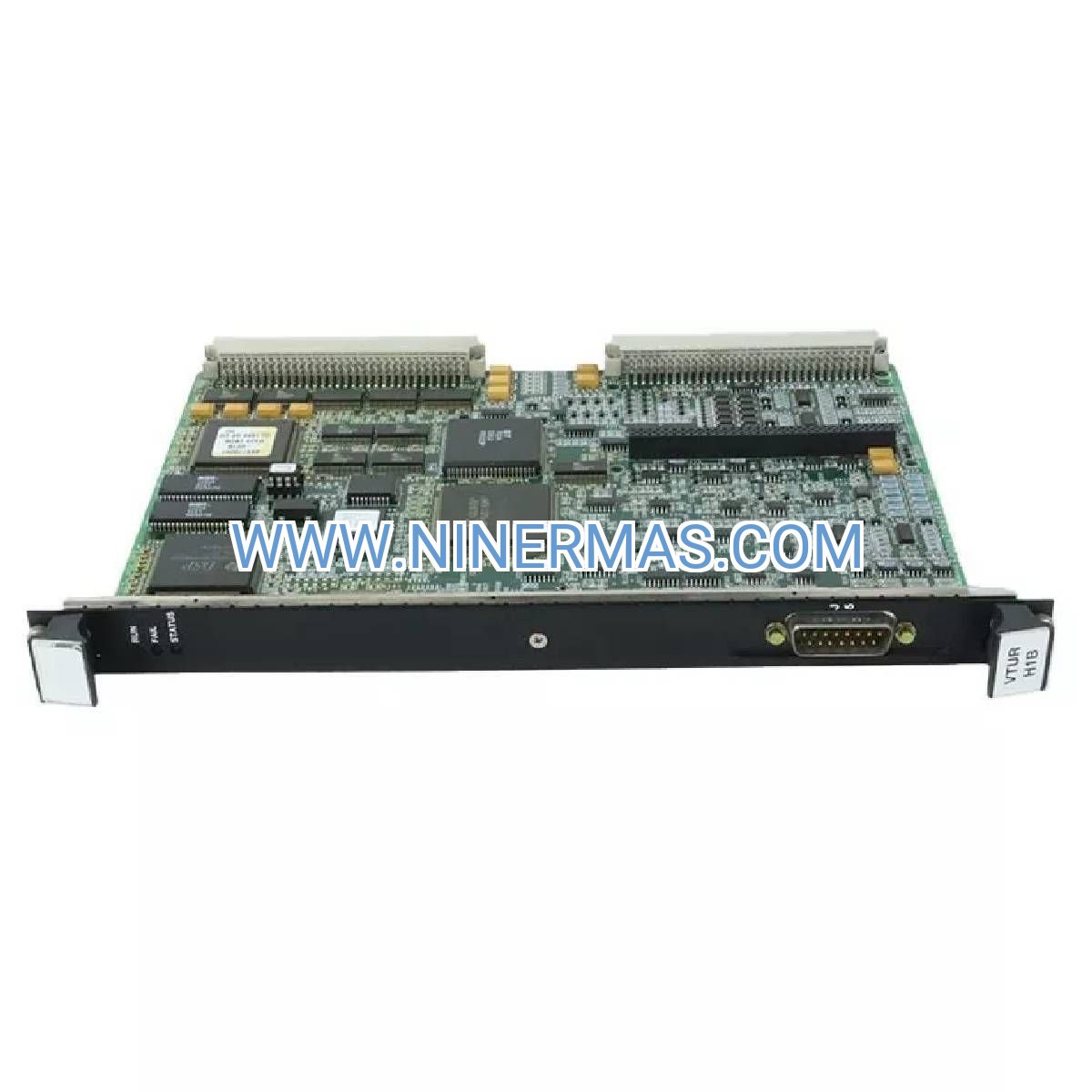

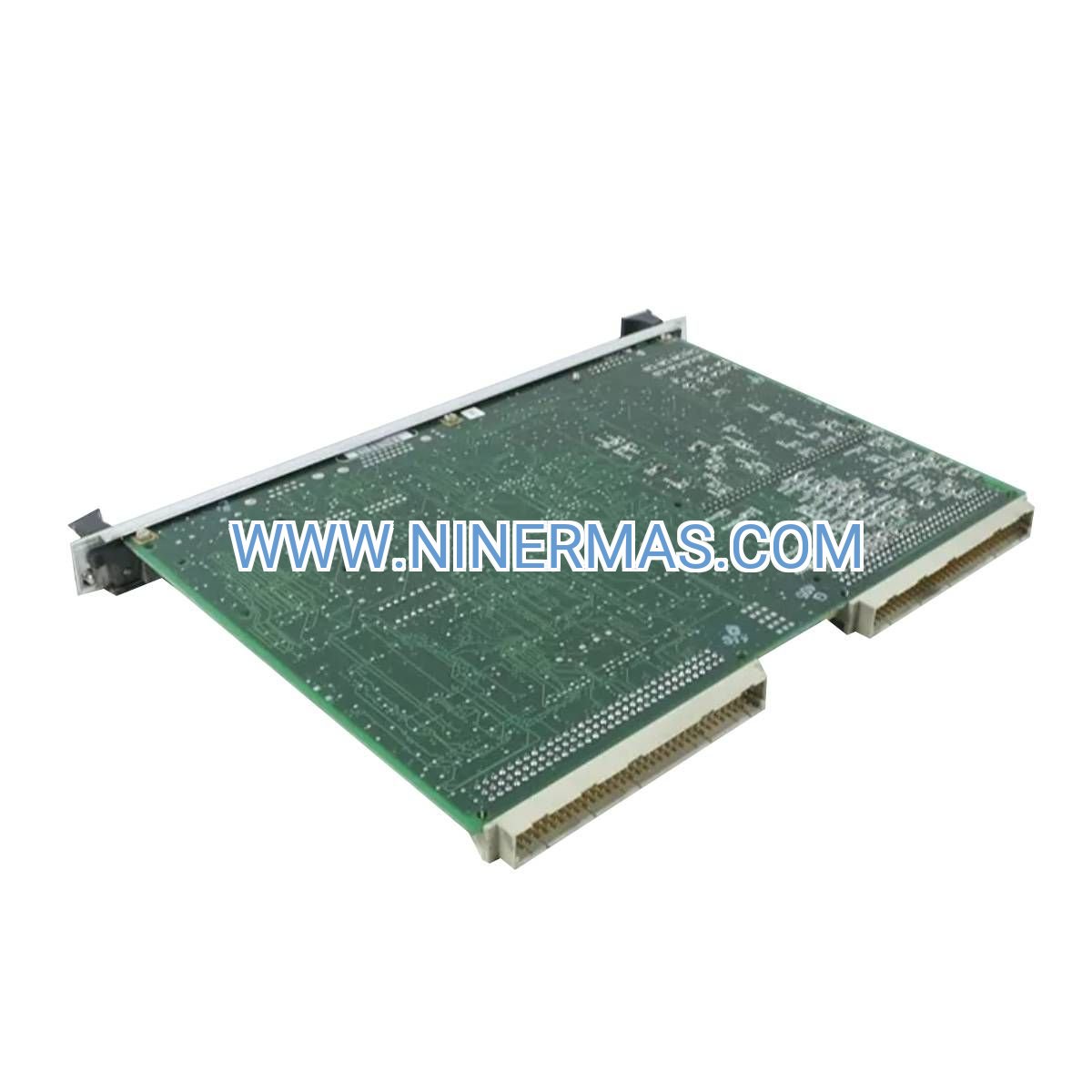

IS200VTURH1BAA Mark VI Speed Control Module – Industrial-Grade Turbine Regulation

Engineered for mission-critical turbine applications, the IS200VTURH1BAA delivers precision speed management and fail-safe overspeed protection within GE's Mark VI Speedtronic architecture. This VME-mounted control card serves as the central intelligence for gas turbine speed regulation, synchronization sequencing, and emergency shutdown coordination across power generation, oil & gas, and marine propulsion installations.

Designed to withstand harsh industrial environments (-30°C to +65°C), the module integrates triple-modular redundancy (TMR) for uninterrupted operation during component degradation. Field-proven in combined-cycle power plants and mechanical drive systems worldwide, it maintains speed accuracy within ±0.25% during transient load conditions while providing deterministic response to overspeed events at 110% rated RPM.

Whether you're upgrading legacy Mark V systems or maintaining existing Mark VI installations, the IS200VTURH1BAA ensures regulatory compliance, grid stability, and asset protection through continuous diagnostic monitoring and hot-swap serviceability.

Performance Advantages & Technical Capabilities

→ Fault-Tolerant Architecture: Triple-modular redundant design with automatic voting logic eliminates single points of failure, ensuring 99.97% uptime in critical power generation applications

→ Deterministic Overspeed Response: Dedicated hardware circuits trigger emergency fuel shutoff within 40 milliseconds when turbine speed exceeds 110% setpoint, preventing catastrophic mechanical failure

→ Grid Synchronization Intelligence: Automated phase-angle matching and breaker closure sequencing reduces synchronization time by 60% compared to manual procedures, minimizing thermal stress on generator windings

→ Predictive Diagnostics: Embedded health monitoring tracks signal drift, power supply fluctuations, and communication errors with configurable alarm thresholds for proactive maintenance scheduling

→ Hot-Swap Capability: Field-replaceable design with automatic configuration transfer allows module replacement during operation without system shutdown, reducing MTTR by 75%

→ Multi-Protocol Connectivity: Dual Ethernet and serial interfaces enable integration with SCADA systems, historian databases, and remote monitoring platforms for real-time performance analytics

Industrial Application Environments

Combined-Cycle Power Plants:
Manages speed control for Frame 7/9 class gas turbines in baseload and peaking duty cycles. Coordinates with steam turbine governors during mode transitions, maintaining frequency regulation within ±0.1 Hz during load-following operations. Integrates with IS200TSVCH2A Servo Terminal Board for precise fuel valve positioning.

Upstream Oil & Gas Production:
Controls mechanical drive turbines powering gas compression trains in offshore platforms and remote wellhead facilities. Handles rapid load changes during compressor surge events while maintaining anti-surge valve coordination. Pairs with IS200VPWRH1AGB Power Distribution Board for redundant power architecture.

Petrochemical Manufacturing:
Regulates turbine speed for ethylene cracker compressors and refinery fluid catalytic cracking (FCC) units where process upsets demand millisecond-level response. Works alongside IS215VCMIH2CB Bus Master Controller in distributed control networks.

LNG Carrier Propulsion:
Provides speed management for dual-fuel turbine propulsion systems in liquefied natural gas tankers, coordinating with pitch control systems during maneuvering operations and maintaining fuel efficiency during transit.

District Heating Cogeneration:
Balances electrical output and thermal load in combined heat and power (CHP) facilities, optimizing turbine speed for seasonal demand variations while maintaining steam pressure setpoints.

Technical Specifications & Selection Criteria

Selection Guidelines: Confirm Mark VI platform version through ToolboxST software before ordering. For triple-modular redundant (TMR) configurations, order three identical units. Verify backplane slot assignments match control system drawings. Consider environmental factors: installations above 2,000m altitude or in corrosive atmospheres may require conformal coating options.

System Architecture & Complementary Components

The IS200VTURH1BAA functions as the core speed controller within a distributed Mark VI control network. Complete system deployment requires coordinated integration with:

✓ Signal Conditioning Modules: IS200TBCIH1CBC Contact Input Terminal Board processes discrete signals from emergency stop circuits, permissive interlocks, and auxiliary equipment status indicators

✓ Field Wiring Interfaces: IS200TDBTH2A Termination Module provides screw-terminal connections for speed sensors, temperature transmitters, and vibration probes with built-in surge protection

✓ Power Supply Infrastructure: 531X307LTBAKG1 Low Voltage Board delivers isolated 24V DC power with battery backup capability for ride-through during utility interruptions

✓ Generator Excitation Control: IS200ECTBG2ADE Exciter Contact Terminal Board coordinates voltage regulation with speed control during synchronization and load transfer sequences

✓ Legacy System Migration: When upgrading from Mark V platforms, the DS200TBCAG1A Mark V/VI Control Board provides backward-compatible signal translation for existing field wiring

For advanced applications requiring vibration monitoring integration, consider the IS200TSVCH2A Servo Terminal Board which coordinates valve actuation with bearing temperature and shaft displacement data.

Configuration & Commissioning Procedures

Installation must be performed by GE-certified technicians or personnel with documented Mark VI training. The module installs in designated VME rack slots per system configuration drawings, connecting via 96-pin DIN backplane connectors.

Software Configuration via ToolboxST:

1. Speed Control Tuning: Adjust proportional/integral/derivative (PID) gains for optimal load response without overshoot. Typical starting values: Kp=0.8, Ki=0.15, Kd=0.05

2. Droop Characteristic Programming: Configure speed droop percentage (typically 4-5%) for grid-parallel operation or isochronous mode for isolated systems

3. Overspeed Trip Thresholds: Set primary overspeed trip at 110% rated speed, backup trip at 112%, with independent voting logic for TMR configurations

4. Synchronization Parameters: Define voltage matching tolerance (±5%), frequency window (±0.2 Hz), and phase angle limits (±10°) for automatic breaker closure

5. Diagnostic Alarm Configuration: Establish warning thresholds for signal deviation, communication timeouts, and power supply voltage limits

6. Data Logging Setup: Enable trending for speed error, fuel valve position, and control output for post-event analysis and performance optimization

Common Technical Questions

Can this module replace IS200VTURH1B (without AA suffix)?
Yes, the IS200VTURH1BAA is form-fit-function compatible with earlier revisions. Firmware differences are handled automatically during configuration download. Verify ToolboxST version supports the new revision before installation.

What is the standard delivery timeframe for this component?
In-stock units ship within 24-48 hours via express courier. Custom-configured modules with specific firmware versions require 10-15 business days. Expedited processing available for emergency outages.

Is factory repair service available for failed modules?
Yes, we provide OEM-certified repair with full functional testing on GE-calibrated test equipment. Standard turnaround is 5-7 business days; rush service available in 48-72 hours. All repairs include 90-day warranty.

What diagnostic equipment is needed for field troubleshooting?
GE ToolboxST software provides 90% of diagnostic capability through built-in tests. For hardware-level troubleshooting, a digital oscilloscope (100 MHz minimum) and precision multimeter are recommended for signal integrity verification.

Does this support redundant control architectures?
Yes, the IS200VTURH1BAA is designed for triple-modular redundant (TMR) configurations with 2-out-of-3 voting logic. Simplex and dual-redundant configurations are also supported depending on application criticality.

Are firmware updates field-installable?
Yes, firmware updates are deployed via ToolboxST software over Ethernet connection. Updates can be performed on energized systems in TMR configurations by updating one module at a time. Always review release notes for compatibility requirements.

Delivery Timeline & Technical Support

Standard Lead Times:

• Stock items: 1-2 business days to dispatch
• Custom configurations: 2-4 weeks depending on specifications
• Repair/exchange service: 5-7 business days turnaround
• Emergency same-day shipping available for critical outages

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Extended warranty programs available for up to 36 months with optional on-site spare inventory management.

Technical Support Services:

• 24/7 emergency hotline for troubleshooting assistance
• Remote diagnostic support via secure VPN connection
• Configuration file backup and version control
• Obsolescence monitoring and upgrade path planning
• On-site commissioning and training services (quoted separately)

Quality Assurance & Procurement Advantages

Every IS200VTURH1BAA module undergoes rigorous verification before shipment:

• Authenticity Verification: Serial number validation against GE factory databases ensures genuine OEM components with full traceability documentation

• Functional Testing: Powered bench testing on calibrated Mark VI simulators verifies communication protocols, control algorithms, and diagnostic functions

• ESD Protection: Handling in controlled static-dissipative environments with wrist straps and grounded workstations prevents latent electrostatic damage

• Environmental Packaging: Moisture-barrier bags with desiccant packs and anti-static foam inserts protect modules during international shipping

• Documentation Package: Includes certificate of conformity, test reports, installation guidelines, and configuration templates for rapid deployment

Our global logistics network provides expedited delivery to power plants, refineries, and offshore platforms worldwide, with specialized handling for temperature-sensitive electronics and customs pre-clearance for time-critical shipments.
