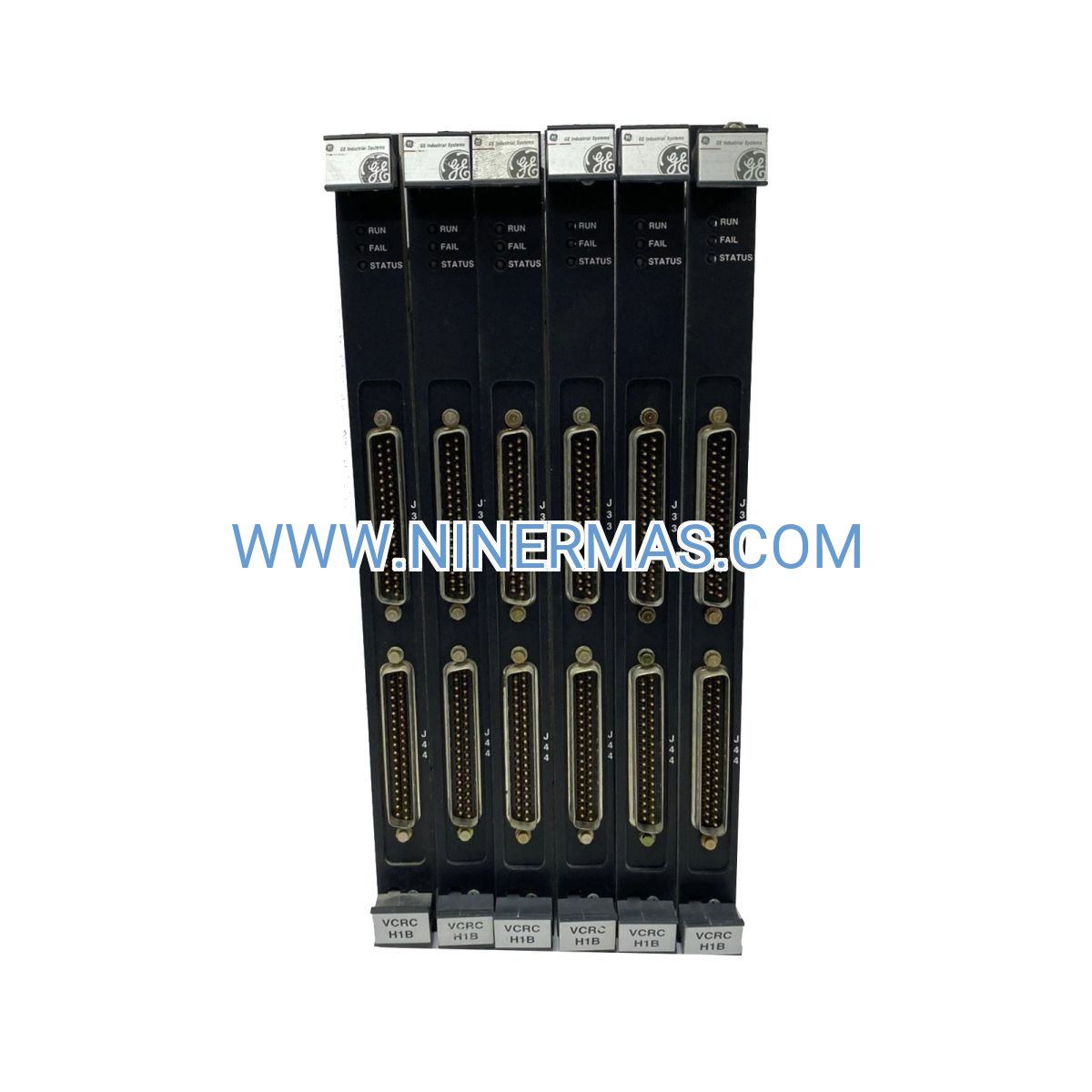

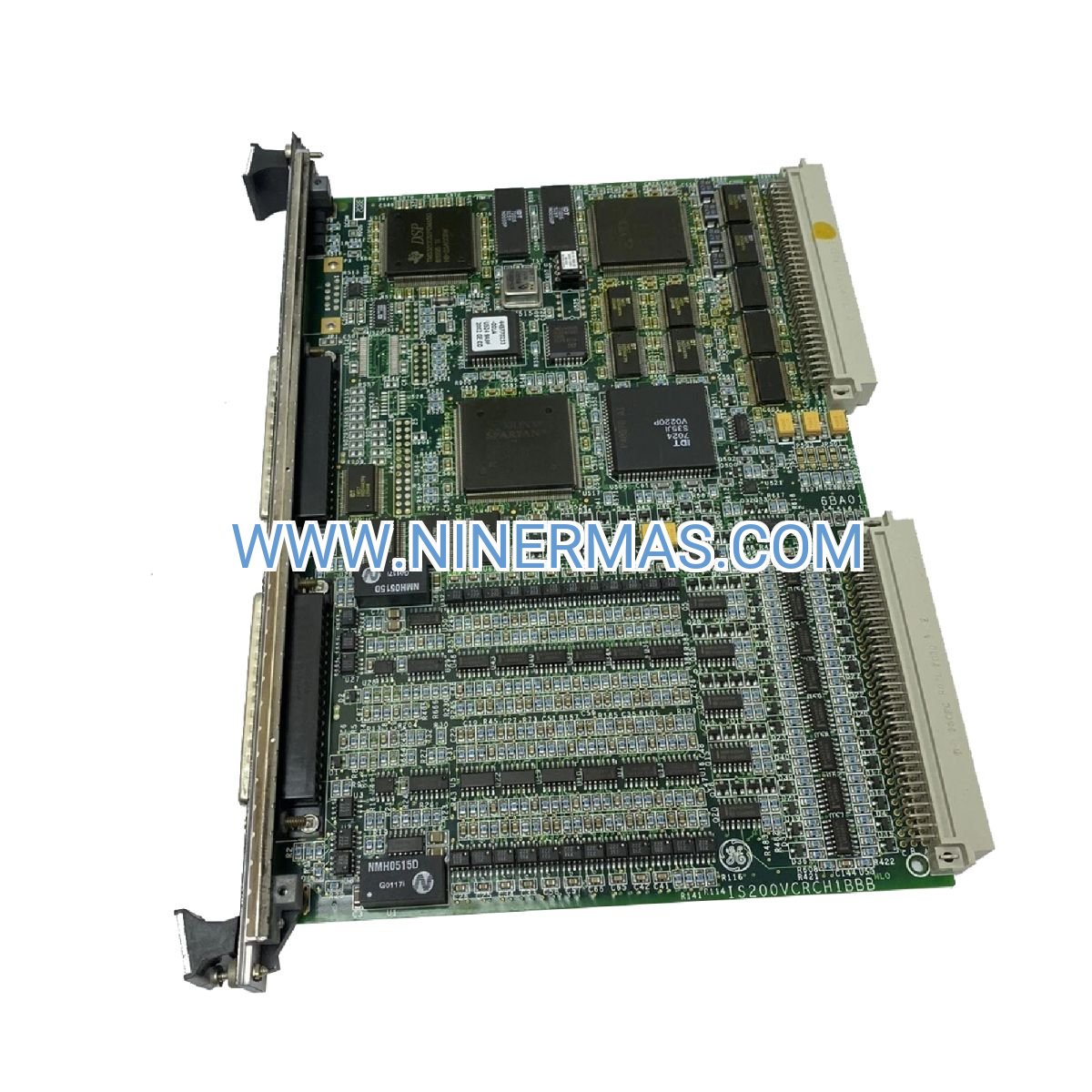

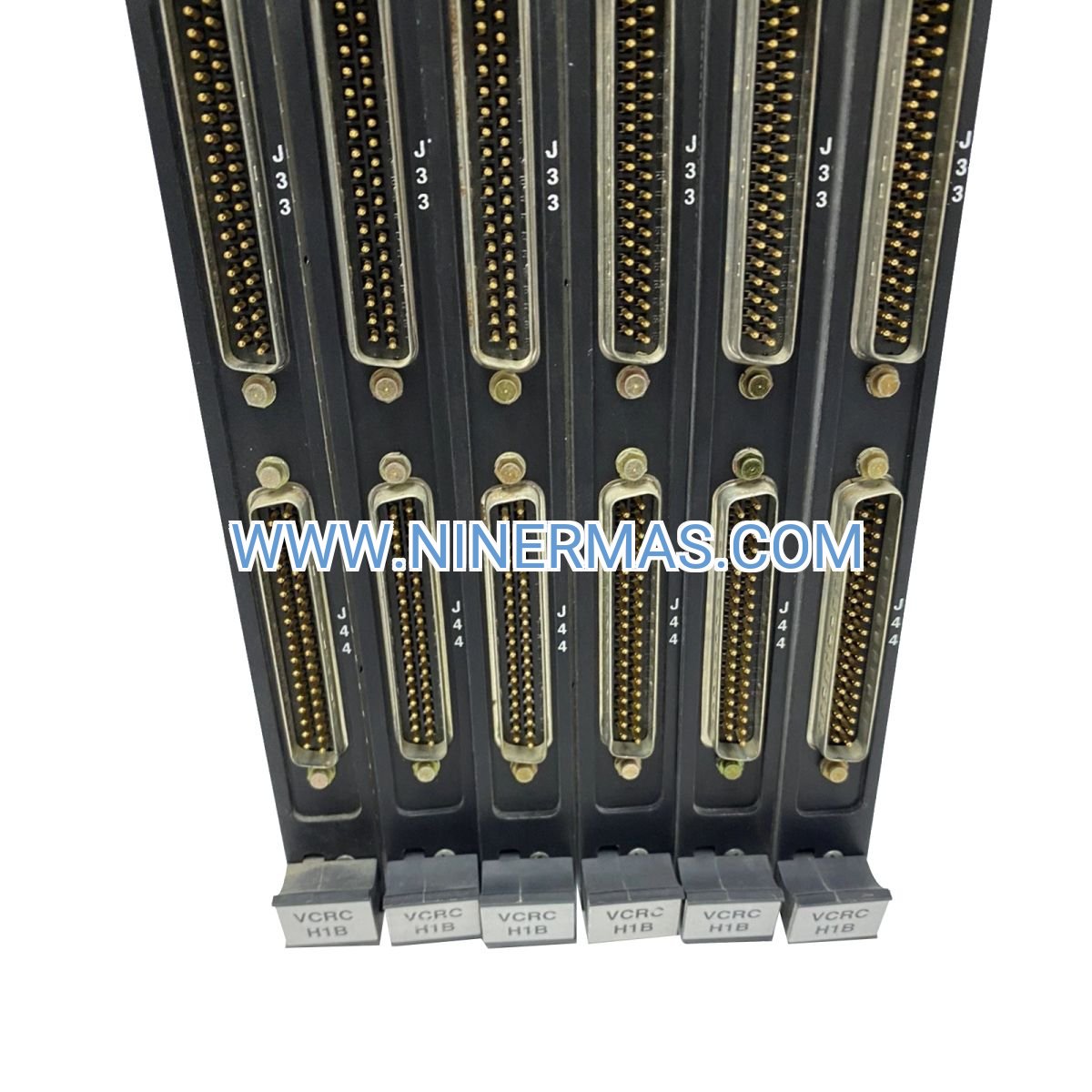

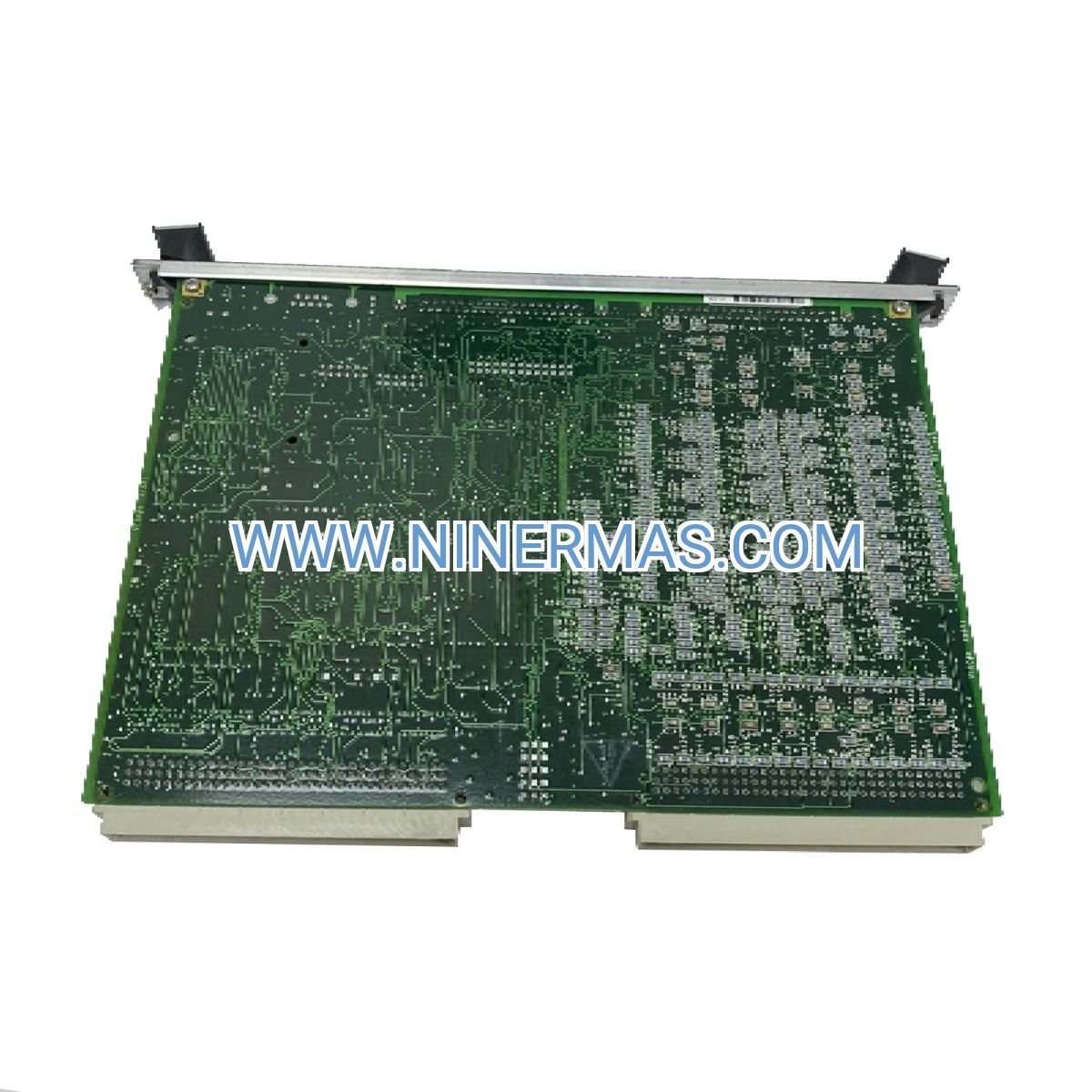

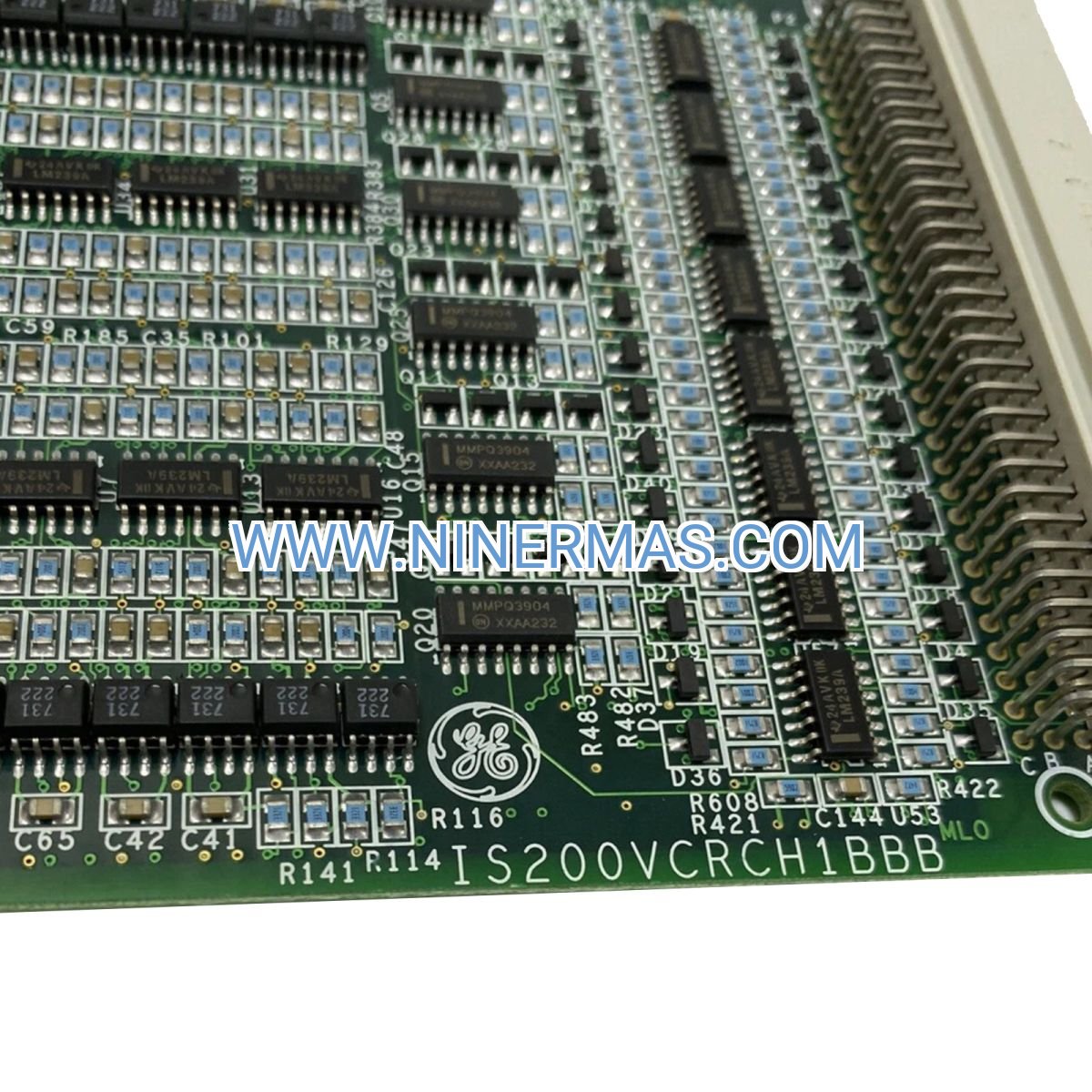

GE IS200VCRCH1BBB Discrete I/O Terminal Board (Industrial-Grade Turbine Control Solution)

The GE IS200VCRCH1BBB is an industrial-grade discrete input/output terminal board designed for Mark VI Speedtronic turbine control systems. Through precision signal conditioning and VMEbus communication architecture, it delivers real-time discrete signal processing for critical turbine protection, monitoring, and control applications.

Engineered for power generation facilities, oil & gas processing plants, and industrial cogeneration systems, this terminal board addresses challenges including unreliable field device interfacing, signal noise interference, inadequate environmental protection, and limited diagnostic visibility. It serves design engineers, system integrators, plant maintenance teams, and OEM turbine manufacturers requiring proven, field-tested control components.

Featuring standardized 16-input/8-output configuration with customizable signal conditioning options, the IS200VCRCH1BBB offers ruggedized construction for harsh environments, comprehensive channel-level diagnostics, seamless Mark VI ecosystem integration, and extended temperature range operation (-30°C to +65°C). Contact our application engineers for system-specific selection guidance, wiring diagrams, and competitive quotations.

Core Functions & Technical Advantages

High-Density Discrete Signal Processing
Provides 16 optically-isolated discrete inputs and 8 relay-grade discrete outputs within a compact DIN-rail mountable form factor, reducing panel space requirements while maintaining signal integrity through differential input circuitry and transient suppression.

Wide Operating Voltage Compatibility
Accepts field signals ranging from 24 VDC to 125 VDC without external signal conditioning, simplifying integration with diverse sensor types including proximity switches, limit switches, pressure switches, and legacy relay contacts across multi-vendor installations.

Deterministic VMEbus Communication
Interfaces directly with Mark VI control processors via high-speed VMEbus backplane, ensuring sub-millisecond I/O update rates critical for turbine trip logic, emergency shutdown sequences, and protective relay coordination.

Industrial Environmental Hardening
Conformal-coated PCB assembly withstands -30°C to +65°C ambient temperatures, 5-95% humidity (non-condensing), and IEC 61000-4 electromagnetic compatibility standards, ensuring reliable operation in substations, offshore platforms, and heavy industrial environments.

Comprehensive Fault Diagnostics

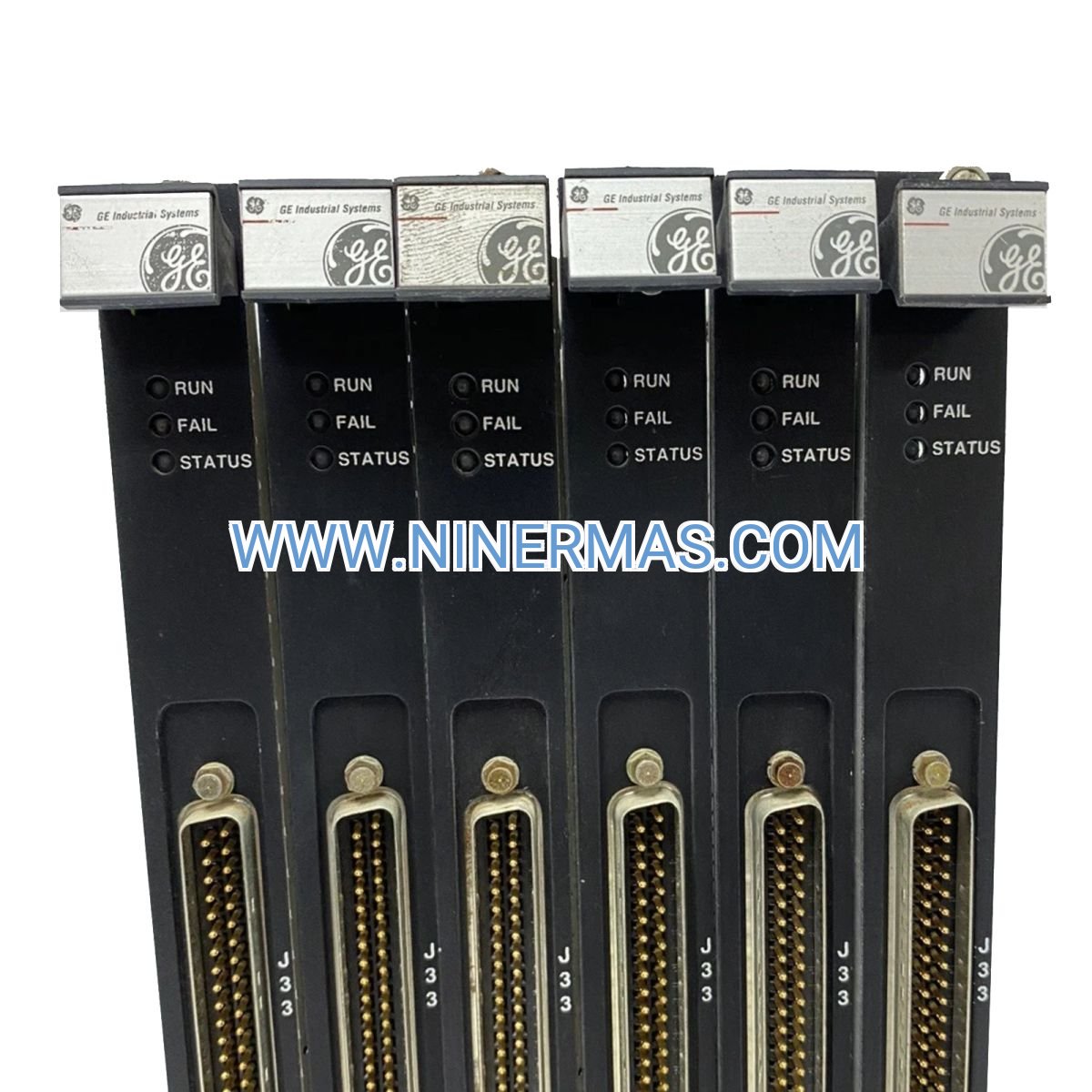

Channel-specific LED indicators and software-accessible diagnostic registers enable rapid identification of open circuits, short circuits, power supply anomalies, and communication faults, reducing mean time to repair (MTTR) by up to 40%.

Hot-Swappable Redundancy Support
Compatible with Mark VI redundant controller architectures, allowing online module replacement during scheduled maintenance windows without process interruption, critical for continuous-duty turbine applications in baseload power plants.

Typical Application Scenarios

This discrete I/O terminal board serves installations demanding high-reliability signal interfacing with stringent safety and availability requirements:

Gas & Steam Turbine Protection Systems
Interfaces with emergency overspeed detection switches, bearing vibration monitors, flame detection sensors, and hydraulic trip solenoids in combined-cycle power plants, ensuring coordinated turbine shutdown sequences compliant with NFPA 85 and API 670 standards.

Compressor & Pump Control Stations
Processes discrete signals from anti-surge valve limit switches, seal oil pressure switches, and motor circuit breaker auxiliary contacts in pipeline compression facilities and petrochemical process units, coordinating with variable frequency drives and motor protection relays.

Cogeneration & District Heating Plants
Manages boiler interlock logic, fuel valve position feedback, steam header pressure switches, and generator breaker status monitoring in industrial cogeneration facilities, integrating with SCADA systems via Modbus TCP gateways for remote supervisory control.

Offshore Platform & Marine Propulsion
Handles harsh-environment discrete I/O requirements for offshore gas turbine generators and marine propulsion systems, interfacing with explosion-proof field devices through intrinsically-safe barrier modules in ATEX/IECEx Zone 2 classified areas.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide standardized specifications with application-specific customization capabilities:

Selection Recommendations: When specifying the IS200VCRCH1BBB, consider: (1) total discrete I/O point count and future expansion requirements, (2) field device voltage levels and contact ratings, (3) environmental conditions including temperature extremes and vibration profiles, (4) redundancy architecture (simplex vs. TMR), (5) panel space constraints and cable routing. For assistance with I/O mapping, terminal block selection, or system integration planning, provide your P&ID drawings, I/O list, and environmental specifications—our application engineers will recommend optimized configurations within 24 hours.

Extended Capabilities & Integration Options

Redundant Controller Interfacing: Supports dual-redundant and triple-modular redundant (TMR) Mark VI controller configurations with automatic failover and bumpless transfer capabilities.

Mixed I/O Expansion: Integrates seamlessly with analog I/O modules (IS200VAICH, IS200TBAIH series), RTD temperature inputs (IS200TRTDH), and thermocouple modules for comprehensive process monitoring.

Third-Party System Integration: Compatible with Modbus RTU/TCP, DNP3, and IEC 61850 protocol converters for SCADA/DCS integration and remote asset monitoring platforms.

Cybersecurity Hardening: When deployed with Mark VI firmware R07.05 or later, supports role-based access control (RBAC), encrypted configuration files, and audit logging per NERC CIP compliance requirements.

Delivery, Service & Quality Assurance

Lead Times: Factory-sealed units from authorized GE distribution stock ship within 1-3 business days. Custom-configured assemblies with application-specific terminal blocks and labeling require 10-15 business days. Expedited logistics available for critical outage support.

Warranty Coverage: All IS200VCRCH1BBB modules include a comprehensive 12-month warranty covering material defects and workmanship failures. Extended warranty programs (24/36 months) available for installed base agreements.

Technical Support: Complimentary pre-sales application engineering consultation, post-installation commissioning assistance via remote desktop support, and 24/7 emergency troubleshooting hotline for critical infrastructure customers.

Documentation Package: Each shipment includes: (1) detailed installation manual with dimensional drawings, (2) terminal block wiring diagrams and I/O assignment tables, (3) VMEbus configuration guide, (4) calibration certificates and material traceability documentation, (5) recommended spare parts list.

Frequently Asked Questions (FAQ)

Q: How does the IS200VCRCH1BBB discrete I/O board interface with existing Mark VI control systems?
A: The board installs directly into Mark VI VMEbus card racks (VRTM or VRPM chassis) via standard P1/P2 backplane connectors. Configuration is performed through GE ToolboxST software using the hardware configuration wizard. Field wiring terminates on removable screw-terminal blocks (Phoenix Contact or equivalent) supporting 12-22 AWG conductors. Verify chassis slot compatibility and VMEbus address assignment before installation.

Q: What is the maximum number of discrete I/O boards supported in a single Mark VI controller?
A: A standard Mark VI controller supports up to 12 I/O boards per VMEbus rack, with total I/O capacity limited by controller scan time requirements (typically <10ms for critical turbine control loops). For systems exceeding 192 discrete I/O points, consider distributed I/O architectures using remote terminal units (RTUs) or secondary I/O processors.

Q: Can this terminal board achieve energy savings compared to relay-based discrete I/O systems?
A: While discrete I/O boards do not directly reduce energy consumption, they enable advanced control strategies (variable speed control, optimized sequencing, predictive maintenance) that can reduce overall plant auxiliary power consumption by 5-15%. The board's low power consumption (8W typical) also reduces control panel cooling requirements compared to legacy relay panels.

Q: What environmental protection rating does the IS200VCRCH1BBB provide for outdoor or harsh-environment installations?
A: The board itself carries IP20 rating suitable for enclosed control panels. For outdoor substations or corrosive environments, install within NEMA 4X / IP66-rated enclosures with environmental conditioning (heating, cooling, dehumidification). Conformal coating provides additional protection against condensation and airborne contaminants in chemical processing environments.

Q: Does the board support remote monitoring and predictive diagnostics capabilities?
A: Yes—when integrated with GE's Mark VIe Asset Performance Management (APM) software or third-party condition monitoring platforms via OPC UA/Modbus gateways, the board provides real-time I/O health metrics including: channel utilization rates, contact bounce detection, insulation resistance trending, and communication error statistics. These analytics enable predictive maintenance scheduling and reduce unplanned downtime.

Q: Is firmware updating required for the IS200VCRCH1BBB discrete I/O terminal board?
A: The board operates with fixed embedded firmware that does not require field updates. System-level control logic and configuration changes are managed through the Mark VI control processor using ToolboxST software. Ensure controller firmware compatibility (minimum R05.03 recommended) before deploying new I/O boards in existing installations.

Request Technical Consultation & Quotation

To receive detailed application engineering support, system integration recommendations, or competitive pricing, please provide the following project information:

• Project name and application type (turbine model, power rating, fuel type)
• Total discrete I/O point count (inputs/outputs) and signal voltage levels
• Existing Mark VI controller configuration (simplex/redundant, firmware version)
• Environmental conditions (ambient temperature range, altitude, hazardous area classification)
• Delivery timeline and installation support requirements

Our application engineers will respond within 24 hours with customized recommendations, bill of materials (BOM), and technical documentation.
