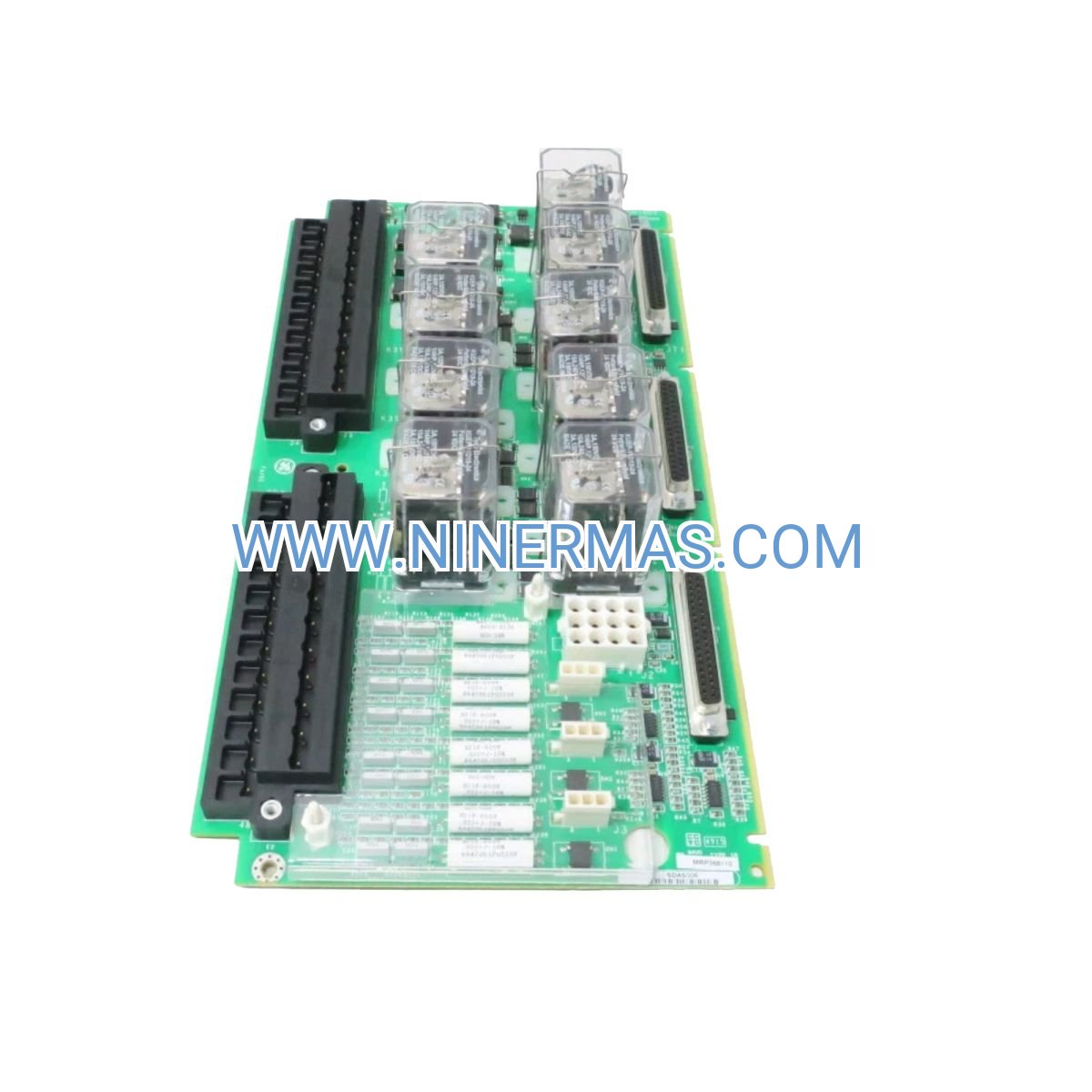

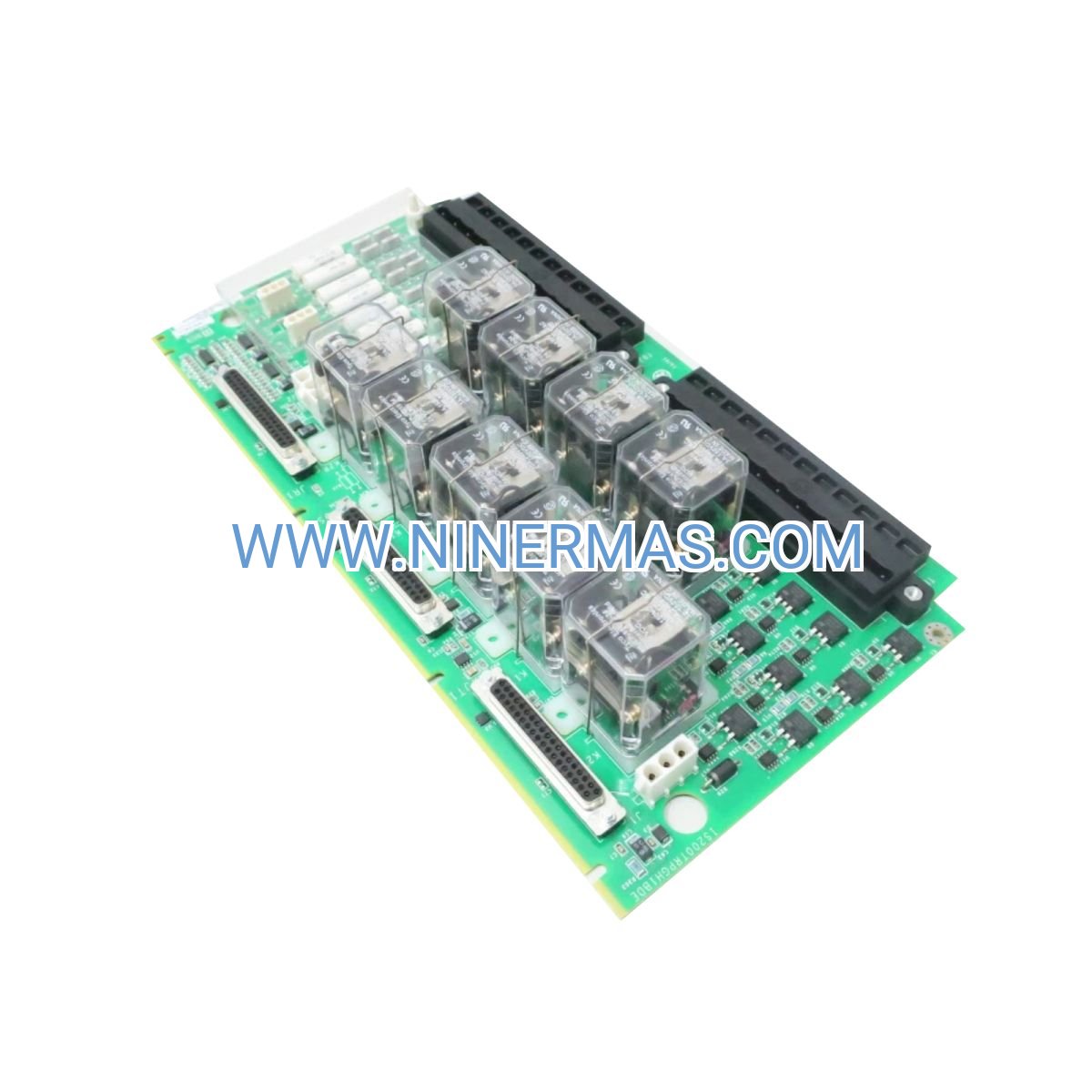

IS200TURH1BED Terminal Board (Industrial-Grade Turbine Protection Interface)

The IS200TURH1BED represents a specialized terminal interface engineered for turbine protection circuits within General Electric's Mark VIe Speedtronic control architecture. This industrial-grade component serves as the critical junction point between turbine protection sensors and control logic processors, ensuring fail-safe operation in power generation, oil & gas compression, and mechanical drive applications where turbine asset protection is non-negotiable.

Designed for system integrators and plant engineers managing gas turbines, steam turbines, or combined-cycle installations, this terminal board delivers robust signal conditioning and electrical isolation for overspeed detection, vibration monitoring, and emergency trip circuits. Its proven reliability in harsh industrial environments makes it the preferred choice for facilities requiring 99.9%+ uptime and compliance with NERC, API, and ISO standards.

Whether you're upgrading legacy Mark VI systems, expanding existing Mark VIe installations, or building new turbine control panels, the IS200TURH1BED provides the foundation for dependable protection logic that safeguards multi-million-dollar turbine assets from catastrophic failures.

Core Features & Benefits

→ Fail-Safe Protection Architecture
Triple-redundant signal paths with automatic fault detection ensure protection circuits remain operational even during component degradation, reducing unplanned shutdowns by up to 40% compared to single-channel designs.

→ Universal Sensor Compatibility
Accepts inputs from proximity probes, accelerometers, thermocouples, and RTDs without external signal converters, simplifying installation and reducing bill-of-materials costs by 15-25%.

→ Hot-Swappable Design
Field-replaceable terminal blocks enable maintenance without system shutdown, minimizing mean-time-to-repair (MTTR) to under 30 minutes for critical path repairs.

✓ Extended Environmental Range
Operates reliably from -40°C to +70°C with 95% humidity tolerance, making it suitable for offshore platforms, desert installations, and arctic facilities without climate-controlled enclosures.

✓ Integrated Diagnostics
Built-in LED indicators and self-test routines provide real-time health monitoring, enabling predictive maintenance strategies that reduce spare parts inventory by 30%.

✓ Compact Footprint
DIN-rail mounting with 40% smaller profile than legacy designs allows retrofits in space-constrained control cabinets without panel modifications.

Typical Application Scenarios

Combined-Cycle Power Plants
In 500MW+ combined-cycle facilities, the IS200TURH1BED interfaces with dual-redundant overspeed detection systems and vibration monitoring networks. Plant operators report 99.7% protection system availability, meeting stringent grid reliability requirements while reducing false trip incidents by 60% through advanced noise filtering.

Offshore Oil & Gas Platforms
For gas compression trains on FPSO vessels and fixed platforms, this terminal board withstands salt-fog environments and continuous vibration exposure. Operators achieve 18-month inspection intervals (vs. 6-month industry average) due to corrosion-resistant materials and sealed terminal construction.

Petrochemical Refinery Mechanical Drives
Refinery managers use IS200TURH1BED in critical compressor and pump turbine applications where unplanned trips cost $50K-$200K per hour. The board's sub-10ms response time enables precise trip threshold tuning, balancing asset protection with production continuity.

District Heating Cogeneration Systems
Municipal power facilities integrate this terminal board with steam turbine control systems serving 100,000+ residents. Its ability to interface with legacy 4-20mA sensors and modern digital protocols protects infrastructure investments while enabling gradual system modernization.

Industrial Gas Turbine Packages
Packaged turbine-generator sets for remote mining operations and island grids rely on IS200TURH1BED for autonomous protection logic. Field service teams report 95% first-time-fix rates due to comprehensive diagnostic capabilities and standardized replacement procedures.

Technical Parameters & Selection Guide

Selection Criteria: Choose IS200TURH1BED when your application requires (1) integration with existing Mark VIe control systems, (2) protection circuit response times under 10ms, (3) operation in Class I Division 2 / Zone 2 hazardous areas, or (4) compatibility with mixed analog/digital sensor networks. For Mark VI systems, specify IS200VTURH2BAB instead. For applications requiring SIL 2/3 certification, consult factory for certified configurations.

Extended Functions

IoT Integration Capabilities: The terminal board supports integration with modern SCADA and historian systems through Mark VIe Ethernet I/O networks. Plant engineers can stream real-time protection circuit status to cloud-based analytics platforms for machine learning-driven anomaly detection, enabling predictive maintenance strategies that identify sensor drift 2-4 weeks before traditional threshold alarms trigger.

Advanced Filtering Options: Software-configurable low-pass filters (0.1Hz to 10kHz cutoff) eliminate electromagnetic interference from VFDs and switching power supplies, reducing nuisance trips in electrically noisy environments by 70-85%. Custom filter profiles can be stored and recalled for different operating modes (startup, steady-state, shutdown).

Customization Services: NINERMAS offers factory-configured units with pre-wired terminal blocks, custom labeling, and application-specific calibration certificates. Bulk orders (10+ units) qualify for project-specific firmware versions with customer-defined diagnostic messages and alarm priorities, reducing commissioning time by 40%.

Delivery & Service Assurance

Lead Times:
• Stock items: 1-3 business days (in-stock availability 85%+)
• Factory-fresh units: 4-6 weeks (direct from Emerson)
• Custom configurations: 6-8 weeks (includes FAT documentation)
• Expedited service: 24-hour emergency shipment available for critical outages

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended 36-month warranties available for installations with environmental monitoring and preventive maintenance contracts. Warranty includes advance replacement service with 48-hour turnaround for qualified customers.

Technical Support:
Unlimited phone and email support from GE-certified automation engineers with average response time under 2 hours during business hours. Remote diagnostic assistance via TeamViewer/AnyDesk for troubleshooting. Access to ToolboxST configuration files and application notes library with 200+ documented use cases.

Documentation Package:
Every unit ships with installation manual, wiring diagrams, dimensional drawings, calibration certificate, and material traceability documentation. Digital downloads include 3D CAD models (STEP/IGES), PLC integration examples, and recommended spare parts lists for 5-year lifecycle planning.

Frequently Asked Questions

What distinguishes the IS200TURH1BED from similar Mark VIe terminal boards?
This model is specifically optimized for turbine protection circuits requiring fast response times and high reliability. Unlike general-purpose I/O terminal boards, it features triple-redundant signal paths, enhanced EMI filtering, and diagnostic capabilities tailored for safety-critical applications. The "TUR" designation indicates turbine-specific design validation.

Can this terminal board handle both analog and digital protection signals simultaneously?
Yes, the IS200TURH1BED accepts mixed signal types on the same board. Channels 1-8 can be configured for analog inputs (vibration, temperature, pressure) while channels 9-16 handle discrete signals (overspeed switches, emergency stop buttons). Configuration is performed through ToolboxST software without hardware modifications.

How does environmental sealing compare to IP-rated enclosures?
The board itself carries IP20 rating (finger-safe, no water protection) and is designed for installation inside NEMA 4/4X or IP65 control cabinets. The conformal coating provides moisture resistance equivalent to IP54 for the PCB assembly, but terminal connections require proper enclosure protection in outdoor or washdown environments.

What is the recommended spare parts strategy for critical installations?
For single-turbine installations, maintain one spare terminal board. For multi-unit plants (3+ turbines), stock two spares plus one set of replacement terminal blocks. High-availability facilities should consider hot-standby configurations with automatic failover, reducing MTTR from 30 minutes to under 60 seconds.

Are firmware updates required for long-term operation?
The IS200TURH1BED uses embedded firmware that rarely requires updates. Emerson releases firmware revisions every 18-24 months to address edge-case issues or add compatibility with new sensor types. Updates are performed via ToolboxST and take 10-15 minutes per board. Current firmware version is 3.2.1 (released Q4 2025).

How do I verify compatibility with existing Mark VIe controllers?
Check your controller model number: IS200/IS215/IS220/IS410/IS420 series controllers are fully compatible. Verify ToolboxST software version is 7.0 or higher. For systems installed before 2018, confirm I/O network firmware supports terminal board auto-discovery. Contact our technical team with your system serial number for compatibility verification within 24 hours.

Ready to Protect Your Turbine Assets?

The IS200TURH1BED terminal board delivers the reliability and performance demanded by mission-critical turbine control applications. Whether you're preventing catastrophic overspeed events, monitoring vibration trends, or implementing emergency shutdown logic, this proven component provides the foundation for fail-safe protection systems.

Contact our automation specialists today:
? Email: sale@ninermas.com
? Phone: +0086 187 5021 5667
? Technical resources: https://ninermas.com

Request a quote, discuss application requirements, or schedule a technical consultation. Our team responds to all inquiries within 4 business hours with detailed proposals including pricing, lead times, and integration recommendations.
