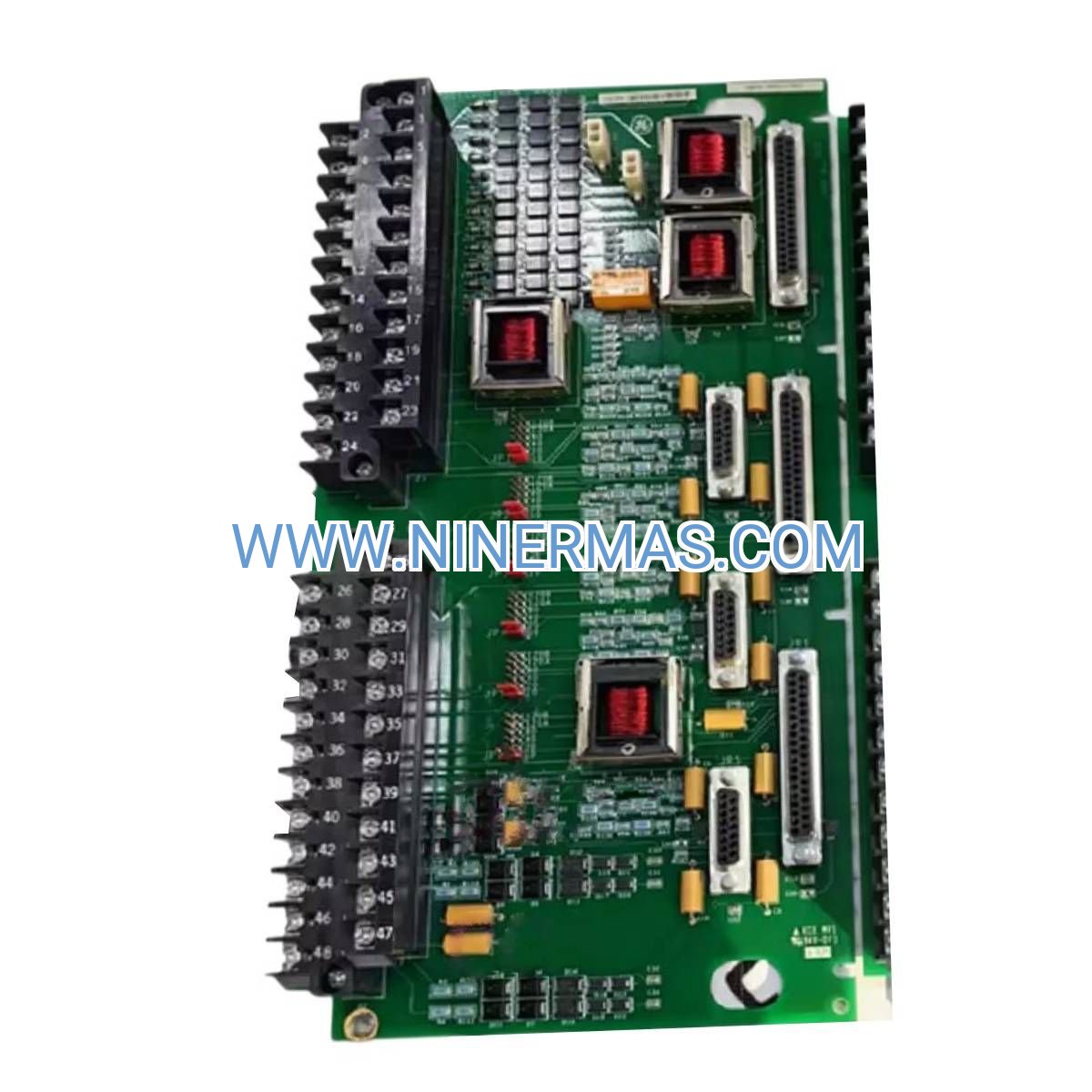

IS200TSVOH1BBB Industrial Servo Terminal Board (Mark VI Speedtronic Compatible)

The IS200TSVOH1BBB represents a mission-critical servo interface solution engineered for Mark VI Speedtronic turbine control architectures. Designed to bridge control processors with electro-hydraulic servo actuators, this terminal board delivers microsecond-level signal precision essential for gas turbine fuel metering, steam valve positioning, and variable geometry control in utility-scale power generation facilities.

Built for operators managing combined-cycle plants, cogeneration systems, and industrial turbine installations, the IS200TSVOH1BBB addresses the fundamental challenge of maintaining servo loop stability under extreme thermal cycling and electromagnetic interference. Its VME-compatible form factor integrates seamlessly into existing Mark VI control cabinets while providing the signal conditioning and fault isolation required for 99.9%+ uptime targets.

Key advantages include dual-voltage compatibility (24V/125V DC), built-in diagnostics accessible via HMI, and field-proven reliability across 15+ years of global deployments. Whether you're executing a planned outage retrofit or responding to an unplanned servo board failure, this terminal board ensures rapid restoration of turbine control functionality with minimal commissioning overhead.

Core Features & Benefits

→ Dual-Voltage Operation (24V/125V DC)
Eliminates the need for external power conditioning, reducing panel complexity and potential failure points while supporting both legacy and modern Mark VI power distribution architectures.

→ Precision Analog/Digital Signal Processing
Delivers ±0.1% servo position accuracy through advanced signal conditioning circuits, directly translating to tighter fuel flow control and reduced emissions variability in gas turbine applications.

→ VME Rack Integration
Drop-in compatibility with standard Mark VI control cabinets accelerates installation timelines—typical replacement procedures complete in under 2 hours with proper pre-staging.

✓ Extended Temperature Range (-30°C to +65°C)
Maintains specification performance in outdoor enclosures and high-ambient industrial environments without forced cooling, reducing HVAC dependencies and operating costs.

✓ Integrated Fault Detection
Real-time monitoring of open circuits, short conditions, and signal degradation enables predictive maintenance strategies and prevents nuisance turbine trips during transient events.

✓ EMI-Hardened Design
Meets IEC 61000-4 immunity standards for industrial environments, ensuring reliable operation adjacent to VFDs, switchgear, and high-power transmission equipment.

Typical Application Scenarios

Combined-Cycle Power Plants
In CCGT facilities, the IS200TSVOH1BBB manages servo valve arrays controlling gas turbine fuel splits, inlet guide vanes, and steam bypass systems. Operators report 15-20% reduction in servo-related alarms after upgrading from earlier terminal board revisions, directly improving plant availability metrics.

Industrial Cogeneration Systems
Manufacturing facilities with on-site turbine generation leverage this board for precise load-following control, maintaining steam header pressure within ±2 psi while responding to 50% load swings in under 30 seconds—critical for process stability in chemical, refining, and pulp/paper operations.

Peaking Power Units
Fast-start gas turbines require aggressive servo actuation during startup sequences. The IS200TSVOH1BBB's low-latency signal path supports 10-minute cold-start profiles without servo saturation or overshoot conditions that could trigger protective trips.

Turbine Retrofit & Modernization Projects
When upgrading legacy Mark V systems to Mark VI architecture, this terminal board provides the servo interface layer for reusing existing actuators and valve assemblies, reducing capital costs by 30-40% compared to full actuator replacement strategies.

Emergency Spare Inventory
Utilities and IPPs stock the IS200TSVOH1BBB as critical spares to minimize MTTR during unplanned outages—pre-configured boards can be swapped and commissioned in a single shift, avoiding multi-day turbine downtime and associated revenue losses.

Technical Parameters & Selection Guide

Selection Criteria: Verify your Mark VI control system firmware revision supports the BBB hardware variant—systems prior to R07.03 may require firmware updates before board installation. Cross-reference existing servo terminal board part numbers to ensure I/O channel count and signal types match your actuator configuration. For redundant servo control architectures, order in pairs to maintain N+1 sparing philosophy.

Extended Functions

Remote Diagnostics Integration: When paired with GE's ToolboxST software suite, the IS200TSVOH1BBB enables remote servo loop tuning and performance trending via Ethernet-connected HMI workstations. Operators can monitor servo response times, detect incipient actuator wear, and optimize PID parameters without field visits—reducing commissioning costs by 25-35% on multi-unit sites.

Cybersecurity Hardening: The board's isolated signal architecture supports IEC 62443 security zone segmentation strategies, allowing servo control networks to operate on dedicated VLANs separate from enterprise IT infrastructure. This design minimizes attack surfaces in critical infrastructure applications subject to NERC CIP compliance requirements.

Custom Calibration Profiles: Advanced users can implement application-specific linearization curves for non-standard servo actuators, supporting direct-drive electric actuators, piezoelectric positioners, and hydraulic systems with custom spool geometries. Factory calibration services available for OEM integration projects.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 24-48 hours via express courier (DHL/FedEx). Typical transit to North America: 3-5 business days; Europe: 4-6 days; Asia-Pacific: 2-4 days. Expedited same-day shipping available for critical outage support (additional fees apply).

Custom Configuration: Pre-programmed boards with site-specific parameters available with 5-7 business day lead time. Provide Mark VI system serial number and servo actuator specifications at order placement.

Warranty Coverage: 12-month comprehensive warranty covering material defects, workmanship issues, and premature component failures. Warranty includes advance replacement service—receive swap unit before returning failed board to minimize turbine downtime.

Technical Support: Unlimited phone/email support from GE-certified turbine control specialists. Support package includes installation guidance, loop tuning assistance, and integration troubleshooting. Emergency 24/7 hotline available for critical power generation applications.

Documentation Package: Each unit ships with installation manual, wiring diagrams, dimensional drawings, and compliance certificates (CE, UL, RoHS). Digital documentation library includes firmware compatibility matrices and obsolescence roadmaps.

Frequently Asked Questions

How does the IS200TSVOH1BBB interface with existing Mark VI control processors?
The board connects via VME backplane to VCMI (VME Controller Module Interface) cards, which communicate with the main control processor over the VME bus. Signal routing follows standard Mark VI architecture—servo commands originate from the

What servo actuator types are compatible with this terminal board?
The IS200TSVOH1BBB supports electro-hydraulic servo valves (Moog, Parker, Bosch Rexroth), electric actuators with 4-20mA or ±10V control inputs, and pneumatic positioners with I/P converters. Maximum drive current: 50mA per channel; for higher-current actuators, use external signal amplifiers.

Can I upgrade from IS200TSVOH1B to IS200TSVOH1BBB without system reconfiguration?
Yes—the BBB revision maintains pin-for-pin compatibility with earlier variants. However, you should update the hardware configuration database in ToolboxST to reflect the new board revision, ensuring diagnostic algorithms recognize the enhanced fault detection capabilities of the BBB hardware.

What are the power consumption specifications for cabinet thermal planning?
Typical power draw: 8-12W at 24V DC, 6-9W at 125V DC (varies with I/O loading). Heat dissipation: approximately 10W maximum. For cabinets with 10+ terminal boards, ensure forced-air cooling maintains internal temperatures below +55°C to preserve component longevity.

Is the board suitable for marine or offshore platform installations?
Yes, with proper environmental protection. The conformal-coated PCB resists salt spray and humidity, but the board should be installed in NEMA 4X or IP66-rated enclosures for offshore applications. Verify that your Mark VI cabinet includes desiccant breathers and heater strips to prevent condensation during shutdown periods.

What obsolescence risk does this board carry for long-term spare parts planning?
GE currently classifies the IS200TSVOH1BBB as "active production" with no announced end-of-life date. However, Mark VI systems are mature platforms—we recommend stocking 1-2 spare boards per 50MW of installed turbine capacity to mitigate future supply chain risks as the industry transitions toward Mark VIe and Mark* platforms.

Ready to Restore Your Turbine Control Reliability?

Whether you're managing a planned maintenance outage or responding to an unexpected servo board failure, our technical team is standing by to expedite your IS200TSVOH1BBB order. Contact us today for real-time inventory confirmation, application engineering support, and expedited shipping options tailored to your project timeline.
