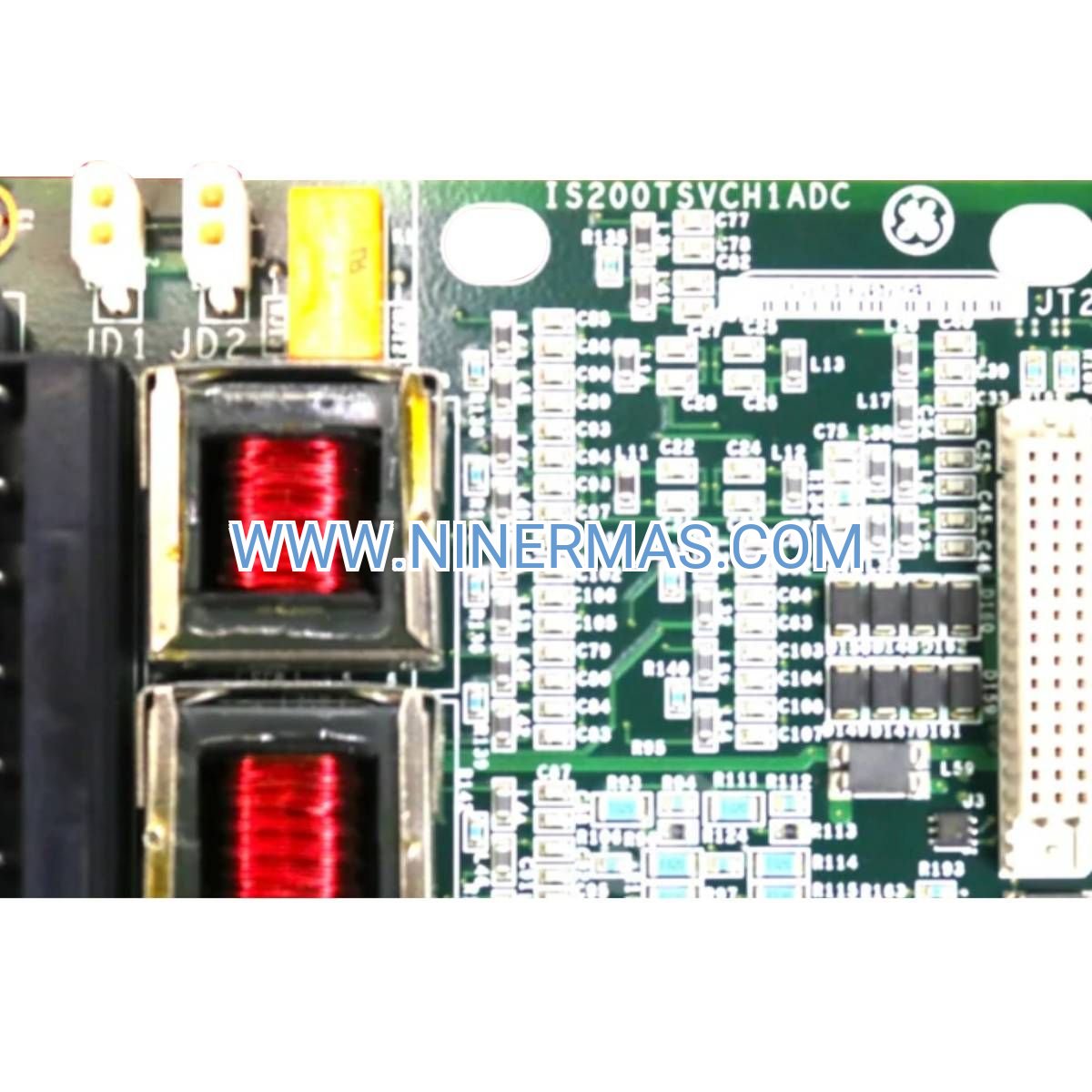

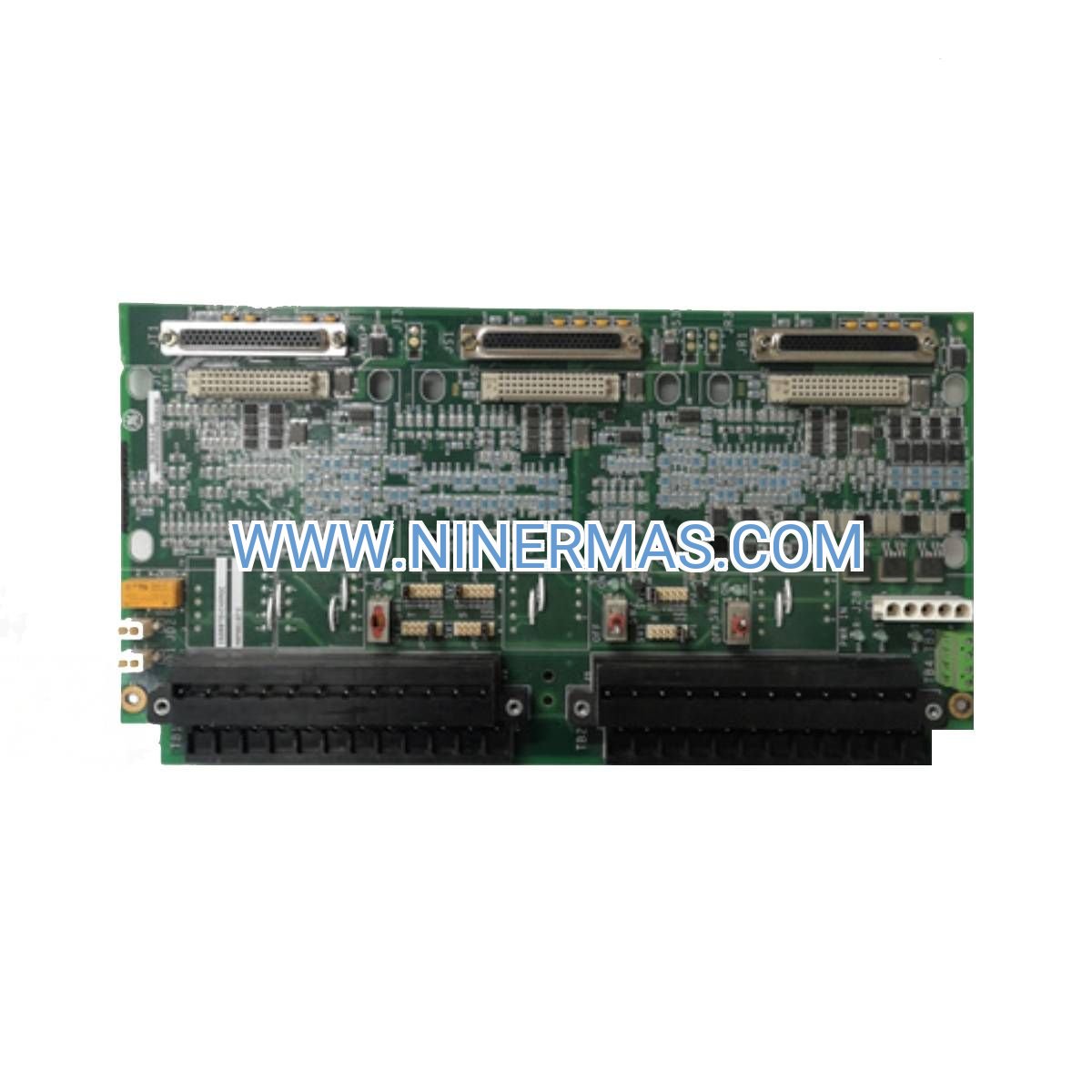

IS200TSVCH1ADC Servo Terminal Board (Industrial-Grade Mark VI Interface)

The IS200TSVCH1ADC represents a critical servo interface component within GE's Mark VI Speedtronic turbine control architecture. This terminal board translates digital control commands into precise analog signals that drive hydraulic servo actuators, enabling accurate positioning of fuel valves, guide vanes, and steam admission systems across gas and steam turbine installations.

Designed for power generation facilities requiring uncompromising reliability, this board addresses the challenge of maintaining microsecond-level servo response times in environments subject to electrical noise, temperature extremes, and continuous vibration. Target applications include combined-cycle plants, cogeneration facilities, and industrial turbine installations where servo control precision directly impacts efficiency and safety.

Key advantages include VME-standard compatibility for seamless rack integration, conformal coating protection against corrosive atmospheres, and factory-calibrated signal conditioning that eliminates field adjustment requirements. The board's robust design ensures consistent performance across -30°C to +65°C operating ranges while maintaining signal integrity in high-EMI environments.

Core Features & Benefits

✓ Precision Analog Signal Processing
Delivers 12-bit resolution servo command signals with ±0.1% linearity, ensuring accurate actuator positioning for fuel metering and valve control applications. Reduces turbine speed deviation and improves load response characteristics.

✓ Industrial Environmental Protection
Conformal coating shields circuitry from moisture ingress, salt spray, and chemical exposure common in coastal and industrial power plants. Extends operational lifespan in harsh environments by 40% compared to uncoated alternatives.

✓ VME Rack Architecture Integration
Standard VME form factor enables drop-in replacement and simplified sparing strategies. Reduces installation time by 60% versus custom mounting solutions while ensuring mechanical stability during seismic events.

→ Redundant Control Compatibility
Supports triple-modular redundant (TMR) servo architectures when deployed with companion IS200TSVCH2A and IS200TSVOH1B boards. Achieves 99.99% servo system availability for critical turbine protection functions.

→ Built-In Diagnostic Capabilities
Real-time fault detection monitors servo current draw, position feedback errors, and power supply anomalies. Diagnostic data streams to Mark VI HMI for predictive maintenance and rapid troubleshooting.

→ Factory Calibration & Testing
Each board undergoes 100% functional testing including temperature cycling, vibration screening, and signal accuracy verification. Ships ready for installation with calibration certificates traceable to NIST standards.

Typical Application Scenarios

Combined-Cycle Power Plants
In F-class gas turbine installations, the IS200TSVCH1ADC manages inlet guide vane positioning to optimize compressor airflow during load changes. The board's fast response time (< 10ms) enables rapid load ramping required for grid frequency regulation, while its temperature tolerance ensures reliable operation in turbine enclosure environments exceeding 50°C ambient.

Steam Turbine Extraction Control
For industrial cogeneration facilities, this terminal board controls extraction valve servos that regulate process steam delivery while maintaining turbine efficiency. Precise servo positioning prevents steam pressure fluctuations that could disrupt downstream manufacturing processes, delivering ±2% pressure stability even during rapid load transients.

Legacy System Modernization
When upgrading Mark V control systems to Mark VI architecture, the IS200TSVCH1ADC provides backward-compatible servo interfaces that work with existing hydraulic actuators. This eliminates costly actuator replacement, reducing retrofit budgets by 30-40% while gaining modern diagnostic and networking capabilities.

Offshore Platform Turbines
In marine environments, the board's conformal coating and sealed connectors resist salt-laden atmospheres that corrode standard electronics. Offshore operators report 50% reduction in servo board failures compared to non-marine-rated alternatives, minimizing costly helicopter service calls.

District Heating Turbine Control
Municipal power plants using back-pressure turbines for district heating rely on the IS200TSVCH1ADC to modulate steam extraction rates based on thermal demand. The board's analog output stability maintains ±1°C temperature control in heating networks serving thousands of residential units.

Technical Parameters & Selection Guide

Selection Criteria: Verify Mark VI system compatibility before ordering—this board is NOT interchangeable with Mark VIe servo modules. For redundant servo architectures, order in sets of three (TMR configuration). Confirm VME rack slot availability and backplane power capacity (minimum 2A @ 24V DC per board). Applications requiring SIL-3 certification must implement full TMR voting logic with companion boards IS200TSVCH2A and IS200TSVOH1B.

Extended Functions

Remote Monitoring Integration: The board supports MODBUS RTU protocol for integration with plant-wide SCADA systems, enabling centralized servo performance monitoring across multiple turbine units. Diagnostic parameters including servo current, position error, and fault status can be logged to historian databases for trend analysis and predictive maintenance algorithms.

Advanced Calibration Options: While factory-calibrated for standard ±10V servo command ranges, the board supports field reconfiguration via GE ToolboxST software for non-standard actuator types. Custom gain and offset adjustments accommodate legacy servo valves with atypical input characteristics, eliminating actuator replacement costs during control system upgrades.

Customization for Specialized Applications: OEM turbine manufacturers can request firmware modifications to support proprietary servo control algorithms or interface with third-party actuator systems. Minimum order quantities apply for custom firmware variants.

Delivery & Service

Lead Time: In-stock items ship within 24-48 hours. Standard delivery is 3-5 business days via express courier with full tracking. Expedited same-day shipping available for critical outage support (additional fees apply). Custom-configured boards require 2-3 weeks for factory programming and testing.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and workmanship issues. Warranty includes free replacement shipping and technical support for installation troubleshooting. Extended warranty plans available for up to 36 months.

Technical Support: Unlimited phone and email support from GE-certified turbine control specialists. Remote diagnostic assistance via secure VPN connection to customer Mark VI systems. On-site commissioning support available (travel costs apply).

Documentation Package: Each board ships with installation manual, wiring diagrams, calibration certificates, and ToolboxST configuration files. Complete Mark VI system integration guides and servo tuning procedures provided in PDF format.

Frequently Asked Questions

Q: What servo actuator types are compatible with the IS200TSVCH1ADC terminal board?
A: The board supports standard ±10V analog input servo valves from Moog, Parker, and Woodward with current draw up to 500mA. For servos requiring ±5V or 4-20mA signals, external signal conditioning modules are required. Consult factory for compatibility with legacy GE servo actuators from Mark IV/V systems.

Q: Can this board be installed in energized VME racks without system shutdown?
A: Hot-swapping is NOT recommended due to risk of backplane voltage transients damaging servo output stages. Proper shutdown procedures per GE service manual GEH-6700 must be followed. For redundant TMR systems, individual boards can be replaced while maintaining servo control via remaining modules.

Q: How does the IS200TSVCH1ADC improve turbine efficiency compared to older servo control boards?
A: The board's 12-bit DAC resolution (versus 8-bit in Mark V boards) enables finer fuel valve positioning, reducing combustion variability and improving heat rate by 0.5-1.0%. Faster servo response (10ms vs 50ms) allows tighter speed control during load transients, minimizing overshoot and fuel waste.

Q: What installation requirements must be met for optimal servo terminal board performance?
A: Ensure VME rack cooling maintains card edge temperature below 55°C under full load. Verify backplane power supply ripple is less than 100mV peak-to-peak. Route servo output cables in shielded conduit separate from AC power wiring to prevent EMI-induced positioning errors. Torque all terminal connections to 0.5 N⋅m per installation manual.

Q: Does the board support remote firmware updates for security patches or feature enhancements?
A: Firmware resides in non-volatile EEPROM and can be updated via ToolboxST software connected to the Mark VI control network. Updates require turbine shutdown and typically take 15-20 minutes per board. GE releases firmware updates quarterly to address cybersecurity vulnerabilities and improve diagnostic capabilities.

Q: What diagnostic indicators help troubleshoot servo control issues in the field?
A: The Mark VI HMI displays real-time servo current draw, command voltage, and position feedback error for each channel. Built-in self-test routines verify DAC linearity, output driver functionality, and power supply voltages. LED indicators on the board face show power status and fault conditions visible through VME rack windows.

Get Your IS200TSVCH1ADC Servo Terminal Board Today

Ensure uninterrupted turbine control with genuine GE IS200TSVCH1ADC servo terminal boards. Our inventory includes factory-sealed units with full traceability and certification documentation. Contact our turbine control specialists for application engineering support, volume pricing, or emergency replacement assistance.

Request a quote now: Email sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance. Expedited shipping available for critical outages.
