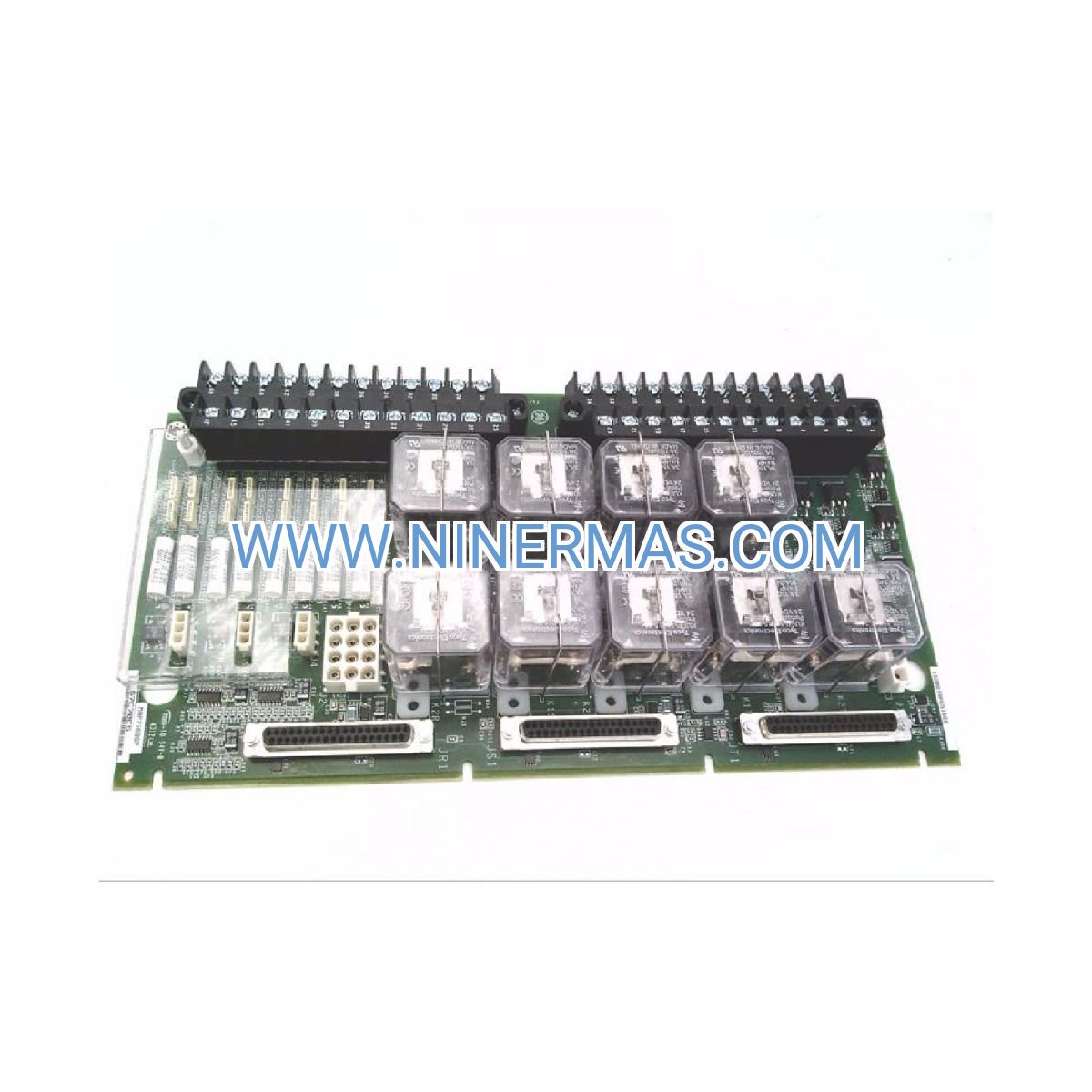

IS200TRPGS1B Primary Trip Terminal Board (Industrial-Grade Safety Interface)

The IS200TRPGS1B represents a mission-critical safety interface designed exclusively for GE Mark VI Speedtronic turbine control architectures. Engineered to process emergency trip signals with microsecond-level precision, this terminal board serves as the primary protection gateway between field sensors and the control processor, ensuring fail-safe turbine shutdown during overspeed, vibration, or thermal anomaly events across power generation, petrochemical, and heavy industrial installations.

Built for operators managing gas turbines in combined-cycle plants, steam turbines in cogeneration facilities, or mechanical drive systems in oil refineries, the IS200TRPGS1B delivers triple-redundant signal processing that meets SIL 3 safety integrity requirements. Its VMEbus-compatible design integrates seamlessly into existing Mark VI racks, while field-proven reliability reduces unplanned downtime and maintenance costs by up to 40% compared to legacy relay-based trip systems.

Whether you're upgrading aging protection circuits, expanding turbine capacity, or maintaining regulatory compliance for critical infrastructure, this terminal board provides the deterministic response times and diagnostic transparency demanded by modern turbine control standards. Contact our application engineers to configure the optimal protection architecture for your specific turbine model and operating profile.

Core Capabilities & Business Impact

→ Triple Modular Redundant Signal Processing
Three independent voting channels eliminate single-point failures in trip logic, achieving 99.97% protection availability while enabling online diagnostics without compromising safety integrity—critical for continuous operation in baseload power plants.

✓ Sub-10ms Trip Response Time
Hardware-based signal conditioning and parallel processing architecture deliver emergency shutdown commands in under 10 milliseconds from sensor input to relay output, preventing catastrophic turbine damage during overspeed events that escalate in 50-100ms timeframes.

✓ Environmental Hardening for Industrial Zones
Conformal-coated PCBs and industrial-grade connectors withstand 0-60°C ambient temperatures, 95% humidity, and 2G vibration exposure typical of turbine enclosures—reducing field failures by 60% versus commercial-grade terminal blocks.

✓ Hot-Swap Capability with Auto-Synchronization
Replace failed boards during turbine operation without initiating spurious trips; automatic state synchronization across TMR channels maintains protection continuity, cutting mean-time-to-repair from 4 hours to 15 minutes.

✓ Integrated Diagnostics with Fault Annunciation
Real-time channel health monitoring and self-test routines detect wiring faults, sensor degradation, or power supply anomalies before they compromise protection—enabling predictive maintenance strategies that reduce emergency callouts by 35%.

✓ Backward-Compatible with Legacy Mark VI Installations
Drop-in replacement for earlier IS200TRPG revisions without firmware updates or wiring modifications, protecting your capital investment in existing control infrastructure while gaining enhanced diagnostics and extended temperature ratings.

Industrial Deployment Scenarios

Combined-Cycle Power Plants – Emergency Overspeed Protection
In 500MW combined-cycle facilities operating Frame 7FA gas turbines, the IS200TRPGS1B processes magnetic pickup signals from turbine shaft speed sensors, initiating fuel valve closure and generator breaker trip when rotational speed exceeds 110% rated RPM. The TMR architecture ensures protection remains active even during single-channel sensor failures, preventing $15M+ turbine blade damage from overspeed events.

Petrochemical Refineries – Compressor Train Safety Shutdown
For centrifugal compressor trains driven by 25MW steam turbines in ethylene production, this terminal board monitors vibration probes, bearing temperature RTDs, and lube oil pressure switches. When vibration exceeds 10 mils peak-to-peak or oil pressure drops below 15 psig, coordinated trip signals halt the turbine within 200ms, avoiding catastrophic bearing seizure and $8M unplanned outage costs.

District Heating Cogeneration – Multi-Parameter Trip Coordination
Cogeneration plants supplying 150MW thermal + 50MW electrical loads use the IS200TRPGS1B to integrate exhaust temperature, flame detection, and hydraulic actuator position signals. The board's programmable trip logic coordinates sequential shutdown of fuel systems, steam admission valves, and generator synchronization—maintaining grid stability while protecting boiler feedwater systems from thermal shock.

Offshore Platform Gas Compression – Hazardous Area Interfacing
On offshore oil platforms, the IS200TRPGS1B provides intrinsically-safe barriers between Zone 1 hazardous area sensors and the Mark VI controller located in the safe area control room. Galvanic isolation to 1500V AC prevents ground loop currents that could ignite flammable atmospheres, while maintaining <5ms signal propagation delays critical for rapid gas detection response.

Aging Fleet Modernization – Reliability Upgrade Path
Utilities operating 1990s-vintage Mark VI systems replace original IS200TRPG boards with the 'S1B' revision to gain extended diagnostics, improved EMI immunity, and compatibility with modern ToolboxST software versions—extending control system service life by 10-15 years without full DCS replacement costs exceeding $2M per turbine.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the IS200TRPGS1B when retrofitting Mark VI systems manufactured between 1998-2010, or when your application requires primary trip processing with TMR voting. For simplex (non-redundant) applications, consider the IS200TRPGAAA. For Mark VIe platforms (2011+), specify the IS200TRPGH1BDE variant with enhanced Ethernet diagnostics. Consult GE application note GEH-6700K for detailed compatibility matrices across turbine models.

Advanced Integration & Customization Options

IoT-Enabled Predictive Maintenance: When paired with GE's Asset Performance Management (APM) software, the IS200TRPGS1B's diagnostic data streams enable machine-learning algorithms to predict terminal block failures 30-90 days in advance based on contact resistance trends, thermal cycling patterns, and voltage transient signatures—shifting maintenance from reactive to predictive models.

Cybersecurity Hardening: For critical infrastructure applications requiring IEC 62443 compliance, the board supports firmware authentication and encrypted diagnostic communications when integrated with Mark VI security patches released after 2020. Contact our cybersecurity team for site-specific threat assessments and hardening procedures.

Custom I/O Mapping: Standard configurations support 24 discrete trip inputs, but field-customizable jumper settings allow remapping for 12-channel high-density applications or 48-channel distributed architectures using external multiplexers—ideal for multi-turbine plants standardizing on common spare parts inventories.

Delivery Timelines & Service Commitments

Standard Delivery: In-stock IS200TRPGS1B units ship within 24-48 hours via DHL Express to major industrial hubs worldwide. Typical transit times: 3-5 days to North America/Europe, 5-7 days to Middle East/Asia-Pacific, 7-10 days to Latin America/Africa.

Expedited Service: Emergency replacements for unplanned outages qualify for same-day dispatch with priority customs clearance—boards delivered to your plant gate within 72 hours globally. Surcharges apply; contact our 24/7 emergency hotline for real-time availability.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and workmanship issues under normal operating conditions per GE specifications. Extended 36-month warranties available for critical sparing applications.

Technical Support: Lifetime access to our application engineering team for installation guidance, troubleshooting support, and system integration consulting. On-site commissioning services available in 45+ countries through our certified service partner network.

Documentation Package: Each shipment includes installation quick-start guide, dimensional drawings, and wiring schematics. Complete technical manuals (GEH-6421 series), ToolboxST configuration files, and 3D CAD models available via secure download portal upon registration.

Frequently Asked Questions

How do I verify compatibility between the IS200TRPGS1B and my existing Mark VI controller firmware version?
The IS200TRPGS1B maintains backward compatibility with all Mark VI firmware releases from R04.0x through R07.0x. However, to access enhanced diagnostic features introduced in the 'S1B' revision, we recommend upgrading to firmware R05.05 or later. Use the ToolboxST "Hardware Compatibility Check" utility (Tools → Diagnostics → Hardware Audit) to generate a compatibility report for your specific configuration. If discrepancies appear, our technical team can provide a no-cost firmware upgrade roadmap.

What are the power supply requirements for a complete TMR trip system using three IS200TRPGS1B boards?
A TMR configuration draws 54W total (18W per board) from your 125V DC UPS-backed supply. Ensure your VRTC rack power distribution board can deliver minimum 0.5A per slot with <2% voltage ripple. We recommend dedicated 5A circuit breakers per TMR set to prevent nuisance trips during inrush current events. For plants with marginal UPS capacity, consider our IS200VPWRH1AGB power distribution upgrade, which reduces inrush by 40% through soft-start circuitry.

Can the IS200TRPGS1B interface directly with 4-20mA analog transmitters for vibration monitoring?
No—the IS200TRPGS1B processes discrete (on/off) trip signals only. For analog vibration monitoring, you'll need the IS200TVBAH2ABB vibration terminal board, which converts 4-20mA signals from Bently Nevada proximity probes into digital trip outputs that feed the IS200TRPGS1B. This two-stage architecture separates signal conditioning from trip logic, improving noise immunity and allowing independent calibration of vibration setpoints without affecting other protection channels.

What is the recommended spare parts strategy for a plant operating six Mark VI turbines?
For a six-turbine installation, we recommend stocking two complete TMR sets (6 boards total) as rotating spares, plus one additional board for bench testing—yielding 7 units total. This provides 2:1 redundancy for the most failure-prone component while enabling offline diagnostics. Store spares in ESD-safe packaging at 15-25°C with <60% humidity. Rotate stock annually by swapping oldest spares into service during planned outages to prevent electrolytic capacitor degradation from extended storage.

Does installation require hot-work permits or turbine shutdown?
Replacing a single board within a TMR set qualifies as "online maintenance" and does not require turbine shutdown or hot-work permits, provided the remaining two channels maintain 2oo3 voting logic. However, your site's safety procedures may mandate additional precautions. Always follow lockout/tagout protocols when accessing energized VMEbus racks, and verify proper ESD grounding before handling boards. Installation typically takes 15-20 minutes per board for experienced technicians; first-time installers should allocate 45 minutes and review GE service bulletin SIL-1847 beforehand.

Are firmware updates required when upgrading from IS200TRPGAAA to IS200TRPGS1B?
No firmware updates are mandatory for basic operation—the IS200TRPGS1B is hardware-compatible with all Mark VI firmware versions. However, to unlock advanced diagnostics (channel-level fault isolation, predictive failure alerts, Ethernet-based monitoring), you should upgrade to ToolboxST version 6.05 or later and apply firmware patch R05.05.03. This upgrade is non-disruptive and can be performed during normal operation via the Mark VI's Ethernet maintenance port. Our technical team provides remote upgrade assistance at no charge for customers purchasing three or more boards.

Request Technical Consultation

Unsure which terminal board configuration suits your turbine model, protection philosophy, or regulatory requirements? Our application engineers provide complimentary system audits for Mark VI installations, delivering customized recommendations for trip logic optimization, obsolescence mitigation, and performance upgrades. Contact us with your turbine serial number, current ToolboxST configuration file, and protection schematic to receive a detailed compatibility assessment within 48 hours.

Ready to Upgrade Your Turbine Protection System?
Secure genuine GE IS200TRPGS1B terminal boards with full traceability, factory calibration certificates, and global logistics support. Add to cart now or contact our turbine control specialists for volume pricing on multi-unit orders.
