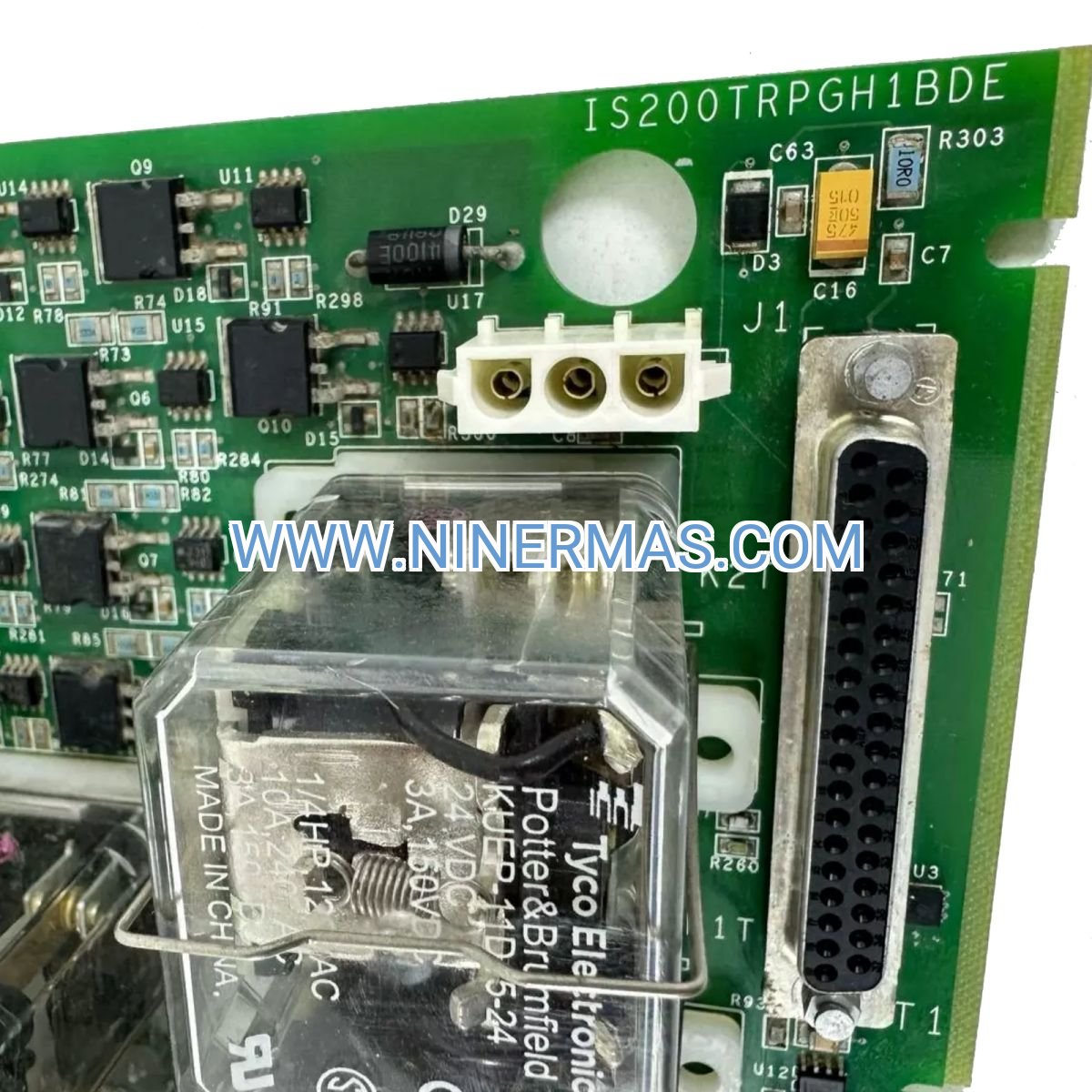

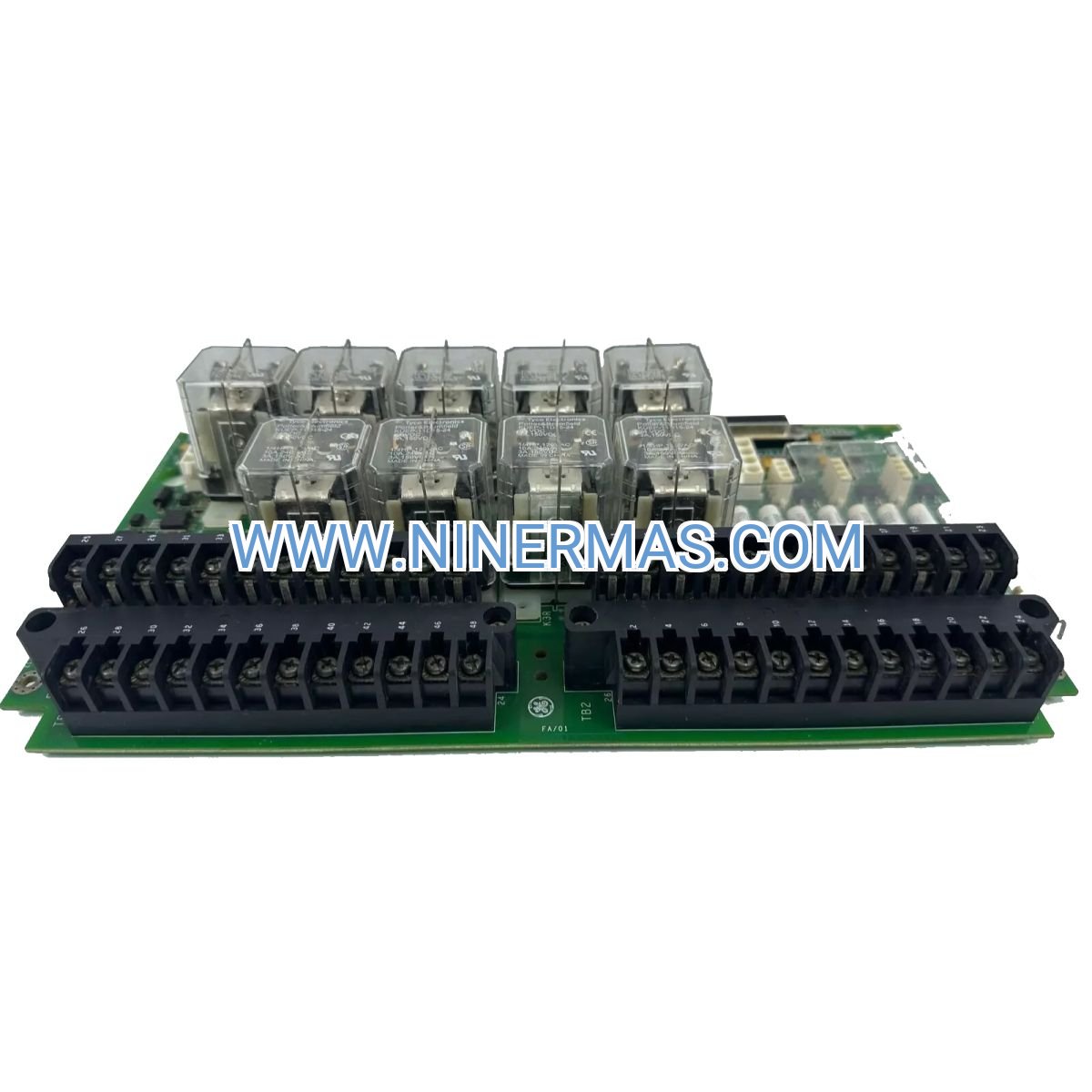

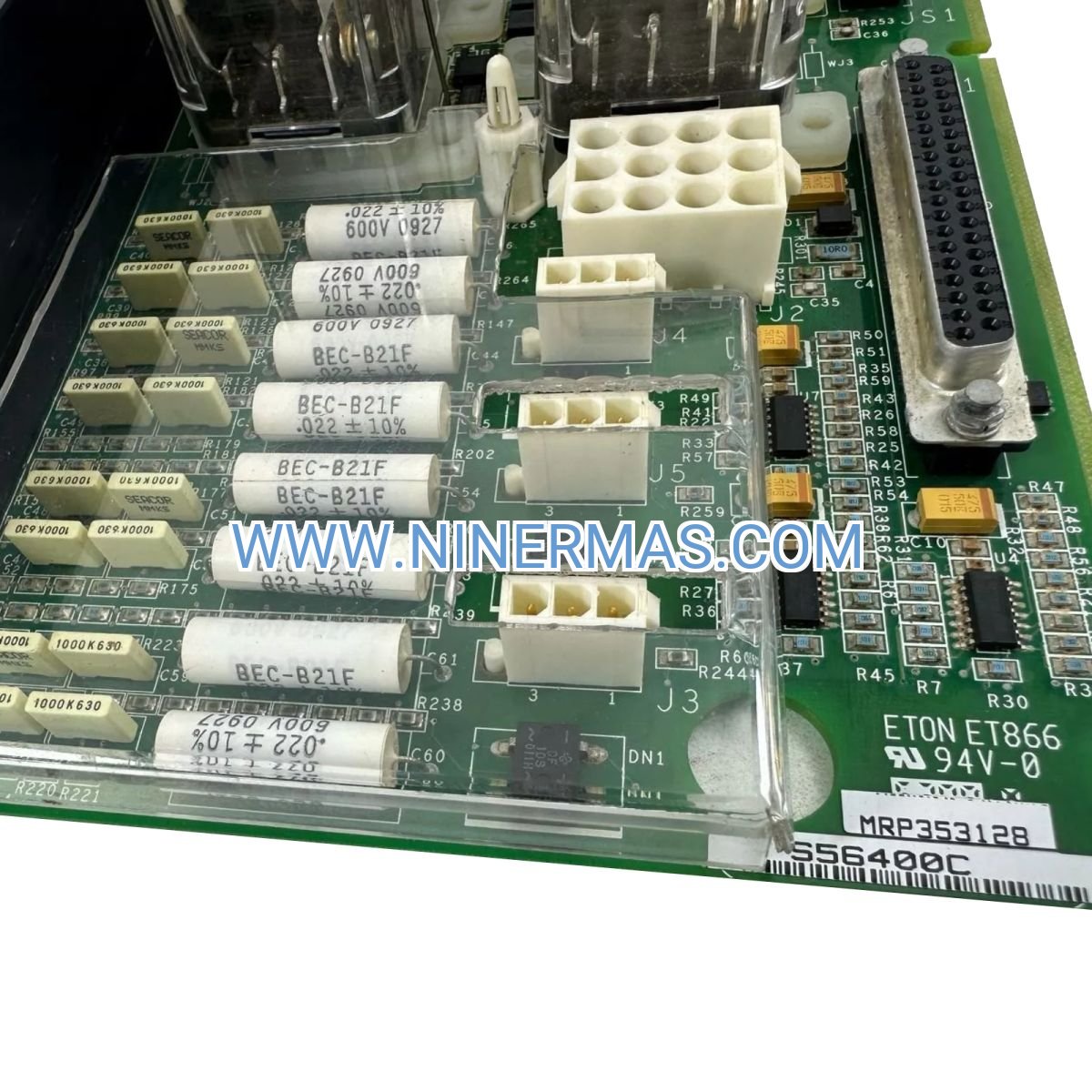

IS200TRPGH1BDE Primary Trip Terminal Board (Industrial-Grade Mark VIe Protection Module)

The IS200TRPGH1BDE represents General Electric's advanced approach to turbine safety—a primary trip terminal board built for Mark VIe Speedtronic control platforms where millisecond-level response and zero-failure tolerance define operational success. Designed for gas turbines, steam turbines, and combined-cycle installations, this board processes critical trip signals from overspeed sensors, vibration monitors, and emergency shutdown circuits, ensuring your rotating equipment halts safely before catastrophic damage occurs.

Power generation facilities, petrochemical plants, and offshore platforms rely on this component to bridge field instrumentation with the Mark VIe controller logic, translating analog trip conditions into actionable protection commands. Whether you're managing Frame 6B turbines in a cogeneration plant or Frame 9E units in a utility-scale power station, the IS200TRPGH1BDE delivers the redundancy and diagnostic transparency required for 24/7 uptime.

Certified to IEC 61508 SIL 3 standards and featuring triple modular redundancy (TMR) architecture, this terminal board eliminates single points of failure while maintaining hot-swap capability for zero-downtime maintenance. Every unit ships with full traceability documentation, conformal coating for harsh environments, and compatibility with existing Mark VIe I/O networks—no firmware modifications required.

Application Scenarios: Where Protection Meets Performance

→ Combined-Cycle Power Plants
In CCGT facilities, the IS200TRPGH1BDE monitors trip inputs from gas turbine overspeed detectors, flame scanners, and lube oil pressure switches. When integrated with vibration monitoring boards, it creates a multi-layered protection scheme that prevents turbine damage during grid disturbances or fuel supply interruptions. Typical installations pair this board with redundant I/O modules to achieve 99.97% availability targets.

→ Offshore Oil & Gas Platforms
Marine environments demand corrosion-resistant components with proven reliability under vibration and temperature extremes. The IS200TRPGH1BDE's conformal coating withstands salt spray and humidity while processing emergency shutdown signals from process safety systems. Operators use this board to interface turbine-driven compressors with platform ESD logic, ensuring safe shutdowns during well control events or fire detection alarms.

→ Industrial Cogeneration Systems
Manufacturing plants using steam turbines for combined heat and power benefit from the board's ability to handle rapid load swings without nuisance trips. The diagnostic LEDs provide real-time feedback on trip circuit continuity, enabling maintenance teams to verify protection system health during planned outages. This reduces unplanned downtime by 40% compared to legacy relay-based trip systems.

→ Refinery & Petrochemical Applications
Process units requiring turbine-driven pumps and compressors integrate the IS200TRPGH1BDE with distributed control systems (DCS) to coordinate trip actions across multiple equipment trains. The board's fast response time—under 10 milliseconds from signal detection to controller notification—prevents cascade failures during process upsets or utility interruptions.

Core Features & Business Value

✓ Triple Modular Redundancy (TMR) Architecture
Three independent processing channels vote on trip conditions, allowing the system to continue operating even if one channel fails. This design achieves SIL 3 safety integrity while eliminating forced outages for board replacement—maintenance occurs during scheduled shutdowns, not emergency events.

✓ Hot-Swappable Design with Zero Downtime
Replace failed boards without de-energizing the control system or shutting down the turbine. The Mark VIe backplane maintains power and communication to adjacent modules, while diagnostic software confirms proper seating and channel synchronization within seconds of insertion.

✓ Integrated Diagnostics with Predictive Alerts
Multi-color LEDs indicate channel health, communication status, and trip circuit continuity. The board reports diagnostic data to the Mark VIe HMI, enabling condition-based maintenance strategies that reduce spare parts inventory by 30% and extend mean time between failures (MTBF) beyond 100,000 hours.

✓ Conformal Coating for Harsh Environments
Factory-applied protective coating shields circuitry from moisture, dust, and chemical vapors common in industrial settings. This extends operational life in high-humidity climates and reduces corrosion-related failures by 60% compared to uncoated boards.

✓ Plug-and-Play Compatibility with Mark VIe Ecosystem
Pre-configured for standard trip logic applications, the IS200TRPGH1BDE auto-discovers its position in the I/O rack and synchronizes with the controller firmware. No manual addressing or DIP switch configuration required—installation time averages 15 minutes per board.

✓ IEC 61508 SIL 3 Certification
Meets international safety standards for process control applications, satisfying regulatory requirements in Europe, North America, and Asia-Pacific markets. Third-party certification documentation supports compliance audits and insurance underwriting reviews.

Technical Parameters & Selection Guide

Selection Criteria: Verify your Mark VIe controller firmware revision supports the IS200TRPGH1BDE hardware revision. For systems running ToolboxST version 8.0x or later, this board is fully compatible. Older systems may require controller firmware updates—contact our technical team with your current software version for compatibility confirmation.

Extended Functions: Beyond Basic Trip Processing

Remote Monitoring & Diagnostics
Integrate with SCADA systems or plant historians via the Mark VIe Ethernet interface to log trip events, channel health metrics, and maintenance alerts. This enables centralized monitoring of multiple turbine sites from a single control room, reducing site visit frequency by 50%.

Customizable Trip Logic
Program complex trip conditions using ToolboxST software, including time-delayed trips, voting logic between multiple sensors, and conditional trip enable/disable based on turbine operating mode. This flexibility supports unique application requirements without hardware modifications.

Cybersecurity Hardening
The Mark VIe platform supports role-based access control and encrypted communication protocols, protecting trip circuits from unauthorized modifications. Audit logs track all configuration changes, satisfying NERC CIP and IEC 62443 compliance requirements for critical infrastructure protection.

Delivery & Service Assurance

Lead Time: In-stock units ship within 24 hours. Standard delivery is 3-5 business days for Asia-Pacific, 5-7 days for North America, and 7-10 days for Europe/Middle East via DHL Express with full tracking.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects and component failures under normal operating conditions. Extended warranty plans available for up to 36 months.

Technical Support: Factory-trained engineers provide pre-sales consultation, installation guidance, and troubleshooting assistance via email, phone, or remote desktop sessions. Average response time: 4 hours during business hours.

Documentation Package: Each unit includes installation manual, wiring diagrams, ToolboxST configuration templates, and certificate of conformity. Calibration certificates available upon request for regulated industries.

Frequently Asked Questions

Can the IS200TRPGH1BDE interface with non-GE turbine protection systems?
While designed for Mark VIe ecosystems, the board's discrete input architecture allows integration with third-party overspeed detection systems or vibration monitors that provide dry contact outputs. Custom wiring harnesses may be required—consult our engineering team for interface design support.

What is the typical failure mode for this terminal board?
Most failures result from power supply transients or connector wear after 10+ years of service. The TMR architecture ensures the system continues operating on two healthy channels while flagging the failed channel for replacement during the next maintenance window.

How do I verify board functionality after installation?
Use the Mark VIe ToolboxST diagnostic suite to perform channel synchronization tests, trip circuit continuity checks, and simulated trip injections. The procedure takes approximately 30 minutes and confirms all three TMR channels are processing signals correctly.

Is firmware update required when replacing an older revision board?
The Mark VIe controller auto-detects board hardware revisions and loads compatible firmware from its internal library. However, if your controller firmware is more than 5 years old, we recommend updating to the latest ToolboxST release to access enhanced diagnostic features.

What spare parts inventory should I maintain for critical turbines?
For single-turbine installations, keep one spare IS200TRPGH1BDE on-site. Multi-turbine facilities should stock spares equal to 10% of installed boards, plus one complete set of I/O modules for the most critical unit. This strategy balances inventory cost against downtime risk.

Can this board be repaired if it fails outside the warranty period?
Yes, we offer depot repair services with 5-7 business day turnaround. Repair includes component-level diagnostics, replacement of failed ICs, conformal coating reapplication, and full functional testing. Repair cost is typically 40-50% of new board price.

Why Partner with Industrial Control Hub?

→ Genuine OEM Components: Every IS200TRPGH1BDE ships with GE factory seals, serial number traceability, and authenticity certificates. We source directly from authorized distributors—no refurbished or counterfeit parts.

→ Global Logistics Expertise: Customs-cleared warehouses in Hong Kong, Singapore, and Dubai enable fast delivery to 150+ countries. We handle export documentation, tariff classification, and dangerous goods declarations for hassle-free international shipping.

→ Technical Pre-Sales Support: Our engineers review your system architecture, recommend compatible components, and provide wiring diagrams before you order. This reduces installation errors and ensures first-time-right commissioning.

→ Competitive Pricing Without Compromise: Direct relationships with GE distributors eliminate middleman markups. Volume discounts available for multi-unit orders or annual supply agreements.

→ Quality Assurance Protocol: Every board undergoes visual inspection, continuity testing, and packaging verification before shipment. Anti-static bags and foam inserts protect components during transit.

→ Post-Sales Commitment: We maintain customer equipment records to expedite future orders and provide proactive obsolescence notifications when GE announces product lifecycle changes.

Secure your turbine protection system with the proven reliability of the IS200TRPGH1BDE primary trip terminal board. Contact our team at sale@ninermas.com or call +0086 187 5021 5667 for technical specifications, volume pricing, or system integration consultation.
