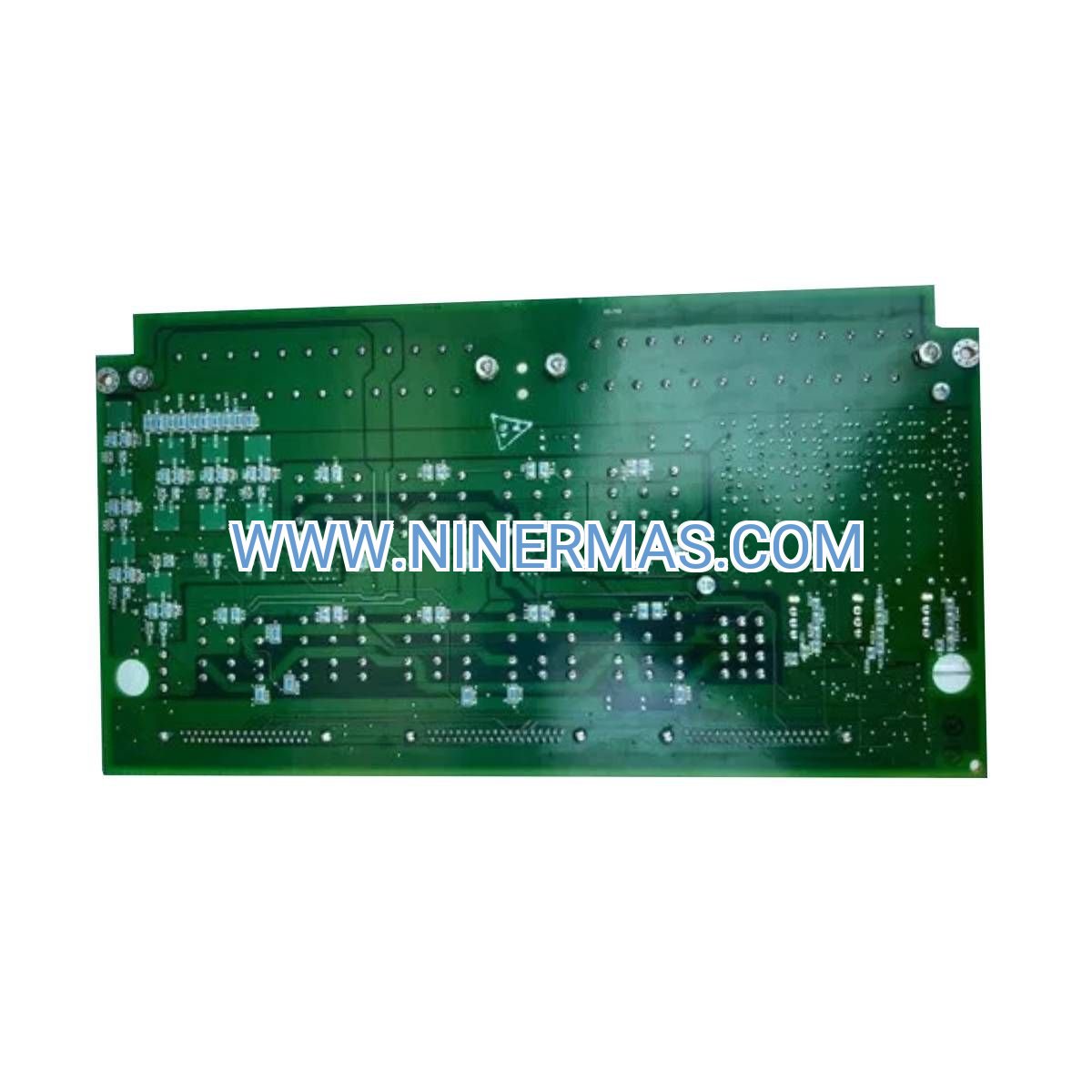

IS200TRPGH1BDD Trip Terminal Board (Industrial-Grade Protection Interface)

The IS200TRPGH1BDD represents General Electric's advanced approach to turbine safety, functioning as the primary trip signal processor within Mark VI Speedtronic architectures. This terminal board translates critical sensor inputs into actionable shutdown commands, protecting multi-million-dollar turbine assets from overspeed, vibration, and thermal excursions across power generation and industrial drive applications.

Designed for engineers managing gas turbine generators, steam turbine systems, and mechanical drive units, this board delivers sub-10-millisecond trip response times while maintaining signal integrity in electrically noisy environments. Integration with VME-based control racks ensures compatibility with existing Mark VI installations, reducing retrofit complexity and commissioning time.

Whether you're upgrading aging turbine protection systems or building new combined-cycle facilities, the IS200TRPGH1BDD provides the reliability foundation required for continuous operation in mission-critical applications. Factory-tested components and conformal coating protection ensure long-term performance in harsh industrial atmospheres.

Core Features & Benefits

✓ Ultra-Fast Trip Processing: Sub-10ms response time ensures immediate turbine shutdown when safety thresholds are exceeded, preventing catastrophic mechanical failures and reducing insurance liability exposure

✓ Multi-Channel Input Architecture: Processes discrete trip signals from overspeed detectors, vibration probes, bearing temperature sensors, and flame detection systems through isolated input channels that prevent cross-talk interference

✓ Wide Voltage Range Compatibility: Accepts 24-125 VDC control signals, enabling integration with diverse sensor types and legacy protection devices without requiring signal conditioning modules

✓ Environmental Hardening: Operates reliably from -30°C to +65°C with 95% humidity tolerance, making it suitable for offshore platforms, desert installations, and tropical climate facilities

✓ VME Rack Integration: Standard form factor allows hot-swappable installation in Mark VI control cabinets, minimizing system downtime during maintenance activities

✓ Conformal Coating Protection: Factory-applied protective coating shields circuitry from moisture, dust, and chemical contaminants common in power plant and petrochemical environments

Application Scenarios

→ Combined-Cycle Power Plants: In CCGT facilities generating 400+ MW, the IS200TRPGH1BDD coordinates with redundant trip boards to create 2-out-of-3 voting logic for gas turbine protection. This configuration prevents nuisance trips while ensuring fail-safe shutdown during genuine emergency conditions, maintaining grid stability and avoiding costly forced outages.

→ Offshore Oil & Gas Platforms: Subsea production platforms rely on this terminal board to protect gas compression turbines operating in corrosive marine atmospheres. The board's sealed terminal design and humidity resistance prevent salt-induced failures that could trigger platform-wide shutdowns affecting production quotas.

→ Petrochemical Refinery Drives: Refineries using steam turbines for compressor and pump drives integrate the IS200TRPGH1BDD with process safety systems to coordinate turbine trips with upstream/downstream equipment shutdowns, preventing cascade failures and hazardous material releases.

→ District Heating Cogeneration: Municipal CHP plants utilize this board to protect back-pressure steam turbines, ensuring safe operation during rapid load swings caused by seasonal heating demand variations while maintaining electrical grid synchronization.

→ Industrial Manufacturing Drives: Paper mills, steel plants, and chemical facilities deploy the IS200TRPGH1BDD in mechanical drive applications where turbine reliability directly impacts production throughput and product quality metrics.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the IS200TRPGH1BDD, verify that your Mark VI system requires the "H1B" revision level for firmware compatibility. Systems with ToolboxST version 6.0 or later typically require this board variant. Consult your turbine control system documentation or contact our engineering team for revision-specific guidance.

Extended Functions

Diagnostic Monitoring: Built-in self-test circuitry continuously monitors input channel integrity, providing early warning of sensor failures or wiring faults through the Mark VI HMI interface. This predictive maintenance capability reduces unplanned downtime by identifying degraded components before they cause protection system failures.

Remote Accessibility: When integrated with Mark VI Ethernet communication modules, the IS200TRPGH1BDD enables remote trip signal monitoring through SCADA systems and plant-wide DCS networks, supporting centralized alarm management and historical event logging for regulatory compliance.

Customization Options: Field-configurable jumper settings allow adaptation to site-specific trip logic requirements, including normally-open vs. normally-closed contact configurations and adjustable input filtering for noise rejection in high-EMI environments.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 3-5 business days via international courier with full tracking and insurance coverage. Expedited same-day dispatch available for emergency turbine outage situations.

Custom Orders: Factory-fresh units with specific firmware revisions or custom testing protocols typically require 4-6 weeks from order confirmation to delivery.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues under normal operating conditions. Extended warranty programs available for critical infrastructure applications.

Technical Support: Direct access to GE-trained turbine control specialists for installation guidance, troubleshooting assistance, and system integration consulting. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each shipment includes installation manual, terminal wiring diagrams, dimensional drawings, and material certifications for quality assurance compliance.

Frequently Asked Questions

Q: How does the IS200TRPGH1BDD interface with existing Mark VI control logic?
A: The board integrates through the VME backplane, communicating with VCMI controller modules via the Mark VI's internal data highway. Trip signal processing is configured through ToolboxST software using ladder logic or function block programming, allowing customization of trip voting schemes and time delays.

Q: What are the power consumption requirements for this terminal board?
A: The IS200TRPGH1BDD draws approximately 8-12 watts from the VME rack's +5VDC and ±15VDC power rails. Ensure your power supply board (typically IS200VPWRH series) has sufficient capacity when adding multiple trip boards to the system.

Q: Can this board be installed in hazardous area Zone 2 / Division 2 locations?
A: When mounted in NEMA 4X or IP65-rated control enclosures with appropriate purge systems or intrinsic safety barriers, the IS200TRPGH1BDD can support installations in classified electrical areas. Verify compliance with local electrical codes (NEC Article 500, IEC 60079) and obtain necessary certifications.

Q: What is the recommended calibration interval for trip signal accuracy?
A: GE recommends functional testing during scheduled turbine outages (typically 12-24 month intervals) to verify trip signal continuity and response times. The board itself does not require calibration, but associated sensors and transmitters should follow manufacturer-specified calibration schedules.

Q: Is firmware updating required when replacing this board?
A: The IS200TRPGH1BDD contains EPROM-based firmware that is typically pre-configured for your system revision. In most cases, board replacement is plug-and-play without firmware updates. However, major system upgrades may require ToolboxST configuration downloads to align with updated control strategies.

Q: What are the most common failure modes for this terminal board?
A: Field experience indicates that relay contact wear (after 100,000+ operations) and electrolytic capacitor aging (after 10+ years) are the primary failure mechanisms. Preventive replacement during major turbine overhauls is recommended for boards exceeding 15 years of service.

Get Your IS200TRPGH1BDD Trip Board Today

Protect your turbine investment with genuine GE control components backed by expert technical support. Contact our team at sale@ninermas.com or call +0086 187 5021 5667 to verify compatibility with your Mark VI system, discuss volume pricing for multi-unit projects, or request expedited shipping for emergency outage support.

Our engineering team can provide application-specific guidance on trip logic configuration, redundancy architectures, and integration with third-party safety systems to ensure your turbine protection meets industry standards and insurance requirements.
