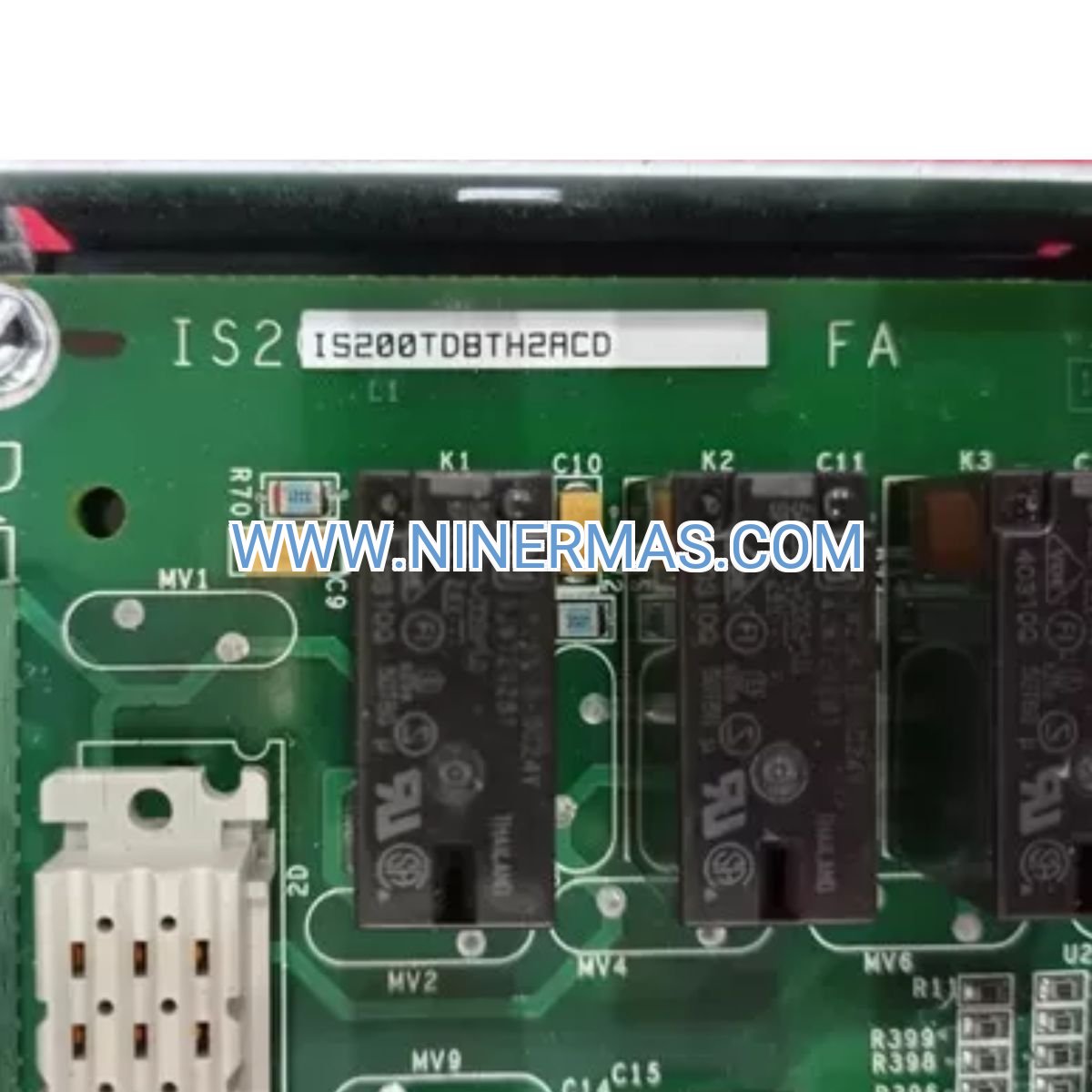

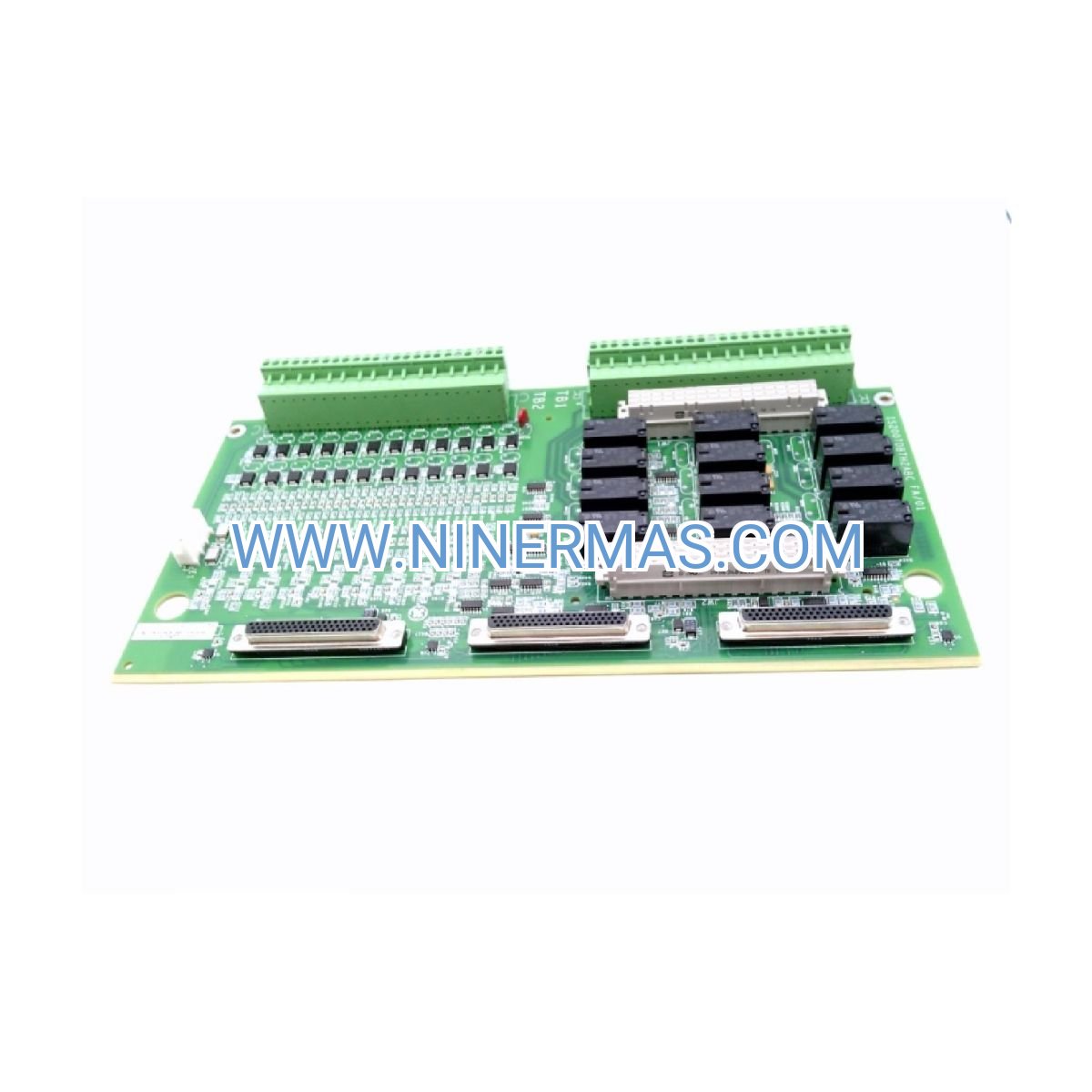

IS200TDBTH2A Mark VI Terminal Board – Industrial-Grade Turbine Control Interface

The IS200TDBTH2A represents General Electric's commitment to precision turbine control engineering. This Mark VI Speedtronic termination module delivers mission-critical signal interface capabilities for gas turbines, steam turbines, and combined-cycle power systems operating in the world's most demanding industrial environments.

Designed as the vital link between field instrumentation and control processors, this terminal board provides robust electrical isolation, advanced signal conditioning, and reliable field wiring termination. Whether deployed in utility-scale power plants, petrochemical facilities, or industrial cogeneration systems, the IS200TDBTH2A ensures uninterrupted turbine operation through proven GE engineering excellence.

With over 200,000 hours MTBF and compliance with international safety standards, this module stands as the industry benchmark for turbine control reliability. Its hot-swappable architecture and comprehensive diagnostic capabilities make it the preferred choice for operators who cannot afford downtime.

Core Capabilities & Technical Advantages

→ Multi-Channel Signal Processing
Handles diverse input types including thermocouples, RTDs, pressure transducers, and vibration sensors with precision conditioning circuitry. Converts field signals to standardized levels compatible with Mark VI processors while maintaining ±0.1% accuracy across the operating range.

→ Advanced Electrical Isolation
Galvanic isolation on every channel prevents ground loops and protects sensitive electronics from voltage transients up to 2500V. Integrated surge suppression safeguards against lightning strikes and electrical faults common in high-power turbine installations.

→ Real-Time Diagnostic Intelligence
Continuous self-monitoring detects open circuits, short circuits, and out-of-range conditions before they impact turbine operation. LED status indicators provide instant visual feedback, while detailed diagnostic data streams to the Mark VI controller for centralized alarm management.

→ Hot-Swap Redundancy Support
Enables module replacement during live operation in redundant configurations, eliminating costly turbine shutdowns. Automatic configuration synchronization ensures seamless failover with zero data loss.

→ EMI/RFI Hardened Design
Military-grade filtering eliminates electromagnetic and radio-frequency interference inherent in power generation environments. Maintains signal integrity even in proximity to high-voltage switchgear and variable frequency drives.

→ Industrial Temperature Range
Operates reliably from -30°C to +65°C, accommodating extreme ambient conditions in outdoor turbine enclosures and tropical climates without derating or auxiliary cooling.

Industry Applications & Use Cases

✓ Combined-Cycle Power Plants
In natural gas-fired CCGT facilities, the IS200TDBTH2A processes critical parameters including compressor discharge pressure, turbine exhaust temperature, and fuel valve positioning. Interfaces seamlessly with GE's HRSG control systems to optimize heat recovery and maximize plant efficiency. Typical installations monitor 40-60 I/O points per turbine unit.

✓ Steam Turbine Monitoring Systems
Coal and nuclear power stations deploy this module for comprehensive steam turbine protection, monitoring steam temperature, pressure, flow, and rotor vibration. Works in conjunction with overspeed detection systems to implement triple-redundant shutdown logic required by NERC reliability standards.

✓ Industrial Cogeneration Facilities
Manufacturing plants with onsite power generation rely on the IS200TDBTH2A for continuous operation of turbines producing both electricity and process steam. Chemical plants, refineries, and paper mills benefit from the module's proven reliability in applications where power interruptions halt production and cost millions per hour.

✓ Offshore Oil & Gas Platforms
Marine-rated installations utilize this terminal board in gas turbine-driven generators and compressors operating in corrosive saltwater environments. The module's conformal coating and sealed connectors provide enhanced protection against humidity and salt spray.

✓ Turbine Control System Upgrades
Retrofit projects modernizing legacy Mark V and Mark IV systems to Mark VI technology leverage the IS200TDBTH2A as a key interface component. Enables integration of existing field instrumentation with modern control processors, extending turbine service life by 15-20 years while improving efficiency and reducing emissions.

Technical Specifications & Selection Guide

Selection Criteria: When specifying the IS200TDBTH2A, verify compatibility with your Mark VI controller revision level and confirm that I/O channel count matches your instrumentation requirements. For systems requiring more than 40 I/O points, multiple modules can be installed in adjacent VME slots. Consult GE's system configuration tools or contact our engineering team for application-specific guidance.

Extended Integration & Customization Options

The IS200TDBTH2A forms part of a comprehensive Mark VI ecosystem. For complete turbine control solutions, this module integrates with specialized I/O boards including analog input modules, RTD temperature boards, relay output cards, and servo control interfaces. Communication with plant DCS systems is achieved through Ethernet and serial gateways supporting Modbus TCP/RTU, DNP3, and OPC protocols.

Custom configurations are available for unique applications requiring non-standard I/O arrangements, special environmental protection, or integration with legacy instrumentation. Our engineering team can specify appropriate module combinations and provide pre-configured rack assemblies tested and documented for rapid commissioning.

For offshore and marine applications, conformal-coated versions with enhanced corrosion resistance are available. High-vibration environments such as reciprocating compressor installations can be accommodated with ruggedized mounting hardware and shock-absorbing rack systems.

Delivery, Warranty & Technical Support

Lead Time: Standard delivery is 3-5 business days for in-stock units. Expedited same-day shipping available for emergency replacements. International shipments typically arrive within 7-10 business days depending on customs clearance and destination.

Warranty Coverage: Every IS200TDBTH2A includes a comprehensive 12-month warranty covering manufacturing defects and component failures. Warranty includes free technical support, troubleshooting assistance, and expedited replacement for defective units. Extended warranty programs available for critical applications.

Technical Support: Our turbine control specialists provide application engineering support including system design review, configuration assistance, and commissioning guidance. Post-installation support includes remote diagnostics, firmware updates, and on-site service when required.

Documentation Package: Each module ships with installation instructions, wiring diagrams, and technical specifications. Comprehensive system documentation available through GE's ToolboxST software and Mark VI technical manuals specific to your system configuration.

Common Questions About the IS200TDBTH2A

Can this terminal board be used in Mark VIe control systems?
The IS200TDBTH2A is engineered specifically for Mark VI platforms. Mark VIe systems require different modules with enhanced processing capabilities and alternative part numbers. Our team can cross-reference equivalent Mark VIe components and provide migration guidance for system upgrades.

Does the module support redundant controller configurations?
Yes, the IS200TDBTH2A fully supports redundant architectures commonly deployed in critical turbine applications. Dual-module configurations with automatic failover ensure continuous operation during module maintenance or failure events. Redundancy is typically implemented using TMR (Triple Modular Redundant) voting logic.

What is the typical availability for emergency replacement orders?
We maintain strategic inventory of the IS200TDBTH2A for rapid emergency response. In-stock units can ship same-day for critical outages. For real-time availability and expedited logistics options, contact our 24/7 emergency hotline at +0086 187 5021 5667.

Is field calibration required after installation?
The module arrives factory-calibrated and does not require field calibration under normal circumstances. However, periodic verification using calibrated test equipment is recommended as part of comprehensive turbine maintenance programs, typically performed during scheduled outages.

What documentation is included with the module?
Each IS200TDBTH2A ships with installation instructions, terminal wiring diagrams, and technical specifications. Complete system documentation including control logic, I/O assignments, and configuration files are available through GE's ToolboxST engineering software.

Can failed modules be repaired or must they be replaced?
While component-level repair is technically possible, GE recommends module replacement for failed units to ensure reliability and maintain warranty coverage. We can evaluate specific failure modes and provide cost-benefit analysis comparing repair versus replacement options.

Why Partner with Industrial Control Hub?

Industrial Control Hub specializes in GE Speedtronic turbine control components with deep expertise in Mark VI, Mark VIe, and legacy Mark V systems. Our technical team includes former GE service engineers and turbine control specialists who understand the critical nature of power generation applications.

We maintain extensive inventory of Mark VI modules, processors, power supplies, and I/O boards to support both planned projects and emergency replacements. Our global logistics network ensures rapid delivery to power plants and industrial facilities worldwide, minimizing downtime during unplanned outages.

Beyond product supply, we offer value-added services including system design consultation, configuration assistance, spare parts analysis, and obsolescence management. Our comprehensive approach enables single-source procurement for turbine control projects, simplifying purchasing and ensuring component compatibility.

Maximize turbine reliability and uptime with the proven performance of the IS200TDBTH2A terminal board. Contact our turbine control specialists today for expert guidance on system configuration, competitive pricing, and rapid delivery options tailored to your operational requirements.
