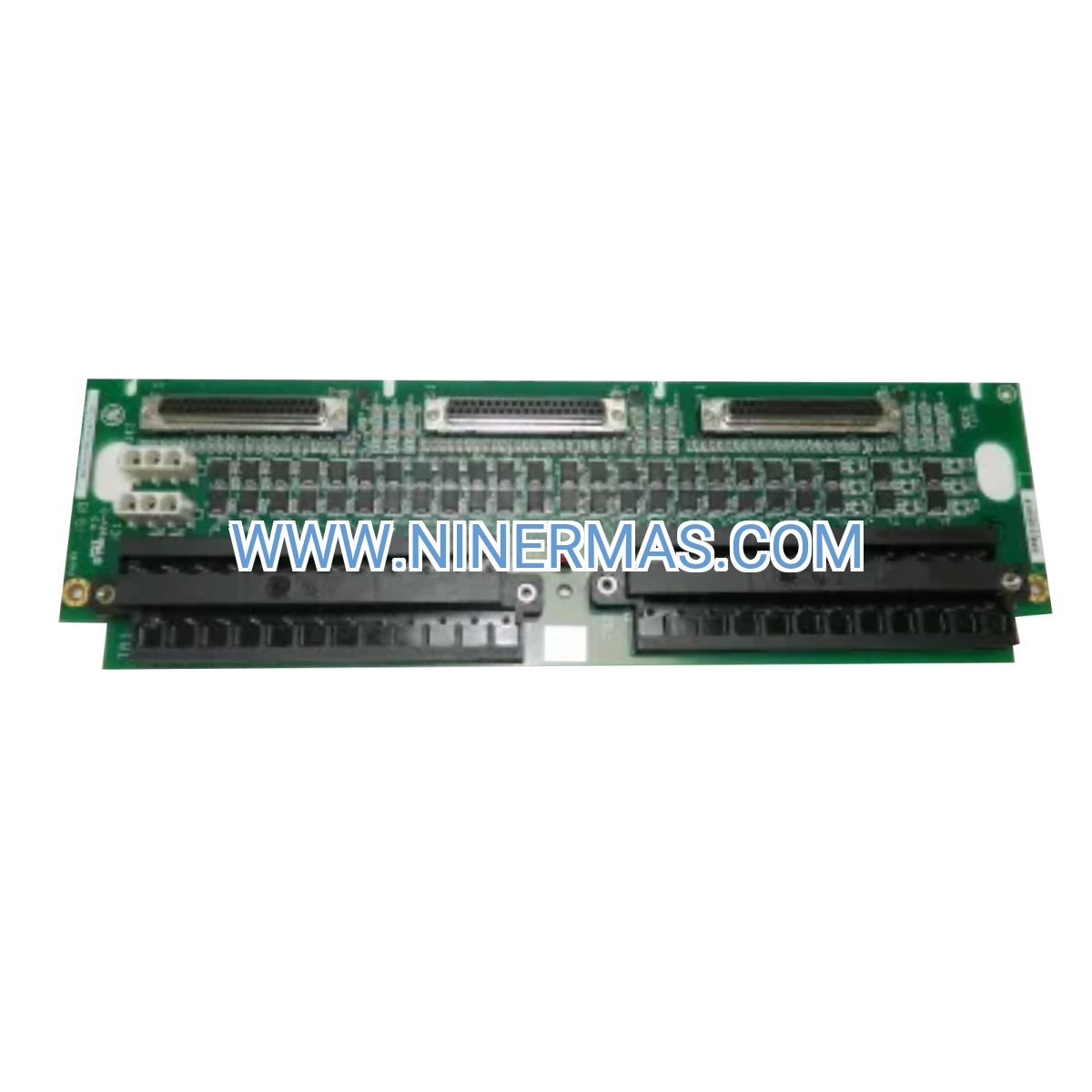

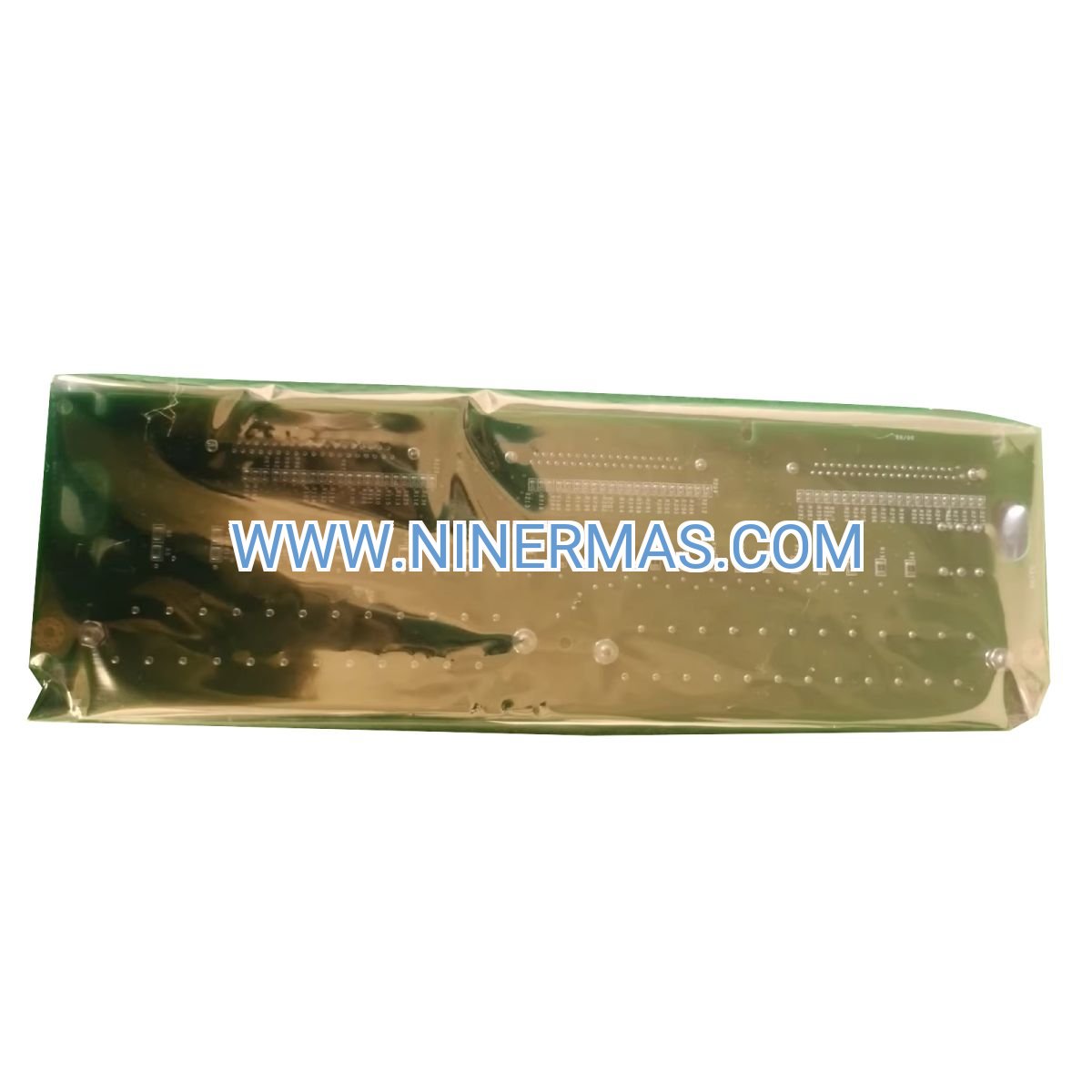

GE IS200TBCIS2C Discrete Input Terminal Board – Industrial-Grade Contact Monitoring for Mark VIe Turbine Control Systems

The GE IS200TBCIS2C Discrete Input Terminal Board is a precision-engineered contact input interface module designed for Mark VIe Speedtronic turbine control platforms. Through advanced discrete signal acquisition technology and group-isolated input architecture, it delivers real-time monitoring of field device status signals including limit switches, pressure contacts, auxiliary relays, and safety interlocks. This terminal board is engineered for gas turbine power plants, steam turbine installations, combined cycle facilities, and mechanical drive applications where continuous uptime and signal integrity are mission-critical.

Ideal for power generation operators, system integrators, control engineers, and plant maintenance teams managing GE turbine control infrastructure. Whether upgrading legacy Mark V/VI systems or deploying new Mark VIe installations, the IS200TBCIS2C provides reliable discrete I/O expansion with proven field durability. Contact our application engineers for system-specific selection guidance, wiring diagrams, and technical quotations.

Core Functions & Technical Advantages

Multi-Channel Discrete Signal Acquisition
Processes multiple independent contact inputs from field-mounted devices such as valve position switches, bearing temperature alarms, lube oil pressure contacts, and emergency trip circuits. Each input channel features dedicated signal conditioning to ensure accurate state detection across varying cable lengths and electrical noise environments.

Group Isolation for Enhanced Reliability
Employs group-isolated input architecture to prevent ground loop interference and cross-channel signal contamination. This design protects the control system from field-side electrical faults while maintaining signal integrity in high-EMI power plant environments with multiple grounding points and heavy electrical machinery.

Hot-Swap Capability for Maximum Uptime
Supports online module replacement without requiring turbine shutdown or control system interruption. Field-proven hot-swap design enables rapid component exchange during scheduled maintenance windows or emergency repairs, minimizing production losses and maintaining grid stability commitments.

Integrated Diagnostic Intelligence
Built-in self-test routines continuously monitor input channel health, power supply integrity, and communication bus status. Diagnostic data streams to the Mark VIe HMI for predictive maintenance scheduling, reducing unplanned outages and extending mean time between failures (MTBF) across the I/O subsystem.

Ruggedized Industrial Construction
Meets stringent power generation environmental specifications including extended temperature range (-30°C to +65°C), high humidity tolerance (5-95% non-condensing), and vibration resistance per IEC 60068 standards. Conformal-coated PCB assemblies and industrial-grade connectors ensure long-term reliability in harsh turbine hall conditions.

Seamless Mark VIe Integration
Native compatibility with Mark VIe simplex and TMR control architectures via VMEbus backplane connectivity. Plug-and-play installation with ToolboxST configuration software eliminates custom programming requirements, accelerating commissioning timelines and reducing engineering labor costs.

Typical Industrial Applications

The IS200TBCIS2C discrete input terminal board addresses critical monitoring requirements across diverse turbine control scenarios:

Combined Cycle Power Generation Facilities
Monitors auxiliary equipment status across Frame 7FA, 9FA, and HA-class gas turbine installations including fuel gas skid interlocks, inlet guide vane position feedback, compressor wash system status, and HRSG bypass valve confirmations. Integrates with plant DCS systems for coordinated startup/shutdown sequencing and load dispatch optimization.

Utility-Scale Steam Turbine Installations
Acquires critical protection signals from bearing metal temperature switches, thrust bearing wear detectors, turning gear engagement confirmations, and condenser vacuum trip contacts. Processes governor valve position feedback and extraction steam control valve status for precise load control and overspeed protection coordination.

Industrial Mechanical Drive Applications
Interfaces with compressor anti-surge valve limit switches, gearbox high-temperature alarms, lube oil reservoir level switches, and process shutdown permissive contacts in petrochemical, pipeline compression, and LNG liquefaction installations. Supports SIL-rated safety instrumented system (SIS) integration for emergency shutdown sequences.

Cogeneration & District Energy Systems
Coordinates turbine control with site-wide safety systems including fire detection panels, gas detection networks, and emergency power-off (EPO) circuits. Monitors heat recovery steam generator (HRSG) drum level switches, deaerator pressure contacts, and feedwater pump auxiliary relay status for integrated plant automation.

Mark V/VI Modernization Projects
Provides expanded discrete I/O capacity during control system upgrades from legacy Mark V or Mark VI platforms to Mark VIe architecture. Enables phased migration strategies where existing field wiring is retained while control hardware is modernized, reducing project risk and capital expenditure.

Technical Specifications & Selection Parameters

To facilitate accurate system design and component selection, key technical parameters are summarized below. For detailed I/O channel counts, voltage ratings, and terminal assignments, consult factory documentation or contact our engineering team with your specific application requirements.

Selection Guidance for System Designers
When specifying the IS200TBCIS2C for your Mark VIe project, consider the following factors: total discrete input point count required across all turbine protection and monitoring functions, field device voltage levels (24V DC vs. 125V DC), cable run distances and associated voltage drop calculations, environmental conditions at the control cabinet location, and future I/O expansion requirements for phased project deployment.

For applications requiring mixed I/O types, coordinate discrete input terminal board selection with analog input modules, thermocouple interfaces, RTD signal conditioners, and relay output boards to optimize rack space utilization and minimize spare parts inventory. Our application engineering team can provide complete bill-of-materials (BOM) development and rack layout drawings based on your P&ID documentation and I/O schedules.

Complementary Mark VIe I/O Modules & System Components

Expanded Discrete I/O Capacity
For projects requiring additional digital signal processing channels, the IS200TBCIS2C integrates seamlessly with the GE IS220PDIOH1A Discrete I/O Pack Module, which provides combined input/output functionality in a compact form factor. High-density contact input applications benefit from pairing with the GE IS220PDIAH1A Discrete Contact Input Pack for maximum channel density per rack slot.

Analog Signal Acquisition Infrastructure
Complete turbine monitoring systems require coordinated analog and discrete I/O deployment. The GE IS220PAICH1A Analog I/O Pack handles process variable measurements including pressures, flows, and vibration signals, while temperature monitoring leverages the GE IS200STTCH2AAA Thermocouple Terminal Board for exhaust gas temperature (EGT) arrays and the GE IS220PRTDH1A RTD Input Module for bearing metal temperature surveillance.

Output Control & Actuation Modules
Discrete output control for solenoid valves, alarm annunciators, and auxiliary equipment is managed by the GE IS200WROH1ABA Relay Output Terminal Board, providing isolated contact closures rated for industrial loads. Analog control signals for valve positioners and variable speed drives are generated by the GE IS200STAOH1A Analog Output Terminal Board with 4-20mA current loop outputs.

Power Distribution & Communication Infrastructure
Reliable DC power distribution across the Mark VIe I/O subsystem is ensured by the GE IS200JPDDG1AAA Power Distribution Board, which provides fused branch circuits and voltage monitoring for all terminal boards. Serial communication connectivity to plant DCS systems and remote HMI workstations utilizes the GE IS200SSCAH2A Serial Communication Terminal Board supporting Modbus RTU and proprietary GE protocols.

Frequently Asked Questions (FAQ)

Q: How does the IS200TBCIS2C differ from the IS200TBCIH1CBC contact input board?
A: The IS200TBCIS2C is optimized for Mark VIe simplex control architectures with enhanced diagnostic capabilities and streamlined configuration workflows, while the IS200TBCIH1CBC targets Mark VI triple-modular redundant (TMR) systems requiring voting logic and fault-tolerant operation. Both modules provide discrete input functionality but differ in redundancy architecture, system compatibility, and configuration software requirements. Consult your control system specification documents or contact our technical team to confirm the correct part number for your specific Mark platform and redundancy configuration.

Q: Can this terminal board interface directly with 120V AC field devices such as motor auxiliary contacts?
A: The IS200TBCIS2C is designed exclusively for DC voltage inputs with nominal ratings of 24V DC and 125V DC. Direct connection of 120V AC signals is not supported and may damage the input circuitry. For AC signal interfacing, install auxiliary control relays or signal isolation converters in the field junction boxes to convert AC contact closures to DC voltage levels compatible with the terminal board's input specifications. Our engineering team can recommend appropriate interface relay models and provide wiring diagrams for AC-to-DC signal conversion.

Q: Is ToolboxST software configuration required after physical installation of the board?
A: Yes, the IS200TBCIS2C requires configuration through GE's Mark VIe ToolboxST engineering software suite. While the terminal board is a hardware interface module, input channel assignments, signal filtering parameters, debounce timers, alarm thresholds, and diagnostic enable settings are programmed at the controller level during system commissioning. Configuration files are downloaded to the Mark VIe controller, which then communicates with the terminal board via the VMEbus backplane. Complete configuration procedures are documented in GE's ToolboxST user manuals and application-specific control strategy documentation.

Q: What technical documentation and support materials are included with each shipment?
A: Each IS200TBCIS2C unit ships with installation quick-start guidelines, terminal block wiring diagrams, and dimensional drawings for rack mounting. Comprehensive technical documentation including detailed specifications, I/O channel assignments, configuration procedures, troubleshooting flowcharts, and maintenance recommendations are available through GE's official technical documentation portal or can be requested from our customer support team. For large projects, we can provide customized documentation packages including pre-configured ToolboxST files and project-specific wiring schedules.

Q: Does the IS200TBCIS2C support hot-swap replacement during turbine operation?
A: Yes, the IS200TBCIS2C is designed for hot-swap capability in properly configured Mark VIe control systems, enabling module replacement without turbine shutdown or control system interruption. However, hot-swap procedures must strictly follow GE's recommended safety protocols including proper ESD grounding, verification of replacement module firmware compatibility, and coordination with plant operations to ensure non-critical input channels are selected for maintenance windows. Consult GE service bulletin GEH-6700 for detailed hot-swap procedures and safety precautions specific to your Mark VIe system configuration.

Q: What is the standard delivery timeframe for the IS200TBCIS2C terminal board?
A: In-stock units typically ship within 3-5 business days via international courier services with full tracking and insurance coverage. For urgent outage support or emergency replacement requirements, expedited same-day or next-day shipping options are available to most global destinations. Large quantity orders for new construction projects or multi-unit retrofits may require extended lead times depending on current production schedules—please contact our sales engineering team with your project timeline and quantity requirements for accurate delivery commitments and volume pricing.

Q: Is the IS200TBCIS2C backward-compatible with legacy Mark VI turbine control systems?
A: No, the IS200TBCIS2C is specifically engineered for Mark VIe control platforms and is not compatible with Mark VI system architectures due to differences in backplane communication protocols, power distribution requirements, and configuration software interfaces. For Mark VI discrete input applications, specify the IS200TBCIH1CBC or IS200TBCIH1B contact input terminal boards, which are designed for Mark VI simplex and TMR configurations respectively. Our Mark VIe migration specialists can develop system upgrade roadmaps that transition Mark VI installations to Mark VIe platforms while maximizing reuse of existing field wiring and I/O infrastructure.

Delivery Commitment & Technical Support Services

Logistics & Lead Times: Standard in-stock units ship within 3-5 business days to worldwide destinations via DHL, FedEx, or UPS international express services. Custom-configured modules or large project quantities may require 10-15 business days depending on factory production schedules and quality assurance testing protocols.

Quality Assurance: Every IS200TBCIS2C terminal board undergoes comprehensive factory acceptance testing (FAT) including power-on self-test verification, input channel continuity checks, isolation resistance measurements, and communication bus functionality validation prior to shipment. Test reports and certificates of conformance are available upon request.

Warranty Coverage: All units include a minimum 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs and advance replacement options are available for critical spare parts inventory management.

Technical Documentation: Complete installation manuals, terminal wiring diagrams, ToolboxST configuration guides, and troubleshooting procedures are provided with each order. Project-specific documentation packages including pre-configured software files and customized I/O schedules can be developed for large system deployments.

Application Engineering Support: Our technical team provides complimentary pre-sales consultation including I/O point count verification, rack layout optimization, power budget calculations, and bill-of-materials development. Post-installation support covers configuration assistance, diagnostic troubleshooting, and field service coordination when required.

Request Selection Assistance & Technical Quotation

To receive customized product recommendations and project-specific pricing, please provide the following information to our application engineering team:

• Project Overview: Facility name, turbine model/frame size, control system upgrade scope
• Application Details: Discrete input point count, field device voltage levels (24V DC / 125V DC), signal types (normally open/normally closed contacts)
• System Configuration: Mark VIe simplex or TMR architecture, existing I/O rack configuration, available slot positions
• Environmental Conditions: Control cabinet location (turbine deck / control room), ambient temperature range, humidity levels
• Project Timeline: Required delivery date, commissioning schedule, outage window constraints
• Quantity Requirements: Number of terminal boards needed, spare parts strategy, future expansion plans

Our engineers will respond within 24 hours with detailed technical recommendations, configuration drawings, and competitive quotations tailored to your specific Mark VIe turbine control application.
