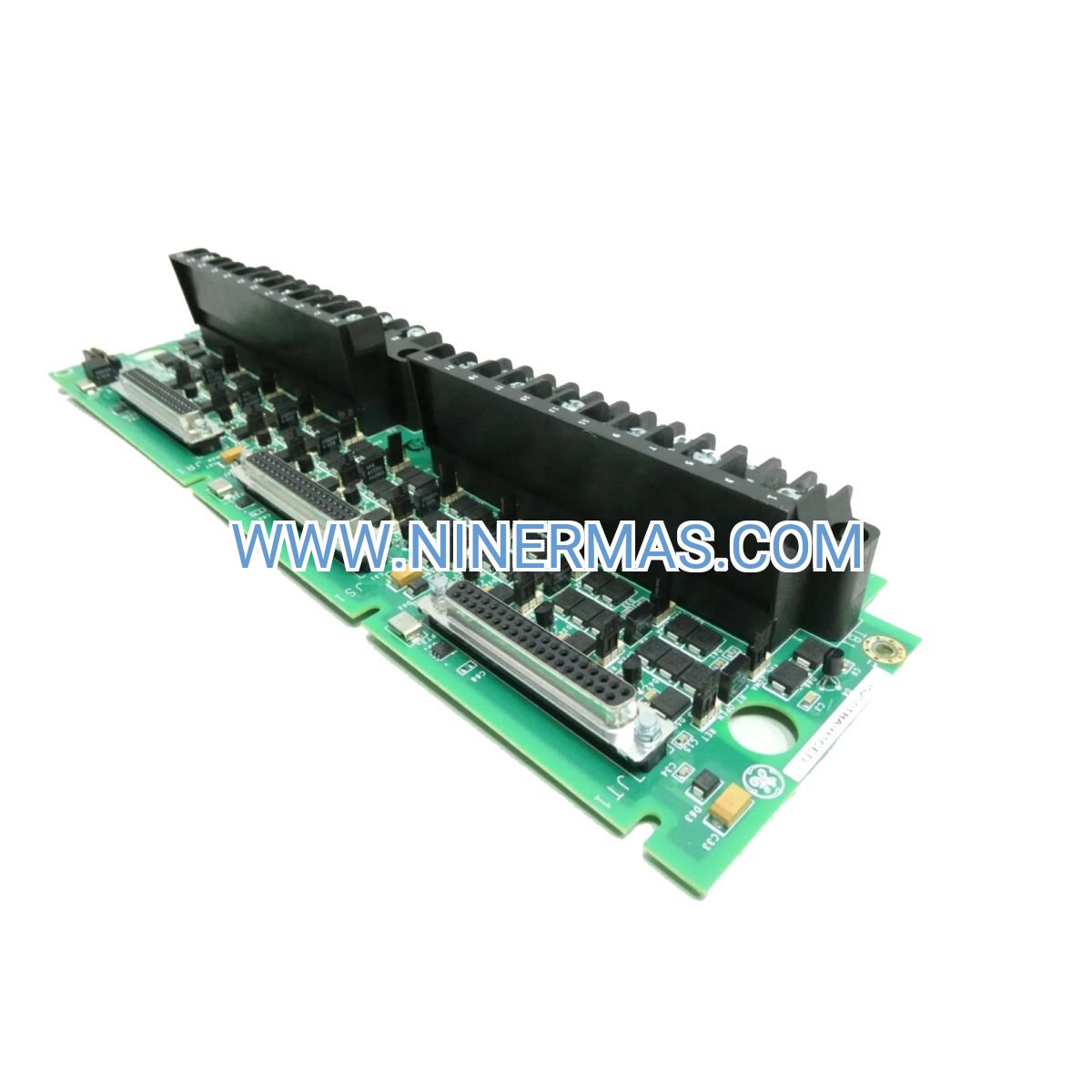

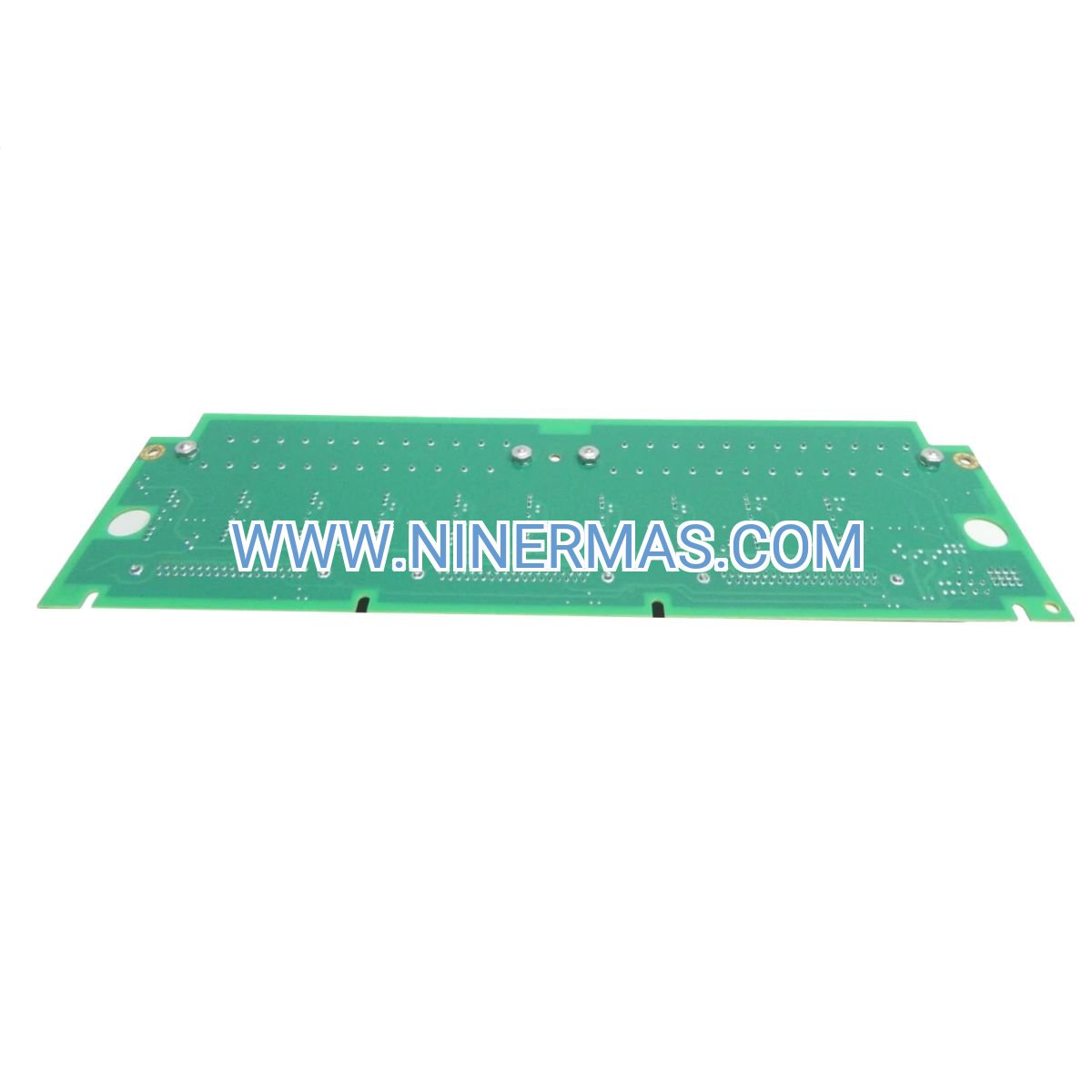

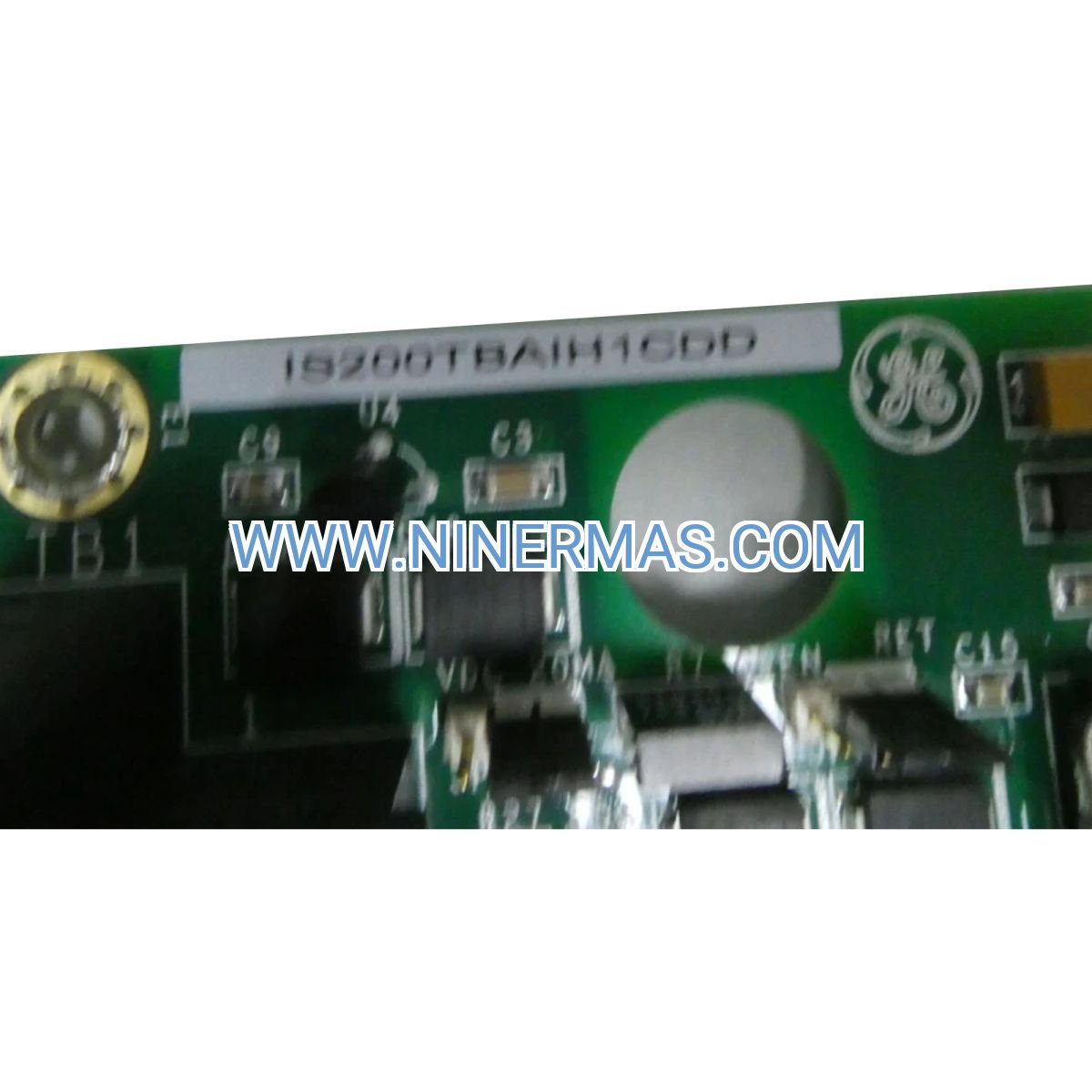

IS200TBAIH1CDD Analog Input Terminal Board (Industrial-Grade Signal Acquisition System)

The IS200TBAIH1CDD is an industrial analog input terminal board designed for Mark VI Speedtronic turbine control platforms. Through precision signal conditioning and multi-channel data acquisition technology, it enables real-time monitoring of critical process variables including temperature, pressure, vibration, and flow in gas and steam turbine applications.

Suitable for power generation facilities, combined cycle plants, industrial cogeneration systems, and process control environments where turbine performance and safety depend on accurate analog signal measurement. This terminal board addresses challenges such as signal noise interference, sensor compatibility issues, unreliable data transmission, and insufficient channel isolation that can compromise control system integrity.

Through standardized design with configurable channel mapping, the IS200TBAIH1CDD offers high-precision conversion, robust electrical isolation, wide temperature operation, and seamless Mark VI ecosystem integration—ideal for design engineers, system integrators, OEM partners, and plant maintenance teams. Contact our application engineers for system architecture consultation and technical specifications.

Core Functions & Advantages

• Multi-Channel Signal Processing
  Supports simultaneous acquisition of 4-20mA current loops, 0-10V voltage signals, RTD temperature sensors, and thermocouple inputs with independent channel configuration, eliminating the need for external signal converters and reducing installation complexity.
• Advanced Electrical Isolation
  Provides channel-to-channel and channel-to-ground isolation up to 1500V, protecting sensitive control circuits from ground loops, electrical transients, and EMI/RFI interference common in high-power turbine environments.
• High-Accuracy Data Conversion
  Delivers 16-bit resolution with ±0.1% accuracy across the full operating range, ensuring precise measurement of critical parameters for turbine protection algorithms and performance optimization routines.
• Extended Environmental Rating
  Operates reliably from -40°C to +70°C ambient temperature with conformal coating protection, suitable for harsh industrial installations including outdoor enclosures, high-humidity areas, and vibration-prone mounting locations.
• Plug-and-Play Mark VI Integration
  Pre-configured for Mark VI control architecture with automatic hardware recognition, reducing commissioning time by 40-60% compared to third-party I/O modules and ensuring full compatibility with ToolboxST configuration software.
• Comprehensive Diagnostic Capabilities
  Built-in self-test functions monitor channel health, sensor open/short circuit conditions, and signal range violations with real-time fault reporting to the HMI, minimizing troubleshooting time and preventing unplanned shutdowns.

Typical Application Scenarios

This terminal board is engineered for turbine control systems requiring high-reliability analog signal acquisition, continuous operation capability, and integration with distributed control architectures, particularly in:

• Gas Turbine Power Generation
  Acquires exhaust temperature (thermocouples), compressor discharge pressure (4-20mA transmitters), and bearing vibration (velocity sensors) for Frame 5, 6, 7, and 9 series turbines, supporting both base-load and peaking operation profiles.
• Steam Turbine Control Systems
  Monitors steam temperature at multiple stages, governor valve position feedback, and condenser vacuum levels in utility-scale power plants, industrial cogeneration facilities, and district heating applications.
• Combined Cycle Plant Integration
  Interfaces with HRSG (Heat Recovery Steam Generator) instrumentation including drum level transmitters, attemperator spray valve positions, and stack temperature sensors, coordinating with gas turbine control for optimized heat rate.
• Mechanical Drive Applications
  Processes analog signals from compressor anti-surge control systems, pump seal monitoring, and gearbox lubrication oil temperature/pressure sensors in pipeline compression, LNG liquefaction, and petrochemical process units.
• Retrofit and Modernization Projects
  Replaces obsolete Mark V or legacy control system I/O modules while maintaining existing field wiring and sensor infrastructure, reducing upgrade costs and minimizing outage duration for control system migrations.

Technical Parameters & Selection Guide

To facilitate system design and component selection, we provide standardized electrical, mechanical, and environmental specifications. Custom channel configurations and extended temperature ratings are available for specialized applications.

Selection Considerations: When specifying the IS200TBAIH1CDD, evaluate the following project parameters: total analog input point count, sensor types and signal ranges, required isolation levels, ambient temperature extremes, available rack space in control cabinets, and integration requirements with existing Mark VI controllers. For assistance with system architecture design, provide your I/O list, P&ID references, and control narrative—our application engineers will recommend optimal board quantities and configuration settings.

System Integration & Compatibility

The IS200TBAIH1CDD operates as part of the Mark VI distributed control architecture, communicating via the high-speed backplane with processor modules, communication gateways, and other I/O terminal boards. Typical system configurations include:

• Pairing with IS200TBCIH1C contact input boards for discrete signal acquisition (trip sensors, limit switches)
• Integration with IS215VCMIH2C VME controller modules for control logic execution and sequence management
• Connection to IS200VPWRH1A power distribution boards for redundant DC supply architecture
• Coordination with IS200AEPAH1A application processor modules for advanced control algorithms
• Communication with IS2020RKPSG2A power supply units for stable 24VDC/48VDC operation

Configuration is performed using GE ToolboxST software, which provides graphical channel mapping, scaling parameter entry, alarm threshold definition, and diagnostic monitoring. The board supports hot-swap replacement in redundant configurations, minimizing downtime during maintenance activities.

Delivery, Service & Quality Assurance

Lead Time: Stock items ship within 2-3 business days; custom-configured boards require 7-10 business days for factory programming and testing. Expedited delivery available for critical outage support.

Warranty Coverage: All IS200TBAIH1CDD terminal boards include a 12-month warranty against manufacturing defects and component failures. Extended warranty programs available for long-term service agreements.

Technical Support: Remote configuration assistance, on-site commissioning support (region-dependent), and 24/7 emergency troubleshooting hotline for critical power generation applications.

Documentation Package: Each shipment includes electrical schematics, terminal block wiring diagrams, ToolboxST configuration files, dimensional drawings, and compliance certificates—facilitating installation, commissioning, and regulatory documentation requirements.

Quality Certification: Factory-tested to GE specifications with full traceability, ISO 9001 manufacturing processes, and compliance with international electrical safety standards (UL508, IEC 61010).

Frequently Asked Questions (FAQ)

Q: How does the IS200TBAIH1CDD analog input terminal board interface with existing turbine instrumentation?
A: The board accepts industry-standard 4-20mA current loops and 0-10VDC voltage signals directly from field transmitters. RTD and thermocouple sensors connect via dedicated terminal blocks with automatic cold-junction compensation. Verify sensor signal type, range, and accuracy class to ensure compatibility with board specifications.

Q: What is the maximum number of analog input channels supported per terminal board?
A: Channel count varies by specific board revision and configuration. Consult factory documentation or contact technical support with your part number suffix code for exact channel specifications. Multiple boards can be installed in a single Mark VI rack for high-density I/O applications.

Q: What level of energy efficiency or signal processing improvement can be expected?
A: The board itself does not directly reduce energy consumption but enables precise turbine control that can improve heat rate by 1-3% through optimized combustion tuning, load distribution, and temperature control—translating to significant fuel savings in continuous operation. High-resolution signal acquisition supports advanced control strategies that legacy systems cannot implement.

Q: Are there specific environmental requirements for installation locations?
A: The IS200TBAIH1CDD is rated for -40°C to +70°C operation with conformal coating protection (equivalent to IP20 enclosure rating when properly installed). Avoid direct exposure to condensing moisture, corrosive gases, or excessive vibration beyond 2G. Install in climate-controlled control rooms or NEMA 4/IP65-rated outdoor enclosures for harsh environments.

Q: Can the terminal board support remote monitoring and data acquisition via industrial protocols?
A: Yes—when integrated with Mark VI communication modules, analog input data is accessible via Modbus TCP, OPC DA/UA, and proprietary GE protocols for SCADA integration, historian connectivity, and remote diagnostic platforms. Configuration requires ToolboxST software and appropriate communication gateway modules.

Q: What complementary Mark VI components are recommended for a complete control system?
A: A typical configuration includes IS200TBAIH1CDD analog input boards, IS200SRTDH2A relay output boards for actuator control, IS200SPROH1A protection terminal boards for critical trip functions, IS215VCMIH2C controller modules for logic execution, and IS2020RKPSG2A redundant power supplies—creating a fault-tolerant turbine control architecture.

Request Technical Consultation

For detailed system design assistance, product quotations, or application-specific configuration guidance, please provide the following information: project name and location, turbine model and application type (gas/steam/mechanical drive), required analog input point count and signal types, environmental conditions (temperature/humidity/vibration), existing control system details, and preferred delivery timeline. Our application engineers will deliver customized recommendations with bill-of-materials, wiring diagrams, and budget pricing within 24-48 hours.
