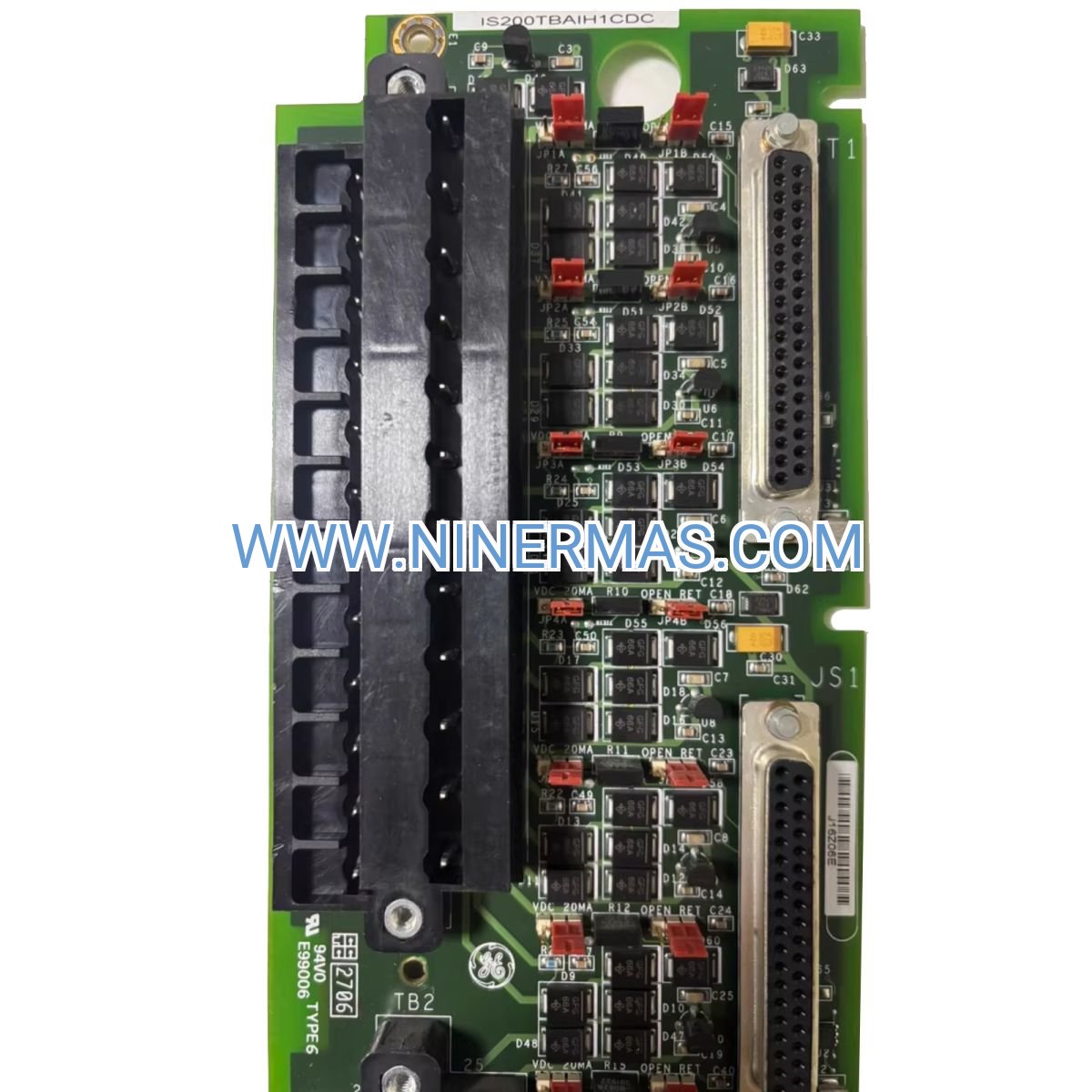

GE IS200TBAIH1CDC Analog I/O Terminal Board – Industrial-Grade Mark VI Control Interface

The GE IS200TBAIH1CDC is an industrial analog input/output terminal board designed for seamless integration within GE Mark VI turbine control systems. Leveraging precision signal conditioning and multi-channel I/O architecture, this module enables real-time monitoring and control of critical process variables including temperature, pressure, flow, and actuator positioning across gas turbine, steam turbine, and combined-cycle power generation installations.

Engineered for high-reliability environments such as power plants, petrochemical facilities, and industrial manufacturing sites, the IS200TBAIH1CDC addresses common challenges including signal noise interference, sensor compatibility issues, system downtime risks, and the need for redundant control architectures. Its robust design ensures continuous operation in demanding conditions while maintaining measurement accuracy and control responsiveness.

Through standardized form factor and flexible configuration options, this terminal board delivers rapid deployment, simplified maintenance, and long-term operational stability. Ideal for control system integrators, plant engineers, OEM equipment manufacturers, and facility maintenance teams seeking proven Mark VI ecosystem compatibility. Contact our application engineers for system-specific configuration guidance and technical specifications.

Core Functions & Technical Advantages

Multi-Channel Analog Signal Processing
Integrates both analog input and output channels with 12-bit to 16-bit resolution, supporting industry-standard 4-20mA current loops and 0-10V voltage signals. Onboard signal conditioning circuitry ensures accurate conversion of sensor data while minimizing electromagnetic interference and ground loop effects.

Mark VI Native Compatibility
Direct integration with GE Mark VI VCMI (VME Controller Module Interface) backplane architecture eliminates custom interface development. Plug-and-play connectivity with Mark VI controller racks reduces commissioning time by approximately 40% compared to third-party I/O solutions.

Industrial Environmental Resilience
Operates reliably across -30°C to +65°C ambient temperature range with conformal coating protection against moisture, dust, and chemical exposure. Meets industrial EMI/RFI immunity standards for installation in high-voltage switchgear rooms and turbine control cabinets.

Redundancy & Fault Tolerance
Supports dual-redundant configurations when paired with Mark VI redundant controller architectures. Built-in diagnostic LEDs and self-test routines enable rapid fault identification, reducing mean time to repair (MTTR) and improving overall system availability to 99.9%+.

Comprehensive Protection Features
Incorporates overvoltage protection, reverse polarity safeguards, and channel-to-channel isolation to prevent cascade failures. Thermal shutdown circuitry protects against overload conditions, while watchdog timers detect communication faults and trigger safe-state responses.

Intuitive Configuration & Diagnostics
Configuration via GE ToolboxST software provides graphical channel mapping, scaling parameters, and alarm threshold settings. Real-time channel status monitoring and historical trending capabilities streamline troubleshooting and predictive maintenance workflows.

Typical Application Scenarios

The IS200TBAIH1CDC analog I/O terminal board serves critical roles in applications demanding high signal integrity, system reliability, and precise control authority:

Gas & Steam Turbine Control Systems
Interfaces with turbine speed sensors, vibration monitors, bearing temperature RTDs, fuel valve positioners, and inlet guide vane actuators. Enables closed-loop control of turbine startup sequences, load ramping, and emergency shutdown procedures in utility-scale power generation facilities.

Combined-Cycle Power Plants
Coordinates heat recovery steam generator (HRSG) control, steam bypass regulation, and emissions monitoring across integrated gas and steam turbine configurations. Supports compliance with environmental regulations through precise NOx, CO, and O2 measurement integration.

Industrial Process Automation
Manages compressor anti-surge control, pump performance optimization, and critical process variable regulation in oil & gas, chemical processing, and water treatment applications. Handles multi-loop PID control strategies with sub-second response times.

Distributed Control System (DCS) Integration
Provides field I/O expansion for Mark VI controllers interfacing with plant-wide DCS platforms via Modbus TCP, OPC UA, or proprietary protocols. Enables centralized SCADA visualization while maintaining local control autonomy during network disruptions.

Technical Parameters & Selection Guide

To facilitate accurate system design and component selection, the following specifications define the IS200TBAIH1CDC operational envelope and integration requirements:

Selection Considerations
When specifying the IS200TBAIH1CDC for your application, evaluate the following system parameters: total analog I/O point count requirements, sensor signal types and ranges, required measurement accuracy and response time, environmental conditions (temperature, humidity, vibration), available rack space and backplane slot configuration, redundancy requirements, and integration with existing Mark VI controller hardware. For complex multi-rack configurations or custom signal conditioning needs, consult with our application engineering team to validate compatibility and optimize system architecture.

Advanced Integration Capabilities

Modular System Expansion
The IS200TBAIH1CDC supports scalable I/O architectures through daisy-chain backplane connectivity. Deploy multiple terminal boards within a single Mark VI rack to accommodate projects ranging from small skid-mounted packages (50-100 I/O points) to large utility installations (1000+ I/O points). Hot-swappable design enables online module replacement without system shutdown in redundant configurations.

Protocol & Communication Support
Native integration with Mark VI Ethernet Global Data (EGD) and User Datagram Protocol (UDP) communication enables peer-to-peer data exchange between distributed controllers. Supports time-synchronized data acquisition for coordinated multi-unit control strategies and sequence-of-events recording with 1ms timestamp resolution.

Cybersecurity & Access Control
Implements role-based access control (RBAC) for configuration changes and diagnostic access. Supports secure communication protocols and audit logging to meet NERC CIP compliance requirements for critical infrastructure protection in utility applications.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard IS200TBAIH1CDC units ship from stock within 3-5 business days. Custom-configured or tested assemblies require 10-15 business days. Expedited shipping options available for critical outage support and emergency replacement scenarios.

Warranty & Support
All units include a comprehensive 12-month warranty covering manufacturing defects and component failures under normal operating conditions. Extended warranty programs available for long-term service agreements. Technical support includes remote diagnostics assistance, configuration file review, and troubleshooting guidance via phone and email.

Installation & Commissioning Services
Optional field services include on-site installation supervision, loop calibration and verification, system integration testing, and operator training. Complete documentation packages provided including wiring diagrams, terminal block layouts, configuration files, and as-built drawings to support ongoing maintenance and future modifications.

Quality Verification Process
Every IS200TBAIH1CDC terminal board undergoes multi-stage inspection including visual examination, electrical continuity testing, functional verification with simulated I/O signals, and environmental stress screening. Units are shipped with test certificates, traceability documentation, and anti-static packaging to ensure arrival in ready-to-install condition.

Frequently Asked Questions (FAQ)

Q: How does the IS200TBAIH1CDC integrate with existing Mark VI control systems?
A: The terminal board installs directly into Mark VI VCMI backplane slots using standard card-edge connectors. Configuration is performed via GE ToolboxST software, which automatically recognizes the module and presents available I/O channels for mapping. Typical integration requires defining channel types (input/output), signal ranges (4-20mA, 0-10V, etc.), engineering units, and alarm limits. No custom programming or interface development is needed for standard applications.

Q: What is the maximum number of IS200TBAIH1CDC boards supported in a single Mark VI rack?
A: A standard Mark VI VCMI rack accommodates up to 12 I/O terminal boards depending on controller configuration and power budget. Each IS200TBAIH1CDC consumes approximately 12W maximum, so total system power capacity and cooling requirements must be verified during system design. For applications exceeding single-rack capacity, multiple racks can be networked via Ethernet Global Data.

Q: Can the IS200TBAIH1CDC operate in redundant configurations for high-availability applications?
A: Yes, when deployed with redundant Mark VI controllers (R, S, T configuration), the IS200TBAIH1CDC supports automatic failover and bumpless transfer. Redundant I/O architectures require dual terminal boards with voting logic implemented in the controller application software. This configuration is common in utility power generation and critical process control applications requiring 99.9%+ availability.

Q: What environmental conditions can the IS200TBAIH1CDC withstand?
A: The terminal board is rated for -30°C to +65°C ambient operation with 5-95% relative humidity (non-condensing). Conformal coating provides protection against moisture, dust, and chemical exposure typical of turbine control cabinets. For extreme environments (offshore platforms, desert installations), additional enclosure cooling or heating may be required to maintain optimal operating temperature.

Q: How do I troubleshoot communication or I/O signal issues with the IS200TBAIH1CDC?
A: Start by verifying LED status indicators on the terminal board faceplate – green indicates normal operation, red indicates fault conditions. Use GE ToolboxST diagnostics to check channel status, signal levels, and communication health. Common issues include loose terminal connections, incorrect signal wiring (current vs. voltage), sensor failures, or configuration mismatches. Our technical support team can provide remote assistance including configuration file review and guided troubleshooting procedures.

Q: Is the IS200TBAIH1CDC compatible with Mark VIe or Mark VI+ control systems?
A: The IS200TBAIH1CDC is specifically designed for Mark VI platforms. For Mark VIe applications, GE offers the IS200 series with enhanced features and different backplane interfaces. Mark VI+ systems may support legacy IS200 modules with firmware compatibility verification. Contact our application engineers to confirm compatibility for your specific controller hardware and software revision.

Request Technical Support & Custom Configuration

For detailed application engineering support, custom I/O configuration, or project-specific quotations, please provide the following information: project name and location, application type (gas turbine, steam turbine, process control), total analog input/output point count, sensor types and signal ranges (4-20mA, RTD, thermocouple, etc.), Mark VI controller model and software version, environmental conditions (temperature, humidity, vibration), redundancy requirements, and target delivery schedule. Our engineering team will respond within 24 hours with tailored recommendations, system architecture proposals, and competitive pricing.
