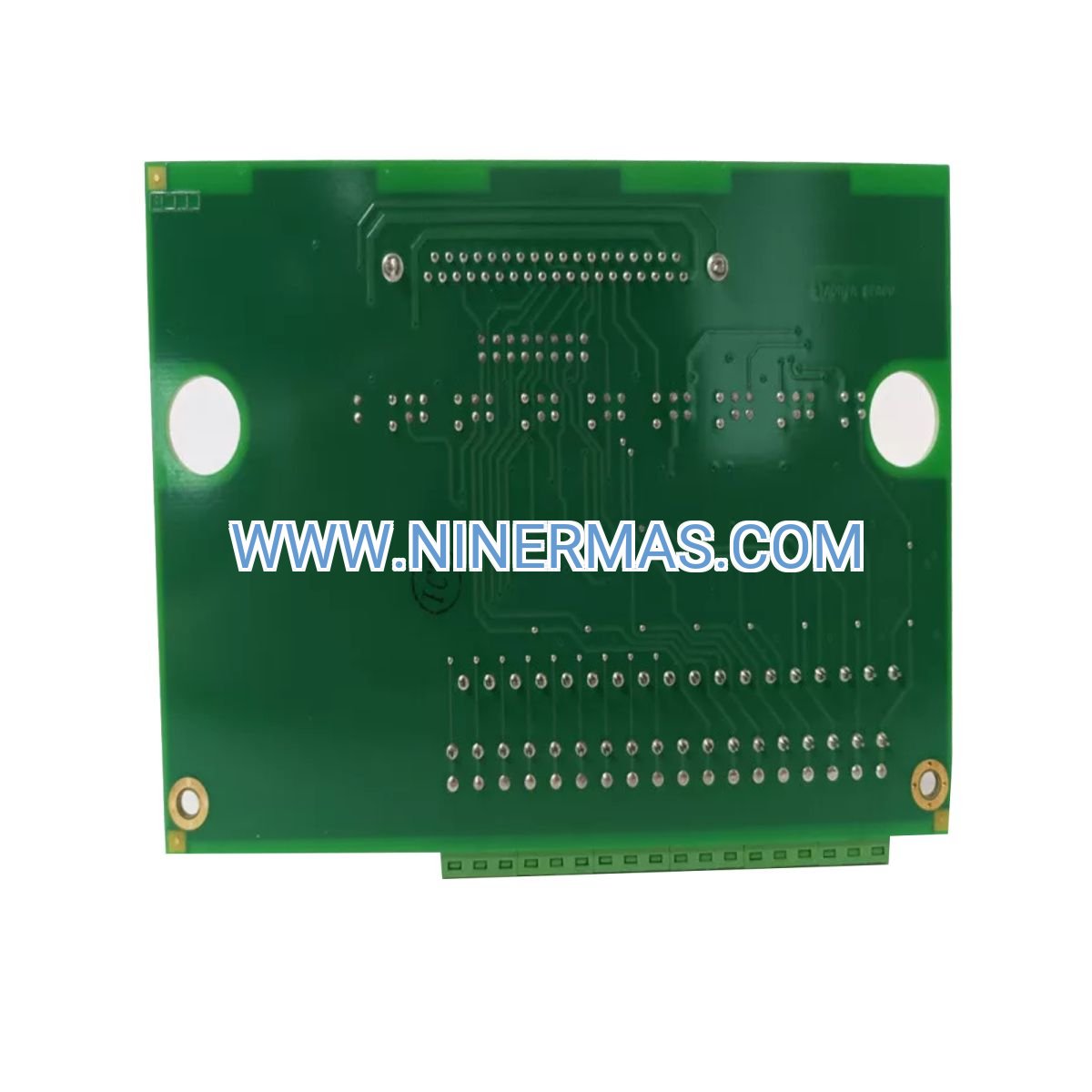

GE IS200STAOH2AAA Simplex Analog Output Terminal Board (Industrial Turbine Control Solution)

The GE IS200STAOH2AAA is an industrial-grade simplex analog output terminal board engineered for Mark VIe turbine control systems. Through high-precision digital-to-analog conversion and signal isolation technology, it delivers stable 4-20 mA or 0-10 V analog output signals to control actuators, valves, and field devices in critical turbine operations.

Designed for power generation plants, oil & gas facilities, and industrial turbine applications, this terminal board addresses challenges such as signal drift, control instability, environmental interference, and insufficient diagnostic visibility. It ensures precise control output, real-time fault detection, and seamless integration with GE's Mark VIe distributed control architecture.

With standardized design and field-proven reliability, the IS200STAOH2AAA offers 16-bit resolution, ±0.1% accuracy, LED diagnostics, and robust environmental tolerance (-30°C to +65°C). Suitable for OEMs, system integrators, plant engineers, and maintenance teams. Contact our technical team for application guidance, wiring diagrams, and replacement support.

Core Features & Advantages

High-Precision Analog Output Control
Delivers 8 independent analog output channels with 16-bit resolution and ±0.1% full-scale accuracy, ensuring stable and repeatable control signals for actuators, positioners, and variable frequency drives in turbine systems.

Flexible Signal Configuration
Supports industry-standard 4-20 mA current loop and 0-10 V voltage output modes, compatible with a wide range of field devices. Signal conditioning and isolation minimize noise and ground loop interference.

Integrated Diagnostics & Fault Reporting
Equipped with LED status indicators and real-time fault reporting to the Mark VIe control system, enabling rapid troubleshooting, reduced downtime, and proactive maintenance scheduling.

Robust Environmental Performance
Operates reliably in harsh industrial environments with an operating temperature range of -30°C to +65°C, 5-95% non-condensing humidity tolerance, and compliance with CE, UL, cULus, and RoHS standards.

Seamless Mark VIe Integration
Plugs directly into the Mark VIe control rack backplane, drawing power (5 VDC, 24 VDC) and communicating via the system's internal bus. No external wiring or power supply required, simplifying installation and reducing cabinet space.

Proven Reliability & Serviceability
Simplex (non-redundant) architecture optimized for cost-effective applications where single-point control is acceptable. Compact form factor (200 x 100 x 40 mm, 0.5 kg) and hot-swappable design facilitate quick replacement during maintenance windows.

Typical Application Scenarios

This terminal board is ideal for applications requiring stable analog control output, continuous operation, and high reliability, especially in:

Power Generation & Combined Cycle Plants
Controls steam turbine valve actuators, fuel gas control valves, and inlet guide vanes in gas turbines. Ensures precise load control, emission compliance, and safe startup/shutdown sequences in utility-scale and cogeneration facilities.

Oil & Gas Production & Refining
Regulates compressor anti-surge valves, pump speed controllers, and pressure control loops in upstream production, midstream pipelines, and downstream refining processes. Maintains process stability and protects critical rotating equipment.

Industrial Steam & Gas Turbines
Provides analog control signals for turbine governor systems, lubrication oil pressure regulators, and cooling water flow control in petrochemical, steel, pulp & paper, and manufacturing plants.

Distributed Control System (DCS) Integration
Serves as the analog output interface between Mark VIe controllers and field instrumentation in large-scale DCS architectures, supporting coordinated control strategies and advanced process optimization.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide comprehensive technical specifications. Custom configurations and extended temperature variants are available upon request.

Selection Considerations:
When selecting or replacing this terminal board, consider the number of analog output points required, signal type compatibility (current vs. voltage), environmental conditions (temperature, humidity, vibration), and whether simplex or redundant architecture is needed. For retrofit projects, verify Mark VIe system firmware compatibility and available rack slot positions. Our engineering team can assist with configuration worksheets, I/O mapping, and integration planning.

Extended Capabilities

Signal Isolation & Noise Immunity
Internal galvanic isolation protects the control system from field-side electrical faults and reduces common-mode noise, ensuring signal integrity in electrically noisy industrial environments.

Hot-Swap & Online Maintenance
Supports hot-swappable replacement in certain Mark VIe configurations, minimizing process interruption during scheduled maintenance or emergency board replacement.

Scalable I/O Architecture
Combines with other Mark VIe I/O modules (digital input, digital output, analog input, RTD, thermocouple) to build flexible, scalable control solutions tailored to specific turbine and process requirements.

Remote Monitoring & SCADA Integration
Integrates with Mark VIe's communication protocols (Modbus TCP, OPC, Ethernet/IP) for remote monitoring, data logging, and SCADA system connectivity, enabling centralized asset management and predictive maintenance.

Delivery, Service & Quality Assurance

Lead Time: Stock items typically ship within 3-5 business days; custom-configured or refurbished units may require 7-14 days depending on availability and testing requirements.

Warranty: All new and certified refurbished boards include a minimum 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Technical Support: Comprehensive technical assistance including pre-sale application consulting, installation guidance, wiring diagrams, configuration file templates, and post-sale troubleshooting support. Remote diagnostic support and on-site commissioning services available in select regions.

Documentation Package: Each shipment includes product datasheet, electrical schematic, terminal wiring diagram, installation manual, and Mark VIe system integration notes. Additional documentation (CAD drawings, 3D models, compliance certificates) available upon request.

Quality & Testing: All boards undergo functional testing, signal accuracy verification, and environmental stress screening prior to shipment. Traceability documentation and test reports provided for critical applications.

Frequently Asked Questions (FAQ)

Q: How does the IS200STAOH2AAA analog output board integrate with existing Mark VIe systems?
A: The board plugs directly into an available slot in the Mark VIe control rack. It communicates via the system's internal backplane and draws power from the rack. Configuration is performed through GE's ToolboxST software. Ensure your Mark VIe firmware version supports this board model; consult the compatibility matrix or contact our technical team for verification.

Q: What is the maximum number of analog output boards supported in a single Mark VIe rack?
A: The number of I/O boards depends on the specific Mark VIe rack model and power budget. Typically, a standard rack can accommodate 6-12 I/O modules. Refer to the Mark VIe system planning guide or contact our engineers for rack configuration planning and power consumption calculations.

Q: Can this board be used in redundant control configurations?
A: The IS200STAOH2AAA is a simplex (non-redundant) board. For applications requiring redundant analog output, consider the TMR (Triple Modular Redundant) analog output boards in the Mark VIe portfolio. Our team can recommend the appropriate redundancy architecture based on your safety integrity level (SIL) and availability requirements.

Q: What are the environmental requirements for installation? Does it require special cooling or enclosure protection?
A: The board is rated IP20 and designed for installation inside a climate-controlled control cabinet. Operating temperature range is -30°C to +65°C with 5-95% non-condensing humidity. Ensure adequate cabinet ventilation and avoid direct exposure to corrosive gases, excessive dust, or condensation. For harsh environments, consider additional cabinet environmental controls (air conditioning, heaters, air filtration).

Q: Does the board support remote diagnostics and condition monitoring?
A: Yes. The IS200STAOH2AAA reports diagnostic status (channel health, output range errors, communication faults) to the Mark VIe controller, which can be accessed via ToolboxST, HMI displays, or SCADA systems. LED indicators on the board provide local visual status. Advanced diagnostic data can be logged for predictive maintenance and trend analysis.

Q: What is the typical signal accuracy and drift over time?
A: The board provides ±0.1% full-scale accuracy under normal operating conditions. Long-term drift is minimal due to high-quality DAC components and temperature compensation. For critical control loops, periodic calibration verification (annually or per plant maintenance schedule) is recommended. Calibration procedures and test equipment requirements are documented in the service manual.

Contact Us for Technical Support & Quotation

To receive detailed application engineering support, custom configuration assistance, or a formal quotation, please provide the following information: project name, application description (turbine type, control strategy), number of analog output points required, signal types (4-20 mA or 0-10 V), environmental conditions, delivery timeline, and any specific certifications or documentation requirements. Our technical sales team will respond with tailored recommendations, pricing, and lead time within 24-48 hours.
