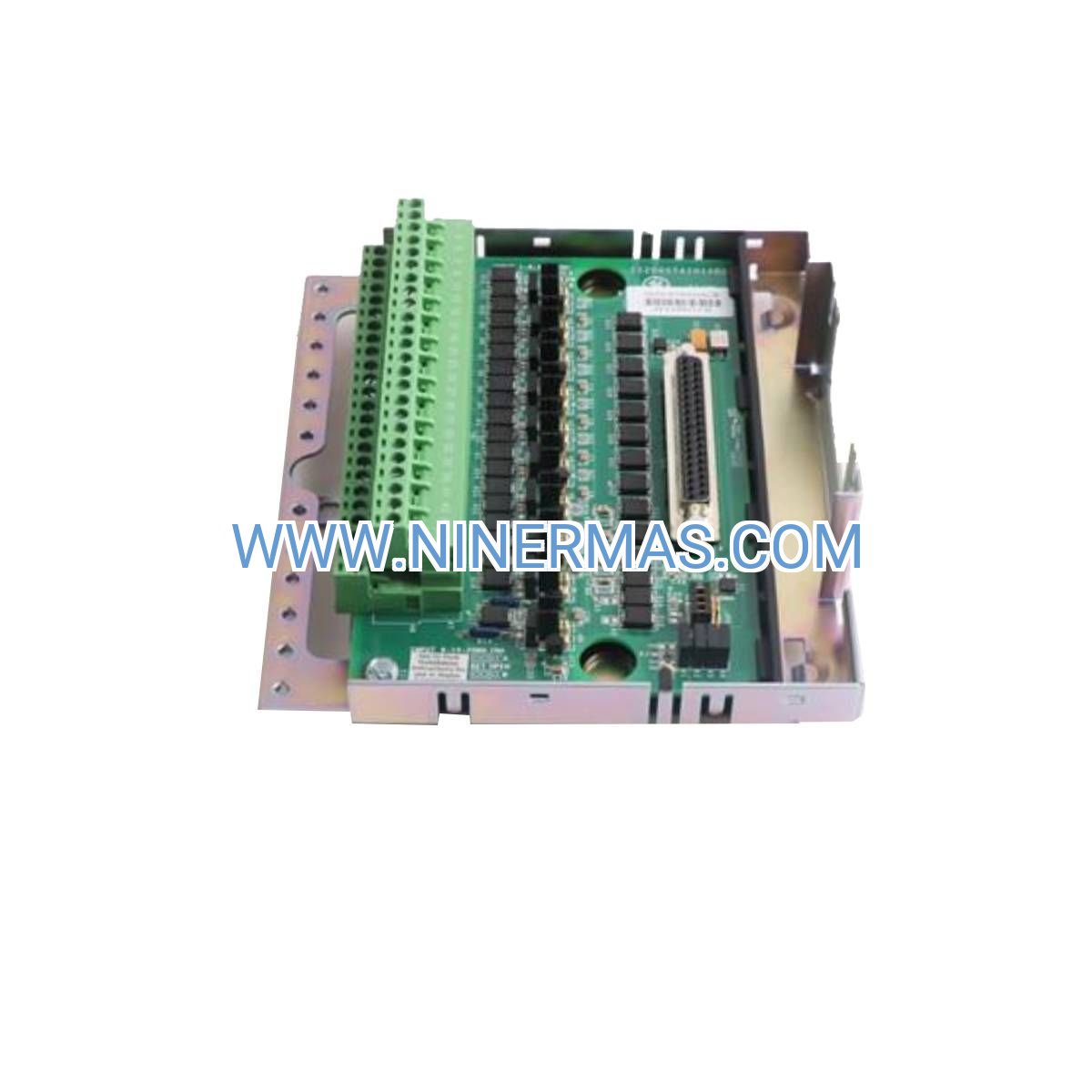

IS200STAIH2ACB Analog Input Terminal Board (Industrial-Grade Signal Interface)

The IS200STAIH2ACB represents GE's advanced analog signal acquisition technology for Mark VIe Speedtronic control platforms. This terminal board transforms raw field signals—temperature sensors, pressure transducers, flow meters, and vibration probes—into high-fidelity digital data streams that drive critical turbine protection and process optimization decisions.

Designed for power generation facilities, oil & gas processing plants, and heavy industrial environments where measurement accuracy directly impacts operational safety and efficiency. Plant engineers, control system integrators, and maintenance teams rely on this board to maintain continuous visibility into turbine health parameters across gas, steam, and combined-cycle installations.

Key differentiators include channel-to-channel isolation preventing ground loop interference, 16-bit resolution capturing subtle process variations, and -40°C to +70°C operational range ensuring reliability in extreme climates. Factory-calibrated to ±0.1% accuracy with hot-swappable architecture minimizing maintenance downtime.

Performance Advantages & Technical Capabilities

→ Multi-Signal Compatibility: Accepts 4-20mA current loops, 0-10V unipolar, and ±10V bipolar voltage inputs on any channel without hardware reconfiguration—reducing spare parts inventory and simplifying field wiring.

→ Electrical Isolation Architecture: Galvanic isolation between each input channel and system ground eliminates common-mode noise from variable frequency drives, welding equipment, and high-voltage switchgear operating nearby.

→ Diagnostic Intelligence: Real-time fault detection identifies open circuits, sensor failures, and out-of-range conditions with millisecond response times—triggering alarms before process upsets occur.

→ Environmental Hardening: Conformal coating protects circuitry from moisture, dust, and corrosive gases typical in turbine enclosures and industrial control rooms without climate control.

✓ Plug-and-Play Integration: Auto-discovery protocols within Mark VIe firmware recognize board installation instantly, pre-loading configuration templates that reduce commissioning time from hours to minutes.

✓ Redundancy Support: Dual-board configurations with automatic failover ensure uninterrupted monitoring during module replacement or system upgrades—critical for 24/7 power generation operations.

Industry Applications & Use Cases

Combined-Cycle Power Plants: Monitor steam temperatures across heat recovery steam generators (HRSG), tracking superheat margins to prevent tube failures while optimizing thermal efficiency. The board's fast sampling rate captures transient conditions during load ramping that slower systems miss.

Petrochemical Refineries: Acquire pressure signals from distillation columns, reactor vessels, and pipeline networks where measurement drift could trigger safety shutdowns or product quality deviations. Isolated inputs prevent electrical noise from nearby motor control centers corrupting data.

Offshore Oil & Gas Platforms: Withstand salt-laden atmospheres and temperature swings in unmanned compressor stations, providing reliable vibration monitoring for rotating equipment predictive maintenance programs.

Industrial Cogeneration Facilities: Interface with legacy 4-20mA transmitters and modern smart sensors simultaneously, enabling phased control system modernization without wholesale instrumentation replacement.

District Heating Networks: Track flow and temperature differentials across multiple heat exchangers, calculating thermal energy delivery for accurate customer billing and system balancing.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose this board when monitoring 10 or fewer analog process variables within a single control loop or turbine section. For applications requiring more than 10 inputs, deploy multiple boards on the same backplane. Pair with IS200STAOH2AAA analog output boards for closed-loop PID control implementations. Verify that existing field wiring uses shielded twisted-pair cables with drain wires properly terminated to minimize EMI susceptibility.

Advanced Features & System Integration

Modbus TCP Gateway Compatibility: Export acquired data to plant-wide historians, SCADA systems, and cloud analytics platforms via Ethernet-based protocols without loading the primary control network.

Calibration Memory: On-board EEPROM stores factory calibration coefficients and user-defined scaling parameters, surviving power cycles and board swaps without reconfiguration.

LED Status Indicators: Per-channel diagnostic LEDs provide instant visual confirmation of signal presence, fault conditions, and communication status during commissioning and troubleshooting.

Conformal Coating Options: Specify enhanced environmental protection for installations in high-humidity coastal regions or chemical processing areas with airborne contaminants.

Delivery, Warranty & Technical Support

Lead Time: Stock units ship within 24-48 hours via express courier. Custom-configured boards with specialized firmware require 5-7 business days for testing and documentation preparation.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and calibration drift beyond published specifications. Advance replacement available for critical applications to minimize turbine downtime.

Technical Assistance: Application engineers provide pre-sales consultation on system architecture, wiring diagrams, and configuration file templates. Post-installation support includes remote diagnostics, firmware updates, and integration troubleshooting via phone and email.

Documentation Package: Each board includes installation manual, dimensional drawings, terminal block wiring diagrams, and sample ToolboxST configuration files compatible with Mark VIe programming software.

Frequently Asked Questions

What cable specifications are required for optimal noise rejection in high-EMI environments?
Use 18 AWG shielded twisted-pair with 100% foil coverage plus tinned copper drain wire. Maintain shield continuity through metal cable glands and terminate drain wires to the board's dedicated ground terminal. Avoid running signal cables parallel to AC power conductors—maintain 12-inch minimum separation or use perpendicular crossings.

Can the IS200STAIH2ACB interface with 2-wire transmitters powered by loop current?
Yes, configure channels for 4-20mA mode and enable the internal 24VDC loop power supply option via software. Each channel supplies up to 30mA to energize remote transmitters, eliminating the need for external power distribution modules.

How does this board handle sensor failures without triggering false turbine trips?
The diagnostic subsystem distinguishes between true process alarms and instrumentation faults. Open-circuit detection flags failed sensors separately from high/low process limits, allowing operators to implement voting logic across redundant sensors before initiating protective shutdowns.

What is the maximum cable length between field sensors and the terminal board?
For 4-20mA current loops, cable runs up to 1,500 meters are supported with minimal signal degradation. Voltage inputs should remain under 300 meters to prevent noise pickup—use current-output transmitters for longer distances or install signal conditioners at remote locations.

Is firmware updating possible without removing the board from the control system?
Yes, the Mark VIe controller performs in-service firmware updates via the backplane communication bus. Schedule updates during planned maintenance windows or low-load periods to avoid disrupting active control loops.

How does the IS200STAIH2ACB compare to third-party analog input modules?
GE-engineered boards undergo qualification testing specific to turbine control environments—vibration, thermal cycling, and EMI exposure profiles that generic industrial I/O modules don't address. Factory integration with ToolboxST software eliminates compatibility issues and reduces commissioning errors.

Order Your IS200STAIH2ACB Terminal Board Today

Ensure measurement accuracy and system reliability in your Mark VIe turbine control installation. Contact our technical sales team for application-specific configuration guidance, volume pricing, and expedited delivery options. We maintain ready stock of genuine GE components with full traceability documentation and OEM certification.
