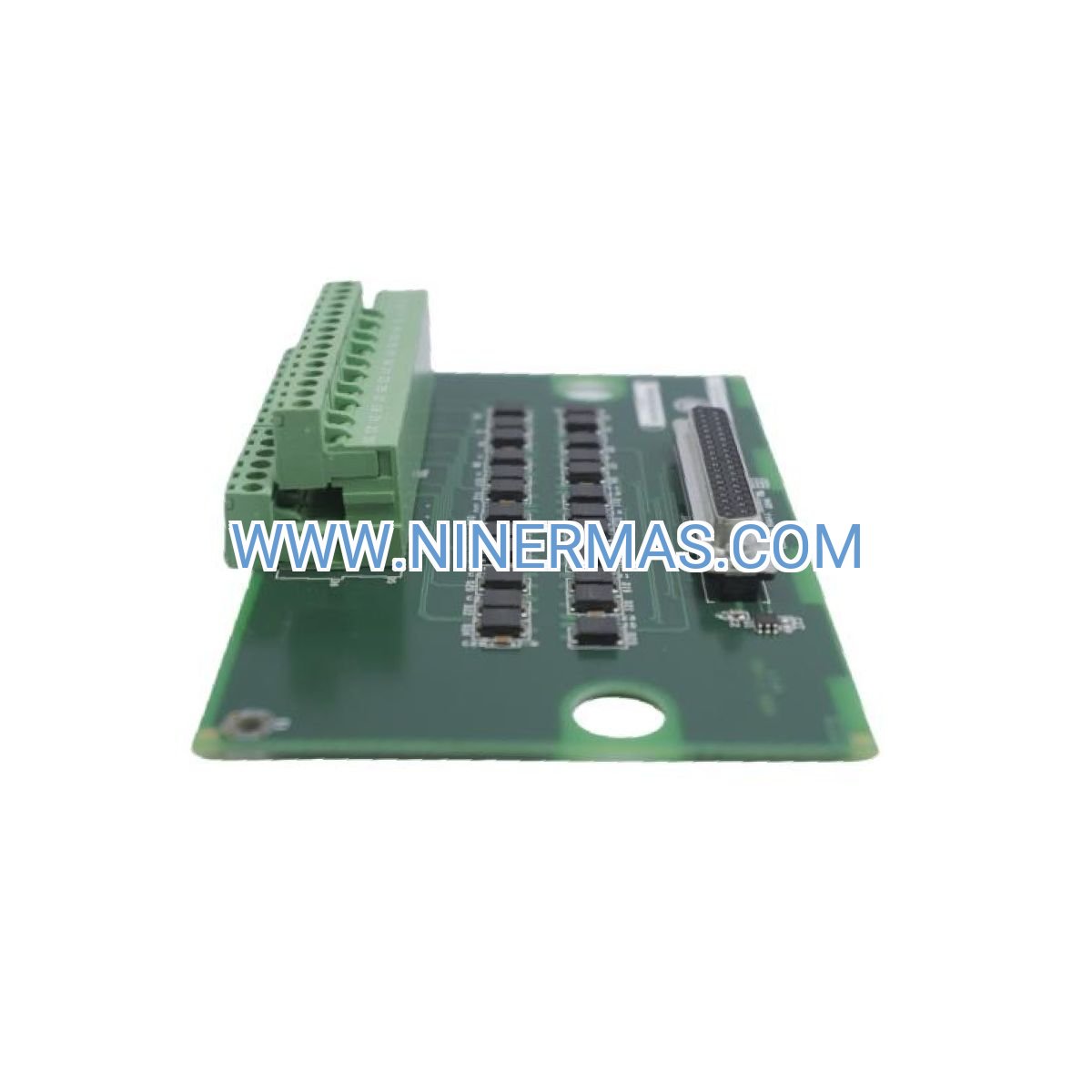

IS200SRTDH2ABB Simplex RTD Terminal Board (Industrial-Grade Temperature Interface)

The IS200SRTDH2ABB represents GE's advanced approach to precision temperature acquisition in turbine control environments. Designed as a Simplex RTD input interface for Mark VIe platforms, this terminal board transforms resistance-based temperature signals into actionable control data for gas and steam turbine applications. Built to withstand extreme industrial conditions while maintaining measurement accuracy, it serves as the critical link between field-mounted RTD sensors and your control system's decision-making core.

Power generation facilities, petrochemical plants, and industrial process operators rely on this module to monitor bearing temperatures, exhaust conditions, and thermal profiles across turbine stages. The board's robust construction and signal conditioning capabilities ensure reliable operation in environments where temperature data directly impacts equipment protection and operational efficiency.

Whether you're commissioning new Mark VIe installations, replacing aging terminal boards, or upgrading legacy control architectures, the IS200SRTDH2ABB delivers field-proven performance with simplified integration and long-term reliability.

Core Capabilities & Technical Advantages

✓ Multi-Wire RTD Compatibility: Supports 2-wire, 3-wire, and 4-wire RTD configurations including PT100/PT1000 sensors, providing flexibility for diverse installation requirements and accuracy needs

✓ Extended Temperature Range: Operates reliably from -30°C to +65°C ambient conditions, ensuring consistent performance in both arctic installations and high-temperature industrial environments

✓ Enhanced Signal Integrity: Advanced noise filtering and shielding techniques minimize electromagnetic interference, delivering clean temperature data even in electrically noisy turbine halls

✓ Simplex Architecture: Streamlined single-channel design reduces complexity and cost for applications where redundancy is managed at the system level rather than the board level

✓ Mark VIe Native Integration: Purpose-built for GE's Mark VIe control platform with plug-and-play compatibility, eliminating custom configuration and reducing commissioning time by up to 40%

✓ Field-Serviceable Design: Modular terminal connections and clear labeling facilitate rapid troubleshooting and replacement during scheduled maintenance windows

Industrial Application Scenarios

→ Combined Cycle Power Plants
Monitor gas turbine exhaust temperatures and steam turbine bearing conditions simultaneously. The IS200SRTDH2ABB's precision measurement enables optimal heat recovery steam generator (HRSG) operation, improving plant efficiency by 2-3% through better thermal management.

→ Petrochemical Compressor Stations
Track critical bearing and seal temperatures in gas compression trains where thermal excursions can lead to catastrophic failures. Real-time RTD data triggers protective shutdowns before damage occurs, preventing unplanned outages costing $50,000+ per day.

→ Offshore Platform Turbine Generators
Withstand harsh marine environments while providing reliable temperature surveillance for turbine-driven generators. The board's corrosion-resistant construction and wide operating range ensure continuous operation despite salt spray and temperature fluctuations.

→ District Heating Cogeneration Facilities
Measure steam extraction temperatures and turbine stage conditions to optimize both electrical generation and thermal output. Accurate RTD inputs help balance competing demands, maximizing revenue from dual-product operations.

→ Legacy System Modernization Projects
Replace obsolete Mark VI terminal boards with Mark VIe-compatible modules during phased control system upgrades. Maintain operational continuity while gaining access to modern diagnostic capabilities and improved measurement accuracy.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the IS200SRTDH2ABB when your application requires cost-effective temperature monitoring with system-level redundancy management. For critical protection functions demanding board-level redundancy, consider TMR (Triple Modular Redundant) alternatives. Verify RTD sensor compatibility (2/3/4-wire, PT100/PT1000) before ordering. Consult factory documentation for specific channel count and wiring requirements.

Advanced Integration & Customization Options

System Expansion Capabilities: The IS200SRTDH2ABB integrates seamlessly with other Mark VIe I/O modules, enabling comprehensive turbine monitoring solutions. Combine with thermocouple input boards for multi-sensor temperature strategies, or pair with analog output modules for closed-loop thermal control applications.

Diagnostic Features: Built-in self-diagnostics continuously monitor board health, RTD circuit integrity, and signal quality. Fault detection algorithms identify open circuits, short circuits, and out-of-range conditions, triggering alarms before measurement errors impact control decisions.

Configuration Flexibility: Software-configurable parameters allow field engineers to adjust RTD types, temperature ranges, and filtering characteristics without hardware modifications. This adaptability supports diverse sensor specifications and evolving application requirements.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock units ship within 1-2 business days via express courier services. Typical delivery to major industrial centers: North America (3-5 days), Europe (4-6 days), Asia-Pacific (5-7 days).

Warranty Coverage: Comprehensive 12-month manufacturer's warranty protects against defects in materials and workmanship. Warranty includes free replacement and covers return shipping costs for verified failures.

Technical Support: Access to GE-certified application engineers for installation guidance, troubleshooting assistance, and system integration consulting. Support available via email, phone, and remote diagnostic sessions during business hours (GMT+8).

Documentation Package: Each terminal board ships with installation manual, wiring diagrams, dimensional drawings, and compliance certificates. Digital resources include CAD models and configuration software utilities.

Frequently Asked Questions

What RTD wiring configurations does the IS200SRTDH2ABB terminal board support?
The board accommodates 2-wire, 3-wire, and 4-wire RTD connections for both PT100 and PT1000 sensor types. Three-wire configurations are most common in industrial applications, providing good accuracy while minimizing wiring costs. Four-wire setups deliver maximum precision for critical measurements.

Can this terminal board operate in high-vibration turbine environments?
Yes, the IS200SRTDH2ABB features ruggedized construction with conformal coating and reinforced terminal connections designed for continuous operation in high-vibration environments typical of turbine control cabinets. Mounting hardware includes vibration-dampening provisions.

How does the Simplex architecture compare to TMR configurations for temperature monitoring?
Simplex boards like the IS200SRTDH2ABB provide cost-effective monitoring for non-critical measurements or systems with redundancy managed at higher levels. TMR (Triple Modular Redundant) configurations offer board-level voting for critical protection functions. Selection depends on your safety integrity level (SIL) requirements and redundancy philosophy.

What is the typical measurement accuracy for RTD inputs on this board?
Measurement accuracy depends on RTD type and wiring configuration. Typical system accuracy: ±0.5°C for 3-wire PT100 sensors, ±0.3°C for 4-wire configurations. Consult factory specifications for detailed accuracy curves across the full temperature range.

Is the IS200SRTDH2ABB compatible with older Mark VI control systems?
No, this terminal board is specifically engineered for Mark VIe platforms and is not backward-compatible with Mark VI systems due to differences in backplane architecture and communication protocols. For Mark VI applications, specify IS200-series boards with appropriate suffix codes.

What preventive maintenance is recommended for RTD terminal boards?
Annual inspection of terminal connections for tightness, visual examination for corrosion or physical damage, and verification of diagnostic indicators. Clean accumulated dust using compressed air. RTD circuit resistance checks help identify sensor degradation before failures occur.

Order Your IS200SRTDH2ABB Terminal Board Today

Ensure reliable temperature monitoring for your Mark VIe turbine control system with authentic GE automation components. Contact our technical sales team for application-specific recommendations, volume pricing, or expedited delivery options. Email sale@ninermas.com or call +0086 187 5021 5667 to discuss your project requirements.
