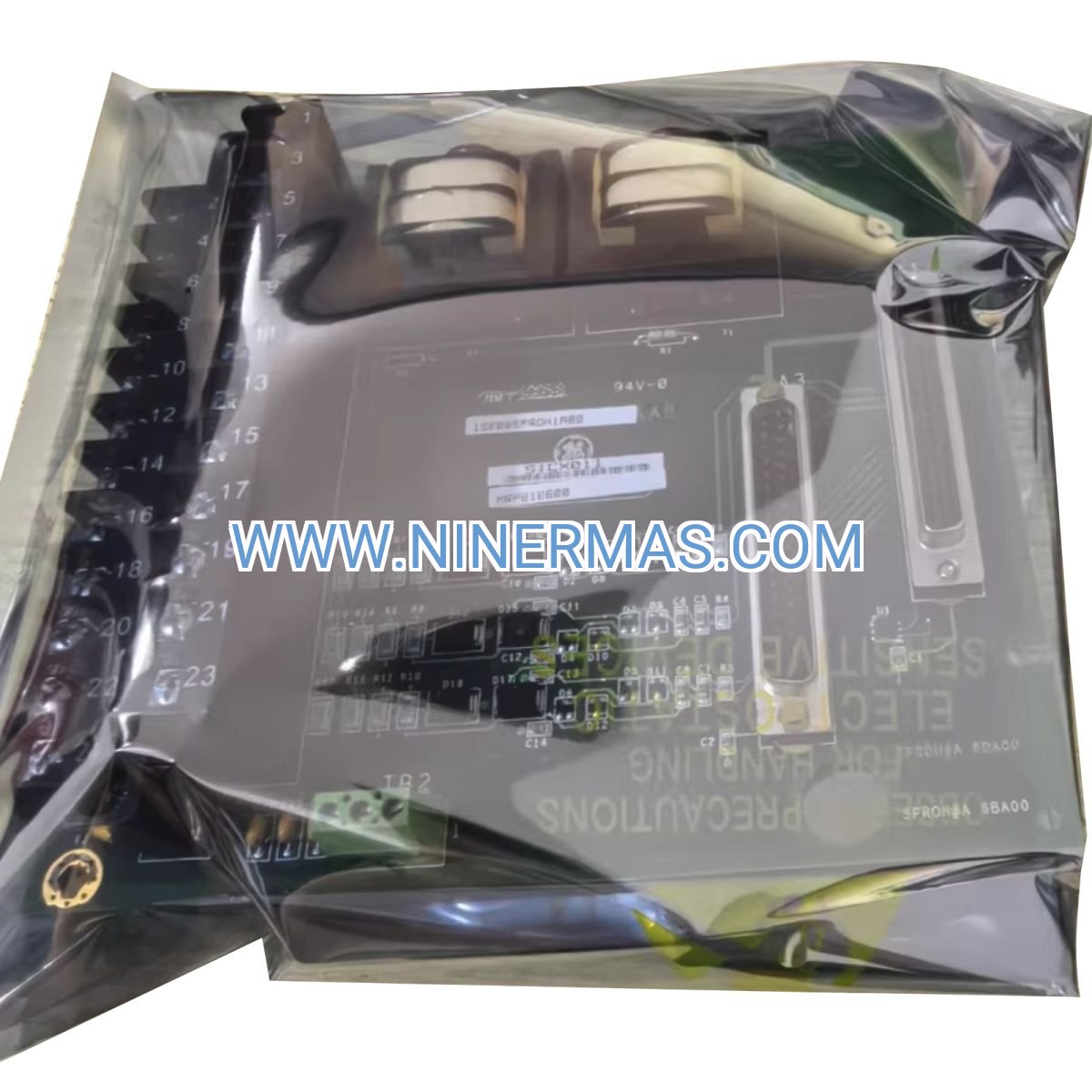

GE IS200SPROH1ABB Protection Terminal Board (Mark VI Turbine Safety Control System)

The GE IS200SPROH1ABB is an industrial-grade protection terminal board engineered for critical turbine control applications within General Electric's Mark VI control platform. Through advanced signal conditioning and VME bus communication, this board delivers real-time interfacing between field sensors and protection relays, ensuring turbine safety, operational continuity, and rapid fault response.

Designed for power generation facilities, oil & gas turbine installations, and industrial cogeneration plants, the IS200SPROH1ABB addresses challenges such as signal integrity degradation, inadequate fault isolation, delayed protection response, and limited diagnostic visibility. It serves as the critical link between turbine instrumentation and shutdown systems, preventing catastrophic failures and unplanned downtime.

With standardized VME rack mounting and field-proven compatibility across Mark VI configurations, this protection terminal board offers robust signal isolation, multi-level redundancy support, comprehensive LED diagnostics, and wide environmental tolerance. Ideal for plant engineers, control system integrators, OEM service providers, and maintenance teams seeking reliable turbine protection solutions. Contact our technical team for application-specific configuration guidance and quotation.

Core Features & Advantages

Precision Signal Conditioning & Isolation
Integrated signal processing circuitry ensures accurate conversion and electrical isolation of analog and digital inputs from speed probes, temperature sensors, and pressure transmitters, minimizing noise interference and protecting downstream control logic.

Seamless Mark VI System Integration
Plugs directly into Mark VI VME backplane with native bus communication, eliminating custom interface development and reducing commissioning time by up to 40% compared to third-party solutions.

Redundancy-Ready Architecture
Supports dual-channel redundant configurations for mission-critical applications, enabling automatic failover and continuous protection monitoring even during module replacement or maintenance activities.

Comprehensive Diagnostic Capabilities
Multi-color LED indicators provide instant visual feedback on power status, signal health, and fault conditions, while integrated diagnostics report detailed error codes to the Mark VI HMI for rapid troubleshooting.

Industrial-Hardened Environmental Performance
Operates reliably across -30°C to +65°C temperature range with 95% non-condensing humidity tolerance, suitable for harsh power plant environments, offshore platforms, and desert installations.

Proven Reliability & Compliance
CE, UL, and cULus certified with RoHS compliance, backed by GE's field-proven design heritage in turbine control systems, reducing long-term maintenance costs and regulatory compliance risks.

Typical Application Scenarios

This protection terminal board is engineered for environments demanding high-integrity turbine safety monitoring and rapid protection response, particularly in:

Power Generation & Combined Cycle Plants
Interfaces critical overspeed detection, vibration monitoring, and emergency shutdown signals in gas turbines, steam turbines, and generator protection systems, ensuring grid stability and equipment protection during transient events.

Oil & Gas Production & Pipeline Compression
Provides reliable signal termination for turbine-driven compressors and pumps in upstream production facilities, midstream pipeline stations, and LNG plants, where unplanned shutdowns directly impact production revenue and safety.

Industrial Cogeneration & Process Steam Systems
Supports turbine protection in chemical plants, refineries, pulp & paper mills, and manufacturing facilities with on-site power generation, maintaining process continuity and preventing costly production interruptions.

Marine Propulsion & Offshore Platform Power
Delivers robust signal interfacing in marine gas turbine propulsion systems and offshore platform power generation units, withstanding vibration, salt spray, and extreme temperature cycling inherent to maritime environments.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide comprehensive technical parameters for the IS200SPROH1ABB. Custom configurations and application-specific adaptations are available upon request.

Selection Considerations:
When specifying the IS200SPROH1ABB, engineers should evaluate: existing Mark VI system configuration and firmware version, required signal types and channel count, redundancy requirements for critical protection functions, available VME rack slot positions, environmental conditions at installation site, and integration with existing HMI/SCADA systems. For application-specific guidance, please provide system architecture details, I/O requirements, and environmental parameters—our engineering team will recommend optimal configuration and integration approach.

Extended Capabilities & System Integration

Multi-Protocol Communication Support
Beyond native VME bus interfacing, the IS200SPROH1ABB integrates with Mark VI's Ethernet and Modbus communication layers, enabling remote monitoring, data logging to plant historians, and integration with enterprise asset management systems.

Hot-Swap & Online Maintenance
In redundant configurations, the board supports hot-swap replacement without system shutdown, minimizing maintenance windows and supporting continuous turbine operation during scheduled service activities.

Calibration & Testing Features
Built-in test points and diagnostic modes facilitate commissioning verification, periodic calibration checks, and troubleshooting without disconnecting field wiring, reducing maintenance labor by approximately 25%.

Firmware Upgrade Path
Compatible with Mark VI system firmware updates, ensuring long-term supportability and access to enhanced protection algorithms, cybersecurity patches, and performance optimizations as GE releases platform improvements.

Delivery, Service & Quality Assurance

Lead Time & Availability: Standard IS200SPROH1ABB units typically ship within 3-5 business days from stock. Custom-configured or tested assemblies require 7-14 days. Expedited shipping options available for critical outage support.

Warranty & Support: All units include a minimum 12-month warranty covering manufacturing defects and component failures. Extended warranty programs and on-site commissioning support available based on project scope and location.

Technical Documentation: Each shipment includes complete technical data package: installation manual, wiring diagrams, terminal block layouts, LED diagnostic reference, and Mark VI integration guide. CAD drawings and 3D models available upon request for panel design.

Testing & Certification: Units undergo factory acceptance testing including power-on diagnostics, signal integrity verification, and environmental stress screening. Test reports and certificates of conformity provided with shipment.

Technical Assistance: Remote technical support available via phone and email during business hours. On-site commissioning, troubleshooting, and training services available for major projects (subject to geographic availability and scheduling).

Frequently Asked Questions (FAQ)

Q: How does the IS200SPROH1ABB protection terminal board integrate with existing Mark VI turbine control systems?
A: The board plugs directly into any available VME slot in the Mark VI control chassis and auto-configures via the ToolboxST software. Integration requires mapping I/O points in the control logic and verifying signal termination at the field wiring level. Typical integration time is 2-4 hours for experienced Mark VI technicians.

Q: Can this protection terminal board support redundant configurations for critical safety functions?
A: Yes, the IS200SPROH1ABB fully supports Mark VI's Triple Modular Redundant (TMR) architecture. When deployed in redundant configurations, the system automatically performs voting logic and failover without interrupting protection monitoring. Redundant setups require additional boards and appropriate firmware configuration.

Q: What are the environmental requirements for installing the IS200SPROH1ABB in outdoor or harsh industrial locations?
A: The board itself is rated IP20 and must be installed within a climate-controlled control cabinet. The cabinet should maintain -30°C to +65°C temperature range and protect against direct moisture exposure. For outdoor installations, NEMA 4/4X or IP65-rated enclosures with environmental conditioning (heating/cooling) are recommended.

Q: Is the IS200SPROH1ABB compatible with older Mark V turbine control systems or only Mark VI?
A: This board is specifically designed for Mark VI systems and uses VME bus architecture. It is not backward-compatible with Mark V systems, which use different backplane communication and physical form factors. For Mark V applications, consult GE's legacy product catalog or contact our team for equivalent solutions.

Q: What diagnostic capabilities does the IS200SPROH1ABB provide for troubleshooting signal issues?
A: The board features multi-color LED indicators for power status, individual channel health, and fault conditions. Detailed diagnostics are accessible through the Mark VI HMI, displaying signal values, out-of-range conditions, open/short circuit detection, and communication status. Built-in test modes allow loop testing without field disconnection.

Q: Can the IS200SPROH1ABB be replaced or serviced without shutting down the turbine in redundant systems?
A: In TMR or dual-redundant configurations, individual boards can be hot-swapped during operation without triggering protection trips or losing monitoring capability. The system automatically redistributes voting logic during replacement. Single-channel systems require controlled shutdown for board replacement.

Request Technical Support & Quotation

For detailed application engineering, configuration assistance, or pricing information, please provide the following details to our technical team:

• Project name and turbine model/application type
• Existing Mark VI system configuration (firmware version, chassis type, redundancy level)
• Required signal types and channel count (analog inputs, digital inputs, output requirements)
• Environmental conditions at installation site (temperature range, humidity, altitude)
• Redundancy requirements and criticality classification
• Integration timeline and commissioning support needs

Our application engineers will provide one-on-one consultation, recommend optimal board configuration, and deliver comprehensive technical and commercial proposals tailored to your project requirements.
