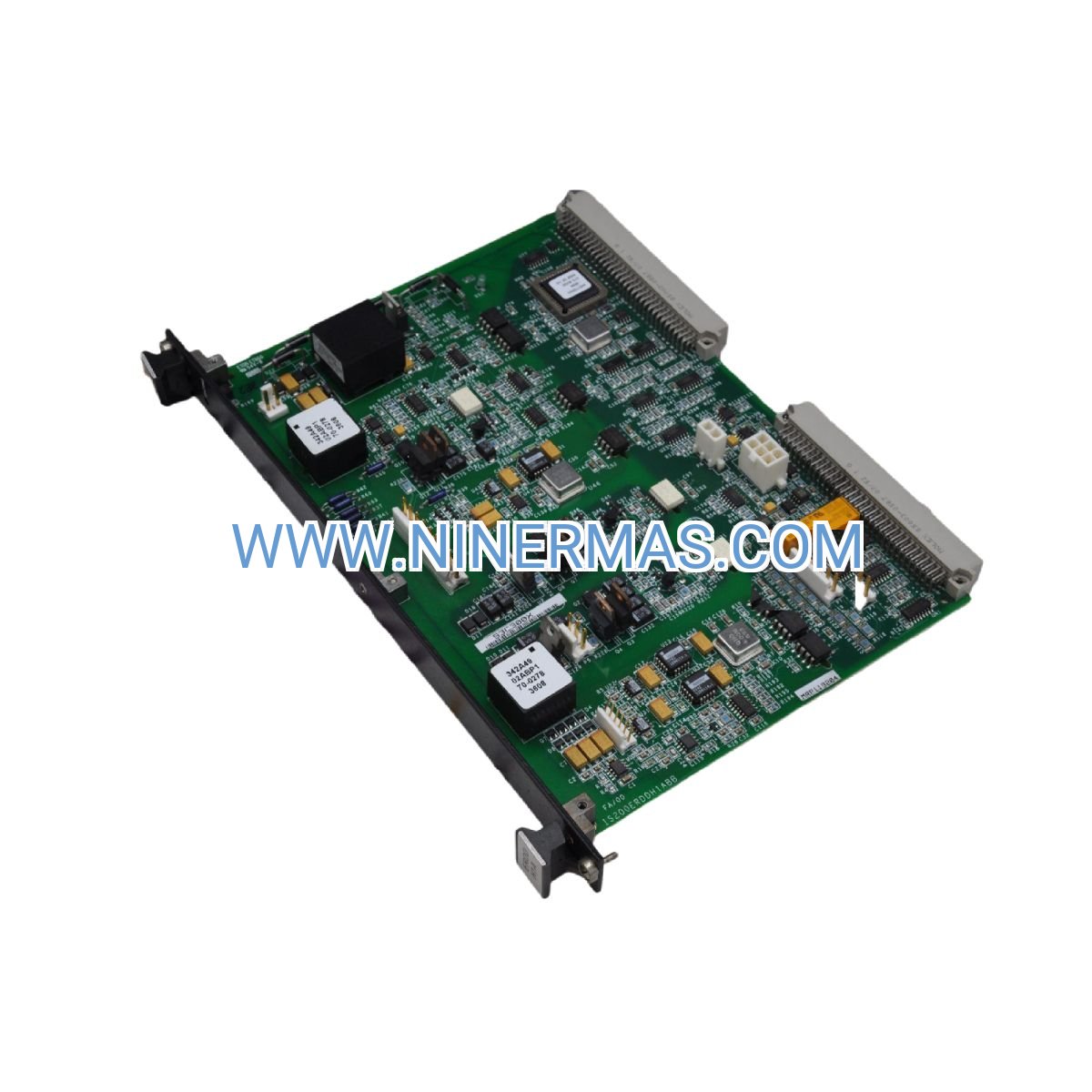

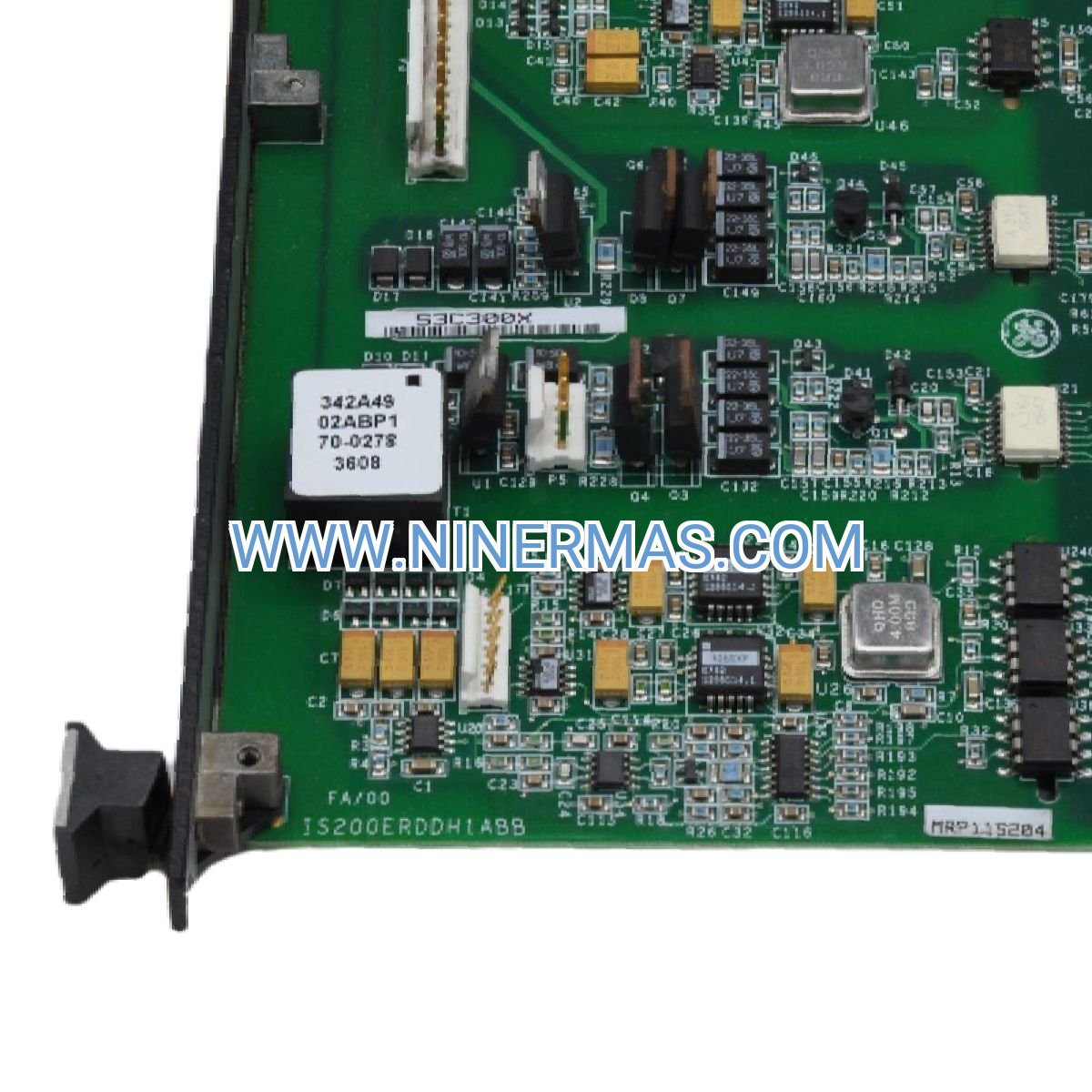

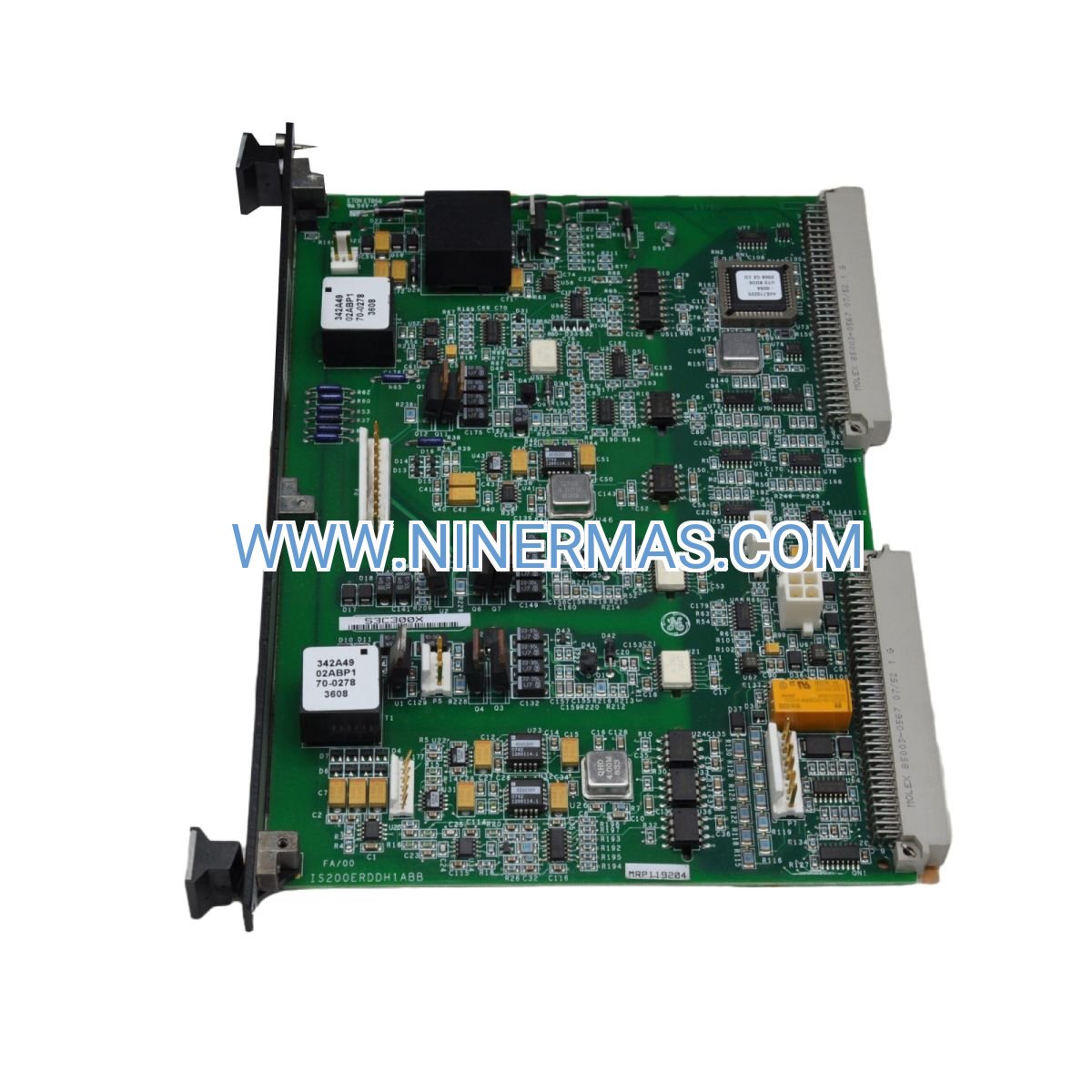

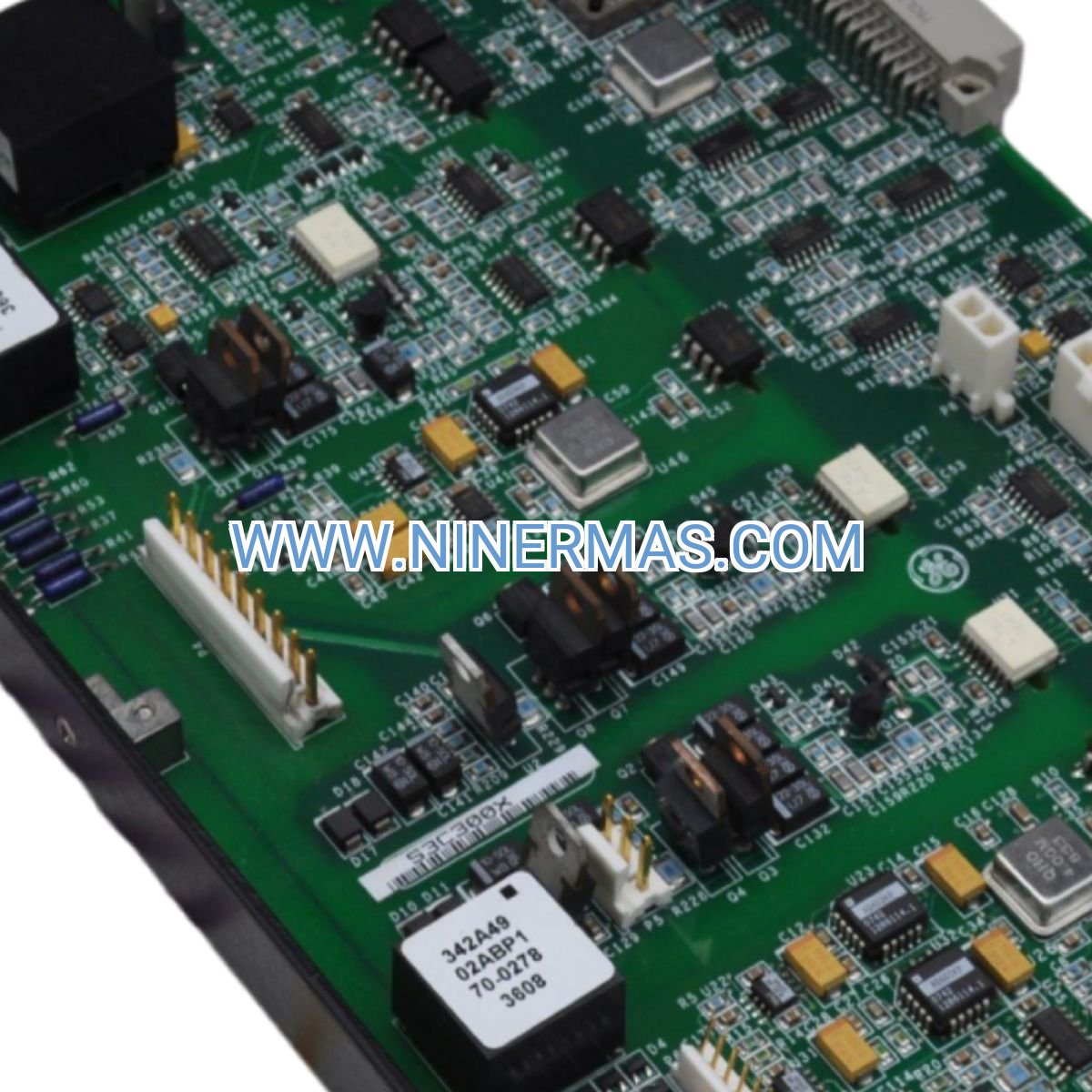

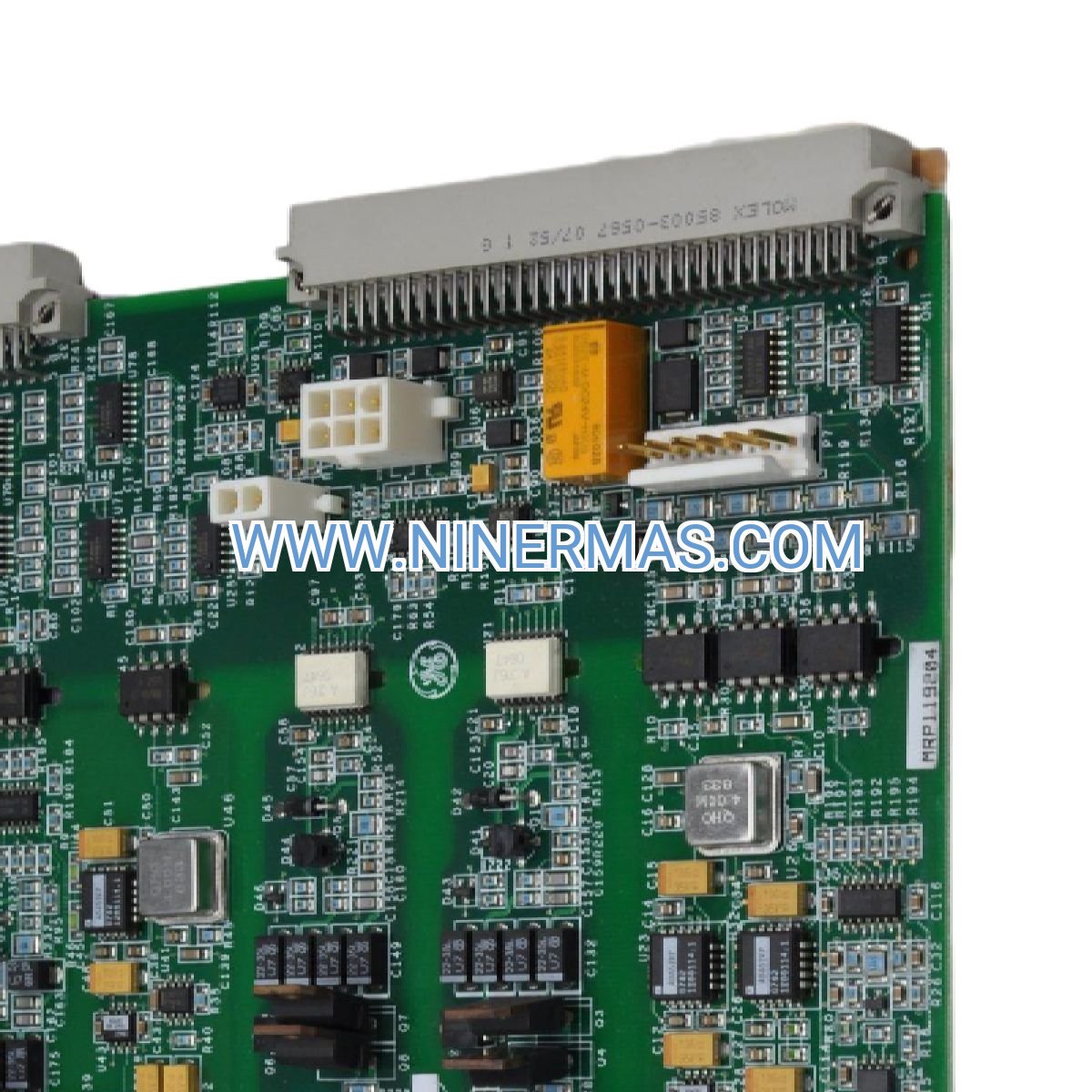

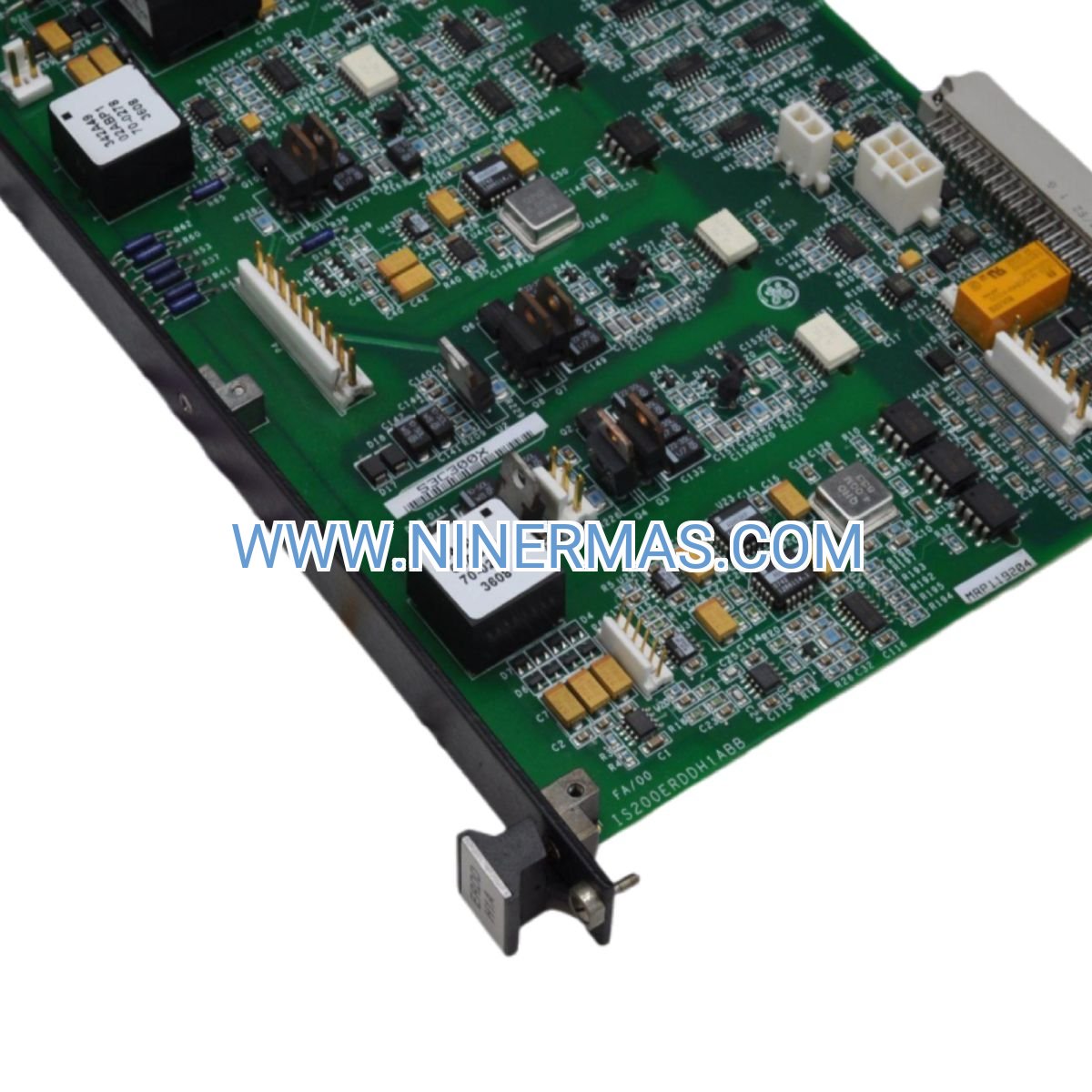

GE IS200ERDDH1ABB Exciter Regulator Dynamic Discharge Board (Industrial-Grade Turbine Control Solution)

The GE IS200ERDDH1ABB Exciter Regulator Dynamic Discharge Board is an industrial-grade control module designed for precision excitation management in gas turbine and steam turbine generator systems. Through advanced field discharge protection technology and real-time voltage regulation algorithms, it ensures stable generator excitation, rapid fault response, and seamless integration with GE Mark VIe distributed control platforms.

Ideal for combined-cycle power plants, cogeneration facilities, renewable hybrid systems, and heavy industrial applications where continuous power generation reliability is critical. This board addresses common challenges including voltage fluctuation during load transitions, delayed fault protection response, excitation system component aging, and integration complexity with legacy control infrastructure.

Featuring standardized design with customizable configuration options, the IS200ERDDH1ABB delivers superior field discharge speed, extended MTBF exceeding 100,000 hours, comprehensive diagnostic capabilities, and backward compatibility with Mark VI platforms. Suitable for power plant engineers, EPC contractors, turbine OEM service teams, and facility maintenance departments. Contact our application engineers for system integration guidance and technical specifications.

Core Functions & Advantages

Rapid Field Discharge Protection
Employs high-speed thyristor switching circuits combined with precision current sensors to achieve field discharge within 50 milliseconds during emergency shutdown or fault conditions, preventing rotor overheating and insulation damage while extending generator service life.

Precision Voltage Regulation
Integrates 16-bit ADC sampling and PID control algorithms to maintain generator terminal voltage stability within ±0.5% under varying load conditions, reducing power quality issues and minimizing reactive power compensation requirements.

Intelligent Fault Diagnostics
Built-in self-test routines continuously monitor circuit integrity, component temperature, and signal quality with automatic fault code generation and alarm escalation through Mark VIe HMI interface, reducing mean time to repair by up to 40%.

Multi-Layer Protection Architecture
Incorporates overcurrent protection (150% rated), overvoltage suppression (140V transient), thermal overload monitoring, ground fault detection, and communication watchdog functions to ensure fail-safe operation in harsh power plant environments.

Plug-Compatible Retrofit Design
Direct form-fit-function replacement for IS200ERDDH1A legacy boards with identical connector pinouts and mounting dimensions, enabling zero-downtime upgrades during scheduled maintenance windows without control logic reprogramming.

Industrial-Hardened Construction
Features conformal-coated PCB assembly rated for -30°C to +65°C ambient operation, 5-95% humidity tolerance, and vibration resistance per IEC 60068-2-6 standards, ensuring reliable performance in coal-fired, gas-fired, and geothermal power generation facilities.

Typical Application Scenarios

This exciter regulator dynamic discharge board is engineered for high-reliability power generation systems requiring precise excitation control and rapid fault protection, particularly in:

Combined-Cycle Gas Turbine Plants
Manages excitation for Frame 6, Frame 7, and Frame 9 class gas turbine generators during rapid load ramping and frequency regulation duty cycles. Coordinates with automatic voltage regulators to maintain grid synchronization during black-start sequences and islanded operation modes.

Steam Turbine Cogeneration Systems
Provides stable field current control for industrial steam turbines ranging from 5MW to 250MW capacity, supporting both condensing and back-pressure configurations. Ensures voltage stability during process steam extraction variations and seasonal load profile changes.

Renewable Energy Hybrid Installations
Integrates with wind turbine pitch control systems and solar inverter farms to provide grid-forming capability and reactive power support. Enables seamless transition between grid-connected and microgrid operation modes while maintaining power quality standards per IEEE 1547.

Heavy Industrial On-Site Generation
Supports captive power plants in petrochemical refineries, steel mills, cement manufacturing, and pulp/paper facilities where uninterrupted power supply is mission-critical. Handles frequent motor starting transients and non-linear load characteristics inherent to industrial processes.

District Heating & Municipal Utilities
Optimizes excitation control for municipal waste-to-energy plants and district heating CHP systems, balancing electrical output with thermal load requirements. Provides voltage regulation during seasonal demand fluctuations and grid interconnection switching events.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide standardized electrical ratings and environmental specifications. Custom configurations available for specialized applications including high-altitude installations, marine environments, and seismic zone requirements.

Selection Recommendations
When specifying this board, consider the following system parameters: generator rated field voltage and current, excitation system topology (static or rotating), control cabinet ambient temperature profile, required redundancy level (simplex/duplex/TMR), communication protocol requirements, and existing Mark VIe firmware revision. For complex retrofit projects or multi-unit installations, our application engineers can provide detailed compatibility analysis, wiring diagrams, and commissioning checklists. Submit your generator nameplate data, single-line diagram, and site environmental conditions for customized selection guidance.

Extended Functionality Options

Redundant Configuration Support
Supports dual-board hot-standby architecture with automatic failover logic, ensuring zero-interruption excitation control during board replacement or maintenance activities. Bumpless transfer capability maintains field current continuity within 20ms switchover time.

Remote Monitoring Integration
Provides real-time data streaming via OPC UA, Modbus TCP, and DNP3 protocols for integration with SCADA systems, plant historian databases, and predictive maintenance platforms. Supports secure VPN access for remote diagnostics and firmware updates.

Advanced Protection Coordination
Interfaces with generator differential relays (87G), loss-of-field protection (40), and overexcitation limiters (24) to provide coordinated protection schemes. Programmable trip logic allows customization for specific generator and grid code requirements.

Power System Stabilizer (PSS) Interface
Accepts external PSS signals for damping low-frequency oscillations in interconnected power systems, improving grid stability during disturbance conditions and enabling compliance with transmission operator requirements.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard catalog units ship within 3-5 business days from our regional distribution centers in North America, Europe, and Asia-Pacific. Custom-configured boards with specialized firmware or extended temperature ratings require 15-20 business days for factory programming and testing. Expedited processing available for emergency outage situations with 24-hour quotation response.

Warranty Coverage
All IS200ERDDH1ABB boards include a comprehensive 12-month manufacturer warranty covering material defects, component failures, and workmanship issues under normal operating conditions per GE specifications. Extended warranty programs available for up to 36 months with optional advance replacement service.

Technical Support Services
Complimentary pre-sales engineering consultation including compatibility verification, system integration planning, and configuration recommendations. Post-installation support includes remote commissioning assistance, parameter optimization guidance, and troubleshooting via phone/email/video conference. On-site startup services available in major markets with 5-10 day scheduling.

Documentation Package
Each board ships with complete technical documentation including installation manual, electrical schematics, terminal block wiring diagrams, ToolboxST configuration files, and dimensional drawings in PDF and AutoCAD formats. Multilingual documentation available in English, Spanish, Chinese, and German.

Quality Traceability
Every unit includes factory test reports documenting functional verification, high-potential testing, thermal cycling results, and calibration certificates traceable to NIST standards. Serial number tracking enables full component genealogy and manufacturing date code verification for regulatory compliance and asset management.

Frequently Asked Questions (FAQ)

Q: How does the IS200ERDDH1ABB integrate with existing Mark VI control systems?
A: The board maintains full backward compatibility with Mark VI platforms through standardized I/O signal mapping and communication protocols. Integration requires firmware version verification (minimum ToolboxST R07.00) and may necessitate configuration file updates to enable advanced diagnostic features. Our technical team provides migration documentation and remote commissioning support to ensure seamless transition from legacy hardware.

Q: What is the maximum generator field current this board can control?
A: The IS200ERDDH1ABB is rated for continuous field currents up to 50A with peak handling capability of 150A for 10-second durations during transient conditions. For generators requiring higher field currents, parallel board configurations or external current-boosting modules can be implemented. Consult factory application notes for specific generator compatibility based on exciter type and voltage rating.

Q: Can this board operate in high-altitude or extreme temperature environments?
A: Standard units are rated for altitudes up to 2,000 meters and ambient temperatures from -30°C to +65°C. For installations above 2,000m or in desert/arctic climates, custom-configured boards with enhanced cooling provisions and component derating are available. Specify site elevation and temperature extremes during ordering for proper selection.

Q: What diagnostic capabilities are available for predictive maintenance?
A: The board continuously monitors 24 internal health parameters including component junction temperatures, power supply voltages, communication link status, and discharge circuit resistance. Trend data is accessible via Mark VIe HMI or exported to plant maintenance management systems through Modbus/OPC interfaces. Alarm thresholds are user-configurable with three-level severity classification (advisory/warning/critical).

Q: Is factory training available for maintenance personnel?
A: Yes, we offer comprehensive training programs covering board architecture, troubleshooting procedures, preventive maintenance schedules, and ToolboxST configuration techniques. Training is available as on-site workshops (2-3 days) or virtual instructor-led sessions. Course materials include hands-on lab exercises with actual hardware and case studies from field installations.

Q: What is the typical energy efficiency improvement when upgrading from older excitation control boards?
A: Field data from retrofit installations shows 15-30% reduction in excitation system losses through optimized field current regulation and reduced reactive power circulation. Actual savings depend on generator loading profile, power factor requirements, and grid voltage stability. Our application engineers can perform site-specific energy audits to quantify expected ROI based on your operational data.

Request Technical Consultation

For detailed application engineering support, customized system integration proposals, or volume pricing for multi-unit projects, please provide the following information to our technical sales team:

• Project name and location
• Generator manufacturer, model, and rated capacity (MVA)
• Excitation system type (static/brushless/rotating) and field voltage/current ratings
• Existing control platform (Mark VI/VIe firmware version)
• Quantity required and delivery timeline
• Site ambient temperature range and altitude
• Special requirements (redundancy, communication protocols, certifications)

Our application engineers will respond within 24 hours with compatibility confirmation, technical recommendations, and detailed quotations including shipping options to your facility.
