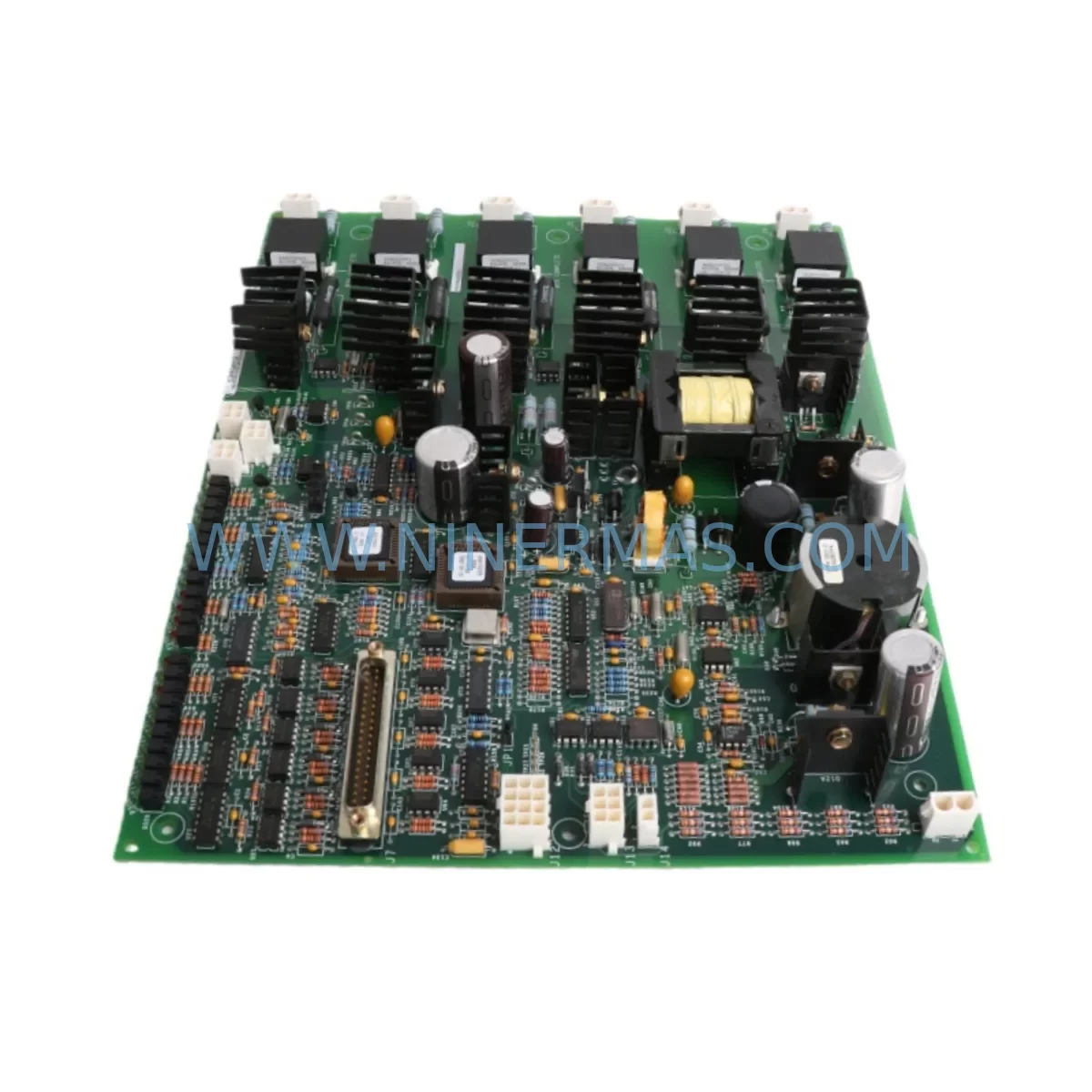

GE IS200EHPAG1DAB Retrofit-Compatible Pulse Amplifier

GE IS200EHPAG1DAB Retrofit-Compatible Pulse Amplifier: Legacy System Compatibility & Smooth Upgrade

The GE IS200EHPAG1DAB is a ruggedized pulse amplifier module engineered for demanding industrial environments, originally designed for use within GE’s Mark V and Mark VI turbine control platforms. As legacy automation systems age and OEM support windows close, the IS200EHPAG1DAB has become a critical component in retrofit projects, discontinued spare parts replacement programs, and control cabinet modernization initiatives across power generation, oil & gas, and heavy manufacturing sectors.

When a plant engineer faces an unplanned outage caused by a failed pulse amplifier in a Mark V control panel, sourcing a verified replacement with documented compatibility is the first priority. The IS200EHPAG1DAB fulfills this role directly — it slots into the existing VME-style backplane without mechanical modification, preserves the original terminal wiring layout, and maintains signal integrity for speed and position feedback loops that are critical to turbine sequencing logic. Before installation, engineers should confirm the backplane slot address assignment, verify that the I/O module addressing in the control program matches the physical slot, and check that the power supply module — typically a companion unit such as the IS200EPCTG1A or IS200EPDMG1B — can deliver the required 5 VDC and ±15 VDC rails at the rated current capacity for the new module.

Terminal wiring compatibility is a key checkpoint during any retrofit. The IS200EHPAG1DAB uses the same terminal block pinout as its predecessor variants in the EHPA family, which means field wiring from existing magnetic pickup sensors, proximity probes, or encoder outputs can typically be reconnected without re-termination. However, technicians should measure signal voltage levels and verify that the input impedance of the new module matches the sensor output characteristics — particularly when the original sensors were calibrated for an older module revision. If the plant is simultaneously migrating from a Mark V to a Mark VI or Mark VIe architecture, the IS200EHPAG1DAB can serve as an interim module while the broader communication protocol migration from ARCNET to Ethernet-based IONet is completed on the controller side.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IS200EHPAG1DAB retrofit begins well before the module arrives on site. The planning phase should include a full audit of the existing control cabinet, documenting the current rack configuration, the slot positions of all installed I/O modules, and the revision levels of the controller firmware. In a typical Mark VI turbine control system, the IS200EHPAG1DAB shares the rack with modules such as the IS200VTURH1BAA turbine protection card, the IS200DSPXH1DBB digital signal processor, and the IS200TRLYH1BCC relay output module. Understanding how these modules interact with the pulse amplifier — particularly in terms of shared backplane power budgets and interrupt-driven I/O scan cycles — is essential for predicting system behavior after the swap.

For plants running older Mark V systems, the retrofit may also involve replacing the IS200EPCTG1A power entry module if the existing unit is showing signs of capacitor aging or voltage regulation drift. A degraded power supply is one of the most common root causes of intermittent pulse amplifier faults, and replacing both units simultaneously reduces the risk of a repeat failure. Similarly, if the control cabinet includes an IS200STCIH1AED serial communication interface card for Modbus or RS-485 connectivity to a DCS or SCADA system, technicians should verify that the communication link remains stable after the IS200EHPAG1DAB is replaced, since pulse count data from the amplifier may feed directly into process variables monitored by the upstream system.

I/O expansion is another common driver for IS200EHPAG1DAB retrofits. Plants that are adding new speed sensors, redundant proximity probes, or additional encoder channels to support a turbine upgrade or a new driven equipment installation will often find that the existing pulse amplifier capacity is insufficient. In these cases, the IS200EHPAG1DAB can be deployed alongside an IS200VSVOH1B servo output module or an IS200BICLH1ABA binary I/O card to build out the expanded I/O architecture within the existing rack, avoiding the cost and complexity of a full controller replacement. If the rack is already full, a secondary IS215 series expansion rack may be required, and the IS200EHPAG1DAB’s compatibility with the IS215 backplane should be confirmed with the engineering team before procurement.

Programming compatibility is a critical checkpoint that is sometimes overlooked in fast-turnaround retrofit projects. The control program running on the Mark V or Mark VI controller contains module-specific configuration blocks that reference the IS200EHPAG1DAB by slot address and hardware revision. If the replacement module has a different hardware revision suffix — for example, moving from a G1DAA to a G1DAB revision — the ToolboxST configuration tool should be used to verify that the firmware loaded on the new module is compatible with the existing application program. In most cases, the G1DAB revision is backward compatible with G1DAA application code, but this should be confirmed before the module is energized in a live system. Signal isolators such as the IS200SRTDH1ABA may also be present in the signal chain between field sensors and the IS200EHPAG1DAB, and their calibration should be verified as part of the pre-commissioning checklist.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any plant engineer managing a pulse amplifier replacement in a live turbine control system. The IS200EHPAG1DAB retrofit process is designed to support a hot-swap approach where the turbine is brought to a safe shutdown state, the failed module is removed, the replacement is installed and configured, and the system is returned to service — all within a single maintenance window. To achieve this, the replacement module should be pre-configured offline using ToolboxST before it arrives at the plant, with the correct slot address, I/O scaling parameters, and communication settings already loaded into the module’s non-volatile memory.

Protecting the original program logic is equally important. Before any hardware change, the current application program should be backed up from the Mark V or Mark VI controller to a secure offline storage location. This backup serves as the recovery baseline if the new module introduces unexpected behavior during commissioning. The HMI screens in GE Cimplicity or the legacy Mark V operator interface should also be reviewed to confirm that all pulse count, speed, and position tags are correctly mapped to the new module’s I/O addresses. In most IS200EHPAG1DAB replacements, the HMI tag mapping does not require modification because the module occupies the same slot address as its predecessor, but this should be verified by comparing the pre- and post-swap I/O address maps before the turbine is restarted.

Maintaining field control continuity during the migration window requires close coordination between the control room operator and the field technician performing the swap. The operator should monitor all upstream and downstream process variables — including turbine speed, generator output, and auxiliary system status — throughout the maintenance window, and should be prepared to initiate an emergency shutdown if any anomaly is detected during the post-swap commissioning sequence. The field technician should perform a point-to-point signal verification on all pulse inputs connected to the IS200EHPAG1DAB before the turbine is brought back online, confirming that each channel is reading the correct frequency and amplitude from its associated sensor. This verification step, combined with the pre-shipment functional test performed on every IS200EHPAG1DAB unit before dispatch, significantly reduces the risk of a commissioning failure that could extend the maintenance window beyond the planned duration.

Retrofit Support FAQ

Q1: Is the IS200EHPAG1DAB a direct drop-in replacement for earlier EHPA revisions such as IS200EHPAG1DAA?
A: In the majority of Mark V and Mark VI installations, the IS200EHPAG1DAB is backward compatible with IS200EHPAG1DAA application code and wiring. The G1DAB revision incorporates minor hardware improvements that do not affect the module’s functional interface with the backplane or the field wiring terminals. However, customers should confirm the firmware revision compatibility using ToolboxST before installation, particularly in systems running older Mark V controller firmware versions.

Q2: What commissioning steps are required after installing the IS200EHPAG1DAB?
A: After physical installation, the module address should be verified in the ToolboxST configuration tool to confirm it matches the slot assignment in the application program. Each pulse input channel should be tested with the associated field sensor energized, and the frequency and amplitude readings should be compared against the expected values documented in the original system commissioning report. The HMI display should be checked to confirm that all speed and position tags are updating correctly before the turbine is returned to service.

Q3: Does the IS200EHPAG1DAB come with a warranty, and is pre-shipment testing performed?
A: Yes. Every IS200EHPAG1DAB unit supplied by NINERMAS COMPANY LIMITED is covered by a 12-month warranty against manufacturing defects and is subjected to a functional test before shipment. The pre-shipment test verifies that all pulse input channels are operating within specification and that the module communicates correctly with the backplane interface. Test records are available upon request.

Q4: What is the typical lead time and inventory availability for the IS200EHPAG1DAB?
A: NINERMAS maintains in-stock inventory of the IS200EHPAG1DAB to support emergency replacement and planned maintenance requirements. Standard lead time for in-stock units is 3–5 business days for international shipments. Customers with urgent requirements are encouraged to contact the sales team directly to confirm current stock levels and arrange expedited dispatch.
