ABB DSQC639 3HAC041443-003 Service-Ready Spare Part

ABB DSQC639 3HAC041443-003 Service-Ready Spare Part: Minimizing Downtime in IRC5 Robot Systems

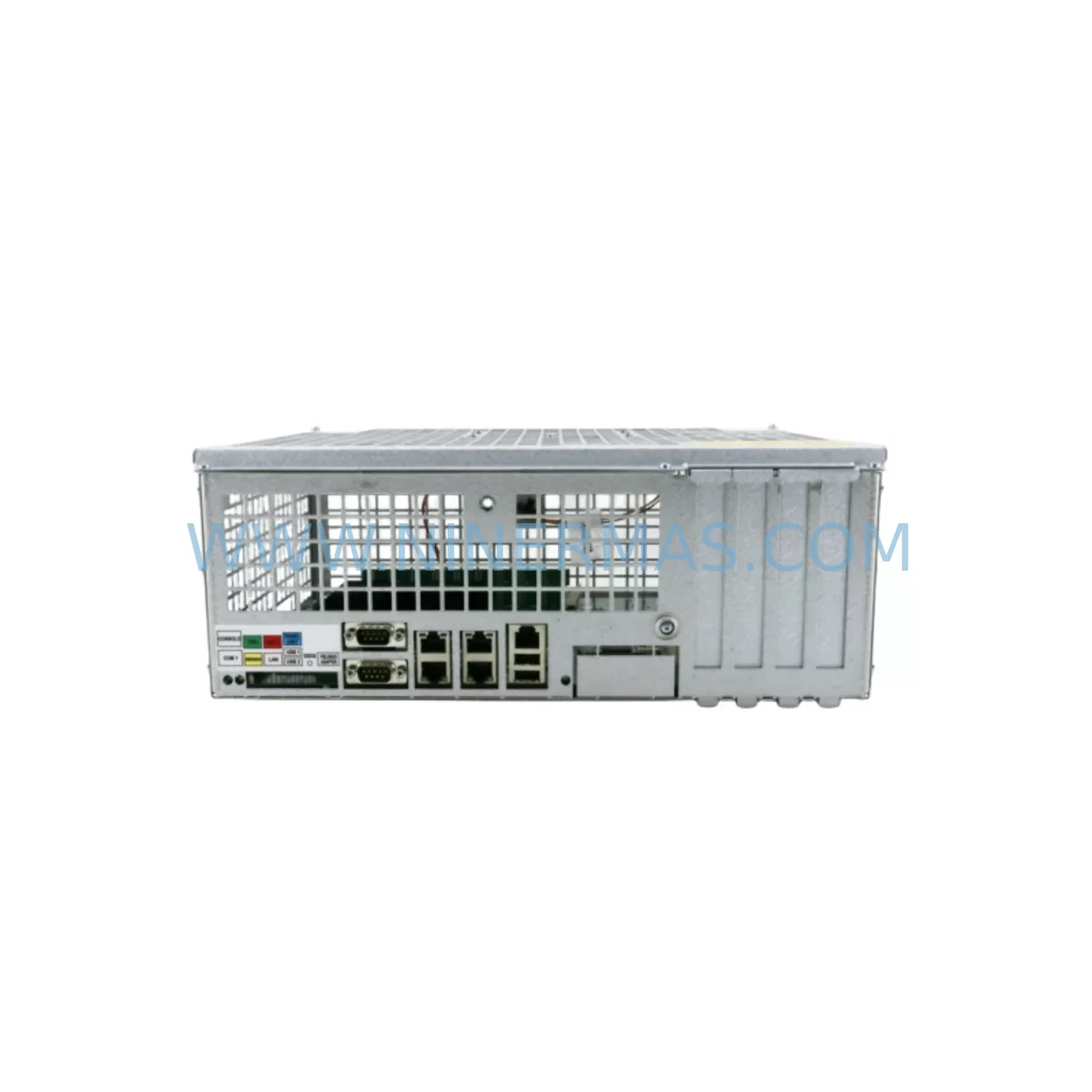

The ABB DSQC639 (part number 3HAC041443-003) is the main computer unit at the heart of the ABB IRC5 robot controller cabinet. As the central processing and coordination module for robot motion, I/O management, and communication, this ruggedized computer module is one of the most critical components in any IRC5-based automation cell. When this unit fails or degrades, the entire robot system halts — making a verified, service-ready spare immediately essential for maintenance engineers managing production continuity.

NINERMAS stocks the DSQC639 3HAC041443-003 as an original spare part, pre-tested before shipment and backed by a 12-month warranty. Whether you are responding to an unplanned fault, executing a scheduled annual overhaul, or building a strategic spare parts inventory for a multi-robot facility, this module ships ready for direct installation into your IRC5 controller cabinet.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers responsible for IRC5 robot controllers, the DSQC639 does not operate in isolation. A fault in the main computer unit is frequently accompanied by — or can trigger — cascading issues across adjacent modules within the same controller cabinet. A thorough site assessment during replacement should include inspection of the following components:

The DSQC643 (3HAC025562-001) axis computer board works in close coordination with the DSQC639 to manage servo drive commands and motion path execution. If the main computer has experienced a power surge or thermal event, the axis computer should be tested concurrently. Similarly, the DSQC662 (3HAC026254-001) I/O module handles digital and analog signal routing between the robot controller and field devices — any communication disruption from a degraded DSQC639 may have caused latent I/O mapping errors that persist after the main computer is replaced.

The DSQC609 (3HAC14265-1) power supply unit is the upstream source for the 24 VDC rail that feeds the DSQC639 and other logic boards. Before installing a replacement main computer, verify that the power supply output is within specification; installing a new module into an under-voltage or ripple-affected rail risks premature failure. The DSQC611 (3HAC026253-001) drive module and associated DSQC617 (3HAC14550-1) capacitor bank should also be checked for charge retention and thermal wear, particularly in high-cycle applications.

Communication integrity is equally important. The DSQC658 (3HAC025784-001) Ethernet switch module and any installed DSQC688 or DSQC690 fieldbus adapter boards (DeviceNet, PROFIBUS, or EtherNet/IP) should be verified for correct addressing and firmware compatibility after the main computer swap, as the DSQC639 stores network configuration parameters that may need to be restored from backup. The FlexPendant (IRC5 TPU) teach pendant connection and its associated cable harness should be inspected for continuity, as teach pendant communication faults are commonly misdiagnosed as main computer failures.

For facilities running legacy IRC5 systems beyond their original design life, a proactive spare parts kit covering the DSQC639, DSQC643, DSQC662, and DSQC609 provides a comprehensive first-response inventory that covers the majority of unplanned controller downtime scenarios. NINERMAS can support long-term supply agreements for multi-unit facilities requiring guaranteed stock availability across extended maintenance cycles.

Site Replacement Workflow

Step 1 — Backup System Configuration: Before powering down the IRC5 cabinet, use RobotStudio or the FlexPendant to perform a full system backup (RAPID programs, I/O configuration, system parameters, and calibration data). The DSQC639 holds the active system image; a verified backup is mandatory before removal.

Step 2 — Safe Power-Down: Execute a controlled shutdown via the FlexPendant, then switch the main power isolator to OFF. Allow the capacitor bank (DSQC617) to discharge fully — typically 60 seconds — before opening the cabinet door. Verify zero voltage on the 24 VDC bus with a calibrated multimeter.

Step 3 — Module Removal: Disconnect all cable harnesses from the DSQC639 in sequence: Ethernet, USB, serial, and backplane connectors. Note cable routing and connector labeling before removal. Extract the module from the backplane slot using the ejector levers; avoid flexing the board.

Step 4 — Compatibility Verification: Confirm that the replacement DSQC639 (3HAC041443-003) matches the hardware revision required by your IRC5 system software version. Cross-reference the system software release notes if your installation is running RobotWare 5.x or 6.x, as certain hardware revisions are tied to specific software builds.

Step 5 — Installation and Restore: Seat the replacement module firmly into the backplane, reconnect all harnesses, and restore the system backup via the FlexPendant boot sequence. Perform a cold start and verify that all axes, I/O channels, and communication links initialize correctly before returning the robot to production.

This structured workflow reduces mean time to repair (MTTR) and eliminates the risk of configuration loss — the most common cause of extended downtime following a main computer replacement on IRC5 systems.

Spare Parts Support FAQ

Q1: Is the DSQC639 3HAC041443-003 compatible with all IRC5 controller variants?
The DSQC639 is the standard main computer unit for the ABB IRC5 Single Cabinet Controller and is also used in Dual Cabinet and Panel Mounted Controller configurations. Compatibility depends on your RobotWare software version and hardware revision level. NINERMAS recommends providing your controller serial number and software version for pre-shipment compatibility confirmation. Our technical team will verify the correct hardware revision before dispatch.

Q2: What pre-shipment testing is performed on the DSQC639 before delivery?
Every DSQC639 unit shipped by NINERMAS undergoes functional verification including power-on self-test, communication interface checks, and visual inspection for physical damage, corrosion, or component anomalies. Units that do not pass all test criteria are not dispatched. A 12-month warranty covers the module against defects in materials and workmanship from the date of delivery.

Q3: How should facilities plan long-term spare parts inventory for end-of-life IRC5 systems?
For IRC5 installations operating beyond the standard product lifecycle, NINERMAS recommends a tiered inventory strategy: maintain at least one DSQC639 on-site for immediate response, and establish a supply agreement for secondary stock covering the DSQC643 axis computer and DSQC609 power supply. For facilities with five or more IRC5 robots, a dedicated controller spare kit significantly reduces the risk of extended downtime caused by component unavailability on the open market. Contact our team to discuss volume pricing and long-term supply commitments.

Q4: Can the DSQC639 be used to replace older main computer revisions such as the DSQC373 or DSQC500?
The DSQC639 is not a direct drop-in replacement for earlier IRC5 main computer generations such as the DSQC373 or DSQC500, as these units differ in backplane connector layout, firmware architecture, and system software compatibility. If your facility is managing a mixed fleet of older and newer IRC5 controllers, NINERMAS can assist in identifying the correct main computer revision for each controller serial number range. Cross-generation upgrades may require a system software migration — our team can advise on the feasibility and scope of such projects.
