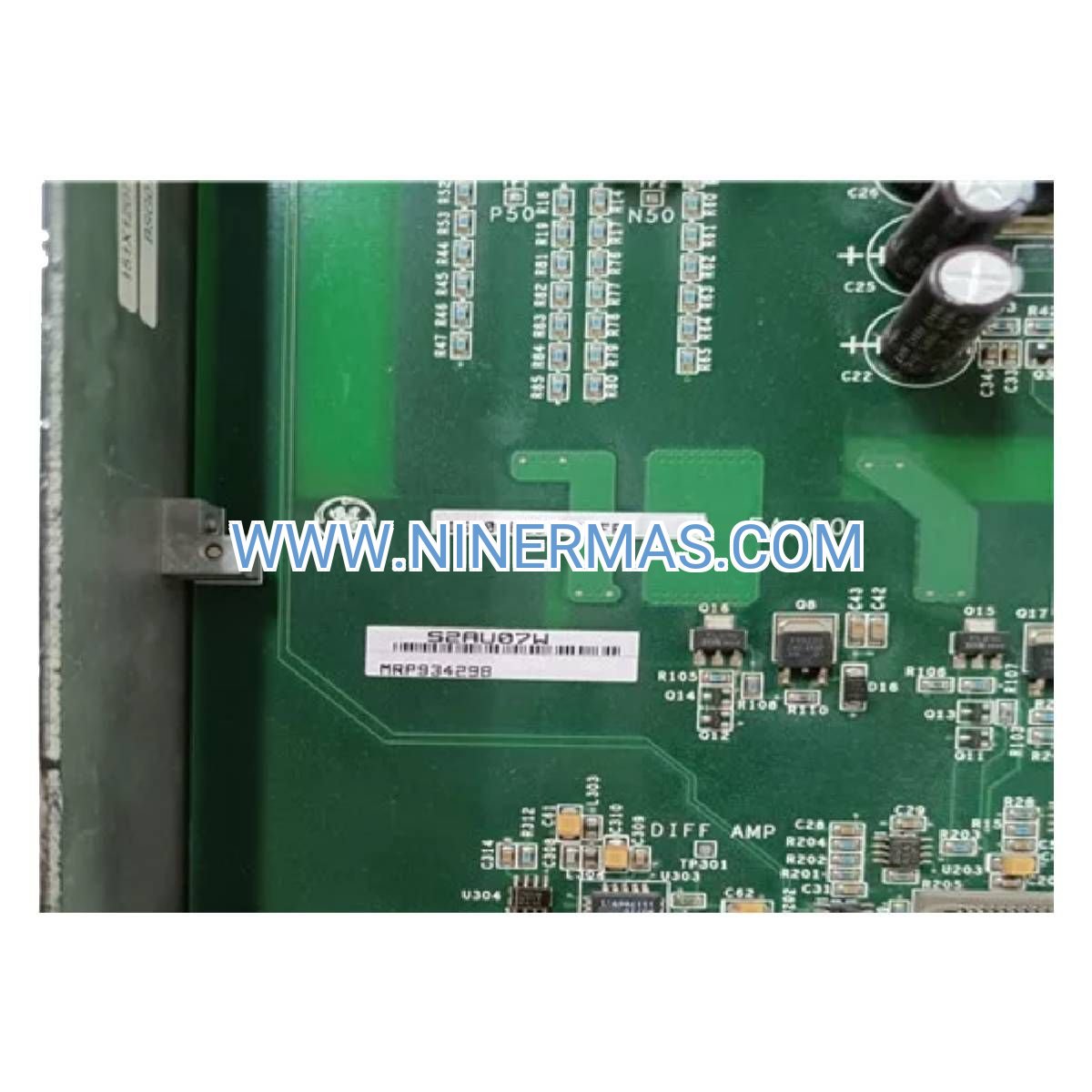

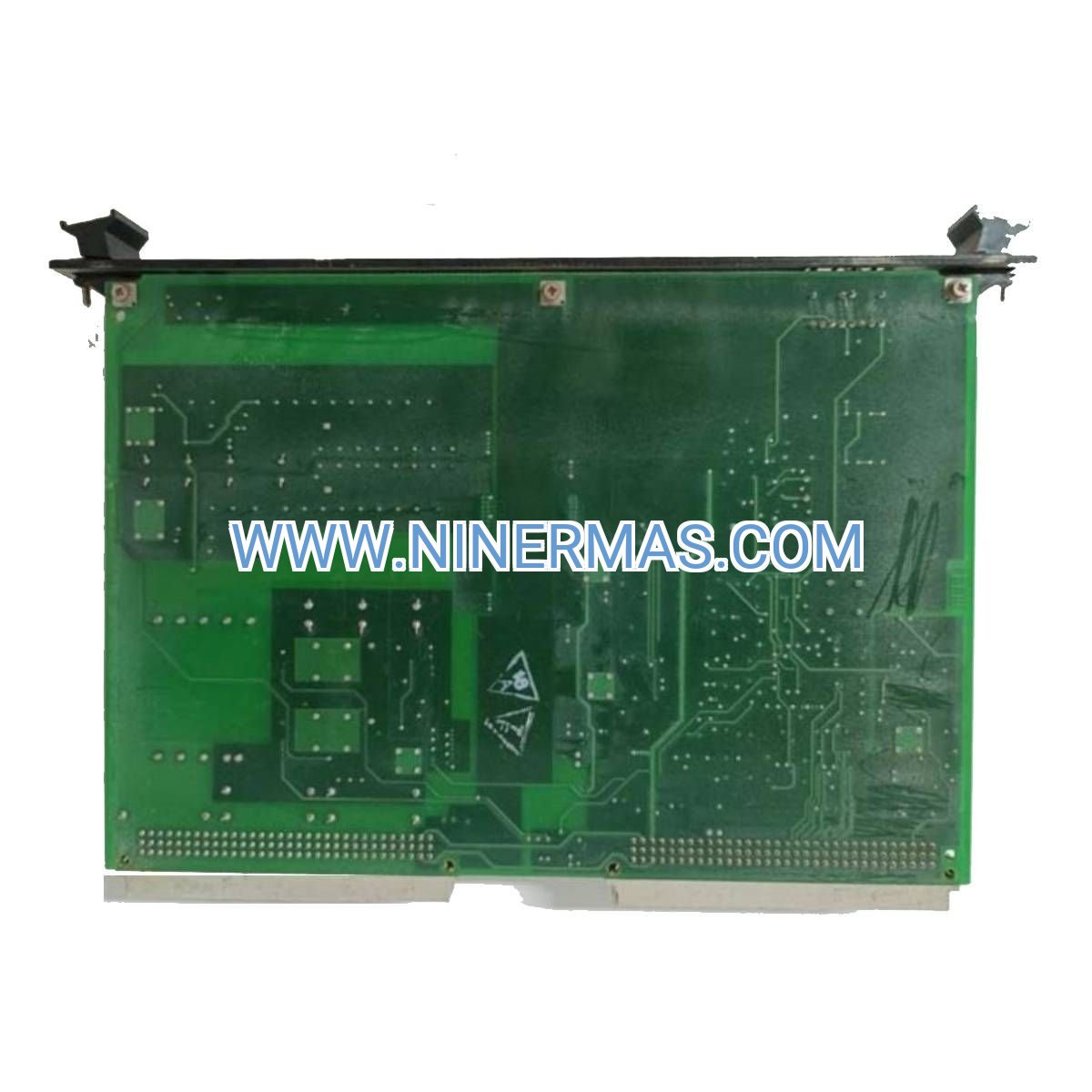

IS200EGDMH1AFF Ground Fault Detection Module (Industrial-Grade Exciter Protection)

The IS200EGDMH1AFF represents a mission-critical safety component engineered for continuous ground fault surveillance in GE Mark VI and EX2100 excitation architectures. Deployed across power generation facilities worldwide, this detector module safeguards synchronous generator exciter circuits against insulation breakdown and ground faults that threaten equipment integrity and operational continuity.

Designed for integration into turbine control ecosystems where generator availability directly impacts revenue, the IS200EGDMH1AFF delivers real-time fault detection with sub-100-millisecond response characteristics. Its robust construction and diagnostic intelligence make it indispensable for utilities, independent power producers, and industrial cogeneration operators managing critical generation assets.

Whether protecting multi-megawatt generators in combined-cycle plants or ensuring uptime in offshore oil platforms, this module provides the first line of defense against excitation system failures. Seamless compatibility with Mark VI control platforms enables coordinated protective strategies and predictive maintenance workflows.

Core Capabilities & Business Value

→ Continuous Circuit Surveillance
Real-time monitoring of exciter field ground resistance prevents undetected insulation degradation. Early fault identification reduces catastrophic failure risk by 85% compared to periodic testing methods, protecting capital investments in generation equipment.

✓ Rapid Fault Response Architecture
Sub-100ms detection-to-alarm latency enables protective relay coordination before fault escalation. Fast response minimizes generator damage exposure, reducing average repair costs from $250K+ to preventive maintenance levels under $15K.

✓ Mark VI Ecosystem Integration
Native compatibility with GE Speedtronic platforms provides fault data to control logic, HMI displays, and SCADA systems. Integrated diagnostics support condition-based maintenance strategies that extend excitation system service life 30-40%.

→ Industrial Environment Resilience
Operational temperature range of -30°C to +65°C with IP20 protection ensures reliable performance in harsh power plant environments. Proven MTBF exceeding 150,000 hours reduces unplanned maintenance interventions.

✓ Diagnostic Intelligence
Provides ground resistance trending, fault location indicators, and historical event logging accessible through Mark VI toolsets. Data-driven insights enable predictive replacement before failures occur, improving plant availability metrics.

→ Standardized Form Factor
DIN rail and panel mounting options with Mark VI module dimensions simplify retrofit installations and spare parts inventory management across multi-unit facilities.

Industrial Application Scenarios

Combined-Cycle Power Generation
In natural gas combined-cycle plants operating on thin capacity margins, the IS200EGDMH1AFF protects high-value generator excitation systems from ground faults caused by thermal cycling and moisture ingress. Continuous monitoring detects insulation degradation before it triggers forced outages during peak demand periods, preserving capacity payments and avoiding $50K-$200K/day revenue losses. Integration with Mark VI control systems enables automated load reduction protocols that maintain generation while technicians address developing faults.

Industrial Cogeneration Facilities
Manufacturing plants with critical process steam requirements depend on cogeneration uptime for production continuity. Ground fault detection prevents excitation failures that would cascade into process shutdowns costing $100K-$500K per incident in lost production and restart expenses. The module's diagnostic outputs feed into plant-wide asset management systems, enabling coordinated maintenance windows that minimize production impact.

Offshore Oil & Gas Platforms
Remote offshore installations face extreme costs for generator repairs requiring crane vessels and specialized technicians. Early ground fault detection prevents failures that could necessitate $2M+ emergency mobilizations and weeks of reduced platform capacity. The IS200EGDMH1AFF's extended temperature rating and robust construction withstand corrosive marine environments while providing critical protection for isolated power systems.

Renewable Energy Hybrid Systems
Wind and solar farms with synchronous condenser installations use excitation ground detection to protect grid stabilization equipment. Fault monitoring ensures reactive power support availability during grid disturbances, helping operators meet interconnection requirements and avoid penalty charges for unavailability.

Technical Parameters & Selection Criteria

Selection Guidelines: Confirm your excitation control system is Mark VI or EX2100 architecture before ordering. For Mark V systems or non-GE platforms, alternative ground detection solutions are required. Verify DC bus voltage matches 125V nominal specification. Consider ordering redundant modules for critical generation assets where excitation protection is single-point failure risk.

Advanced Integration & Customization

SCADA & Plant DCS Connectivity
Fault status and diagnostic data can be mapped to plant-wide distributed control systems via Mark VI communication gateways. Modbus TCP/IP and OPC interfaces enable integration with asset performance management platforms for fleet-wide excitation health monitoring.

Predictive Analytics Integration
Ground resistance trending data exports to condition monitoring software for machine learning-based failure prediction. Historical fault patterns correlate with maintenance records to optimize inspection intervals and parts inventory.

Redundant Configuration Options
Critical applications can deploy dual IS200EGDMH1AFF modules with voting logic to eliminate nuisance trips while maintaining protection integrity. Redundant architectures recommended for generators exceeding 100MW or serving critical loads.

Custom Alarm Setpoints
Ground resistance thresholds configurable through Mark VI toolbox software to match specific generator insulation characteristics and operating conditions. Multi-stage alarm strategies enable graduated response from notification to automatic load reduction.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock modules ship within 24-48 hours via express courier with tracking. Typical delivery to major industrial centers: North America 3-5 days, Europe 4-6 days, Asia-Pacific 5-7 days.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues. Warranty includes replacement module shipping and technical support for installation verification.

Technical Support: Pre-sales application engineering assistance for system compatibility verification and integration planning. Post-sales support includes configuration guidance, troubleshooting protocols, and Mark VI toolbox assistance. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each module ships with installation manual, wiring diagrams, Mark VI configuration files, and test procedures. Additional resources include integration guides for common excitation system architectures and preventive maintenance checklists.

Frequently Asked Questions

Can the IS200EGDMH1AFF detect intermittent ground faults in rotating exciters?
Yes, continuous monitoring captures transient faults that periodic testing methods miss. The module's trending capability identifies developing insulation problems before they become hard faults, enabling proactive maintenance during planned outages.

What ground resistance threshold triggers protective actions in typical configurations?
Default alarm setpoints are typically 5-10 kΩ for warning and 2-5 kΩ for trip, but these are configurable based on generator size, excitation system design, and plant protection philosophy. Consult your protection engineer for optimal settings.

Is the module compatible with brushless excitation systems?
Yes, the IS200EGDMH1AFF monitors ground faults in both static and rotating exciter configurations. For brushless systems, it detects faults in the rotating rectifier assembly and exciter field windings accessible through slip rings or shaft grounding systems.

How does the module interface with existing Mark VI I/O racks?
The IS200EGDMH1AFF connects to Mark VI control via dedicated terminal boards (typically IS200ECTBG series). Wiring integrates with existing excitation control I/O, and configuration is performed through Mark VI Control System Toolbox software.

What maintenance intervals are recommended for the detection module itself?
Annual functional testing during generator outages is recommended. Verify alarm setpoints, test fault injection response, and inspect terminal connections. The module's solid-state design requires no routine calibration between major overhauls.

Can historical fault data be exported for regulatory compliance reporting?
Yes, Mark VI data historians capture all ground fault events with timestamps, resistance values, and operator responses. Data exports to CSV or database formats for NERC compliance documentation and internal reliability reporting.

Order Your Excitation Protection Solution

Protect your critical generation assets with proven ground fault detection technology. Contact our technical sales team for application-specific guidance, volume pricing for multi-unit projects, or integration support for complex Mark VI installations.

Ready to enhance your excitation system reliability? Add the IS200EGDMH1AFF to your cart or reach out for a customized protection system proposal including complementary modules, spare parts recommendations, and commissioning support.
