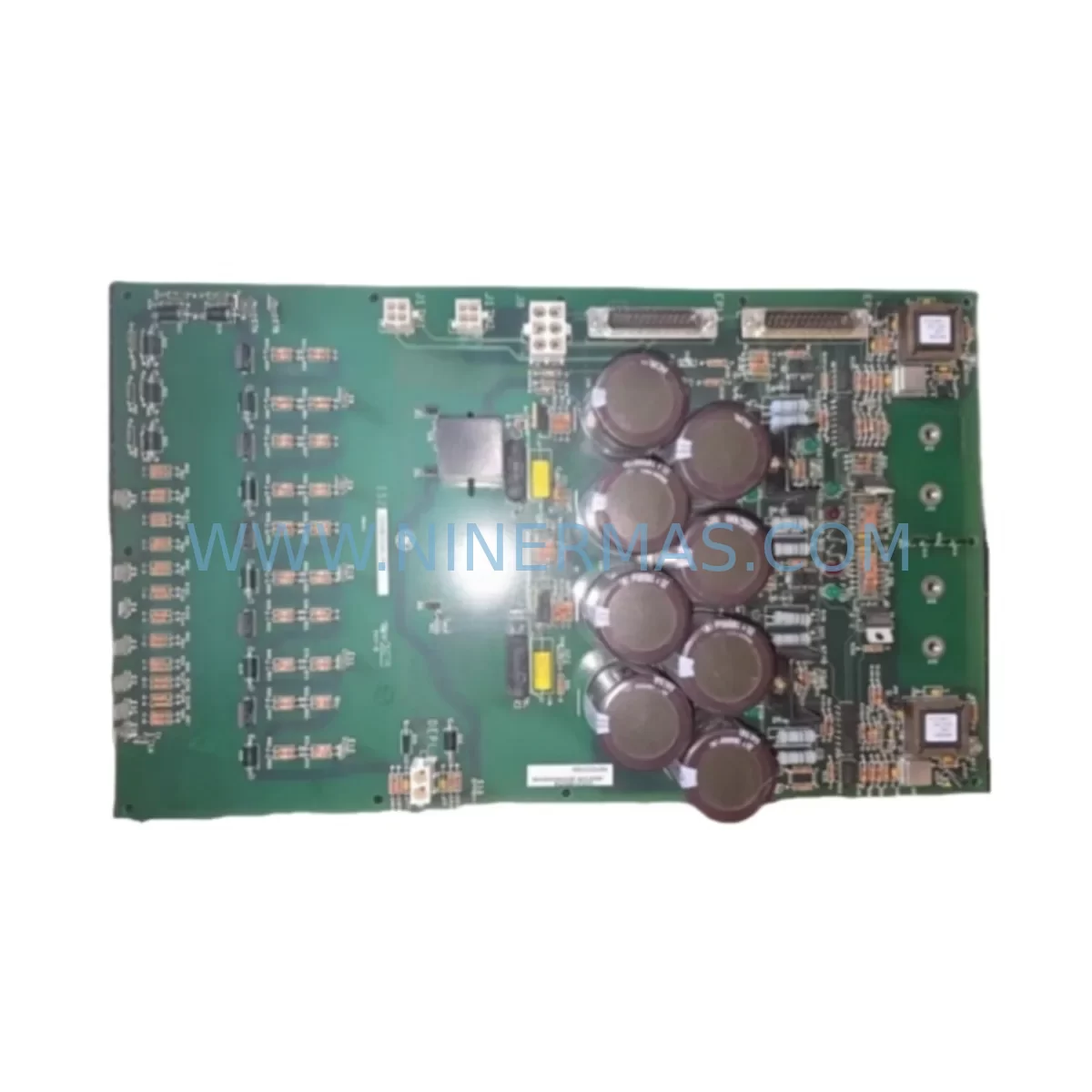

GE IS200EDEXG1AFA Retrofit-Compatible Exciter De-Excitation Board

GE IS200EDEXG1AFA Retrofit-Compatible Exciter De-Excitation Board: Seamless Legacy System Upgrade

The GE IS200EDEXG1AFA is a critical exciter de-excitation control board designed for use within the GE Mark VI Turbine Control System platform. As aging power generation facilities and industrial plants face the challenge of maintaining operational continuity with discontinued or end-of-life components, the IS200EDEXG1AFA serves as a proven retrofit solution for facilities seeking to extend the service life of their existing Mark VI control architecture without committing to a full system overhaul.

This board manages the de-excitation sequence of the generator exciter circuit — a function that is essential for safe generator shutdown, fault protection, and field current suppression. When the original IS200EDEXG1AFA fails or reaches end-of-life, the consequences can include unplanned outages, generator protection failures, and costly emergency shutdowns. Sourcing a verified replacement with confirmed firmware compatibility and tested I/O mapping is therefore a top priority for maintenance engineers and reliability teams.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the IS200EDEXG1AFA within an operational Mark VI environment requires a structured approach that accounts for the interdependencies between the exciter board and the broader turbine control architecture. Before removing the failed module, engineers should document the existing terminal wiring using the plant’s as-built drawings, paying particular attention to the field excitation feedback signals, de-excitation contactor control outputs, and any analog inputs tied to the exciter voltage and current monitoring circuits.

The IS200EDEXG1AFA operates within a Mark VI rack alongside companion modules such as the IS200VTURH1BAA turbine control board, the IS200TREGH1BAA terminal board, and the IS215VCMIH2CC VME communication interface module. The rack’s power distribution is managed through the IS200EPSMG1A power supply module, which must be verified to deliver stable 28 VDC before the replacement board is seated. Any voltage deviation at the backplane can cause the new module to fail initialization or generate nuisance I/O faults.

Terminal board wiring — typically routed through the IS200TBCIH1BAA or IS200TTURH1BAA terminal boards — must be inspected for insulation integrity and correct torque on all screw terminals before the system is re-energized. Loose or corroded terminations are a common source of intermittent faults that can be misdiagnosed as board failures. If the plant uses a redundant Mark VI configuration (TMR — Triple Modular Redundancy), the replacement IS200EDEXG1AFA must be installed in the correct voting slot and its module address configured to match the original assignment in the GE Toolbox project file.

For facilities that have migrated portions of their control system to the Mark VIe platform, the IS200EDEXG1AFA may interface with IS420UCSBH3A controller boards or IS420ESWAH1A Ethernet switch modules as part of a hybrid architecture. In these environments, the IONet communication link between the exciter board and the main controller must be verified using the GE Toolbox diagnostic screens, and any I/O health alarms should be cleared only after confirming that the physical wiring and module configuration are correct.

Signal isolators — such as those used on 4–20 mA exciter current feedback loops — should also be tested during the retrofit to ensure that the analog signal chain remains accurate after the board swap. A calibrated loop tester applied at the terminal board will confirm signal integrity before the HMI exciter trend displays are validated against the physical measurements.

Downtime Control During System Migration

Minimizing downtime during an IS200EDEXG1AFA replacement begins with pre-staging the replacement board and verifying its firmware revision against the plant’s Toolbox project file before the maintenance window opens. GE Mark VI boards are sensitive to firmware mismatches, and a board with an incompatible firmware version will either fail to communicate on the IONet network or generate persistent diagnostic alarms that prevent the turbine from being released to automatic control.

The recommended procedure is to export the current Toolbox project, back up all I/O forcing states, and document the current module health status from the Mark VI diagnostic display before initiating the card pull. During the swap, the turbine should be in a safe shutdown state with the generator field breaker open and the de-excitation contactor confirmed open by both the control system and a local visual inspection.

After seating the replacement IS200EDEXG1AFA, the Toolbox download sequence should be performed with the board in a forced-offline state to allow configuration to complete before the board is brought online. Once the download is confirmed successful, the I/O forcing states should be restored, and the exciter control loop should be verified in manual mode before transferring to automatic voltage regulation (AVR) control. This staged approach protects the original program logic, preserves the HMI exciter trend history, and ensures that the communication link between the exciter board and the plant DCS or SCADA system is re-established without data loss.

For plants operating under tight maintenance windows, having a pre-tested and pre-configured IS200EDEXG1AFA available from a reliable supplier with confirmed stock and fast dispatch capability is the single most effective way to reduce total outage duration. Our inventory is tested prior to shipment, and each unit is dispatched with a 12-month warranty to support your maintenance planning cycle.

Retrofit Support FAQ

Q: Is the IS200EDEXG1AFA a direct drop-in replacement for all Mark VI exciter de-excitation board variants?
A: The IS200EDEXG1AFA is compatible with standard Mark VI rack configurations. However, variant suffixes (e.g., G1AFA vs. G1AFB) may indicate minor hardware revisions. We recommend confirming the firmware revision and Toolbox project compatibility before installation. Our technical team can assist with cross-reference verification prior to shipment.

Q: What commissioning steps are required after installing the replacement board?
A: After physical installation, a GE Toolbox download is required to configure the module address and I/O mapping. The exciter control loop should be verified in manual mode, and all analog feedback signals should be confirmed against the HMI displays before transferring to automatic control. Terminal wiring should be torque-checked and insulation resistance tested as part of the commissioning record.

Q: How do I confirm wiring compatibility between the IS200EDEXG1AFA and my existing terminal boards?
A: Refer to the plant’s as-built wiring diagrams and the GE Mark VI I/O wiring manual for the IS200EDEXG1AFA. Key signals include the field excitation feedback, de-excitation contactor control, and exciter voltage/current analog inputs. If the terminal board (e.g., IS200TREGH1BAA) has been in service for an extended period, inspect all terminations for corrosion and re-torque to specification before energizing.

Q: What is the warranty and what does pre-shipment testing cover?
A: Every IS200EDEXG1AFA unit is tested prior to dispatch to verify board-level functionality, communication interface integrity, and I/O channel operation. Each unit is supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Stock is available for immediate dispatch to minimize your plant’s downtime exposure.
