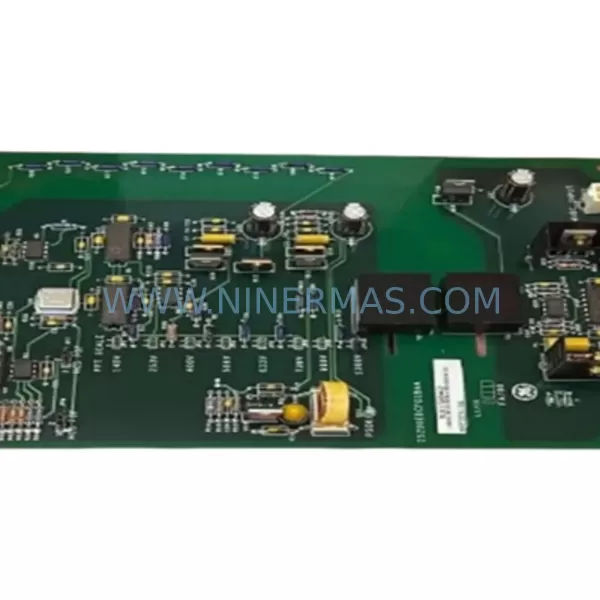

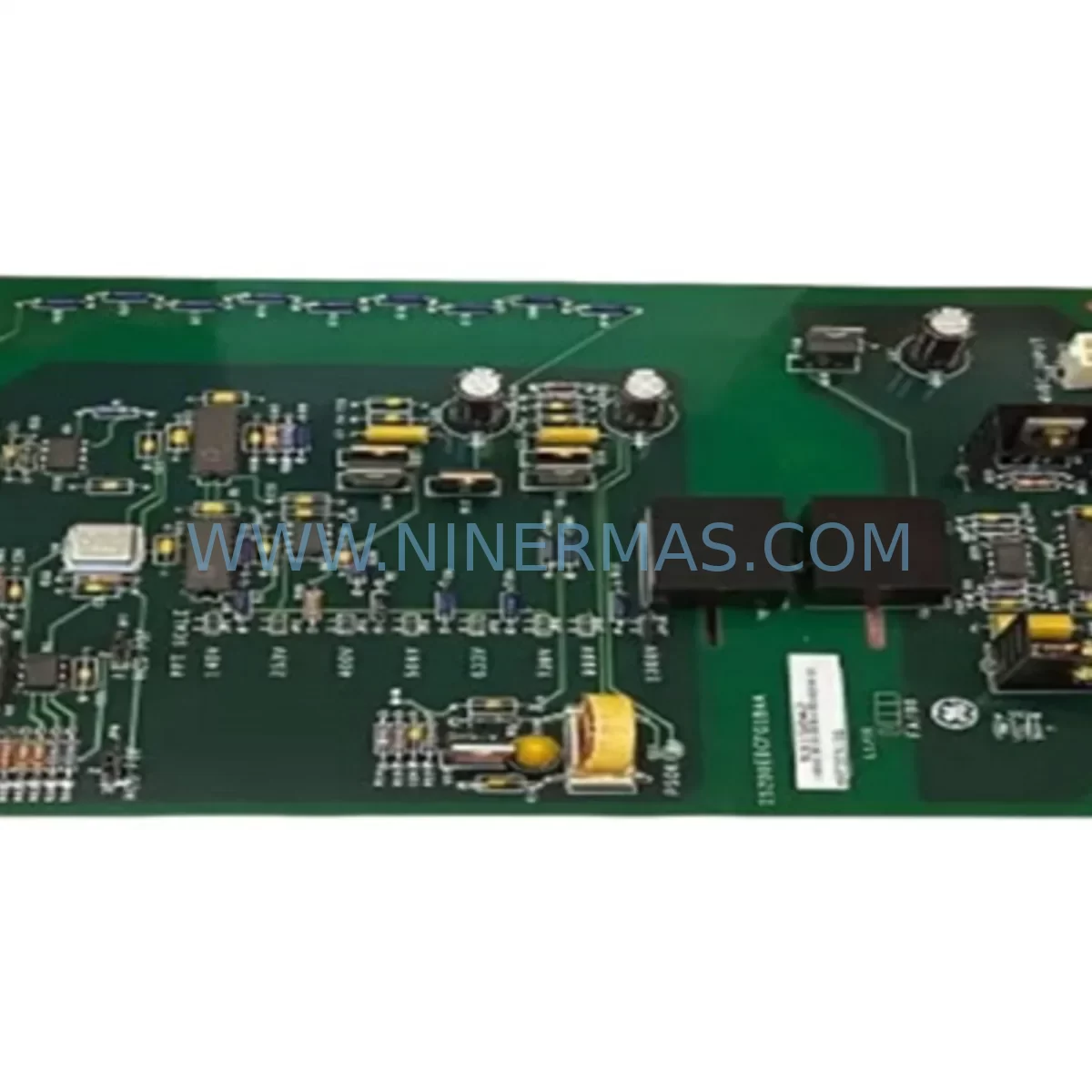

GE IS200EDCFG1BAA Retrofit-Compatible DC Field Controller for Legacy Exciter Systems

The GE IS200EDCFG1BAA is a DC field controller module designed for the EX2100e digital excitation control platform. As power generation facilities and industrial automation sites face the end-of-life of older excitation systems, the IS200EDCFG1BAA has become a critical component in retrofit programs that demand backward compatibility, minimal downtime, and verified field performance. Whether you are replacing a failed module in an aging Mark V or Mark VI turbine control cabinet, or executing a planned migration from an EX2100 to an EX2100e architecture, this module provides the electrical and functional interface required to maintain generator field control continuity.

Sourced from verified inventory channels, each IS200EDCFG1BAA unit offered by NINERMAS undergoes pre-shipment functional inspection to confirm board integrity, connector condition, and firmware revision compatibility. Our stock supports urgent replacement scenarios where production continuity depends on same-week dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the IS200EDCFG1BAA within an operating EX2100e excitation cabinet requires a structured approach that accounts for the interdependencies between modules sharing the same rack and control bus. The EX2100e platform is built around a modular architecture where the DC field controller works in close coordination with the IS200EACFG1B AC field controller, the IS200PSMDG1A power supply module, and the IS200STCIG1A static excitation controller interface. Before removing the failed IS200EDCFG1BAA, engineers should document the existing module address configuration and verify that the replacement unit carries the same hardware revision to avoid firmware mismatch errors during initialization.

In retrofit scenarios where the original excitation system was based on an earlier EX2100 platform, the migration path typically involves replacing the entire controller card set. This may include the IS200EACFG1B for AC field regulation, the IS200VCRCH1B voltage control card, and the IS200TRLYH1B relay output module, all of which must be confirmed compatible with the target EX2100e software baseline. The IS200EDCFG1BAA interfaces with the generator field winding through the exciter bridge, and any change in field current setpoint scaling must be reflected in the application program loaded on the IS200STCIG1A or equivalent controller.

For sites migrating from Mark V or Mark VI turbine control systems that included integrated excitation control, the IS200EDCFG1BAA retrofit also requires attention to the HMI configuration. Operator screens that display field current, field voltage, and excitation mode must be updated to reflect the new module’s data tags. Communication links between the EX2100e and the plant DCS, typically via Modbus RTU or Ethernet-based protocols, should be re-verified after module replacement to confirm that analog output scaling and alarm setpoints remain consistent with the original control philosophy.

I/O expansion considerations are also relevant when the IS200EDCFG1BAA replacement is part of a broader control cabinet upgrade. If the site is adding new protection functions or integrating a digital fault recorder, the rack may require additional I/O modules such as the IS200BICLH1B digital input card or the IS200AOCCH1B analog output card. Confirm that the backplane has sufficient available slots and that the power supply module can support the additional load before finalizing the retrofit bill of materials.

Downtime Control During System Migration

Minimizing unplanned outage duration during an IS200EDCFG1BAA replacement depends on preparation quality. Before the maintenance window opens, the replacement module should be on-site, inspected, and confirmed to match the hardware revision of the unit being removed. The application program backup should be extracted from the existing controller and stored on a programming laptop loaded with the correct version of GE’s Toolbox or ControlST software. This ensures that if the new module requires a program download, the process can be completed within the planned outage window without waiting for software retrieval.

During the swap, the field winding should be de-energized and the exciter bridge isolated before the IS200EDCFG1BAA is removed from the rack. After seating the replacement module, the backplane connector should be inspected for proper engagement before power is restored. The controller will perform a self-diagnostic sequence on startup, and any fault codes should be cleared only after the root cause has been identified. For sites with redundant excitation channels, the standby channel can remain active during the replacement, allowing the generator to remain online in a degraded mode while the primary channel is restored.

Post-replacement commissioning should include a verification of field current response under no-load and loaded conditions, confirmation that all HMI displays are reading correctly, and a check of the communication link status between the EX2100e and the plant control network. Logging the commissioning results and updating the site maintenance record with the replacement module’s serial number and firmware revision supports future troubleshooting and warranty claims.

Retrofit Support FAQ

Q: Is the IS200EDCFG1BAA a direct drop-in replacement for the original EX2100e DC field controller?
A: In most cases, yes. The IS200EDCFG1BAA is designed for the EX2100e platform and uses the same backplane interface. However, you should verify the hardware revision and firmware baseline match your existing system configuration before installation to avoid compatibility issues.

Q: What wiring changes are required when replacing the IS200EDCFG1BAA?
A: The IS200EDCFG1BAA connects to the field circuit through the EX2100e backplane rather than direct terminal wiring, so no field wiring changes are typically required. Inspect the backplane connector on both the rack and the module for pin damage or corrosion before seating the replacement.

Q: How do you verify the replacement module is functioning correctly after installation?
A: After installation, restore power and observe the controller’s self-diagnostic sequence. Confirm that no fault codes related to the DC field controller are active, verify field current feedback is reading correctly on the HMI, and perform a no-load excitation test to confirm the module is regulating field current within the expected range.

Q: What warranty and supply support does NINERMAS provide for the IS200EDCFG1BAA?
A: NINERMAS provides a 12-month warranty covering manufacturing defects and functional failure. Each unit is inspected before shipment. We maintain stock for urgent replacement requirements and can support same-week dispatch for critical outage situations. Contact our team to confirm current inventory availability and lead time.

—
