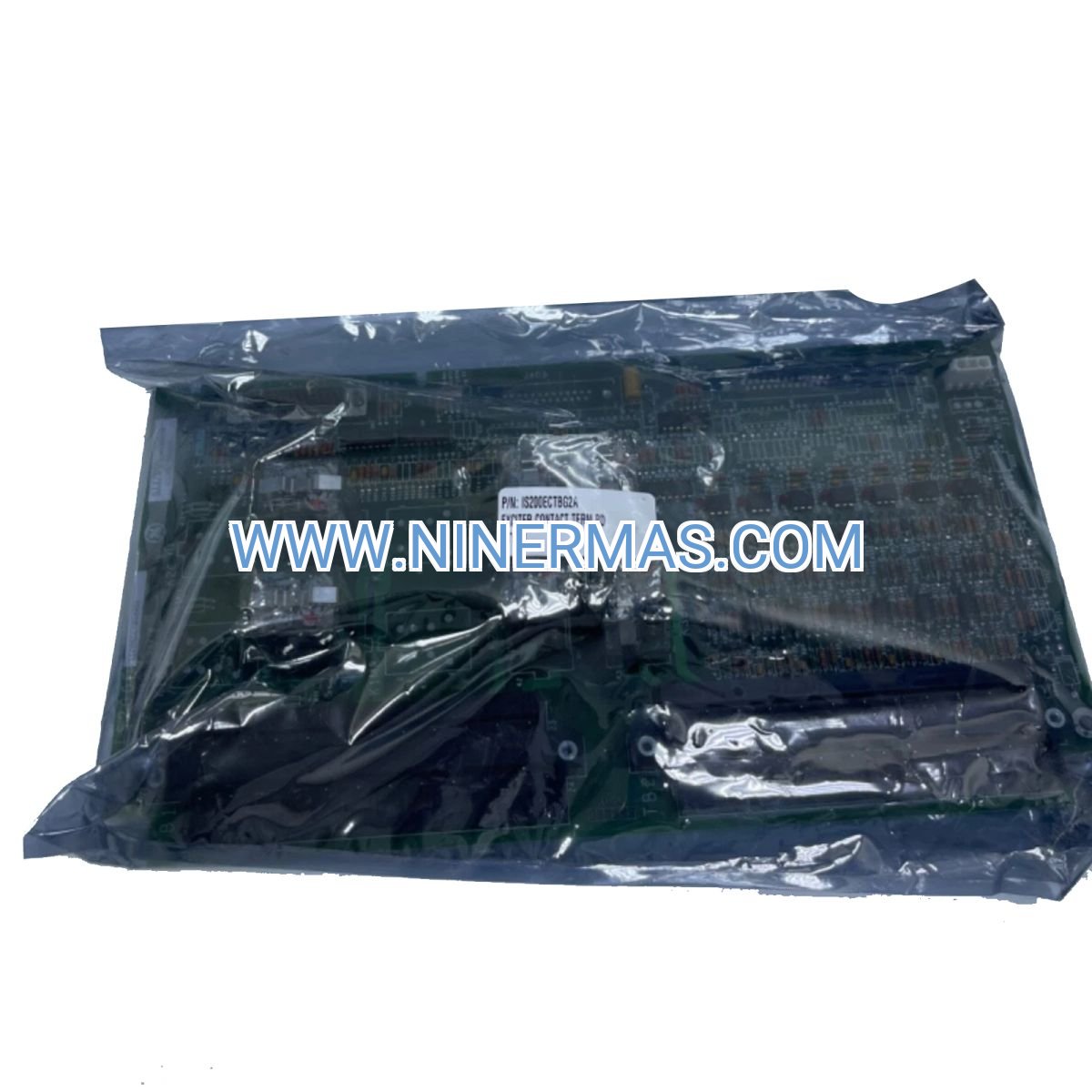

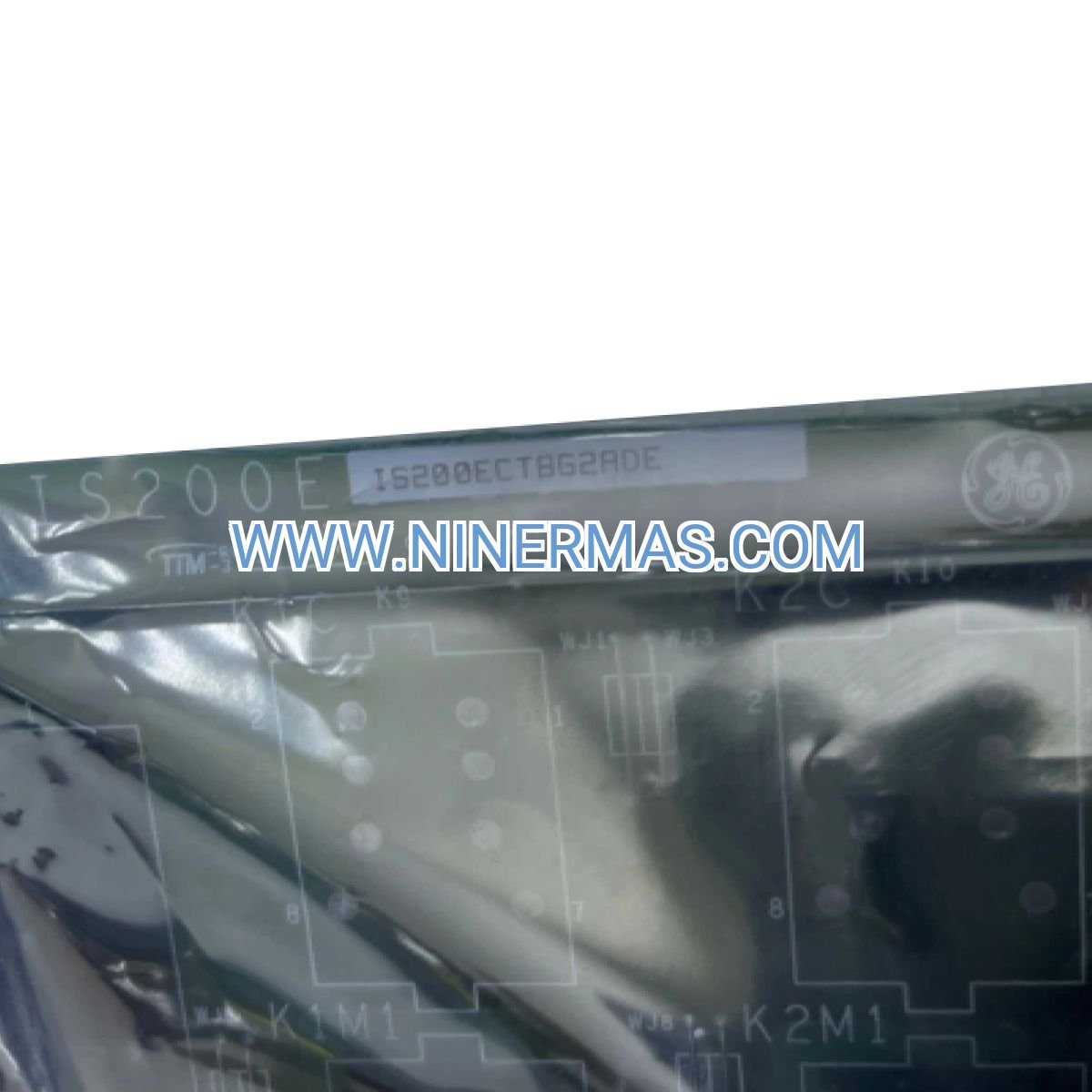

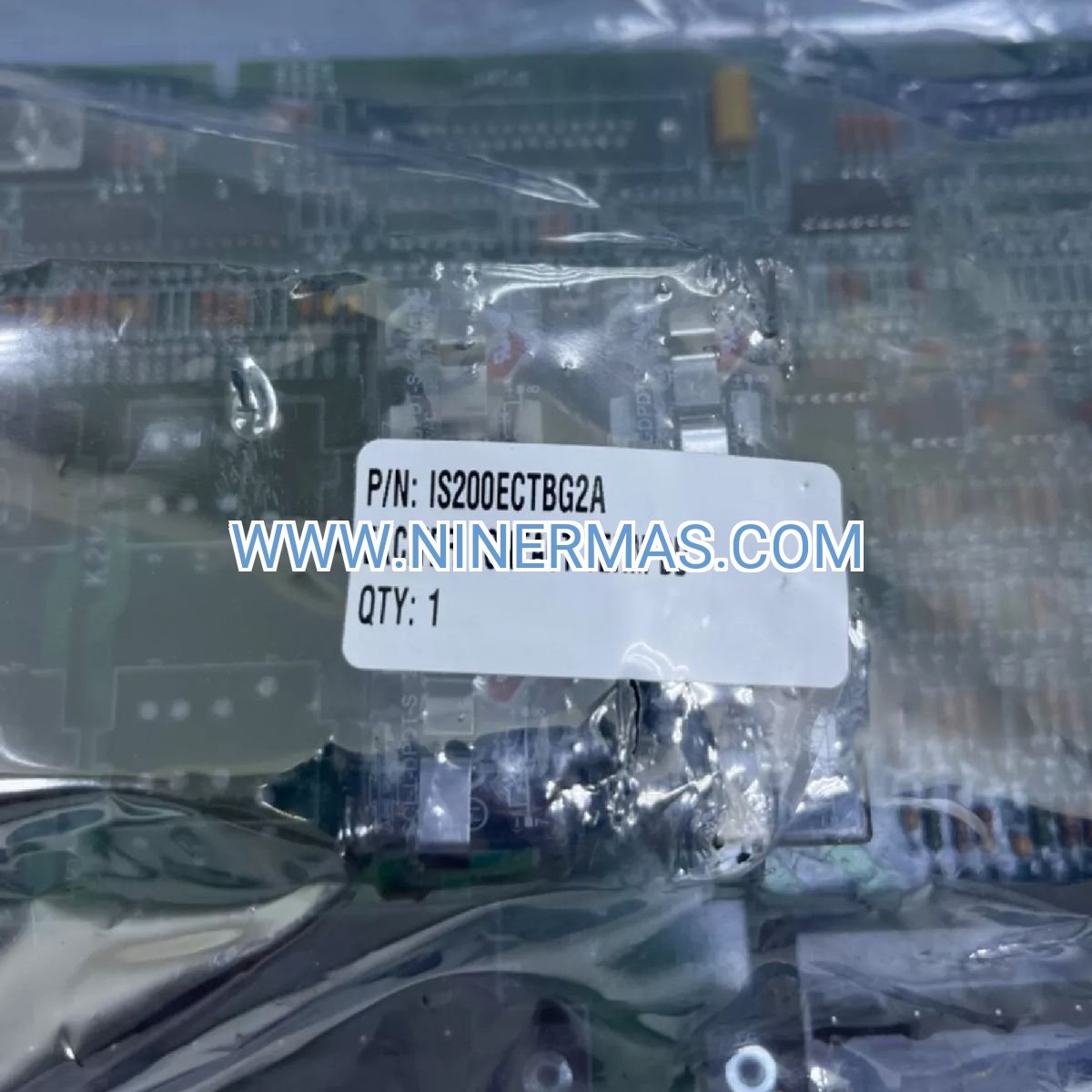

IS200ECTBG2ADE Exciter Terminal Board (Industrial-Grade Mark VI Interface)

The IS200ECTBG2ADE represents a mission-critical interface solution engineered for exciter contact signal management within GE's Mark VI Speedtronic turbine control ecosystem. Manufactured to exacting standards and now supported by Emerson Automation Solutions, this terminal board delivers field-proven performance in simplex turbine generator configurations across power generation, oil & gas, and industrial cogeneration sectors.

Designed for environments where voltage regulation precision directly impacts grid stability and equipment longevity, the IS200ECTBG2ADE provides robust signal conditioning and reliable contact routing between exciter systems and Mark VI control processors. Its conformal-coated construction and VME-compatible architecture ensure seamless integration with existing Speedtronic platforms while maintaining operational integrity in harsh industrial conditions.

Whether you're executing planned maintenance, emergency replacements, or system capacity expansions, this terminal board offers the reliability and compatibility that turbine operators demand. With global logistics support and comprehensive technical documentation, Industrial Control Hub ensures your critical control systems remain operational with minimal downtime.

Technical Advantages & Performance Benefits

→ Precision Signal Conditioning: Advanced circuit topology ensures accurate exciter contact state detection with noise immunity up to 1500V surge protection, eliminating false trips in electrically noisy environments

→ Proven Field Reliability: Over 100,000 hours MTBF demonstrated across thousands of global installations, reducing unplanned maintenance events and extending service intervals

→ Environmental Resilience: Operates reliably from -30°C to +65°C with 5-95% humidity tolerance, making it suitable for desert, arctic, and marine applications without derating

→ Rapid Integration: VME form factor and standardized pinout enable plug-and-play installation in Mark VI racks, reducing commissioning time by up to 40% compared to legacy solutions

→ Maintenance Efficiency: Modular design with LED diagnostic indicators allows technicians to identify and resolve issues without specialized test equipment, minimizing troubleshooting time

✓ Cost-Effective Simplex Architecture: Optimized for single-channel applications where redundancy requirements are met at the system level, delivering 30-40% cost savings versus TMR configurations

Industrial Application Scenarios

Utility-Scale Power Generation
In combined-cycle gas turbine (CCGT) plants generating 200-800 MW, the IS200ECTBG2ADE manages exciter contact signals for synchronous generators, ensuring precise voltage regulation during load transitions. Plant operators report 99.7% availability rates when using genuine GE terminal boards versus aftermarket alternatives.

Petrochemical Cogeneration Systems
Refineries and chemical plants operating turbine-driven generators for process steam and electrical power rely on this terminal board to maintain stable excitation control during frequent load swings. The board's vibration resistance (tested to 5G continuous) prevents contact chatter that could trigger protective relays.

Oil & Gas Mechanical Drive Applications
Offshore platforms and pipeline compressor stations use the IS200ECTBG2ADE in turbine control systems where space constraints and corrosive atmospheres demand compact, sealed electronics. The conformal coating provides Class 3C3 corrosion protection per ISA-71.04 standards.

Emergency Backup Power Systems
Data centers and critical infrastructure facilities deploy this terminal board in standby turbine generators that must achieve full excitation within 10 seconds of grid failure. The board's fast response time (< 50ms) ensures rapid voltage buildup during black-start sequences.

Marine Propulsion & Auxiliary Power
Naval vessels and commercial ships integrate the IS200ECTBG2ADE into turbine generator sets operating in high-vibration, salt-spray environments. MIL-STD-810 qualified construction ensures reliable operation through shock events and extreme pitch/roll conditions.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the IS200ECTBG2ADE for simplex Mark VI installations requiring cost-effective exciter contact interfacing. For triple-modular redundant (TMR) systems, consult our engineering team for appropriate redundant board configurations. Verify compatibility with your specific Mark VI software revision (R04.03 or later recommended) and ensure adequate VME backplane slot availability.

Advanced Integration & IoT Capabilities

While the IS200ECTBG2ADE operates as a standalone terminal board, modern Mark VI systems can leverage its diagnostic data through integration with Emerson's Ovation™ SCADA platform or third-party DCS systems via Modbus TCP/IP gateways. This enables:

• Predictive Maintenance: Trend analysis of contact switching frequency to predict relay wear before failure
• Remote Diagnostics: Real-time monitoring of board health parameters from centralized control rooms
• Alarm Management: Automated notification of exciter contact anomalies to maintenance personnel via SMS/email
• Performance Analytics: Historical logging of excitation events for root-cause analysis and optimization

For customers implementing Industry 4.0 initiatives, we offer consultation on integrating legacy Mark VI hardware with modern cloud-based asset management platforms, extending the operational lifespan of proven control infrastructure.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock IS200ECTBG2ADE units ship within 24-48 hours via DHL/FedEx Express, with typical transit times of 3-5 business days to major industrial centers worldwide. All shipments include anti-static packaging, handling instructions, and certificate of conformity.

Custom Configurations: Factory-programmed boards or large-quantity orders (10+ units) require 2-4 weeks lead time. Expedited production available for critical outage situations with 50% surcharge.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues under normal operating conditions. Extended 36-month warranty available at 15% premium.

Technical Support: Lifetime access to our turbine control specialists for installation guidance, troubleshooting assistance, and system integration consulting. Phone/email support available 24/7 for emergency situations.

Documentation Package: Each order includes installation manual, wiring diagrams, dimensional drawings, and material certifications. ToolboxST configuration files available upon request for registered Mark VI users.

Frequently Asked Questions

Can this terminal board interface with Mark VIe or Mark VI-IS control systems?
The IS200ECTBG2ADE is optimized for standard Mark VI platforms. While physical compatibility exists with Mark VIe racks, software configuration differences may require adapter modules. For native Mark VIe deployments, we recommend the IS200ERDDH1ABB exciter regulator board. Mark VI-IS systems (Integrated Simplex) can utilize this board with firmware revision R05.01 or later.

What diagnostic capabilities are built into the board?
The terminal board features multi-color LED indicators for power status, contact state, and fault conditions. When integrated with Mark VI controller diagnostics, it reports contact bounce events, open-circuit faults, and ground leakage conditions through the ToolboxST interface. Advanced diagnostics require Mark VI software R04.03 or newer.

How does this board handle electrical noise in high-EMI environments?
Conformal coating, shielded traces, and optical isolation provide immunity to radiated EMI up to 10 V/m (80 MHz - 1 GHz) and conducted disturbances per IEC 61000-4-6. Ferrite filtering on all I/O lines suppresses common-mode noise. For extreme environments (arc furnaces, RF transmitters), additional external filtering may be required.

What is the recommended spare parts strategy for this component?
For critical single-turbine installations, maintain one spare board on-site. Multi-unit plants should stock spares at 10% of installed base (minimum 2 units). Average replacement interval is 8-12 years under normal conditions. We offer consignment inventory programs for large facilities to minimize capital tied up in spares.

Are refurbished or surplus units available at lower cost?
We stock factory-certified refurbished IS200ECTBG2ADE boards at 40-50% discount versus new pricing. All refurbished units undergo full functional testing, component replacement as needed, and carry the same 12-month warranty. Surplus new-old-stock (NOS) units occasionally available - contact sales for current inventory.

What training is required for installation and maintenance?
Basic installation can be performed by electricians familiar with VME rack systems and industrial wiring practices. Functional testing and integration with Mark VI control logic requires GE-certified technicians or equivalent training. We offer on-site commissioning support and remote guidance for qualified personnel.

Order Your IS200ECTBG2ADE Terminal Board Today

Ensure uninterrupted turbine control system operation with genuine GE components backed by expert support. Whether you're facing an emergency outage, planning preventive maintenance, or upgrading legacy systems, Industrial Control Hub delivers the parts and expertise you need.

Ready to order or need technical assistance? Contact our turbine control specialists at sale@ninermas.com or call +0086 187 5021 5667 for immediate support. Request a detailed quotation, discuss system integration requirements, or schedule a consultation with our application engineers.

Industrial Control Hub - Your trusted partner for mission-critical automation components since 2015.
