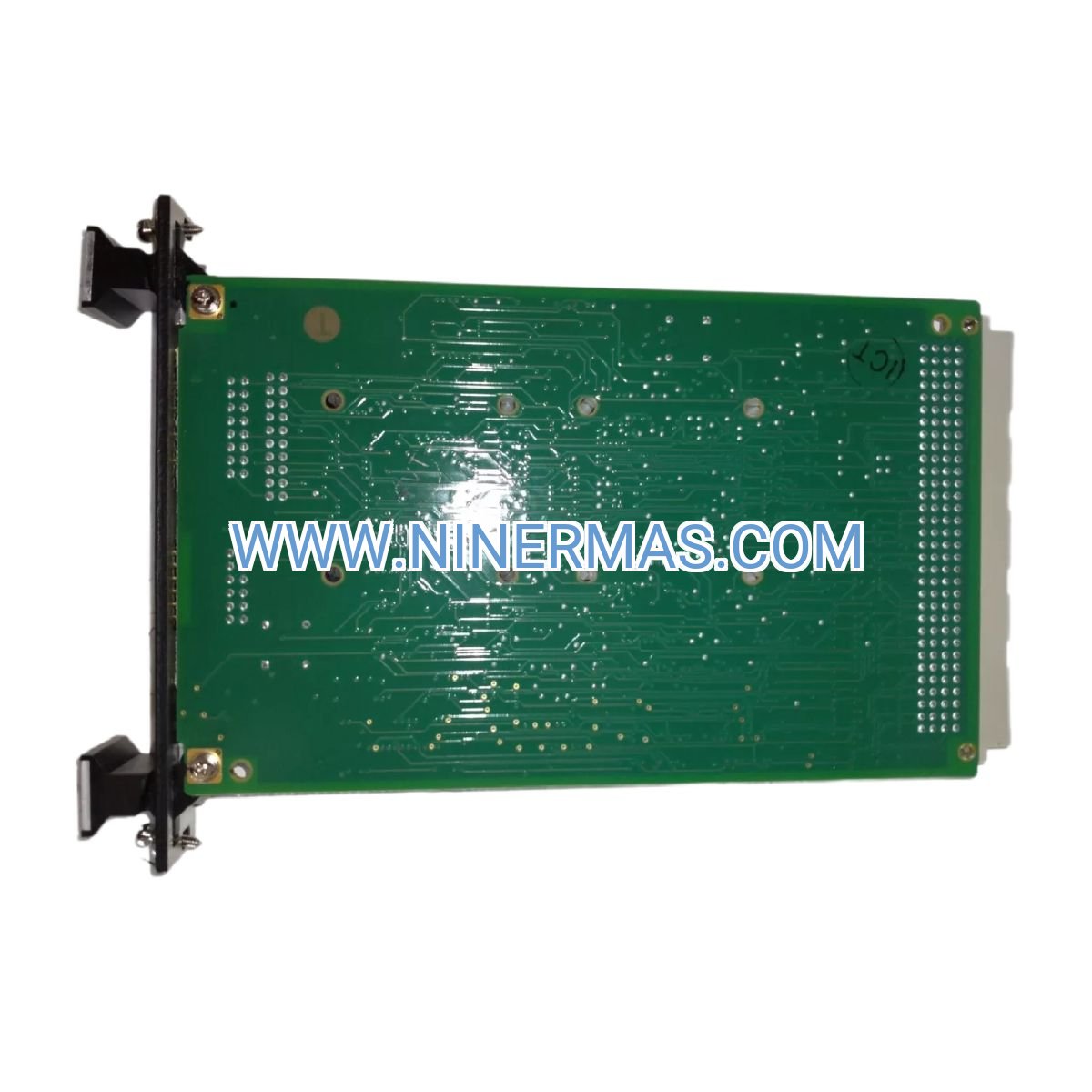

GE IS200DSPXH1DBD Digital Signal Processor Board (Industrial-Grade Turbine Control Solution)

The GE IS200DSPXH1DBD 6BA02 is an industrial-grade digital signal processor (DSP) board designed for real-time turbine control applications within GE Mark VI and Mark VIe distributed control systems. Through advanced DSP architecture and multi-channel signal processing, it enables precise monitoring, protection logic execution, and performance optimization for gas turbines, steam turbines, and combined-cycle power plants.

Ideal for power generation facilities, industrial cogeneration plants, oil & gas compression stations, and process industries requiring continuous turbine operation. This module addresses critical challenges including signal latency, computational accuracy under harsh conditions, insufficient diagnostic visibility, and system integration complexity across legacy and modern control platforms.

Featuring standardized Mark VI form factor with field-proven reliability, the IS200DSPXH1DBD delivers deterministic processing performance, electromagnetic immunity, and seamless interoperability with GE control networks. Suitable for plant engineers, system integrators, OEM service providers, and facility maintenance teams. Contact our application engineers for compatibility verification, configuration assistance, and technical documentation.

Core Capabilities & Technical Advantages

Real-Time Signal Processing Architecture
Executes control algorithms with microsecond-level determinism through dedicated DSP cores, ensuring stable turbine operation during load transients, grid disturbances, and startup/shutdown sequences without computational delays.

Multi-Channel Analog & Digital I/O Integration
Processes simultaneous inputs from temperature sensors, pressure transmitters, vibration probes, and speed pickups, providing comprehensive turbine health monitoring and protection trip logic with configurable threshold settings.

Enhanced Environmental Resilience
Operates reliably across -30°C to +65°C ambient temperature range with conformal coating protection against moisture, dust, and chemical exposure. Meets industrial EMC standards for installation near high-voltage switchgear and variable frequency drives.

Diagnostic Intelligence & Fault Isolation
Integrated self-test routines with LED status indicators and system-level alarm reporting through Mark VI HMI. Enables rapid troubleshooting with module-level fault identification, reducing mean time to repair (MTTR) by up to 40%.

Backward & Forward Compatibility
Drop-in replacement for legacy DSP modules in Mark VI systems while supporting migration paths to Mark VIe platforms. Firmware-compatible across multiple GE control software versions, minimizing engineering effort during upgrades.

Redundancy & Hot-Swap Support
Supports TMR (Triple Modular Redundant) configurations for critical control loops. Hot-swappable design allows module replacement during operation without system shutdown, maximizing plant availability in 24/7 production environments.

Typical Application Scenarios

This DSP board is engineered for installations demanding high computational reliability, signal integrity, and continuous operation, particularly in:

Gas Turbine Power Generation
Manages combustion control, emissions monitoring (NOx, CO), and load governor functions in utility-scale and industrial gas turbines. Processes flame scanner signals, fuel valve positioning, and compressor inlet guide vane control for optimal efficiency across varying load profiles.

Steam Turbine & HRSG Systems
Handles steam admission valve control, condenser vacuum monitoring, and extraction pressure regulation in Rankine cycle applications. Coordinates with heat recovery steam generators (HRSG) for combined-cycle plant optimization and rapid load-following capability.

Combined-Cycle & Cogeneration Plants
Orchestrates gas turbine-steam turbine coordination, bypass stack control, and process steam extraction management. Ensures seamless mode transitions between base load, peak shaving, and islanded operation while maintaining grid code compliance.

Mechanical Drive & Compression Applications
Controls turbines driving centrifugal compressors in LNG facilities, pipeline booster stations, and petrochemical plants. Manages anti-surge protection, speed matching, and torque limiting to prevent equipment damage during process upsets.

District Heating & Industrial Steam Networks
Regulates back-pressure turbines and extraction turbines supplying process steam to manufacturing facilities, refineries, and district heating systems. Balances electrical generation with thermal load demands through coordinated valve control strategies.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide comprehensive technical parameters for the IS200DSPXH1DBD module. Custom configurations available for specialized applications.

Selection Considerations
When specifying the IS200DSPXH1DBD for your application, evaluate: existing Mark VI/VIe control platform version, required I/O channel count and signal types, environmental conditions (temperature extremes, vibration levels per IEC 60068-2-6), redundancy architecture (simplex, dual, or TMR), and communication protocol requirements (Modbus TCP, OPC UA). For retrofit projects, verify backplane compatibility and available slot positions. Our engineering team provides application-specific configuration worksheets and system integration support upon request.

Advanced Integration Features

Modbus TCP & OPC UA Connectivity
Native support for industrial Ethernet protocols enables seamless integration with SCADA systems, plant historians (OSIsoft PI, Wonderware), and enterprise MES platforms for real-time data acquisition and remote diagnostics.

Custom Algorithm Deployment
Supports user-defined control logic through GE ToolboxST programming environment. Allows implementation of proprietary control strategies, advanced process optimization algorithms, and site-specific protection schemes without hardware modification.

Cybersecurity Hardening
Firmware includes role-based access control, encrypted communication channels, and audit logging compliant with IEC 62443 industrial cybersecurity standards. Suitable for critical infrastructure applications requiring NERC CIP compliance.

Predictive Maintenance Integration
Onboard diagnostics track module health parameters (temperature, voltage rails, communication errors) with trend data export for condition-based maintenance programs. Reduces unplanned downtime through early fault detection.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard IS200DSPXH1DBD modules ship from stock within 2-3 business days. Custom-configured or tested units require 5-7 business days. Expedited same-day shipping available for emergency outage support (subject to inventory and destination).

Warranty Coverage
All modules include a comprehensive 12-month warranty covering manufacturing defects, component failures, and functional non-conformance. Warranty includes free replacement, return shipping labels, and technical root-cause analysis. Extended warranty plans (24/36 months) available for critical applications.

Technical Support Services
Complimentary pre-sales application engineering assistance, post-installation commissioning guidance via phone/email, and remote diagnostic support during warranty period. On-site startup assistance and training available (quoted separately based on location).

Documentation Package
Each module ships with: installation quick-start guide, detailed technical manual (PDF), electrical connection diagrams, firmware version documentation, calibration certificates (where applicable), and RoHS/REACH compliance declarations. CAD drawings and 3D STEP models available upon request.

Quality Certifications
Manufactured under ISO 9001:2015 quality management system. All units undergo 100% functional testing, burn-in cycles (48 hours minimum), and environmental stress screening per GE quality procedures. Traceability documentation maintained for aerospace and nuclear applications.

Frequently Asked Questions (FAQ)

Q: How does the IS200DSPXH1DBD integrate with existing Mark VI control cabinets?
A: The module uses standard VME64 backplane connectivity and auto-configures upon insertion into compatible Mark VI racks (VCMI, VVIB). Configuration is managed through GE ToolboxST software with automatic I/O mapping. Verify your control software version supports the 6BA02 revision; firmware R05.00 or later recommended. Our team provides pre-shipment configuration files if you supply your system tag database.

Q: What is the maximum number of DSP boards supported in a single Mark VI controller?
A: A standard Mark VI controller supports up to 12 DSP boards across three VME racks (4 per rack typical). Actual capacity depends on application complexity, scan time requirements, and I/O loading. For large turbine installations (>100MW), consult load distribution guidelines in GE publication GEH-6421.

Q: Can this board replace older DS200DSPCH1A modules in legacy systems?
A: Yes, the IS200DSPXH1DBD serves as a form-fit-function upgrade for DS200-series DSP boards in most Mark VI applications. Migration requires ToolboxST configuration update and firmware compatibility check. Approximately 85% of legacy applications migrate without control logic changes. Contact us with your current part number for specific compatibility confirmation.

Q: What diagnostic capabilities are available for troubleshooting?
A: The board features multi-color LED indicators for power status, communication health, and fault conditions. System-level diagnostics accessible through Mark VI HMI display module health, processor load, I/O status, and communication error counters. Built-in self-test (BIST) runs automatically at power-up and can be triggered manually for field verification.

Q: Is the module suitable for SIL-rated safety applications?
A: The IS200DSPXH1DBD is designed for control functions, not certified safety instrumented systems (SIS). For SIL 2/3 applications, use GE Mark VIeS safety controllers with certified I/O modules. This DSP board can interface with safety systems for non-safety control coordination.

Q: What are typical failure modes and recommended spare parts strategy?
A: Common failure modes include power supply component degradation (5-7 year MTBF), communication interface faults, and processor lockup (recoverable via reset). Recommended spares: 1 module per 10 installed for non-redundant systems, 1 per 20 for TMR configurations. Store spares in ESD-safe packaging at controlled temperature (15-25°C) with annual functional verification.

Request Technical Consultation & Quotation

To receive detailed application engineering support, configuration assistance, or project-specific pricing, please provide the following information to our turbine control specialists:

• Project name and facility location
• Turbine manufacturer, model, and rated capacity (MW or HP)
• Existing control system platform (Mark VI, Mark VIe, or migration project)
• Current control software version (ToolboxST release number)
• Required quantity and delivery timeline
• Redundancy architecture (simplex, dual, TMR)
• Special requirements (extended temperature, seismic qualification, custom testing)

Our application engineers will respond within 4 business hours with compatibility verification, configuration recommendations, and detailed quotation including shipping options.
