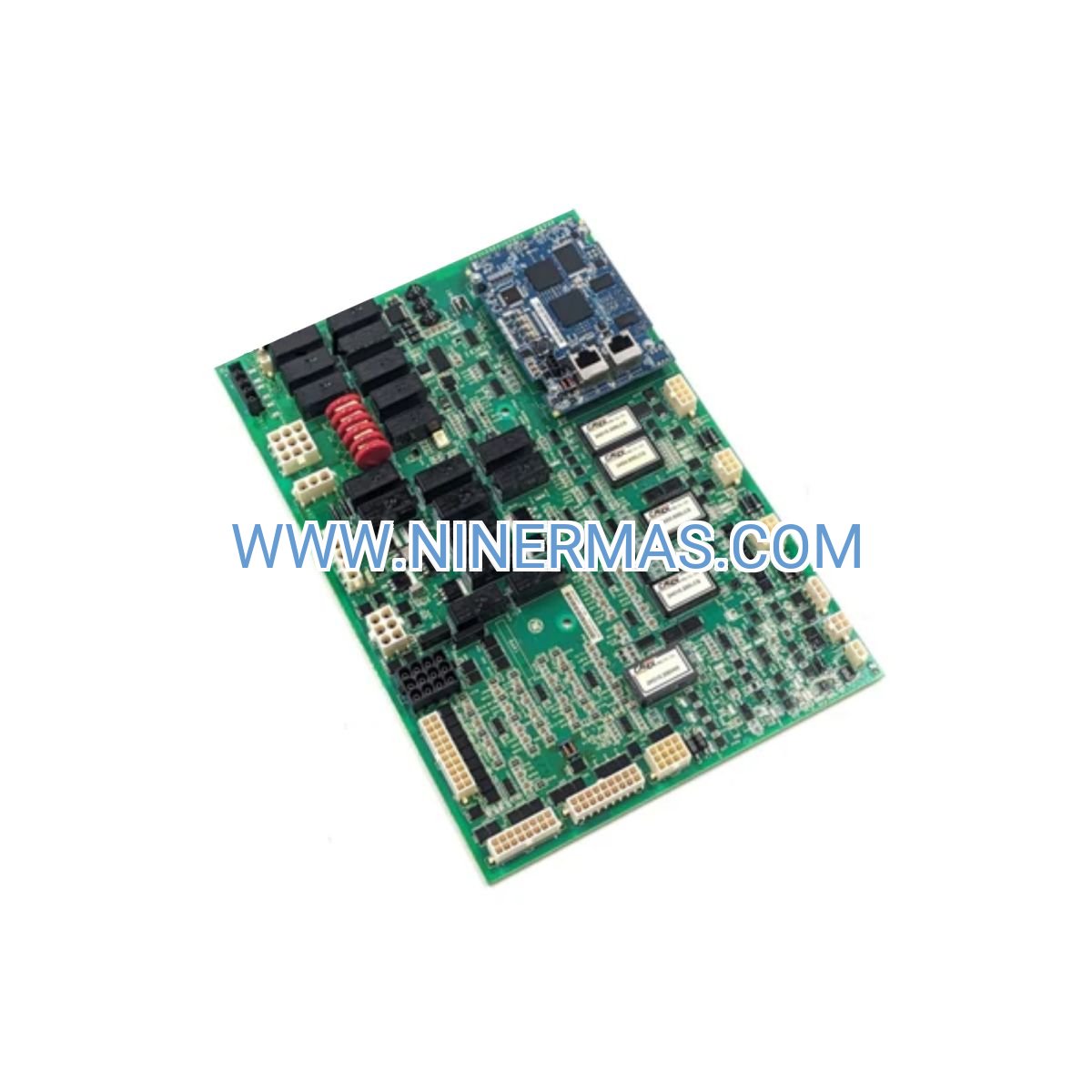

GE IS200AEPAH1AHD Application Control Layer Module (Industrial-Grade Turbine Automation)

The GE IS200AEPAH1AHD (alternate designation: IS215AEPAH1CA) represents a mission-critical Application Control Layer Module engineered for GE Mark VI Speedtronic turbine control architectures. Designed to deliver fault-tolerant processing and real-time control execution, this module serves as the computational backbone for gas turbine, steam turbine, and combined-cycle power generation systems across energy, petrochemical, and heavy industrial sectors.

Built on Triple Modular Redundant (TMR) architecture, the IS200AEPAH1AHD ensures continuous operation even during component failures, making it the preferred choice for utilities, independent power producers, and process industries where unplanned downtime translates to significant revenue loss. Whether you're managing a 50MW gas turbine or a 500MW combined-cycle plant, this control module provides the reliability and processing power demanded by modern turbine automation.

Industrial Control Hub supplies factory-certified GE modules with complete traceability documentation, backed by comprehensive technical support and expedited global logistics to minimize your procurement lead times.

Core Capabilities & Technical Advantages

→ Triple Modular Redundancy (TMR) for Maximum Uptime
Three independent processors execute identical control logic simultaneously, with voting logic automatically isolating faulty channels. This architecture delivers 99.99%+ availability for critical turbine protection and sequencing functions, eliminating single points of failure in your control system.

→ High-Speed Control Algorithm Execution
Optimized processing architecture handles complex PID loops, fuel scheduling, emissions control, and load management calculations with deterministic scan times under 10ms, ensuring precise turbine response during load transients and grid disturbances.

✓ Native Mark VI Ecosystem Integration
Seamless interoperability with Mark VI I/O modules, HMI workstations, and ToolboxST configuration software eliminates integration complexity. Hot-swappable design allows module replacement during operation without disrupting turbine control sequences.

✓ Extended Environmental Operating Range
Qualified for -30°C to +65°C ambient temperatures and 5-95% humidity (non-condensing), this module operates reliably in challenging environments including desert installations, offshore platforms, and tropical industrial facilities without additional climate control requirements.

✓ Multi-Protocol Communication Infrastructure
Ethernet and serial communication interfaces enable integration with plant DCS systems, SCADA networks, and remote monitoring platforms. Supports Modbus TCP, OPC, and proprietary GE protocols for comprehensive data exchange.

✓ Comprehensive Diagnostic & Predictive Maintenance
Built-in self-diagnostics continuously monitor processor health, memory integrity, communication status, and I/O channel performance. Fault logs and trend data accessible through HMI enable condition-based maintenance strategies that reduce unplanned outages.

Industrial Application Scenarios

Combined-Cycle Power Plants
In CCGT facilities, the IS200AEPAH1AHD coordinates gas turbine control with heat recovery steam generators (HRSG) and steam turbines. The module executes load distribution algorithms, manages turbine startup/shutdown sequences, and interfaces with grid synchronization systems to optimize thermal efficiency while maintaining emissions compliance.

Offshore Oil & Gas Production Platforms
Petroleum production platforms deploy this control module for mechanical drive gas turbines powering compression trains and electrical generators. The TMR architecture provides the fault tolerance required for unmanned offshore installations, while the extended temperature rating accommodates tropical marine environments without air conditioning.

Petrochemical Process Plants
Refineries and chemical facilities utilize the IS200AEPAH1AHD for cogeneration turbines supplying process steam and electrical power. The module's fast scan times enable tight integration with process control systems, coordinating turbine output with fluctuating steam demands from distillation columns, reactors, and heat exchangers.

District Energy & Municipal Power Systems
Urban district heating networks rely on this application control layer for CHP (combined heat and power) turbines serving residential and commercial loads. The module manages thermal load following, grid synchronization, and seasonal mode transitions between power-optimized and heat-optimized operation.

Industrial Manufacturing Facilities
Paper mills, steel plants, and automotive manufacturing complexes deploy Mark VI systems with IS200AEPAH1AHD modules for on-site power generation and process steam production. The control layer coordinates turbine operation with facility electrical loads, steam headers, and backup generator systems for maximum energy efficiency.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose TMR configuration for critical turbine control applications requiring SIL 2/3 safety integrity levels. Simplex configuration suitable for non-critical monitoring and auxiliary control loops. Verify compatibility with existing Mark VI I/O modules and firmware versions before procurement. Consult factory documentation for specific turbine model integration requirements.

Advanced Integration & IoT Connectivity

The IS200AEPAH1AHD supports modern Industrial IoT initiatives through its Ethernet communication backbone. Plant operators can integrate the module with cloud-based analytics platforms for remote performance monitoring, predictive maintenance algorithms, and fleet-wide turbine optimization. OPC UA server functionality enables seamless data exchange with third-party SCADA systems, historian databases, and enterprise asset management platforms.

For brownfield installations upgrading from legacy Mark V systems, the module provides migration pathways through compatible I/O interfaces and configuration import utilities in ToolboxST software. This reduces engineering hours during system modernization projects while preserving proven control strategies.

Cybersecurity features include role-based access control, encrypted communication channels, and audit logging to meet NERC CIP compliance requirements for critical infrastructure protection in utility applications.

Delivery Timeline & Technical Support Services

Standard Lead Time: 3-5 business days for in-stock modules with expedited shipping available to major industrial hubs worldwide. Custom configurations and TMR sets may require 7-10 business days for factory testing and documentation preparation.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Extended warranty programs available for critical applications.

Technical Support: Application engineering team provides pre-sales consultation for system architecture design, configuration file review, and integration planning. Post-sales support includes troubleshooting assistance, firmware update guidance, and replacement module commissioning support via phone, email, and remote desktop sessions.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration templates, and certificate of conformity. ToolboxST software license and training resources available separately.

Frequently Asked Questions

What distinguishes the IS200AEPAH1AHD from IS215AEPAH1CA part numbers?
These designations represent identical hardware with full form-fit-function interchangeability. The IS200 prefix denotes original Mark VI production batches, while IS215 indicates later manufacturing runs with enhanced component sourcing. Both versions share identical firmware compatibility, performance specifications, and system integration characteristics.

Can this application control layer module operate in simplex mode for cost-sensitive projects?
Yes, the IS200AEPAH1AHD supports both TMR and simplex deployment configurations. Simplex mode utilizes a single module for non-critical control loops, auxiliary systems, or applications where redundancy requirements are less stringent. TMR configuration recommended for primary turbine control, protection systems, and safety-instrumented functions.

How does the module interface with existing plant DCS and SCADA infrastructure?
Ethernet communication ports support Modbus TCP, OPC DA/UA, and proprietary GE protocols for bidirectional data exchange with distributed control systems. Serial interfaces accommodate legacy RTU devices and panel meters. Gateway modules available for PROFIBUS, DeviceNet, and Foundation Fieldbus integration when required.

What diagnostic capabilities assist with predictive maintenance programs?
Integrated diagnostics monitor processor utilization, memory health, communication link status, power supply voltage, and internal temperature. Fault event logging captures anomalies with timestamp and severity classification. Trend data accessible through HMI enables condition monitoring analytics for early detection of degradation patterns before functional failures occur.

Is the IS200AEPAH1AHD compatible with Mark VIe control systems?
This module is specifically architected for Mark VI platforms. Mark VIe systems utilize different hardware form factors and communication protocols. For Mark VIe applications, consult our technical team for equivalent control processor recommendations. Migration from Mark VI to Mark VIe requires system-level planning and is typically executed during major plant overhauls.

What cybersecurity measures protect the control module from unauthorized access?
Security features include password-protected configuration access, user authentication with role-based permissions, encrypted Ethernet communication options, and audit trail logging of all configuration changes. Firmware updates require cryptographic signature verification. Network segmentation and firewall deployment recommended per NIST and IEC 62443 industrial cybersecurity guidelines.

Order Your GE IS200AEPAH1AHD Module Today

Ensure uninterrupted turbine control system performance with genuine GE Application Control Layer Modules from Industrial Control Hub. Our global logistics network, technical expertise, and commitment to quality make us the preferred supplier for power generation facilities, process industries, and OEM turbine manufacturers worldwide.

Contact our application engineering team for system compatibility verification, configuration assistance, or volume pricing for multi-unit projects. Expedited shipping available for emergency replacements and critical path project schedules.
