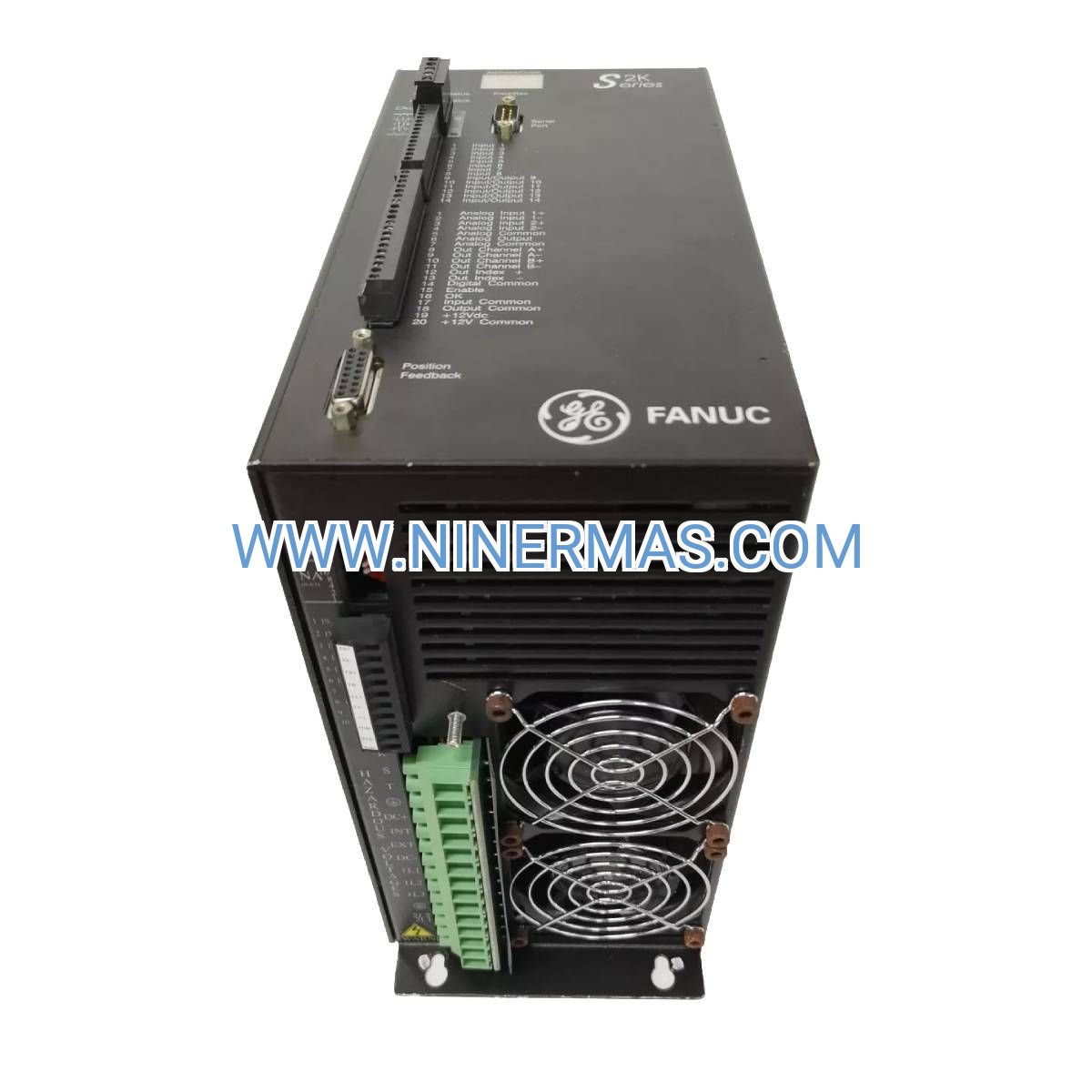

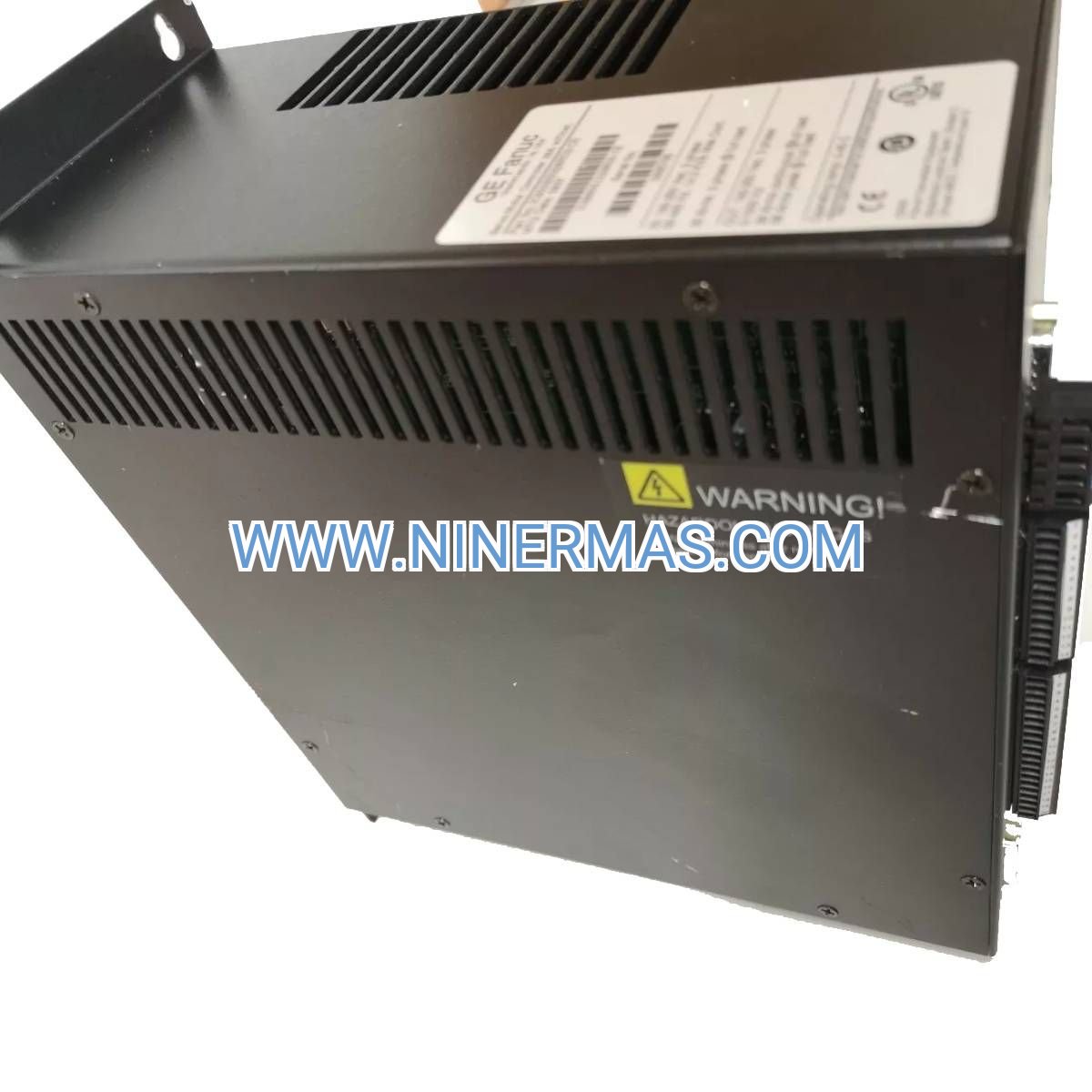

IC800SSI228RD2 Industrial-Grade Servo Drive Controller

The IC800SSI228RD2 represents GE's commitment to precision motion control engineering, delivering robust three-phase servo performance for demanding industrial environments. Built on the proven VersaMotion S2K architecture, this 28-ampere controller transforms complex motion sequences into repeatable, microsecond-accurate positioning across automated production systems.

Designed for manufacturers requiring deterministic motion profiles, the IC800SSI228RD2 bridges legacy control infrastructure with modern DeviceNet networking. Whether synchronizing multi-axis packaging lines or coordinating robotic assembly cells, this controller provides the torque regulation and velocity stability that quality-critical processes demand.

From automotive component manufacturing to pharmaceutical filling operations, the IC800SSI228RD2 delivers field-proven reliability with installation flexibility that reduces commissioning time by up to 40% compared to competitive solutions.

Performance Features & Industrial Advantages

→ Three-Phase Power Architecture
230V AC input with 28A continuous current capacity ensures sustained torque delivery for high-inertia loads while maintaining thermal stability across extended production shifts. Eliminates motor stalling in demanding applications.

✓ DeviceNet Protocol Integration
Native network connectivity enables real-time parameter adjustment and diagnostic monitoring without production interruption. Reduces troubleshooting time by 60% through centralized visibility into drive status and fault conditions.

• VersaMotion S2K Platform Compatibility
Seamless interoperability with GE's motion ecosystem allows unified programming across mixed drive installations. Simplifies spare parts inventory and technician training requirements.

✓ Extended Temperature Operation
Certified performance from -20°C to +60°C accommodates non-climate-controlled facilities and outdoor enclosures. Maintains positioning accuracy within ±0.02mm across full thermal range.

→ Compact Industrial Footprint
3kg mounting weight with DIN-rail compatibility maximizes cabinet space utilization. Enables retrofits into existing control panels without structural modifications.

• Overload Protection Circuitry
Integrated current limiting and thermal monitoring safeguards both drive electronics and connected motors from damage during jam conditions or mechanical faults.

Application Scenarios Across Industries

Packaging & Material Handling
Synchronizes conveyor speeds with filling stations, labeling heads, and case packers in high-speed packaging lines. Eliminates product damage from velocity mismatches while maintaining throughput rates exceeding 120 units/minute. Particularly effective in food processing where sanitary enclosure ratings prevent contamination.

CNC Machining & Metalworking
Controls tool positioning axes in milling centers, lathes, and grinding machines requiring sub-millimeter repeatability. The 28A rating handles cutting forces in aluminum and steel fabrication without velocity droop. DeviceNet integration allows coordinate data transfer directly from CAM systems.

Automated Assembly Systems
Drives pick-and-place actuators, screw-driving spindles, and component insertion mechanisms in electronics manufacturing. Reduces cycle time variability to under 50ms through precise acceleration profiling. Network diagnostics identify worn mechanical components before quality defects occur.

Textile & Printing Equipment
Maintains web tension control in roll-to-roll processes for printing presses, coating applicators, and fabric looms. Prevents material waste from tension spikes during speed transitions. Temperature tolerance supports installation near heat-generating dryers and curing ovens.

Pharmaceutical Production
Positions dosing pumps, tablet presses, and vial capping stations with validation-ready motion profiles. Audit trail capabilities through DeviceNet satisfy FDA 21 CFR Part 11 compliance requirements for electronic records.

Technical Parameters & Selection Criteria

Sizing Recommendations: Calculate total system inertia including load, coupling, and gearbox components. Select drive current rating at 125% of calculated RMS current during typical duty cycle. For applications with frequent reversals or rapid accelerations, consider the next higher current rating to maintain thermal margin.

Network Planning: DeviceNet supports up to 64 nodes per segment with maximum cable length of 500m at 125kbps baud rate. Use thick cable (DeviceNet thick) for trunk lines and thin cable for device drops. Terminate both ends of trunk with 121Ω resistors.

Extended Capabilities & Integration Options

Multi-Axis Coordination
When networked with additional IC800SSI drives, the controller supports electronic gearing and camming functions for synchronized multi-motor applications. Program master-slave relationships directly through DeviceNet without dedicated motion controllers.

Predictive Maintenance Integration
Continuous monitoring of drive temperature, bus voltage, and motor current enables condition-based maintenance scheduling. Export trend data to SCADA systems for machine learning analysis of degradation patterns.

Safety Circuit Compatibility
Safe Torque Off (STO) input accepts Category 3 safety signals per ISO 13849-1, allowing integration with light curtains and emergency stop circuits without external contactors. Reduces panel complexity and improves response time.

Custom Motion Profiles
User-programmable S-curve acceleration profiles minimize mechanical shock and acoustic noise in precision applications. Store up to 16 motion sequences in non-volatile memory for recipe-based production changeovers.

Delivery Timeline & Support Infrastructure

Standard Lead Time: In-stock units ship within 2-3 business days via expedited carrier. Custom configurations with specialized firmware or extended temperature ratings require 3-4 weeks for factory programming and testing.

Warranty Coverage: 24-month manufacturer warranty covers defects in materials and workmanship under normal industrial operating conditions. Extended warranty programs available for critical process applications requiring guaranteed uptime.

Technical Support: Access to GE-certified application engineers for commissioning assistance, parameter optimization, and troubleshooting. Support includes DeviceNet configuration validation, motor tuning procedures, and vibration analysis guidance.

Documentation Package: Each unit includes installation manual, DeviceNet EDS file, quick-start parameter guide, and dimensional drawings in PDF and DXF formats. Wiring diagrams specify terminal assignments for power, feedback, and I/O connections.

Training Resources: Online video tutorials cover basic setup, auto-tuning procedures, and common fault resolution. On-site training available for facilities deploying multiple drives or complex motion architectures.

Frequently Asked Questions

What communication protocols does the IC800SSI228RD2 servo controller support for industrial networks?
The drive features native DeviceNet connectivity operating at selectable baud rates from 125kbps to 500kbps. DeviceNet provides deterministic communication with scan times under 5ms for motion-critical applications. The controller does not support Ethernet/IP or Profibus without external gateway modules.

How do I determine the correct current rating when selecting between 28A and higher-capacity servo drives?
Calculate RMS current during your application's duty cycle, including acceleration, constant velocity, and deceleration phases. The IC800SSI228RD2's 28A rating suits motors with continuous current draws up to 22A (80% of drive rating). For loads requiring 25-35A continuous, specify the next model in the series to maintain thermal headroom.

Can this servo drive achieve energy savings compared to older DC drive technology?
Three-phase AC servo drives typically demonstrate 15-25% energy reduction versus equivalent DC systems through regenerative braking and optimized switching algorithms. The IC800SSI228RD2's efficiency peaks at 96% during rated load conditions. Actual savings depend on duty cycle characteristics and mechanical load profiles.

What installation clearances are required for proper thermal management of the drive?
Maintain minimum 50mm (2 inches) spacing above and below the drive for convective airflow. Side-by-side mounting requires 10mm clearance between adjacent units. In ambient temperatures exceeding 40°C, increase vertical spacing to 75mm or add forced ventilation to prevent thermal derating.

Does the IC800SSI228RD2 support remote monitoring and diagnostics through industrial IoT platforms?
DeviceNet data can be bridged to Ethernet networks using protocol gateways, enabling integration with cloud-based monitoring systems. The drive exposes 40+ diagnostic parameters including fault history, operating hours, and real-time current draw. MQTT or OPC-UA gateways facilitate connection to AWS IoT, Azure IoT Hub, or private SCADA infrastructure.

How does the VersaMotion S2K platform compare to newer servo drive architectures for retrofit applications?
The S2K series maintains backward compatibility with GE control systems installed since 2008, protecting existing programming investments. While newer platforms offer enhanced processing speed, the IC800SSI228RD2 provides proven reliability for applications not requiring sub-microsecond update rates. Consider S2K for retrofits; evaluate next-generation platforms for greenfield installations.

Request Technical Consultation

Our motion control specialists provide complimentary application reviews to verify drive sizing, network architecture, and integration requirements. Contact our team to discuss your specific automation challenges and receive customized configuration recommendations.

Next Steps: Submit your technical inquiry through our contact form, or call directly to speak with an application engineer. Provide motor specifications, load characteristics, and desired motion profile for fastest response.
