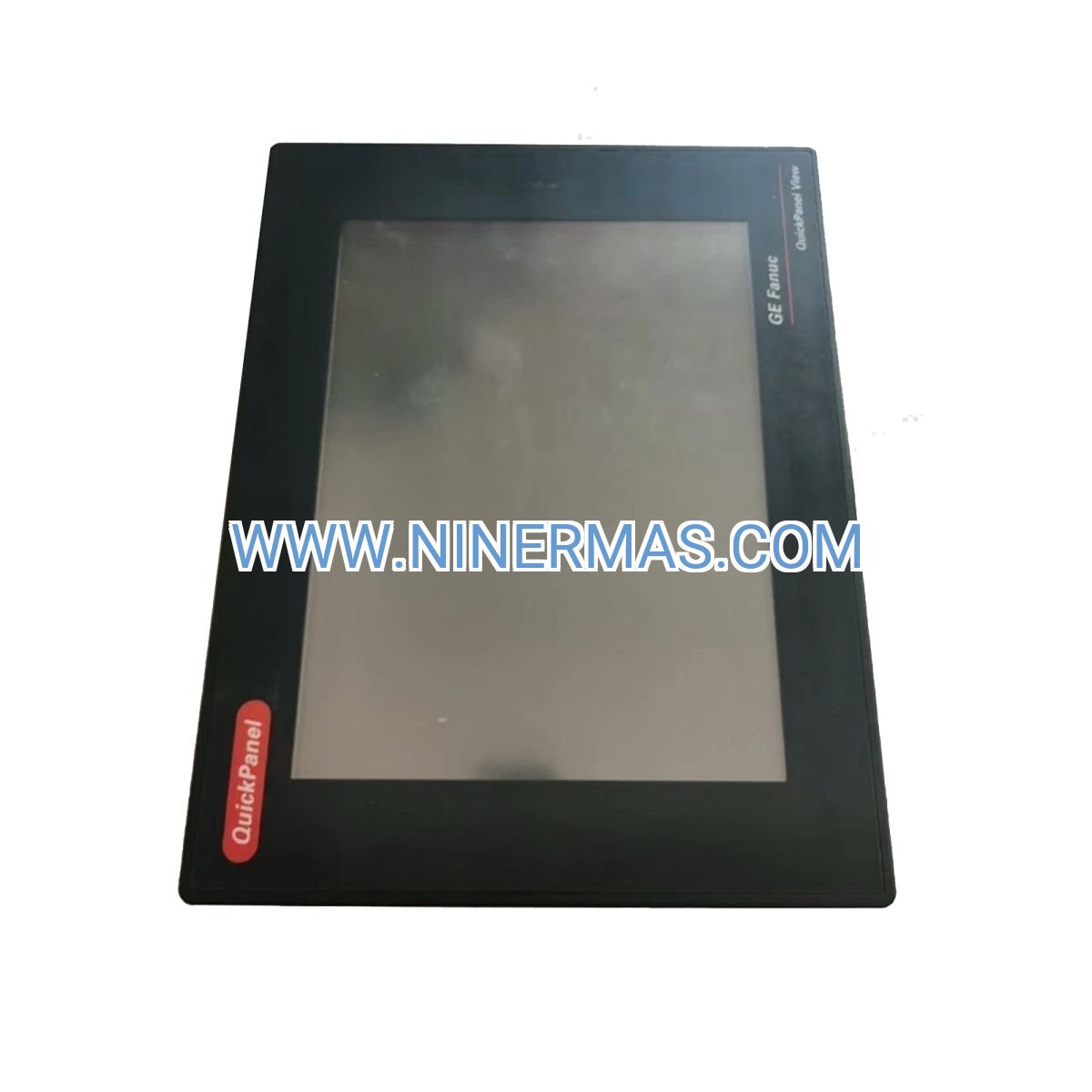

IC754VSI12CTD 12-Inch Industrial HMI Touch Panel (QuickPanel View Operator Interface)

The IC754VSI12CTD QuickPanel View is a professional-grade human-machine interface designed for industrial process visualization and equipment control. Through advanced TFT color display technology and analog resistive touch input, it delivers real-time monitoring, intuitive operation, and reliable data acquisition for critical automation systems.

Engineered for demanding manufacturing environments including high-temperature workshops, dusty production floors, and washdown areas, this 12-inch operator panel addresses challenges such as unstable process visualization, complex multi-device coordination, delayed alarm response, and excessive manual intervention. It is ideal for packaging lines, water treatment plants, pharmaceutical cleanrooms, food processing facilities, and building automation networks.

With NEMA 4X/IP65-rated front panel protection, standardized communication protocols, and flexible mounting options, the IC754VSI12CTD offers exceptional durability, seamless PLC integration, and user-friendly configuration. Suitable for system integrators, design engineers, OEM equipment manufacturers, and plant maintenance teams. Contact our application engineers for customized HMI selection solutions and technical quotations.

Core Features & Advantages

High-Clarity Visual Performance
The 12-inch color TFT LCD with LED backlight delivers 800×600 SVGA resolution and 350 cd/m² brightness, ensuring clear visibility of process graphics, trend charts, and alarm messages even under bright ambient lighting or at wide viewing angles up to 140° horizontal.

Rugged Environmental Protection
Front panel rated NEMA 4X and IP65 provides complete protection against dust ingress, water jets, and corrosive washdown chemicals. Operating temperature range of 0°C to +50°C and 10-95% humidity tolerance ensure reliable performance in harsh industrial conditions, reducing downtime and maintenance costs.

Versatile Communication Connectivity
Equipped with Ethernet and dual serial ports (RS-232/RS-485), the panel supports Ethernet/IP, Modbus TCP/RTU, SNP, SRTP, and other industrial protocols. This enables seamless integration with GE PACSystems, Allen-Bradley ControlLogix, Siemens S7, Schneider Modicon, and third-party PLCs for unified SCADA architecture.

Intuitive Touch Operation
Analog resistive touchscreen technology supports gloved operation and stylus input, ideal for cleanroom and outdoor applications. Responsive touch feedback and customizable button layouts reduce operator training time and minimize input errors during critical process adjustments.

Reliable Industrial-Grade Design
24V DC wide-range power input (18-30V DC) with reverse polarity protection, 64MB RAM and 128MB Flash memory for complex graphics and recipe storage, panel-mount installation with standard cutout dimensions for easy retrofit into existing control cabinets. UL, cUL, CE, and RoHS certifications ensure global compliance.

Comprehensive Alarm & Diagnostic Capabilities
Built-in alarm management with priority levels, time-stamped event logging, and audible/visual notifications help operators quickly identify faults, acknowledge warnings, and trace historical incidents, improving mean time to repair (MTTR) and overall equipment effectiveness (OEE).

Typical Application Scenarios

The IC754VSI12CTD QuickPanel View is engineered for industrial environments requiring real-time process visualization, precise equipment control, and continuous operational monitoring, particularly in:

Packaging & Material Handling Systems
Monitor conveyor speeds, carton counts, label applicator status, and reject rates on high-speed packaging lines. Coordinate multi-station filling, capping, and palletizing equipment with synchronized HMI displays for centralized operator control and production tracking.

Water & Wastewater Treatment Facilities
Visualize pump station pressures, flow rates, chemical dosing levels, and filtration system performance. Provide operators with intuitive SCADA screens for remote valve control, alarm acknowledgment, and compliance reporting in municipal and industrial water treatment plants.

Food & Beverage Processing
Control mixing tanks, pasteurization units, CIP (clean-in-place) cycles, and refrigeration systems with washdown-rated HMI panels. Display recipe parameters, batch progress, temperature profiles, and sanitation logs to ensure product quality and regulatory compliance in dairy, brewing, and meat processing facilities.

Pharmaceutical & Cleanroom Manufacturing
Manage environmental controls (temperature, humidity, differential pressure), equipment interlocks, and batch genealogy in GMP-compliant production areas. Support 21 CFR Part 11 audit trail requirements with secure user login, electronic signatures, and tamper-proof event records.

Building Automation & HVAC Control
Centralize monitoring of chillers, boilers, air handling units, lighting circuits, and energy meters across commercial buildings, hospitals, and data centers. Enable facility managers to optimize energy consumption, schedule preventive maintenance, and respond to equipment alarms from a unified operator interface.

Machine Tool & Metalworking Equipment
Display spindle speeds, tool positions, coolant levels, and part counts on CNC machining centers, press brakes, and laser cutting systems. Integrate with servo drives and motion controllers for coordinated multi-axis control and real-time production analytics.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment procurement, we provide standardized specifications for the IC754VSI12CTD QuickPanel View. Custom configurations are available based on project-specific requirements.

Selection Recommendations
When specifying the IC754VSI12CTD for your application, consider the following factors: required screen size and resolution for graphic complexity, ambient temperature and humidity conditions, mounting space constraints and panel cutout dimensions, communication protocol compatibility with existing PLCs and SCADA systems, power supply voltage availability (ensure stable 24V DC source), and software licensing requirements for Proficy Machine Edition.

For applications requiring larger displays, consider the 15-inch QuickPanel models. For extreme temperature environments (-20°C to +60°C), consult our engineering team for extended-range HMI options. If your project involves multi-panel installations or redundant operator stations, we can provide quantity discounts and coordinated delivery schedules.

Extended Functionality & System Integration

Recipe Management & Data Logging
Store up to 500 production recipes with parameter sets for different product SKUs. Automatic data logging captures process variables, operator actions, and alarm events to internal Flash memory or external USB drives for quality traceability and continuous improvement analysis.

Multi-Language Support
Configure operator screens in English, Spanish, French, German, Italian, Portuguese, Chinese, Japanese, and other languages. Runtime language switching allows multilingual workforce operation without reprogramming, ideal for global manufacturing facilities.

Trend Charting & Historical Analysis
Real-time and historical trend displays with up to 8 pens per chart, configurable time scales (seconds to days), and zoom/pan navigation. Overlay setpoints, alarm limits, and statistical process control (SPC) boundaries for root cause analysis and process optimization.

Security & Access Control
Password-protected user levels (operator, supervisor, engineer, administrator) with customizable permissions for screen access, setpoint changes, and configuration editing. Audit trail logging tracks user login/logout, parameter modifications, and alarm acknowledgments for compliance documentation.

Remote Access & Diagnostics
Ethernet connectivity enables remote VNC access for off-site troubleshooting, screen mirroring for training purposes, and centralized software updates across multiple HMI panels. Integrate with plant-wide MES (Manufacturing Execution Systems) and ERP platforms via OPC UA or database connectors.

Alarm Management Best Practices
Configurable alarm priorities (critical, high, medium, low), color-coded status indicators, and escalation timers ensure operators focus on the most urgent issues first. Alarm shelving and suppression features reduce nuisance alarms during startup, shutdown, or maintenance modes.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard IC754VSI12CTD units are typically available from stock with 3-5 business day shipping for single-unit orders. For bulk purchases (10+ units) or custom-configured panels with pre-loaded applications, delivery time is approximately 2-3 weeks. Expedited shipping options are available for urgent project deadlines.

Warranty Coverage
All QuickPanel View HMI units include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty service includes free replacement of defective components, technical support for troubleshooting, and access to firmware updates. Extended warranty plans (24 or 36 months) are available upon request.

Technical Support & Commissioning Assistance
Our application engineering team provides remote technical guidance for HMI configuration, PLC communication setup, and graphic screen development. On-site commissioning services are available for complex multi-panel installations, including cable termination verification, network diagnostics, and operator training sessions.

Documentation & Resources
Each IC754VSI12CTD shipment includes: detailed installation manual with panel cutout templates and mounting instructions, electrical wiring diagrams for power and communication connections, quick start guide for Proficy Machine Edition software, and certificate of conformity with UL/CE test reports. CAD drawings (DXF, STEP formats) and 3D models are available for download to facilitate cabinet design integration.

Spare Parts & Lifecycle Support
Replacement touchscreen overlays, backlight assemblies, and power supply modules are stocked for rapid repair turnaround. For legacy QuickPanel models approaching end-of-life, we offer migration consulting to transition existing applications to current-generation hardware with minimal reprogramming effort.

Frequently Asked Questions (FAQ)

Q: Is the IC754VSI12CTD QuickPanel View compatible with Allen-Bradley and Siemens PLCs?
A: Yes, the panel supports industry-standard protocols including Ethernet/IP (for Allen-Bradley ControlLogix, CompactLogix) and Modbus TCP (for Siemens S7, Schneider Electric). Communication drivers are pre-installed in Proficy Machine Edition software. For proprietary protocols, consult our technical team for driver availability and licensing requirements.

Q: What programming software is required to develop HMI screens for the IC754VSI12CTD?
A: The IC754VSI12CTD is programmed using Proficy Machine Edition (formerly CIMPLICITY Machine Edition) from Emerson Automation Solutions. This Windows-based development environment includes graphic editors, tag databases, alarm configurators, and communication setup wizards. Software licenses are sold separately; demo versions are available for evaluation.

Q: Can this HMI operate in outdoor or extreme temperature environments?
A: The standard IC754VSI12CTD is rated for 0°C to +50°C operating temperature and is suitable for indoor industrial environments. For outdoor installations or extreme temperatures (-20°C to +60°C), consider enclosure heaters/coolers or consult us for wide-temperature HMI variants. The NEMA 4X front panel provides excellent protection against rain, snow, and dust when properly installed.

Q: How many PLC connections can the IC754VSI12CTD handle simultaneously?
A: The panel can communicate with multiple PLCs concurrently via Ethernet and serial ports. Typical configurations support 5-10 simultaneous device connections depending on polling rates and data volume. For large distributed control systems, optimize communication by grouping tags and adjusting scan intervals to balance responsiveness and network load.

Q: Does the IC754VSI12CTD support data logging to external USB drives or SD cards?
A: The IC754VSI12CTD does not have built-in USB host ports for external storage. Data logging is performed to internal Flash memory (128MB capacity). For long-term archival, configure Ethernet-based data transfer to network file servers, SQL databases, or SCADA historian systems using built-in communication protocols.

Q: What is the expected touchscreen lifespan and can it be replaced?
A: The analog resistive touchscreen is rated for over 1 million touches at a single point. In typical industrial use (moderate touch frequency), expect 5-7 years of reliable operation. Touchscreen overlays are field-replaceable; replacement kits include installation instructions and calibration procedures. Contact technical support for part numbers and pricing.

Q: Is technical support available for troubleshooting communication issues and screen development?
A: Absolutely. Our technical support team provides assistance via email, phone, and remote desktop sessions for configuration troubleshooting, PLC driver setup, graphic optimization, and alarm logic debugging. Support hours are Monday-Friday, 9:00 AM - 6:00 PM (GMT+8). For urgent after-hours support, emergency contact numbers are provided with purchase.

Request a Custom Selection Proposal

To receive a tailored HMI selection recommendation, detailed technical specifications, and competitive pricing for the IC754VSI12CTD QuickPanel View, please provide the following information to our application engineering team:

• Project name and application description (e.g., "Pharmaceutical tablet coating line HMI upgrade")
• Number of operator stations required (single panel or multi-panel installation)
• PLC/controller brand and model (for communication compatibility verification)
• Environmental conditions: ambient temperature range, humidity, dust/washdown exposure
• Mounting requirements: panel thickness, cutout constraints, portrait/landscape orientation
• Power supply availability: voltage, current capacity, UPS backup
• Special requirements: multi-language support, data logging, remote access, custom graphics
• Delivery timeline and installation location

Our engineers will respond within 24 hours with a comprehensive proposal including product recommendations, communication architecture diagrams, budget estimates, and delivery schedules. For complex system integration projects, we offer on-site consultation and turnkey commissioning services.
