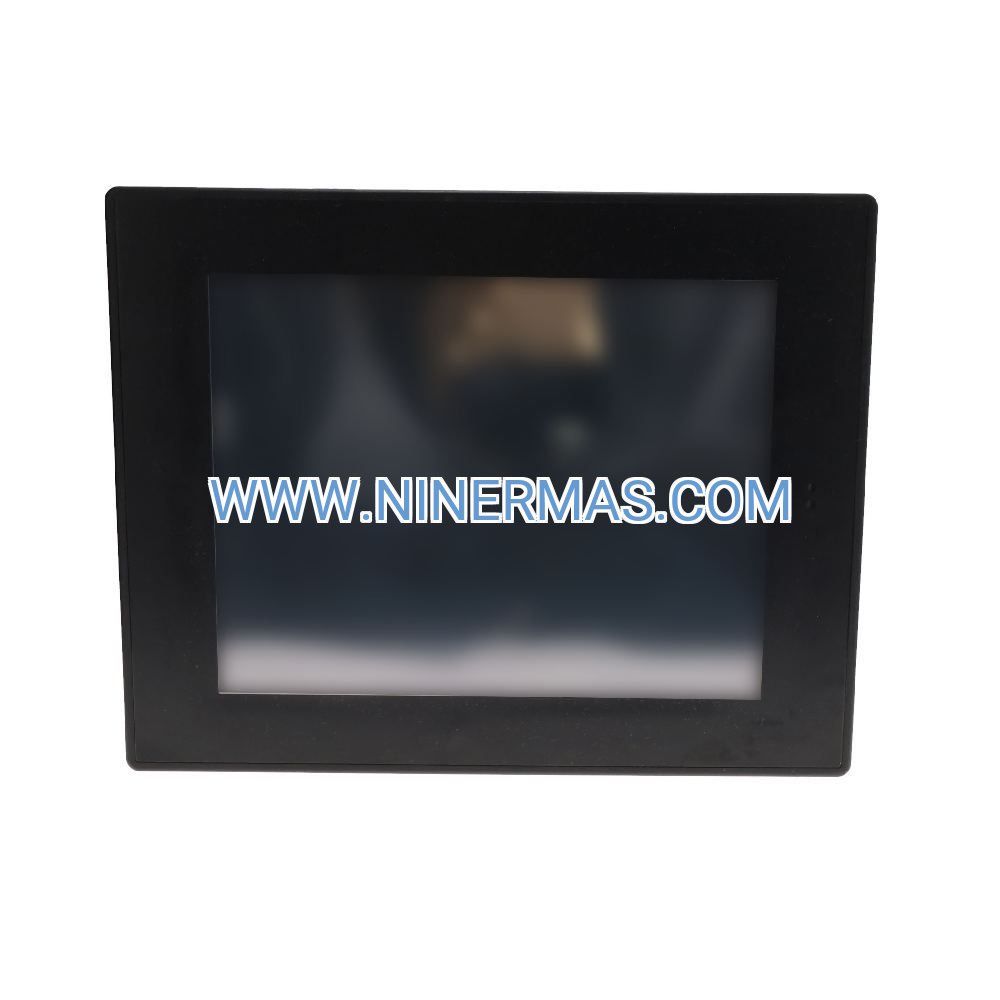

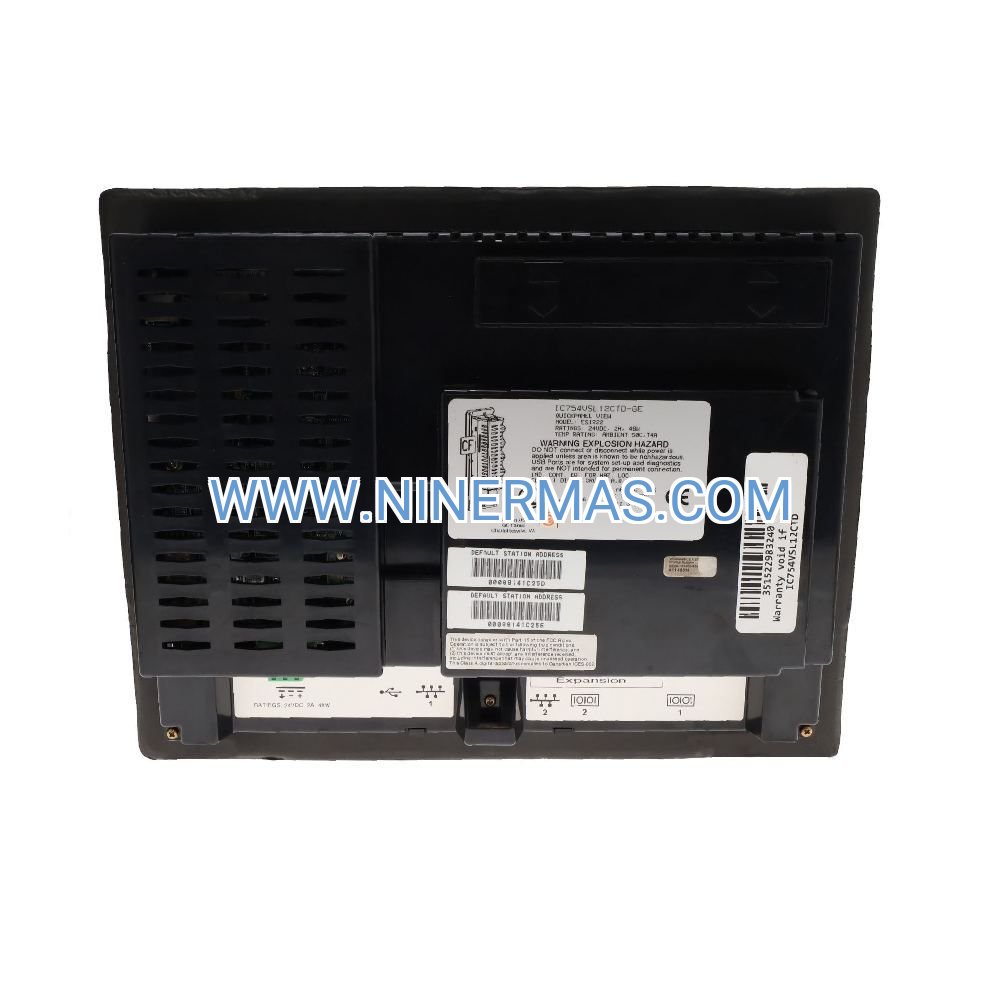

IC754VSI12CTD-HH QuickPanel View (Industrial-Grade 12" Operator Interface)

The IC754VSI12CTD-HH delivers robust visualization capabilities for mission-critical industrial applications. Engineered with a 12-inch color TFT display and resistive touch technology, this operator interface excels in manufacturing plants, process facilities, and machine control environments where reliability and operator efficiency are paramount.

Designed for seamless integration with PACSystems controllers and multi-vendor automation platforms, this HMI addresses the challenge of real-time process monitoring while maintaining operational simplicity. Industrial operators benefit from glove-compatible touch input, NEMA 4X front panel protection, and Windows CE-based application flexibility that adapts to evolving production requirements.

With 128MB RAM, dual communication protocols (Ethernet + Serial), and 800x600 SVGA resolution, the IC754VSI12CTD-HH transforms complex data streams into actionable insights—reducing downtime, accelerating troubleshooting, and empowering operators to maintain peak production efficiency across 24/7 operations.

Core Features & Benefits

→ Resistive Touch Technology
Glove-compatible operation ensures consistent performance in environments requiring PPE, eliminating touch recognition failures common with capacitive screens in industrial settings.

→ Dual Protocol Connectivity
Ethernet and RS-232/RS-485 serial ports enable simultaneous PLC communication and remote diagnostics, reducing integration complexity and future-proofing your control architecture.

→ NEMA 4X / IP65 Front Panel
Sealed front bezel withstands washdown procedures, dust exposure, and moisture ingress—critical for food processing, pharmaceutical, and outdoor installations.

→ Windows CE Platform
Supports custom .NET applications, third-party visualization software, and data logging utilities beyond standard HMI functionality, extending solution capabilities without hardware changes.

→ 800x600 SVGA Display
Balances screen real estate with readability at typical operator viewing distances (2-4 feet), displaying 16+ process parameters simultaneously without scrolling.

→ 24V DC Industrial Power
Standard control cabinet voltage eliminates additional power supplies, simplifying panel design and reducing component count in machine builds.

Typical Application Scenarios

Chemical Batch Processing
Monitor reactor temperatures, ingredient dosing sequences, and batch cycle timers across multi-stage production. The IC754VSI12CTD-HH's alarm management capabilities alert operators to deviation conditions before quality issues occur, while recipe management features ensure consistent batch-to-batch repeatability.

Packaging Line Control
Visualize conveyor speeds, reject counts, and OEE metrics for bottling, cartoning, and palletizing equipment. Operators adjust setpoints on-the-fly to accommodate product changeovers, with the touchscreen interface reducing training time for temporary production staff during peak seasons.

Water Treatment SCADA
Display flow rates, chlorine levels, and pump status across distributed lift stations and treatment plants. Ethernet connectivity enables centralized monitoring while local touchscreen access supports field maintenance and emergency override procedures.

CNC Machine Interface
Provide machinists with part program selection, tool offset adjustments, and real-time spindle load monitoring. The 12-inch screen accommodates detailed graphics showing tool paths and dimensional tolerances, improving first-part accuracy.

Building Automation
Control HVAC zones, lighting schedules, and energy consumption tracking in commercial facilities. Integration with BACnet and Modbus devices creates unified building management without proprietary controller lock-in.

Technical Parameters & Selection Guide

Selection Criteria: Choose the IC754VSI12CTD-HH when your application requires glove-compatible touch, serial + Ethernet connectivity, and NEMA 4X front protection. For applications demanding higher resolution (1024x768) or capacitive touch, consider the IC754VSL12CTD variant. If budget constraints exist and 6-inch displays suffice, evaluate the IC754VSI06CTD as a cost-effective alternative.

Extended Functions

IoT Gateway Capability: Leverage the Ethernet port and Windows CE platform to run MQTT clients or OPC UA servers, bridging legacy serial devices to cloud-based analytics platforms without additional hardware.

Multi-Language Support: Configure runtime language switching for multinational facilities, with Unicode font support for Chinese, Cyrillic, and Arabic character sets—critical for global equipment OEMs.

Data Logging & Trending: Store up to 10,000 data points locally using CompactFlash expansion, enabling post-event analysis of process upsets or quality deviations without SCADA infrastructure.

Recipe Management: Download production parameters from centralized databases via Ethernet, ensuring consistent product quality across multiple production lines or shift changes.

Custom Application Hosting: Deploy .NET Compact Framework applications for specialized calculations, barcode scanning integration, or custom reporting beyond standard HMI capabilities.

Delivery & Service Assurance

Lead Time: Stock units ship within 2-3 business days via express courier. Custom configurations (special firmware, pre-loaded applications) require 7-10 business days for testing and validation.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Extended 36-month coverage available for critical infrastructure applications.

Technical Support: Access to application engineers for communication setup, screen design review, and troubleshooting assistance. Remote support sessions available via TeamViewer or similar platforms.

Documentation Package: Includes installation manual, communication driver guides, sample application projects, and CAD files (DXF/STEP) for panel cutout design.

Firmware Updates: Lifetime access to firmware revisions addressing security vulnerabilities or protocol enhancements, downloadable from manufacturer support portal.

Frequently Asked Questions

What programming software interfaces with the IC754VSI12CTD-HH for application development?
Proficy Machine Edition (formerly Cimplicity Machine Edition) provides the primary development environment, offering drag-and-drop screen building, extensive driver library, and simulation tools. Third-party packages like Wonderware InTouch or Ignition also support this hardware via standard drivers.

Can this HMI communicate with Allen-Bradley CompactLogix controllers?
Yes, via Ethernet/IP protocol over the 10/100 Ethernet port. Configuration requires adding the appropriate driver in your HMI development software and setting IP addresses to match your network architecture.

How does resistive touch performance compare to capacitive in high-vibration environments?
Resistive technology offers superior immunity to false touches from vibration or liquid splashes, as it requires physical pressure to register input. This makes it preferable for mobile equipment or washdown areas where capacitive screens may trigger unintended commands.

What is the typical screen lifespan before backlight replacement becomes necessary?
CCFL backlights in this model are rated for 50,000 hours at 25°C ambient temperature (approximately 5.7 years of continuous operation). Higher ambient temperatures or dimming settings can extend lifespan; replacement service is available through authorized repair centers.

Does the unit support redundant Ethernet connections for high-availability applications?
The IC754VSI12CTD-HH features a single Ethernet port. For redundancy, implement network-level failover using managed switches with rapid spanning tree protocol, or deploy dual HMI units in hot-standby configuration.

Are replacement touchscreen overlays available for field service?
Yes, touchscreen digitizers are field-replaceable components. Replacement kits include the touch overlay, adhesive gasket, and installation instructions. Typical replacement time is 30-45 minutes for trained technicians.

Take the Next Step

Ready to enhance your process visibility and operator efficiency? Contact our automation specialists for application-specific recommendations, volume pricing, or technical compatibility verification. Request a detailed datasheet, CAD drawings, or sample application files to accelerate your project timeline.
