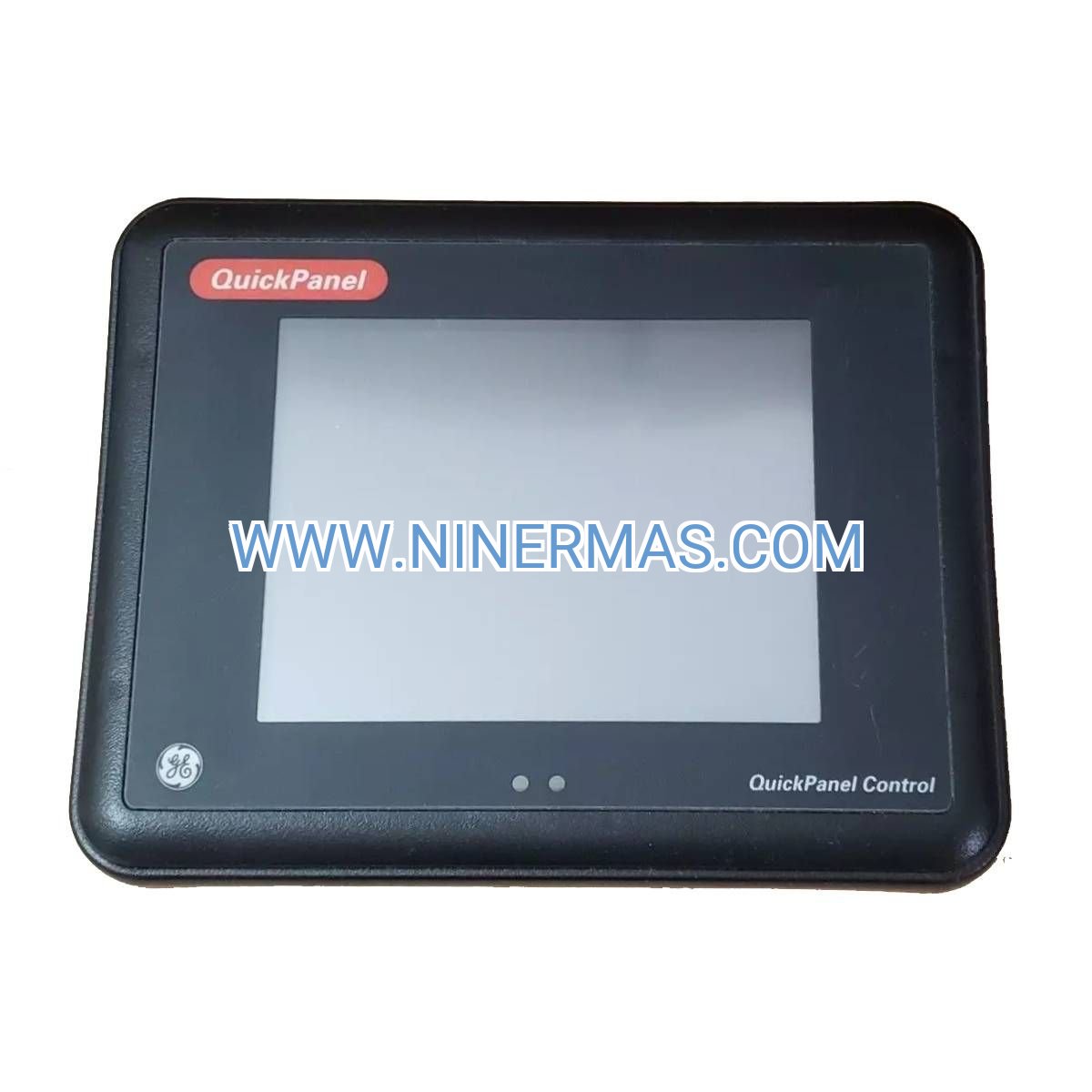

IC754CSX06CTD QuickPanel+ Interface – Industrial-Grade 6" HMI for Advanced Process Control

The IC754CSX06CTD represents a breakthrough in compact human-machine interface technology, engineered specifically for mission-critical industrial environments. This 6-inch QuickPanel+ operator terminal combines responsive touchscreen control with military-grade durability, delivering uncompromising performance across manufacturing, process control, and infrastructure applications where system uptime directly impacts profitability.

Built on proven GE automation architecture, this HMI bridges the gap between operators and complex control systems through an intuitive visual interface. Whether you're modernizing legacy equipment or deploying greenfield automation projects, the IC754CSX06CTD provides the reliability and flexibility demanded by today's Industry 4.0 initiatives.

Discover why leading manufacturers trust this operator interface for applications ranging from pharmaceutical batch processing to water treatment SCADA systems. With multi-protocol connectivity and industrial-hardened construction, you gain a future-proof visualization platform that adapts to evolving automation requirements.

Core Capabilities & Technical Advantages

✓ Crystal-Clear Visual Feedback
The 640×480 VGA resolution display renders process graphics, trend charts, and alarm notifications with exceptional clarity across a 65,536-color palette. LED backlighting technology delivers 50,000-hour operational life while maintaining consistent brightness levels—reducing maintenance interventions and total cost of ownership by up to 40% compared to CCFL-based alternatives.

✓ Multi-Protocol Communication Architecture
Seamlessly integrate with diverse automation ecosystems through native support for Modbus RTU/TCP, SNP, and EGD protocols. Dual serial ports (RS-232/RS-485) plus 10/100 Ethernet connectivity enable simultaneous communication with PLCs, variable frequency drives, and supervisory systems—eliminating protocol gateway costs in heterogeneous installations.

✓ Environmental Resilience Engineering
NEMA 4X/IP65-certified front bezel construction shields internal electronics from water jets, dust ingress, and chemical exposure. Operating temperature range of 0°C to 55°C supports deployment in non-climate-controlled environments including outdoor enclosures, wash-down areas, and high-humidity process zones.

✓ Glove-Compatible Touch Technology
Analog resistive touchscreen responds reliably to input from latex gloves, nitrile gloves, or bare fingers—critical for food processing, pharmaceutical cleanrooms, and chemical handling applications where hand protection is mandatory. Touch activation force calibration ensures consistent response across the entire 6.5-inch active area.

→ Rapid Application Development Platform
Proficy Machine Edition software integration accelerates HMI programming through drag-and-drop screen design, pre-built widget libraries, and real-time simulation capabilities. Reduce commissioning time by 30-50% while maintaining consistent user experience across your facility's operator interface fleet.

→ Compact Footprint, Maximum Impact
Panel cutout dimensions of just 6.5 inches enable installation in space-constrained control panels and machine-mounted enclosures. Low 15W power consumption minimizes heat generation and electrical infrastructure requirements—ideal for battery-backed UPS systems and solar-powered remote installations.

Industry-Specific Deployment Scenarios

Pharmaceutical Manufacturing & Batch Control
Meet 21 CFR Part 11 compliance requirements through secure operator authentication and audit trail capabilities. The IC754CSX06CTD provides real-time visibility into reactor temperatures, mixing speeds, and ingredient dosing sequences. Operators monitor critical quality parameters while maintaining sterile field protocols through glove-compatible touchscreen operation. Integration with recipe management systems ensures batch-to-batch consistency and regulatory traceability.

Water & Wastewater Infrastructure
Deploy in lift stations, treatment plants, and distribution networks where NEMA 4X protection is essential. Monitor flow rates, chemical feed systems, and filtration performance through customizable SCADA screens. The HMI's wide operating temperature range supports outdoor installations in pump houses and remote monitoring stations. Modbus TCP connectivity enables integration with telemetry systems for centralized facility management.

Food & Beverage Processing Lines
Control packaging equipment, filling machines, and pasteurization systems through wash-down rated operator stations. The IC754CSX06CTD withstands daily sanitation procedures while providing operators with recipe selection, production counting, and quality checkpoint verification. Resistive touch technology functions reliably in wet environments and with food-grade gloved operation.

Material Handling & Logistics Automation
Manage conveyor networks, sortation systems, and automated storage/retrieval equipment through distributed HMI architecture. Real-time status displays reduce troubleshooting time while alarm management features prioritize operator response to system faults. Compact form factor supports installation on mobile equipment carts and machine-mounted control panels.

Energy & Utilities Management
Visualize power distribution, renewable energy systems, and building automation networks through customizable dashboards. The HMI's multiple communication ports enable simultaneous connection to energy meters, HVAC controllers, and lighting management systems. Historical trending capabilities support energy optimization initiatives and demand response programs.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the IC754CSX06CTD when your application requires a balance between compact size and functional capability. For larger visualization areas, consider 10-inch or 15-inch QuickPanel models. When selecting communication options, verify protocol compatibility with existing PLC infrastructure—Modbus TCP is recommended for Ethernet-based architectures, while RS-485 Modbus RTU suits serial device networks. Ensure 24V DC power supply capacity accounts for 20W peak consumption during backlight initialization.

Advanced Integration & Customization Options

IoT Connectivity & Cloud Integration
Leverage Ethernet connectivity for Industry 4.0 initiatives including cloud-based analytics, remote monitoring, and predictive maintenance platforms. The HMI's TCP/IP stack supports integration with MQTT brokers, OPC UA servers, and REST API gateways—enabling data flow to enterprise MES and ERP systems.

Multi-Language User Interface
Deploy standardized HMI applications across global manufacturing facilities with Unicode font support and language switching capabilities. Proficy Machine Edition enables creation of multilingual screen sets without code duplication—reducing localization costs and maintenance complexity.

Alarm Management & Notification
Configure priority-based alarm systems with visual/audible annunciation, acknowledgment tracking, and historical logging. Integration with email/SMS gateways enables off-site notification of critical process deviations—supporting 24/7 operations with minimal on-site staffing.

Recipe & Batch Management
Store production recipes directly in HMI memory for operator selection and automatic parameter download to connected PLCs. Version control features ensure recipe integrity while audit trails document all operator modifications—essential for regulated industries and quality management systems.

Delivery Timeline & Support Infrastructure

Standard Fulfillment: In-stock IC754CSX06CTD units ship within 1-2 business days via expedited carrier services. International orders include complete export documentation and customs support for streamlined cross-border logistics.

Quality Assurance: Every operator interface undergoes factory testing plus secondary inspection at our distribution center. We verify touchscreen calibration, communication port functionality, and firmware integrity before shipment—ensuring plug-and-play reliability upon arrival.

Warranty Coverage: 12-month comprehensive warranty protects against manufacturing defects and component failures. Warranty includes advance replacement service to minimize downtime—defective units are replaced before return shipment is required.

Technical Resources: Access to installation manuals, communication setup guides, and Proficy Machine Edition tutorials. Our automation specialists provide pre-sales application consulting and post-sales integration support via phone, email, and remote desktop assistance.

Spare Parts & Accessories: Replacement touchscreen overlays, mounting gaskets, and communication cables available for long-term serviceability. We maintain inventory of legacy QuickPanel components to support installed base equipment beyond manufacturer discontinuation dates.

Frequently Asked Questions

How does the IC754CSX06CTD interface with Allen-Bradley ControlLogix PLCs?
While the QuickPanel+ natively supports GE protocols, integration with Allen-Bradley systems is achieved through Modbus TCP/IP communication. Configure the ControlLogix processor with a Modbus TCP server module (such as ProSoft MVI56-MCM) to enable data exchange. Alternatively, use an Ethernet/IP to Modbus gateway for protocol translation. Our technical team can provide detailed mapping documentation for common ControlLogix to QuickPanel integration scenarios.

What screen development software is compatible with this HMI model?
The IC754CSX06CTD requires GE's Proficy Machine Edition software for application development. This Windows-based programming environment includes HMI screen design tools, tag database management, and communication driver configuration. Proficy Machine Edition licenses are sold separately and support development for the entire QuickPanel product family. Educational and trial versions are available through GE Digital.

Can I retrofit this HMI into existing control panels with different cutout sizes?
The IC754CSX06CTD requires a panel cutout of approximately 6.3" × 4.9" (160mm × 124mm). If your existing cutout is larger, adapter plates or custom bezels can be fabricated to accommodate the size difference while maintaining NEMA 4X sealing integrity. For significantly different cutout dimensions, consider alternative QuickPanel models that may better match your existing panel preparation.

Does this operator interface support remote access for troubleshooting purposes?
Yes, when connected to an Ethernet network, the IC754CSX06CTD supports remote connectivity through VNC (Virtual Network Computing) protocol. This enables authorized personnel to view and control the HMI screen from remote workstations for diagnostics and operator assistance. VNC access requires network configuration and security measures including firewall rules and VPN tunneling for secure remote connections.

What is the expected lifespan of the touchscreen overlay?
The analog resistive touchscreen is rated for 1 million actuations at the same point under laboratory conditions. In typical industrial applications with distributed touch patterns, expect 5-7 years of reliable operation before touchscreen sensitivity degradation becomes noticeable. Replacement touchscreen overlays are available as service parts and can be installed in the field with basic hand tools.

Is the IC754CSX06CTD suitable for outdoor installation in direct sunlight?
While the HMI's operating temperature range supports outdoor ambient conditions, the LCD display is not optimized for direct sunlight readability. For outdoor applications, install the HMI inside a NEMA 4X enclosure with sun shield or position the panel to avoid direct solar exposure. High-brightness display models are available in the QuickPanel View series for applications requiring enhanced outdoor visibility.

Secure Your Industrial HMI Solution Today

Transform your automation infrastructure with the proven reliability of the IC754CSX06CTD QuickPanel+ operator interface. This industrial-grade HMI delivers the perfect synthesis of compact design, robust construction, and comprehensive connectivity—empowering your operators with intuitive process control while protecting your investment through long-term component availability and technical support.

Ready to deploy? Contact our automation specialists to discuss your specific application requirements, verify compatibility with existing control systems, and receive detailed integration guidance. We provide complete project support from initial specification through commissioning and beyond.

What's Included:

• → Factory-fresh IC754CSX06CTD QuickPanel+ HMI unit
• → Panel mounting gasket and hardware kit
• → Quick start installation guide
• → 12-month comprehensive warranty with advance replacement
• → Access to technical documentation library
• → Pre-sales and post-sales engineering support

Expedited shipping available for urgent project timelines. Volume pricing for multi-unit deployments. Custom configuration and pre-programming services available upon request.
