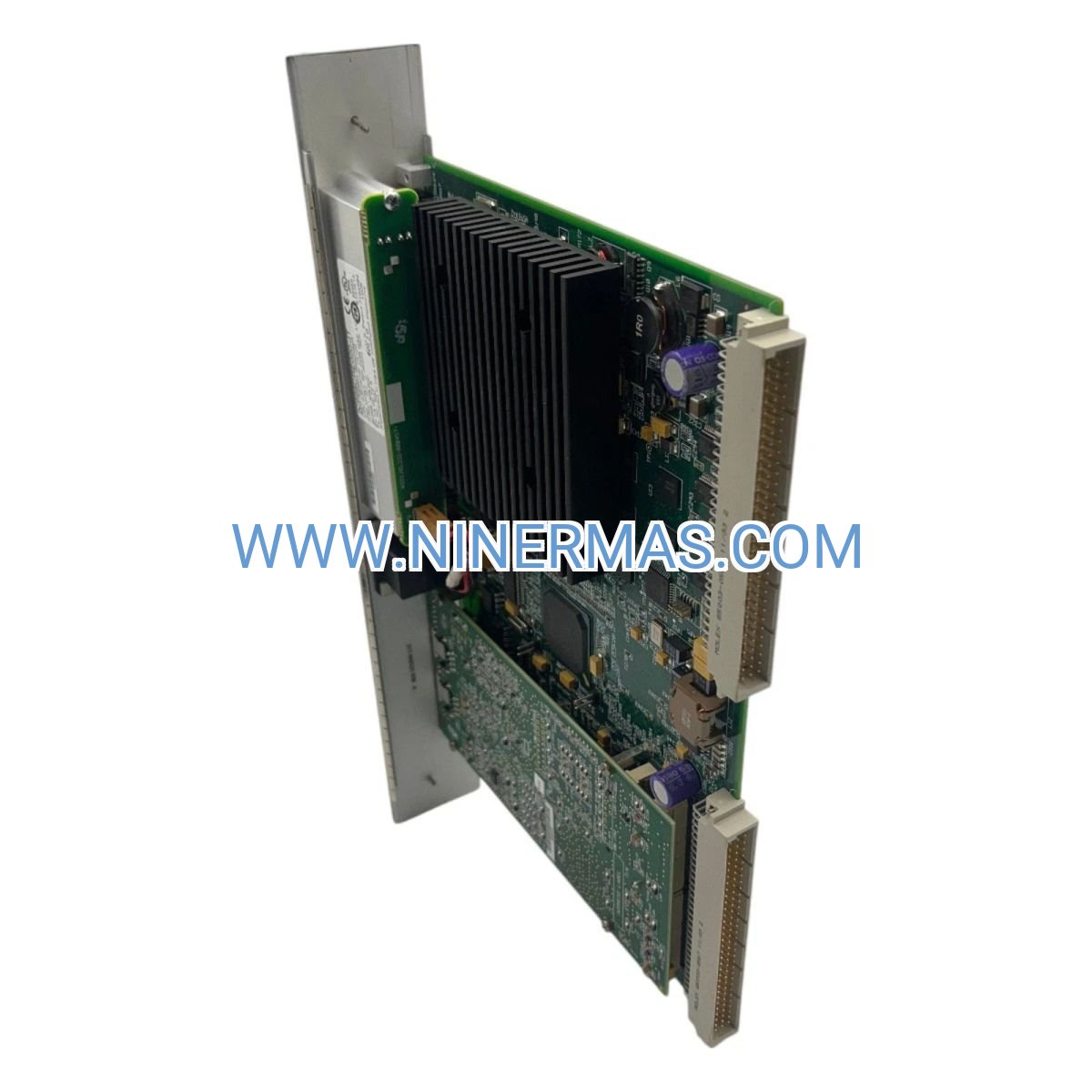

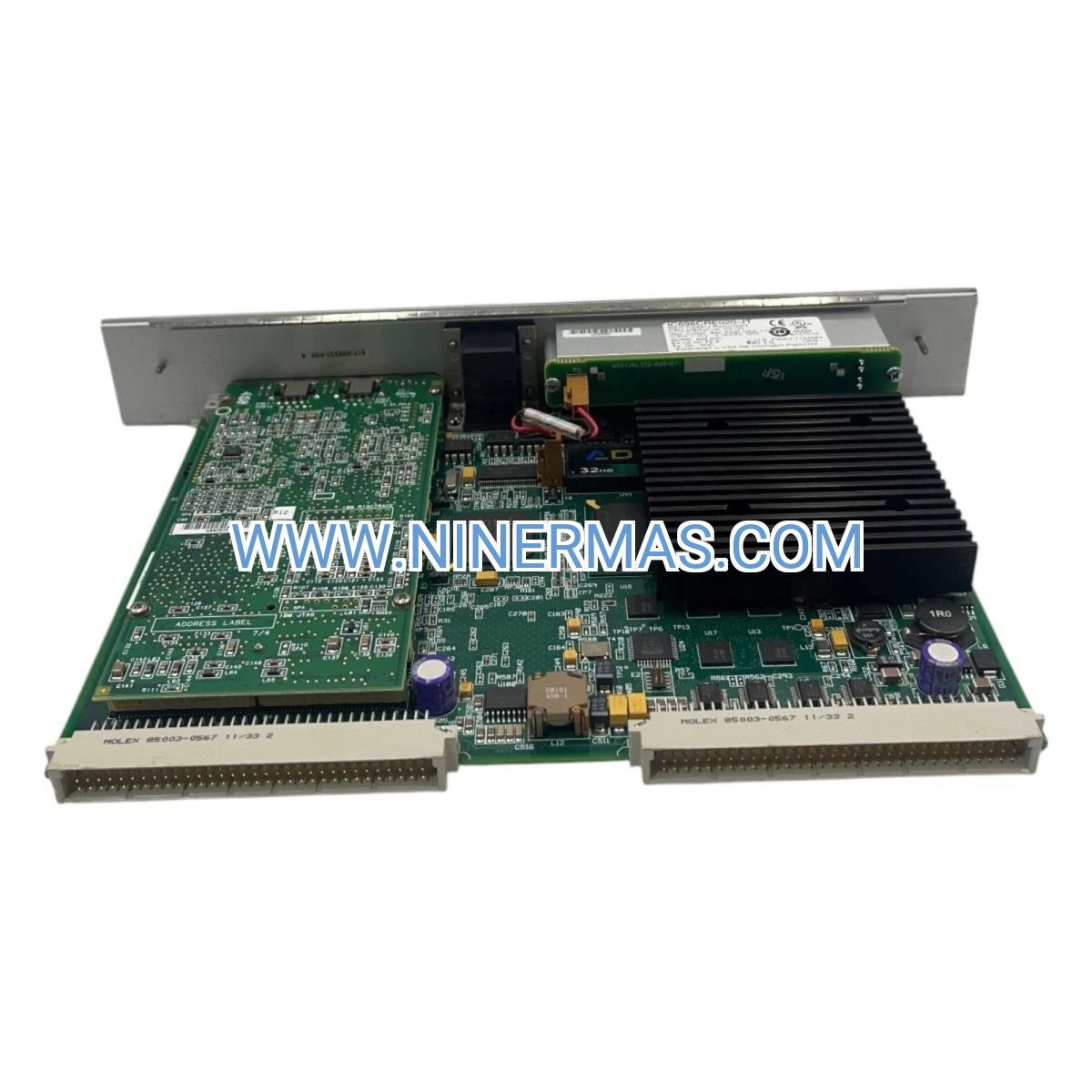

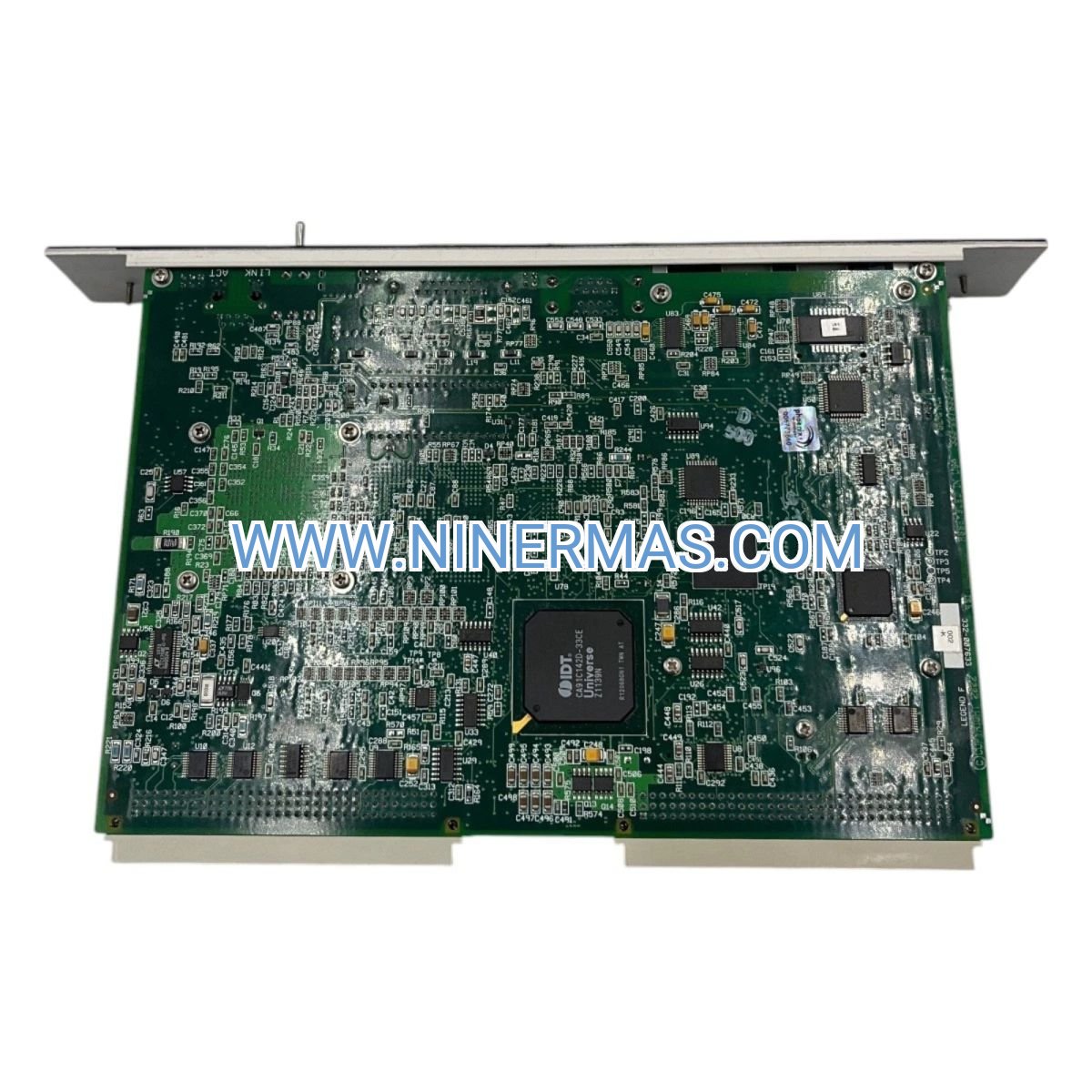

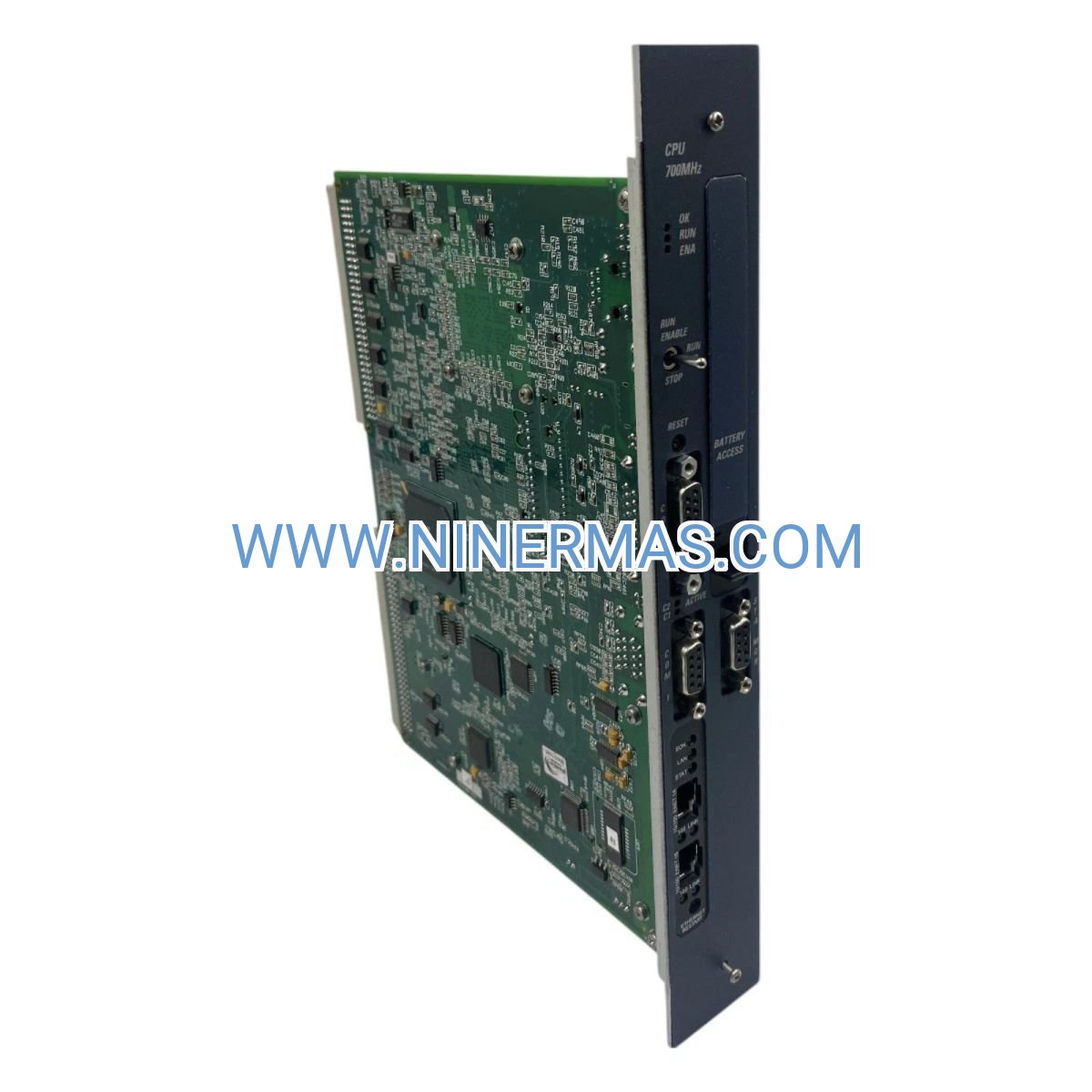

IC698CRE020-CA RX7i Redundant CPU Controller (Industrial-Grade Fault-Tolerant Automation System)

The IC698CRE020-CA RX7i Redundant CPU Controller is an industrial-grade programmable logic controller designed for mission-critical automation applications, utilizing dual-processor hot standby architecture with bumpless transfer technology to achieve seamless failover protection. Through synchronized redundancy communication and real-time memory mirroring, this controller ensures continuous process operation, eliminating single points of failure and maintaining system integrity during component faults or maintenance activities.

Engineered for environments where unplanned downtime translates to safety risks, production losses, or regulatory non-compliance, the IC698CRE020-CA serves oil & gas facilities, power generation plants, chemical processing units, water treatment infrastructure, and pharmaceutical manufacturing. The controller addresses critical challenges including unexpected equipment failures, planned maintenance windows, environmental hazards, and the need for predictive diagnostics—all while maintaining sub-100-millisecond switchover performance.

Built on GE's proven PACSystems platform with standardized programming interfaces and modular expansion capabilities, this redundant CPU offers 20MB user memory, dual Ethernet connectivity, conformal coating protection (CA-rated), and comprehensive IEC 61131-3 programming support. Suitable for design engineers, system integrators, plant automation teams, and OEM equipment manufacturers requiring validated high-availability solutions. Contact our application engineers for system architecture consultation, redundancy configuration guidance, and project-specific quotations.

Core Functions & Advantages

Hot Standby Redundancy Architecture
Dual CPU modules operate in synchronized primary-backup configuration with continuous state replication across dedicated redundancy channels. Upon detecting primary controller faults—including processor exceptions, power anomalies, or communication failures—the backup CPU assumes control within 100 milliseconds, preserving scan cycle timing, I/O states, and active communication sessions without process disruption.

Bumpless Transfer Technology
Proprietary switchover algorithms maintain output signal continuity and analog control loop stability during failover events. The system synchronizes program execution, data table values, PID controller states, and network message queues between redundant processors, eliminating output glitches, setpoint deviations, or communication timeouts that could trigger safety shutdowns or quality excursions.

Conformal Coating Environmental Protection
CA-suffix designation indicates factory-applied conformal coating that shields circuit boards from moisture ingress, airborne contaminants, chemical vapors, and corrosive atmospheres. This hardening extends operational reliability in harsh industrial environments including offshore platforms, mining facilities, pulp & paper mills, and wastewater treatment plants where standard electronics would experience accelerated degradation.

Extensive Memory & Processing Capacity
20MB user memory accommodates complex control strategies, historical data buffering, recipe management, and advanced diagnostics without performance penalties. The dual-core processor architecture supports high-speed I/O scanning, multi-protocol communication handling, and real-time event logging while maintaining deterministic scan cycle execution for time-critical control loops.

Dual Ethernet Network Resilience
Redundant Ethernet interfaces enable ring topology configurations using Device Level Ring (DLR) or Parallel Redundancy Protocol (PRP), eliminating network infrastructure as a single point of failure. Simultaneous connections to SCADA systems, MES platforms, and engineering workstations maintain visibility and control access during network path failures or switch maintenance.

Predictive Diagnostics & Health Monitoring
Integrated diagnostic subsystems continuously monitor CPU temperature, backplane voltage levels, memory integrity, and communication link quality. Configurable alarm thresholds trigger predictive maintenance notifications before component failures occur, while detailed fault logs with microsecond timestamps accelerate root cause analysis and reduce mean time to repair (MTTR).

Typical Application Scenarios

This redundant CPU controller addresses high-availability requirements across industries where process continuity directly impacts safety, environmental compliance, and operational economics:

Oil & Gas Production & Refining
Offshore production platforms, pipeline compression stations, and refinery process units deploy redundant control to prevent emergency shutdowns that could result in flaring events, production deferrals, or safety system trips. The IC698CRE020-CA maintains continuous control of separation processes, compressor anti-surge protection, and custody transfer metering even during controller component failures, ensuring regulatory compliance and maximizing asset utilization.

Power Generation & Cogeneration Facilities
Combined-cycle plants, biomass facilities, and industrial cogeneration systems require uninterrupted turbine control, boiler management, and grid synchronization to avoid costly unit trips and maintain power purchase agreement commitments. Redundant CPU architecture protects generator excitation control, emissions monitoring, and load dispatch coordination during planned maintenance or unexpected equipment faults, preventing revenue losses and grid stability issues.

Chemical & Petrochemical Processing
Batch reactors, continuous polymerization units, and specialty chemical manufacturing cannot tolerate control interruptions that compromise product specifications, waste valuable feedstocks, or create hazardous conditions. The redundant controller maintains precise temperature cascades, pressure relief coordination, and material balance calculations through automatic failover, protecting batch integrity and ensuring process safety management (PSM) compliance.

Municipal Water & Wastewater Treatment
Critical infrastructure serving public health and environmental protection demands 24/7 operational availability. Redundant control prevents overflow events, optimizes chemical dosing accuracy, and maintains effluent quality parameters during equipment maintenance or component failures, ensuring compliance with discharge permits and protecting receiving water bodies from contamination.

Pharmaceutical & Biotechnology Manufacturing
GMP-regulated production environments require validated control systems with documented reliability and change control procedures. The IC698CRE020-CA provides FDA 21 CFR Part 11 compliant audit trails, electronic signature support, and validated failover performance for fermentation control, clean-in-place (CIP) sequencing, and environmental monitoring systems where batch losses represent significant financial and regulatory consequences.

Technical Parameters & Selection Guide

To facilitate system design and component selection, the following specifications define the IC698CRE020-CA's operational characteristics and integration requirements:

Selection Considerations
When specifying the IC698CRE020-CA for your application, evaluate the following system parameters: maximum I/O point count and scan time requirements, network communication bandwidth and protocol diversity, environmental conditions including temperature extremes and atmospheric contaminants, physical space constraints within control enclosures, and integration with existing GE PACSystems infrastructure or migration from legacy platforms. For applications requiring lower memory capacity or non-redundant operation, consider standard RX7i CPU modules; for smaller distributed systems, evaluate RX3i platform alternatives with similar redundancy capabilities.

Our application engineering team provides complimentary system architecture reviews, redundancy configuration validation, and performance modeling to ensure optimal component selection. Submit your project requirements including process description, I/O schedules, communication requirements, and environmental conditions for personalized recommendations and budget quotations.

Extended Capabilities & System Integration

Redundant I/O Configuration
The RX7i platform supports dual-channel I/O architectures where critical field devices connect to redundant input and output modules across separate backplanes. The CPU automatically validates and selects healthy I/O data, maintaining process control even during complete I/O module failures. Hot-swappable module replacement enables maintenance without process shutdown, reducing planned downtime and improving overall equipment effectiveness (OEE).

Network Redundancy Topologies
Leverage dual Ethernet interfaces to construct resilient network architectures using ring configurations with sub-second recovery times. Device Level Ring (DLR) provides automatic reconfiguration upon link failures, while Parallel Redundancy Protocol (PRP) offers zero-recovery-time redundancy through simultaneous frame transmission across independent networks. These topologies eliminate network infrastructure as a single point of failure in distributed control systems.

SCADA & Historian Integration
Native support for OPC UA, Modbus TCP, and proprietary SRTP protocols enables seamless connectivity to supervisory systems, manufacturing execution platforms, and time-series databases. The redundant CPU maintains active communication sessions during failover events, preventing data loss and ensuring continuous visibility for operators and process engineers.

Motion Control & High-Speed I/O
Integrate servo drives, stepper motors, and high-speed counters through specialized motion control modules and real-time Ethernet protocols. The redundant CPU coordinates multi-axis positioning, electronic camming, and synchronized material handling while maintaining failover protection for safety-critical motion sequences.

Cybersecurity Features
Implement defense-in-depth strategies using role-based access control, encrypted communication channels, and audit logging capabilities. The controller supports secure boot verification, firmware authentication, and integration with industrial firewalls and intrusion detection systems to protect against cyber threats in connected manufacturing environments.

Delivery, Service & Quality Assurance

Lead Times & Availability
Standard catalog items typically ship within 3-5 business days from regional distribution centers. Custom configurations including specialized firmware versions, extended temperature ratings, or factory acceptance testing (FAT) require 2-4 weeks lead time. Expedited processing available for emergency replacement scenarios with 24-hour shipping options to minimize unplanned downtime.

Warranty Coverage
All IC698CRE020-CA modules include a comprehensive 12-month manufacturer warranty covering defects in materials, workmanship, and component failures under normal operating conditions. Warranty services include advance replacement shipment, technical troubleshooting support, and return material authorization (RMA) processing with expedited turnaround for critical applications.

Technical Support Services
Access application engineering assistance for redundancy system design, failover testing procedures, and performance optimization. Our support team provides remote diagnostics, firmware upgrade guidance, and integration troubleshooting via phone, email, and web-based collaboration tools. On-site commissioning support and training services available for complex installations or greenfield projects.

Documentation & Resources
Each controller ships with complete technical documentation including hardware installation manuals, redundancy configuration guides, electrical schematics, and dimensional drawings. Digital resources include CAD models for panel layout, sample application programs, and configuration templates to accelerate project deployment and reduce engineering hours.

Compliance & Certifications
Factory testing validates compliance with international safety standards including UL 508 (industrial control equipment), CE marking for European markets, ATEX/IECEx certification for hazardous location installations, and marine classification society approvals for offshore and shipboard applications. Traceability documentation and material certifications available upon request for regulated industries.

Frequently Asked Questions (FAQ)

Q: How does the IC698CRE020-CA redundant CPU handle switchover during active process control?
A: The redundant CPU architecture maintains synchronized execution between primary and backup processors through dedicated redundancy communication links. During switchover, the backup CPU seamlessly assumes control while preserving scan cycle timing, PID controller states, analog output values, and active network connections. Bumpless transfer algorithms prevent output step changes that could disrupt process stability, ensuring continuous regulation of temperature, pressure, flow, and level control loops without operator intervention.

Q: Can I upgrade an existing non-redundant RX7i system to redundant operation with the IC698CRE020-CA?
A: Yes, existing RX7i installations can be upgraded to redundant configurations by adding a second IC698CRE020-CA module, redundant power supplies, and configuring redundancy parameters in Proficy Machine Edition software. The upgrade process requires minimal application code modifications—primarily adding redundancy health monitoring logic and configuring synchronization parameters. Migration can be performed during scheduled maintenance windows with comprehensive pre-commissioning testing to validate failover performance before returning to production.

Q: What happens to I/O modules and field devices during a CPU failover event?
A: The RX7i backplane architecture allows both redundant CPUs to simultaneously access I/O modules, maintaining continuous field device communication during switchover. Output modules receive synchronized commands from both processors, with automatic selection of the active CPU's data. Input modules broadcast field data to both CPUs, ensuring the backup processor maintains current process state. For critical applications, dual I/O configurations with redundant field wiring provide complete fault tolerance against I/O module failures independent of CPU redundancy.

Q: Which programming software is required for the IC698CRE020-CA, and does redundancy require special programming?
A: The IC698CRE020-CA is programmed using GE's Proficy Machine Edition (PME) software, which supports all IEC 61131-3 programming languages including Ladder Diagram, Structured Text, Function Block Diagram, Sequential Function Chart, and Instruction List. Redundancy configuration is managed through PME's hardware configuration tools without requiring specialized programming skills. Standard application code executes identically on redundant systems, with optional redundancy status monitoring functions available for advanced diagnostics and custom switchover logic.

Q: Does the conformal coating (CA suffix) affect thermal performance or maintenance procedures?
A: The factory-applied conformal coating is engineered to provide environmental protection while maintaining thermal dissipation within specified operating ranges. Proper control enclosure ventilation and ambient temperature management ensure reliable operation in coated configurations. The coating does not impede routine maintenance activities such as module replacement or connector servicing. For applications in extremely harsh environments, additional enclosure-level protection (NEMA 4X, IP66) may be recommended in conjunction with conformal coating.

Q: How many I/O points can the IC698CRE020-CA support in a redundant configuration?
A: The IC698CRE020-CA supports up to 12,000 discrete I/O points and 4,000 analog I/O points in redundant configurations, with actual capacity dependent on scan time requirements, communication loading, and application complexity. The 20MB user memory accommodates large I/O databases, extensive data logging, and complex control algorithms. For applications approaching maximum I/O counts, consult with application engineers to validate scan time performance and optimize system architecture for deterministic control loop execution.

Q: What network protocols and communication options are supported for SCADA integration?
A: The dual Ethernet interfaces support multiple simultaneous protocols including Modbus TCP/IP for SCADA connectivity, EGD (Ethernet Global Data) for peer-to-peer controller communication, SRTP for GE HMI integration, OPC UA for enterprise system connectivity, and PROFINET or EtherNet/IP for third-party device integration. Serial ports provide Modbus RTU, SNP, and legacy protocol support. Redundant network paths maintain SCADA connectivity during failover events without communication interruption or data loss.

Contact & Ordering Information

To obtain detailed system architecture recommendations, application-specific quotations, or technical support for the IC698CRE020-CA RX7i Redundant CPU Controller, please provide the following project information: application description and industry sector, estimated I/O point count (discrete and analog), required communication protocols and network topology, environmental conditions and hazardous area classifications, existing automation infrastructure and migration requirements, and project timeline and budget constraints.

Our application engineering team will respond within one business day with customized recommendations, validated system configurations, and competitive pricing. For urgent replacement requirements or emergency technical support, contact our 24/7 hotline for immediate assistance.
