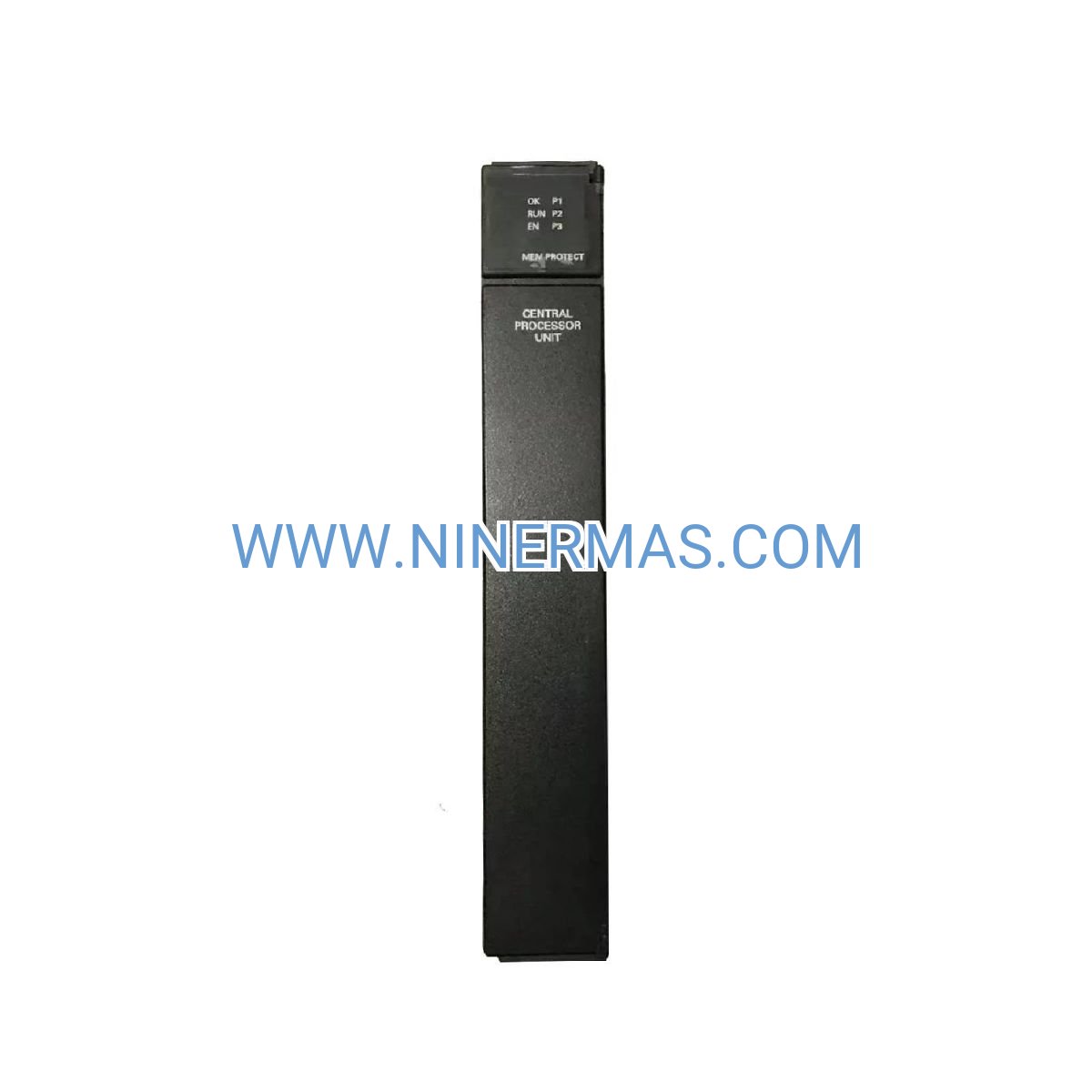

IC697CPX928 Series 90-70 CPU Module (Industrial-Grade Programmable Controller)

The IC697CPX928 delivers enterprise-class computational power for Series 90-70 automation architectures, combining a 96MHz 80486DX4 processor with 12MB flash program storage and 240KB data RAM. Designed for mission-critical manufacturing, process control, and infrastructure management applications, this CPU module provides deterministic scan performance, extensive I/O capacity, and multi-protocol communication capabilities that meet the demands of modern industrial environments.

Organizations across discrete manufacturing, continuous process industries, and utilities infrastructure rely on this controller to orchestrate complex automation sequences, manage distributed I/O networks, and integrate legacy equipment with contemporary SCADA platforms. Its proven reliability in harsh industrial conditions—combined with comprehensive diagnostic features and hot-standby redundancy support—makes it the preferred choice for applications where downtime translates directly to revenue loss.

Whether you're upgrading aging Series Five systems, expanding existing Series 90-70 installations, or engineering greenfield automation projects, the IC697CPX928 provides the processing headroom and architectural flexibility to accommodate evolving operational requirements while protecting your technology investment.

Key Performance Advantages

→ High-Speed Execution Engine: The 96MHz processor delivers 0.22ms/K Boolean scan performance, enabling real-time control of fast-moving production lines, servo positioning systems, and time-sensitive safety interlocks without compromising deterministic behavior.

→ Massive I/O Handling Capacity: Support for 12,000 discrete points and 4,000 analog channels allows consolidation of multiple control panels into unified architectures, reducing hardware costs and simplifying maintenance across large-scale facilities.

→ Flexible Memory Architecture: 12MB flash storage accommodates complex ladder logic programs, recipe databases, and historical data buffers, while battery-backed RAM ensures program retention during power interruptions without external UPS requirements.

✓ Multi-Protocol Connectivity: Native RS-232/RS-485 serial interfaces plus optional Ethernet modules enable simultaneous communication with HMI panels, MES systems, remote I/O racks, and third-party devices via Modbus, Profibus, or proprietary protocols.

✓ Redundancy-Ready Design: Hot-standby CPU configurations with automatic failover protect critical processes against single-point failures, meeting uptime requirements for pharmaceutical batch operations, utility load management, and continuous process industries.

✓ Comprehensive Diagnostics: Built-in health monitoring tracks power supply voltages, communication link status, I/O module faults, and scan time overruns, triggering configurable alarms before minor issues escalate into production stoppages.

Industrial Application Scenarios

Automotive Assembly Operations:
Coordinate multi-robot welding cells, automated guided vehicle (AGV) traffic management, and quality inspection stations across body-in-white production lines. The CPU's high-speed scan cycle synchronizes servo drives within ±1ms precision for spot welding sequences, while extensive I/O capacity consolidates control of paint booth interlocks, conveyor networks, and torque tool verification systems.

Chemical Batch Processing:
Execute ISA-88 compliant recipe management for pharmaceutical formulation, specialty chemical synthesis, and food/beverage production. Floating-point math capabilities support advanced PID tuning for temperature cascades, pressure compensation algorithms, and material balance calculations, while data logging functions capture batch genealogy for regulatory compliance.

Water Treatment Facilities:
Manage multi-stage filtration, chemical dosing, and UV disinfection across municipal water plants serving populations up to 500,000. Remote I/O scanners distribute control to outlying pump stations via fiber optic links, while SCADA integration provides operators real-time visibility into reservoir levels, flow rates, and equipment runtime hours.

Warehouse Automation Systems:
Orchestrate high-speed sortation conveyors processing 15,000+ parcels/hour, automated storage/retrieval systems (AS/RS) with 40-foot vertical reach, and barcode tracking networks across 500,000+ square foot distribution centers. The CPU's deterministic performance prevents package jams during peak holiday volumes while maintaining inventory accuracy above 99.9%.

Power Generation Facilities:
Control turbine startup sequences, generator synchronization, and emissions monitoring for combined-cycle gas plants, biomass cogeneration systems, and district heating networks. Safety instrumented system (SIS) integration meets IEC 61508 requirements for emergency shutdown logic protecting personnel and equipment during abnormal operating conditions.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the IC697CPX928 when your application requires program storage exceeding 8MB, I/O counts above 8,000 points, or scan performance faster than 0.3ms/K. For smaller systems with less demanding computational needs, consider the IC697CPX772 (64MHz, 6MB flash). For next-generation platforms with enhanced cybersecurity and IIoT connectivity, evaluate the RX7i PACSystems series.

Extended System Integration Capabilities

IIoT & Cloud Connectivity: Deploy edge computing gateways to stream process data from the IC697CPX928 to AWS IoT Core, Azure Industrial IoT, or on-premises historians. OPC UA server modules enable secure data exchange with MES platforms, predictive maintenance algorithms, and enterprise analytics dashboards without compromising real-time control performance.

Cybersecurity Hardening: Implement defense-in-depth strategies using VLAN segmentation, MAC address filtering, and encrypted VPN tunnels for remote access. The CPU supports role-based access control (RBAC) limiting program upload/download privileges to authorized personnel, with audit logging tracking all configuration changes for compliance documentation.

Custom Protocol Development: Leverage the programmable coprocessor module (IC697PCM711) to implement proprietary communication protocols, complex mathematical transformations, or third-party device drivers without impacting main CPU scan time. This architecture proves invaluable when integrating legacy equipment lacking standard industrial protocols.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock units ship within 24-48 hours via DHL Express, FedEx International Priority, or UPS Worldwide Expedited. Typical transit to North America, Europe, and Asia-Pacific regions: 3-7 business days door-to-door.

Custom Configuration Services: Factory-programmed CPUs with pre-loaded application code, IP address assignments, and security certificates available with 5-7 business day lead time. Ideal for multi-site rollouts requiring standardized configurations.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Warranty includes advance replacement service for critical applications—submit RMA request before 2:00 PM CST for same-day shipment of replacement units.

Technical Support: Complimentary application engineering assistance via email, phone, or video conference. Our team provides guidance on rack layout optimization, communication network design, redundancy configuration, and migration planning from legacy platforms.

Documentation Package: Each shipment includes installation quick-start guide, wiring diagrams, and links to downloadable user manuals, programming software, and firmware update utilities. Comprehensive technical library available at support portal.

Frequently Asked Questions

What programming software platforms support the IC697CPX928 CPU module?
The module is compatible with Proficy Machine Edition (recommended for Windows 10/11 environments), VersaPro, and legacy Logicmaster 90-70 software. Proficy Machine Edition v9.8 or later provides the most comprehensive feature set including IEC 61131-3 language support, online editing, and integrated simulation tools.

Can this CPU integrate with Allen-Bradley or Siemens I/O systems?
Yes, through appropriate communication modules and protocol gateways. The IC697CMM742 Ethernet module supports EtherNet/IP for Allen-Bradley integration, while Profibus-DP scanner modules enable connectivity to Siemens ET200 remote I/O. Third-party protocol converters handle Modbus RTU/TCP bridging to virtually any industrial device.

What is the maximum program complexity this CPU can handle?
The 12MB flash memory accommodates applications with 50,000+ ladder logic rungs, 10,000+ function blocks, or equivalent complexity in Structured Text. Actual capacity depends on programming style—heavy use of symbolic addressing and comments reduces available space for executable code.

How do I implement hot-standby redundancy with dual CPUs?
Redundancy requires two IC697CPX928 modules, specialized redundancy software licenses, and a redundancy communication module (IC697RCM711). The primary CPU continuously synchronizes program execution and I/O data to the backup unit, which assumes control within 50-100ms upon detecting primary failure. Contact our engineering team for detailed redundancy architecture design.

Is the IC697CPX928 suitable for SIL-rated safety applications?
While the CPU carries industrial certifications, it is not certified for Safety Integrity Level (SIL) applications per IEC 61508. For safety-critical functions, deploy a dedicated safety PLC (such as GE PACSystems RX3i with safety CPU) in parallel with the IC697CPX928 handling standard process control tasks.

What is the expected operational lifespan and maintenance schedule?
Under controlled environmental conditions (temperature-controlled enclosures, clean power, proper ventilation), the CPU achieves MTBF exceeding 100,000 hours (11+ years continuous operation). Primary maintenance involves lithium battery replacement every 5-7 years and periodic firmware updates to address security vulnerabilities or add feature enhancements.

Request Technical Consultation

Our automation specialists provide complimentary application reviews to ensure the IC697CPX928 aligns with your performance requirements, budget constraints, and long-term scalability objectives. Submit your system architecture diagrams, I/O counts, and communication requirements for customized recommendations on rack configuration, power supply sizing, and communication module selection.

Volume pricing available for OEMs, system integrators, and end-users deploying 10+ units. Expedited shipping options and custom packaging services accommodate urgent project timelines and international logistics requirements.
