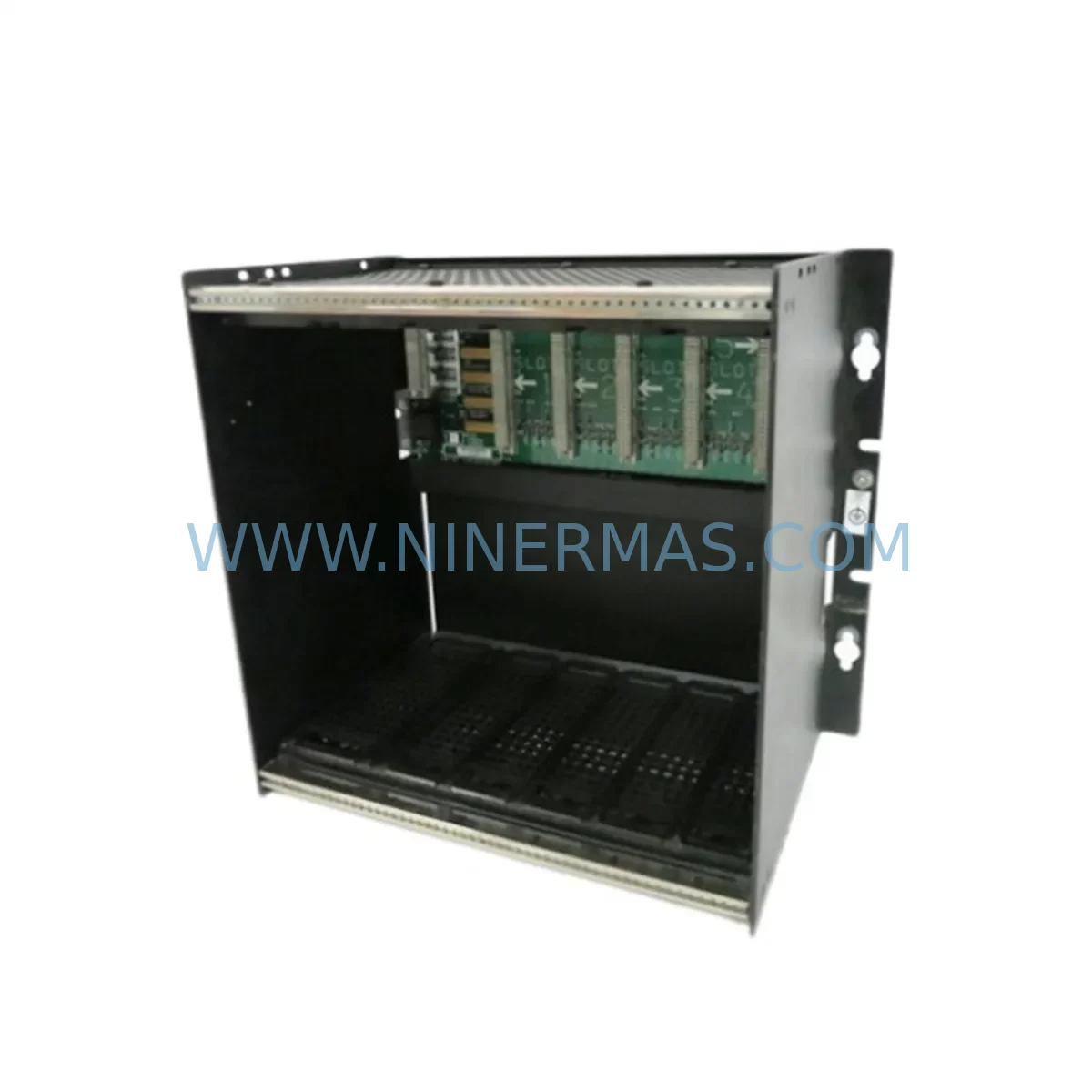

The GE IC697CHS750 is a 9-slot VME-based backplane chassis designed for the GE Series 90-70 PLC platform — one of the most widely deployed programmable logic controller architectures in heavy industry, power generation, oil & gas, and discrete manufacturing. As production lines age and OEM support windows close, maintaining a reliable inventory of the IC697CHS750 becomes a critical pillar of any plant’s spare parts strategy. Whether you are responding to an unplanned shutdown, executing a scheduled annual overhaul, or building a long-term maintenance buffer, sourcing a verified, service-ready IC697CHS750 directly impacts your mean time to repair (MTTR) and overall equipment effectiveness (OEE).

At NINERMAS, every IC697CHS750 unit is inspected, functionally tested, and shipped with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to deploy immediately upon receipt. Our global logistics network supports urgent air-freight dispatch for emergency downtime recovery, as well as consolidated sea-freight for planned inventory replenishment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Series 90-70 control cabinet requires a chassis replacement or expansion, the IC697CHS750 is rarely the only component that demands attention. A disciplined maintenance engineer will treat a chassis swap as an opportunity to audit the entire control enclosure. Begin with the power supply module — units such as the IC697PWR711 or IC697PWR724 share the same service interval as the chassis and should be inspected for capacitor aging, output voltage drift, and thermal discoloration on the PCB. A degraded PSU will stress a new backplane immediately after installation.

Next, verify the CPU module — commonly the IC697CPU771 or IC697CPU788 in mid-to-late generation Series 90-70 systems — for firmware revision compatibility with the replacement chassis. Battery-backed RAM retention should be confirmed before and after the swap to prevent program loss. If the system uses a IC697MEM715 or IC697MEM719 memory expansion module, check that the module seats correctly in the new chassis and that the bus termination is intact.

I/O integrity is equally critical. Discrete input modules such as the IC697MDL340 (24 VDC input) and output modules like the IC697MDL653 (relay output) should be removed, cleaned, and re-seated during the chassis replacement window. Analog I/O modules — including the IC697ALG320 analog input module — are sensitive to backplane signal integrity; any intermittent contact on the VME bus connector can introduce measurement drift that is difficult to diagnose after reassembly.

Communication infrastructure deserves equal scrutiny. If the cabinet hosts a IC697CMM711 or IC697CMM742 communications coprocessor for Genius Bus or Ethernet connectivity, verify that the module’s firmware and network configuration survive the chassis migration. Genius Bus cables, terminators, and bus controllers should be inspected for insulation cracking and connector oxidation — faults that often surface only after a chassis disturbance.

Terminal blocks, field wiring, and signal isolation components are frequently overlooked during chassis-level maintenance. Loose field wiring terminations, degraded signal isolators on analog loops, and aging fuse holders in the I/O marshalling panel can all cause post-maintenance faults that are incorrectly attributed to the new chassis. A thorough point-to-point wiring check and insulation resistance test before energizing the cabinet will eliminate these risks. For facilities running HMI panels — such as GE QuickPanel or third-party SCADA terminals — confirm that the communication link to the CPU is re-established and that all tag addresses remain valid after the chassis swap.

Building a structured spare parts kit around the IC697CHS750 is the most effective way to minimize future downtime. A recommended minimum inventory for a Series 90-70 system includes one spare chassis, one matched power supply, one CPU module with a charged backup battery, and a representative set of the most-used I/O modules. This kit approach transforms an emergency repair into a planned swap, reducing downtime from hours to minutes.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the existing chassis, perform a full program backup from the CPU to an offline programming terminal using GE Proficy Machine Edition or the legacy Logicmaster 90-70 software. Document all module slot assignments, I/O addresses, and communication parameters. Photograph the wiring layout for reference during reassembly.

Step 2 — Safe De-energization: Follow your site’s lockout/tagout (LOTO) procedure. Confirm that all field devices are in a safe state before removing power. Discharge any residual voltage on the backplane bus using a calibrated multimeter before handling modules.

Step 3 — Module Extraction and Labeling: Remove each module in sequence, labeling its slot position. Handle modules by their front panels — avoid touching the VME bus connectors. Store modules in anti-static bags during the chassis exchange.

Step 4 — IC697CHS750 Installation: Mount the replacement chassis in the panel using the original hardware. Verify that the chassis is properly grounded to the cabinet earth bar. Inspect all slot guides and bus connector pins before inserting modules.

Step 5 — Module Re-installation and Power-Up: Re-install modules in their original slot positions. Reconnect field wiring per your documented layout. Apply power and monitor the CPU status LEDs and fault table for any configuration mismatches. Restore the program backup if required.

Step 6 — Functional Verification: Perform a point-to-point I/O check against the process P&ID. Confirm communication links to HMI, SCADA, and peer PLCs. Log the replacement in your CMMS with the new chassis serial number and warranty start date.

This workflow is equally applicable when migrating from an older IC697CHS750A revision to a current-production unit, ensuring backward compatibility is maintained without requiring a full system re-engineering effort.

Spare Parts Support FAQ

Q1: Is the IC697CHS750 still available as a new original part, or only as a refurbished unit?
The IC697CHS750 is a mature product from the GE Series 90-70 platform, which has reached end-of-life status with the OEM. NINERMAS supplies both original surplus (unused, in original packaging where available) and professionally refurbished units that have been restored to OEM electrical and mechanical specifications. All units — regardless of condition grade — undergo functional testing on a Series 90-70 test bench and are covered by our 12-month warranty. The condition grade is clearly stated on every quotation and shipping document.

Q2: How do I confirm compatibility between the IC697CHS750 and my existing Series 90-70 modules?
The IC697CHS750 is compatible with the full range of GE Series 90-70 CPU, I/O, and communications modules that use the standard VMEbus interface. Compatibility is determined by the module’s bus type (VME) rather than by chassis revision. If you are unsure whether a specific module — such as a late-revision IC697CPU788 or a third-party VME card — is compatible, provide your full module list to our technical team at sale@ninermas.com and we will confirm compatibility before shipment.

Q3: What pre-shipment testing does NINERMAS perform on the IC697CHS750?
Each IC697CHS750 unit undergoes a multi-stage inspection: visual inspection for physical damage, bus connector pin integrity check, powered functional test with a Series 90-70 CPU and I/O module set, and a 24-hour burn-in cycle to screen for early-life failures. Units that pass all stages are cleaned, re-labeled with a NINERMAS test certification sticker, and packed in anti-static foam for safe transit. A test report is available upon request.

Q4: Can NINERMAS support long-term supply agreements for the IC697CHS750 and related Series 90-70 components?
Yes. NINERMAS offers blanket purchase order (BPO) and long-term supply agreement (LTSA) arrangements for customers who require guaranteed access to IC697CHS750 chassis and associated Series 90-70 components — including power supplies, CPU modules, and I/O cards — over a 12- to 36-month horizon. These agreements include reserved inventory allocation, fixed pricing, and priority dispatch for emergency orders. Contact sale@ninermas.com or call +0086 187 5021 5667 to discuss your requirements.
