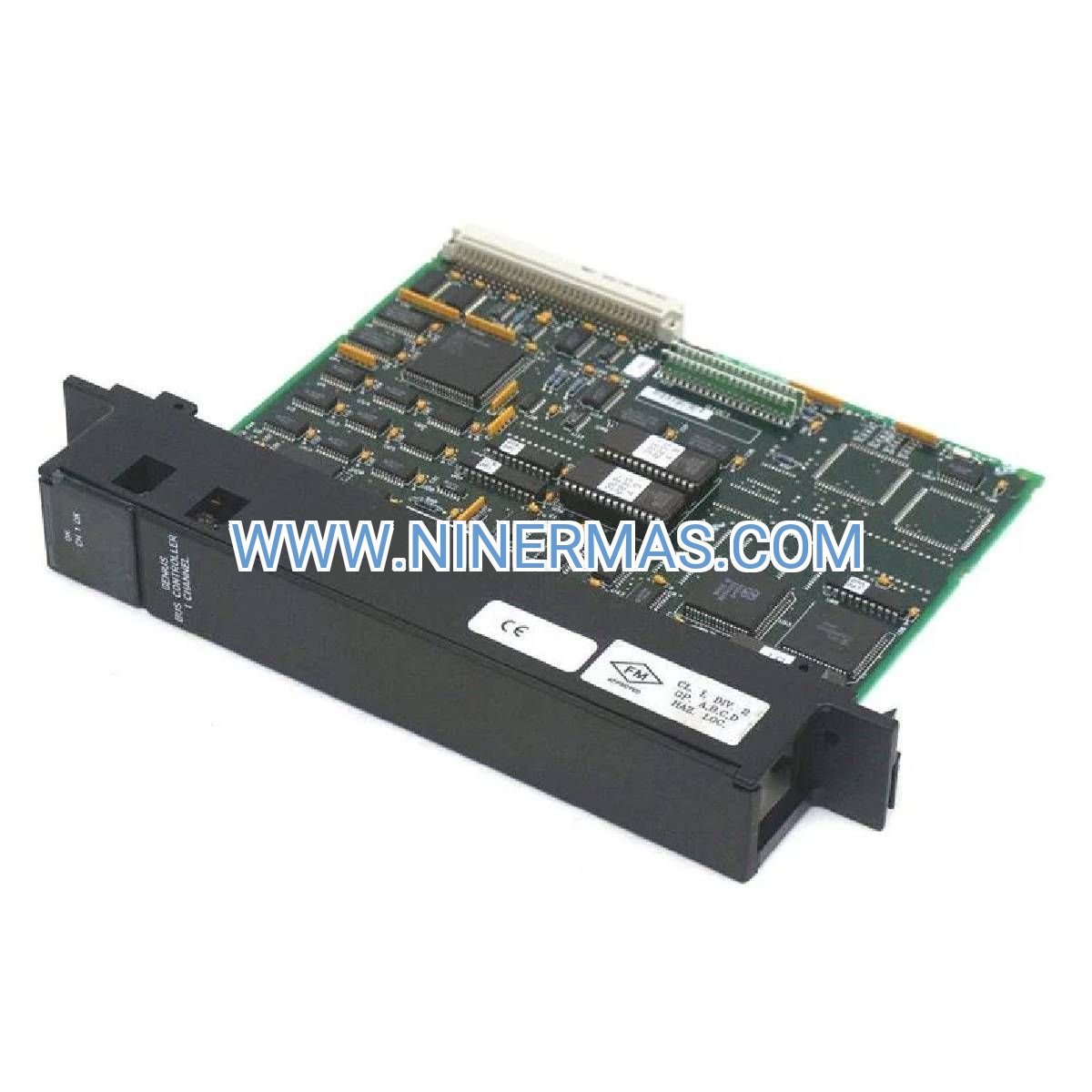

IC697BEM731 Genius Bus Interface Module (Industrial-Grade I/O Expansion)

The IC697BEM731 is a high-reliability Genius bus interface module engineered for GE Fanuc Series 90-70 programmable logic controllers. Designed to bridge your PLC backplane with distributed Genius I/O networks, this expansion module delivers deterministic communication across manufacturing floors, process plants, and critical infrastructure installations where uptime and data integrity are non-negotiable.

Built for engineers and system integrators managing complex automation architectures, the IC697BEM731 eliminates single points of failure through hot-swap capability and comprehensive fault diagnostics. Whether you're retrofitting legacy systems or designing greenfield projects, this module provides the proven connectivity backbone trusted in automotive assembly, pharmaceutical production, and energy distribution applications worldwide.

With support for up to 31 Genius I/O drops and 128 I/O points per drop, the IC697BEM731 scales from compact machine control to plant-wide SCADA integration. Its VME rack compatibility and backward compatibility with existing Genius devices protect your automation investment while enabling future expansion.

Core Capabilities & Business Value

→ Hot-Swap Serviceability
Replace modules during operation without system shutdown, reducing maintenance windows from hours to minutes. Critical for 24/7 production environments where downtime costs exceed $10,000 per hour.

✓ Multi-Topology Network Flexibility
Deploy daisy-chain, star, or multidrop configurations to match your facility layout. Supports cable runs up to 7,500 feet, eliminating costly conduit rerouting during plant expansions.

✓ Real-Time Diagnostic Intelligence
Tricolor LED indicators and embedded diagnostics pinpoint communication faults to specific drops or devices. Reduces troubleshooting time by 60% compared to legacy systems without granular status reporting.

→ Industrial Environmental Hardening
Operates reliably in 0°C to 60°C ambient temperatures with 95% humidity tolerance. Meets UL/CE/CSA certifications for installation in hazardous locations and mission-critical facilities.

✓ Deterministic 153.6 Kbps Performance
Guaranteed scan times for time-sensitive applications like motion control and safety interlocks. Predictable latency ensures coordinated operation across distributed I/O zones.

→ Seamless Series 90-70 Integration
Plug-and-play compatibility with IC697CPX928, IC697CPX935, and other Series 90-70 processors. Configuration through standard GE programming software eliminates proprietary tools.

Industrial Application Scenarios

Automotive Manufacturing Lines
Coordinate robotic welding cells, conveyor systems, and quality inspection stations across 500+ meter production lines. The IC697BEM731 links remote I/O racks controlling pneumatic actuators, vision systems, and torque tools to central PLC logic. Reduces wiring costs by 40% compared to point-to-point I/O while enabling centralized recipe management for multi-model assembly.

Water & Wastewater Treatment
Monitor distributed pump stations, chemical dosing systems, and flow meters across municipal treatment facilities. Deploy Genius I/O networks to connect field instruments in corrosive environments while maintaining PLC logic in climate-controlled control rooms. Supports SCADA integration for regulatory compliance reporting.

Food & Beverage Processing
Control packaging lines, CIP systems, and ingredient batching with distributed I/O architecture. The module's hot-swap capability allows preventive maintenance during production changeovers without line shutdown. Integrates with recipe management systems for product traceability.

Power Generation & Distribution
Manage substation automation, generator control, and load shedding systems with redundant Genius bus configurations. The IC697BEM731's diagnostic capabilities support predictive maintenance programs, reducing unplanned outages by identifying communication degradation before failures occur.

Material Handling & Warehousing
Orchestrate automated storage/retrieval systems, sortation conveyors, and AGV fleets through centralized PLC control with distributed I/O. Supports dynamic reconfiguration as warehouse layouts evolve, protecting automation investment during facility expansions.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the IC697BEM731 when your application requires distributed I/O architecture with deterministic performance. For applications needing faster scan times (<5ms), consider Ethernet-based I/O solutions. If your system uses Series 90-30 hardware, specify the IC693BEM331 instead. Calculate total power consumption across all rack modules to ensure adequate power supply capacity (recommend IC697PWR series with 20% overhead).

Advanced Integration Features

Redundancy Architecture Support
Deploy dual IC697BEM731 modules in redundant CPU configurations for fault-tolerant systems. Automatic failover maintains I/O communication during primary module or CPU failures, achieving 99.99% uptime in critical applications.

SCADA & HMI Connectivity
Genius I/O data maps directly to PLC memory for seamless integration with Proficy, iFIX, and third-party SCADA platforms. Real-time drop status and diagnostic counters enable predictive maintenance dashboards.

Legacy System Migration Path
Maintains protocol compatibility with Genius I/O devices installed since the 1990s, allowing phased modernization without forklift upgrades. Coexists with newer Ethernet I/O on the same PLC backplane.

Custom Configuration Options
Programmable I/O update rates, fault response behaviors, and diagnostic thresholds through GE Logicmaster/Machine Edition software. Supports application-specific tuning for motion control vs. process monitoring requirements.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 1-2 business days via express courier. Typical delivery to major industrial centers: 3-5 business days domestic, 7-10 days international.

Warranty Coverage: Comprehensive 12-month warranty against manufacturing defects and component failures. Warranty includes advance replacement service to minimize downtime during failure events.

Technical Support: Pre-sales application engineering assistance for system design and component selection. Post-sales support includes configuration guidance, troubleshooting protocols, and integration consulting via phone/email.

Documentation Package: Every module ships with installation quick-start guide, wiring diagrams, and links to complete technical manuals. Configuration file templates available for common applications.

Frequently Asked Questions

What is the maximum I/O count achievable with a single IC697BEM731 module?
The module supports up to 31 Genius I/O drops, with each drop capable of 128 I/O points. Theoretical maximum is 3,968 I/O points, though practical limits depend on CPU scan time requirements and memory capacity. Most applications use 1,000-2,000 points per module for optimal performance.

Can I mix different Genius I/O device types on the same bus?
Yes, the IC697BEM731 supports heterogeneous device mixing including analog input blocks, discrete output modules, and specialty devices like RTD interfaces. The bus controller automatically handles different device scan rates and data formats.

How does hot-swap functionality work during module replacement?
When configured for hot-swap operation, the PLC program must include logic to gracefully handle I/O communication loss. Remove the module after verifying LED status, install the replacement, and the system automatically re-establishes communication within 2-3 scan cycles. Always follow lockout/tagout procedures even with hot-swap capability.

What cable specifications are required for Genius I/O networks?
Use Belden 3106A or equivalent 22 AWG twisted-pair shielded cable rated for 300V. Maintain proper shield grounding at one end only to prevent ground loops. For outdoor or high-EMI environments, specify double-shielded cable with drain wire.

Is the IC697BEM731 compatible with modern Ethernet-based control systems?
While the module uses Genius serial bus protocol, it integrates seamlessly with Ethernet-enabled Series 90-70 CPUs. The PLC acts as a protocol gateway, allowing SCADA systems to access Genius I/O data via Ethernet/IP or Modbus TCP. For native Ethernet I/O, consider the IC697BEM733 Ethernet I/O scanner.

What diagnostic capabilities help troubleshoot communication issues?
The module provides LED indicators for power (green), bus activity (amber), and faults (red). Software diagnostics accessible through the PLC program include per-drop communication status, error counters, signal strength metrics, and historical fault logs. These diagnostics typically reduce troubleshooting time from hours to minutes.

Request Technical Consultation

Unsure if the IC697BEM731 fits your application requirements? Our automation specialists provide complimentary system design reviews, including I/O count calculations, network topology recommendations, and component compatibility verification. Contact our team with your project specifications for personalized guidance on building reliable, scalable control systems.

Order the IC697BEM731 Genius Bus Interface Module today and experience the proven reliability that has made GE Fanuc Series 90-70 the trusted choice for industrial automation worldwide. Fast shipping, expert support, and authentic components backed by our quality guarantee.
