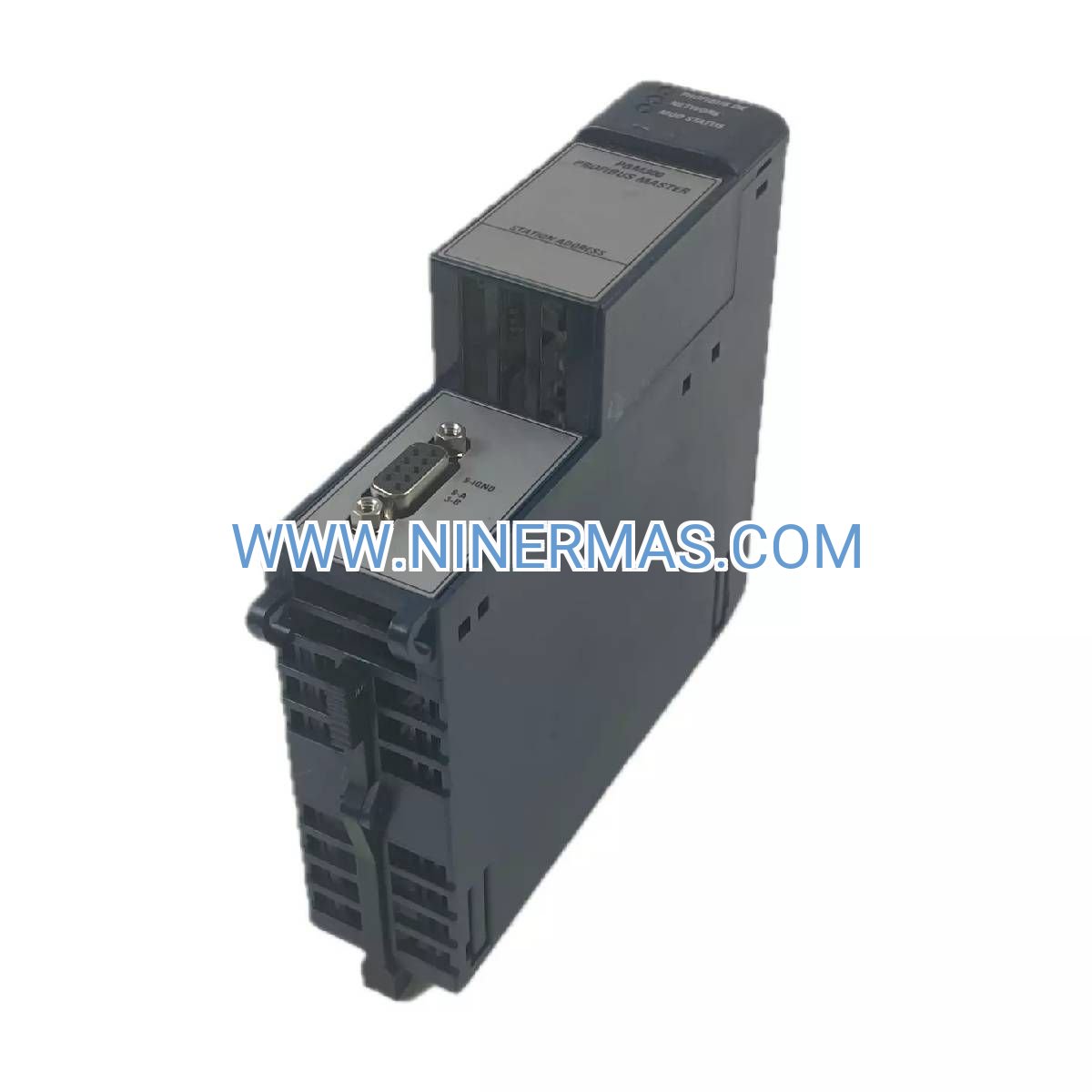

IC695PBM300 PROFIBUS-DP Master Module (Industrial-Grade Network Controller)

The IC695PBM300 represents a proven fieldbus communication solution for RX3i PACSystems architectures, engineered to orchestrate multi-vendor device networks in demanding industrial environments. This PROFIBUS-DP master module bridges legacy automation infrastructure with modern control platforms, supporting up to 125 intelligent field devices across process control, discrete manufacturing, and hybrid production systems.

Built for system integrators and plant engineers managing complex automation networks, this module eliminates protocol barriers between PLCs and distributed I/O, drives, sensors, and analytical instruments. Whether retrofitting existing PROFIBUS installations or designing greenfield projects, the IC695PBM300 delivers deterministic communication with microsecond-level synchronization for time-critical applications.

Key advantages include certified interoperability with 3,000+ PROFIBUS-compliant devices, hot-swap serviceability for zero-downtime maintenance, and comprehensive diagnostic capabilities that reduce troubleshooting time by up to 60%. The module's auto-baud detection and GSD file-based configuration accelerate commissioning while minimizing human error during network setup.

Core Features & Business Value

→ Multi-Protocol Support: DPV0 for standard cyclic data exchange + DPV1 for acyclic diagnostics, parameter management, and alarm handling — enabling predictive maintenance strategies that extend asset life by 25-40%

→ High-Density Connectivity: Connect 125 slaves per segment with 244-byte input/output buffers per device — consolidate up to 30,000 I/O points through a single module, reducing cabinet space and wiring costs by 35%

→ Adaptive Baud Rate: Automatic detection from 9.6 Kbps to 12 Mbps — eliminates manual configuration errors and supports mixed-speed networks during phased equipment upgrades

✓ Redundancy-Ready Architecture: Seamless integration with RX3i redundant CPU systems — maintain PROFIBUS master functionality during controller failover for 99.99% uptime in critical processes

✓ Extended Network Reach: RS-485 topology with repeater support spans up to 9.6 km — ideal for distributed facilities like water treatment plants, mining operations, and campus-style manufacturing complexes

✓ Real-Time Diagnostics: Monitor bus health, slave status, and communication errors via embedded function blocks — reduce MTTR by 50% through instant fault localization and historical trend analysis

Typical Application Scenarios

Chemical Processing & Refining: Integrate PROFIBUS-enabled field instruments (Endress+Hauser Coriolis meters, Siemens SITRANS pressure transmitters, Yokogawa pH analyzers) with RX3i controllers for closed-loop process optimization. The module's DPV1 diagnostics provide early warning of sensor drift, valve stiction, and calibration issues — preventing batch contamination and off-spec production that costs $50K-$500K per incident.

Automotive Assembly Lines: Coordinate welding robots, servo presses, torque tools, and vision systems from Siemens, KUKA, Bosch Rexroth, and Cognex through a unified PROFIBUS network. Achieve ±2ms cycle time synchronization for multi-station operations, enabling just-in-time production with 15-second takt times and zero-defect quality targets.

Power Generation & Utilities: Monitor and control turbine auxiliaries, boiler feed pumps, emissions analyzers, and switchgear across thermal, hydro, and combined-cycle plants. The module's 1500V isolation protects against electrical noise in high-voltage environments, while extended temperature ratings (-40°C to +70°C with conformal coating) ensure reliability in outdoor substations.

Food & Beverage Production: Connect hygienic sensors, variable frequency drives, and CIP (clean-in-place) systems in dairy, brewing, and packaging lines. PROFIBUS-DP's deterministic communication ensures precise recipe execution, while the module's hot-swap capability allows maintenance during production changeovers without halting adjacent processing zones.

Mining & Material Handling: Network conveyor systems, crushers, stackers, and reclaimers across open-pit and underground operations. The module's rugged design withstands shock, vibration, and dust ingress (IP20 enclosure + conformal coating option), while repeater support enables communication over kilometers of cable in harsh environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose the IC695PBM300 when your application requires PROFIBUS-DP master functionality with advanced diagnostics (DPV1). For PROFIBUS-PA process instruments, pair with a DP/PA coupler. If your network includes both PROFIBUS and PROFINET devices, deploy the IC695PNC001 PROFINET controller alongside this module for multi-protocol integration. For DeviceNet or EtherNet/IP networks, consider the IC693DNM200 or IC695ETM001 respectively.

Extended Functions

IoT & Cloud Integration: Bridge PROFIBUS field data to Industrial IoT platforms via the RX3i's Ethernet modules (IC695ETM001, IC695ECM850). Stream real-time process variables, diagnostic events, and alarm notifications to AWS IoT Core, Azure IoT Hub, or on-premise historians for advanced analytics, machine learning, and remote monitoring dashboards.

Cybersecurity Enhancements: Implement defense-in-depth strategies by isolating PROFIBUS networks from enterprise IT systems using the RX3i's built-in firewall and VPN capabilities. The module's firmware is digitally signed and supports secure configuration file encryption to prevent unauthorized network modifications.

Customization Options: Factory-configurable options include conformal coating for harsh environments, extended temperature ratings, and custom GSD file libraries pre-loaded for specific OEM equipment. Contact our engineering team for application-specific firmware tuning and network optimization services.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 24-48 hours via DHL/FedEx Express. Custom-configured modules (conformal coating, extended temp) require 2-3 weeks factory lead time. Expedited processing available for emergency shutdowns and critical path projects.

Warranty: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty plans (24/36 months) available for mission-critical applications with on-site spares management.

Technical Support: Lifetime access to our automation engineering team for configuration assistance, network troubleshooting, and firmware updates. Pre-sales application consulting includes network topology design, cable length calculations, and repeater placement optimization.

Documentation Package: Each module ships with installation manual, GSD file library (500+ devices), Proficy Machine Edition configuration guide, and sample ladder logic for common diagnostic routines. Online knowledge base includes video tutorials, white papers, and case studies.

Frequently Asked Questions

Can this module function as a PROFIBUS slave for distributed I/O applications?
No, the IC695PBM300 operates exclusively as a Class 1 DP master. For slave/remote I/O functionality, use GE's distributed I/O systems (e.g., VersaMax, RSTi-EP) with PROFIBUS slave interfaces.

What's the maximum network distance achievable with repeaters?
With nine RS-485 repeaters, total network span reaches 9.6 km at lower baud rates (9.6-93.75 Kbps). At 12 Mbps, practical distance is 900m with nine 100m segments. Use fiber optic converters for distances exceeding 10 km.

Does the module support PROFIBUS-PA field instruments directly?
The IC695PBM300 communicates via PROFIBUS-DP protocol. To integrate PA devices (pressure transmitters, temperature sensors), use a DP/PA coupler or link device that converts between DP master and PA segment.

How many I/O points can realistically be addressed through one module?
Theoretical maximum is 30,500 digital I/O points (125 slaves × 244 bytes × 8 bits). Practical limits depend on scan time requirements — typical installations handle 5,000-10,000 points with 10-50ms update rates.

Is the module compatible with Siemens, ABB, and Phoenix Contact PROFIBUS devices?
Yes, the IC695PBM300 is PROFIBUS-certified and interoperable with any DP-compliant device. Import the manufacturer's GSD file into Proficy Machine Edition for automatic parameter configuration and I/O mapping.

Can I hot-swap the module during operation without network disruption?
Yes, the RX3i backplane supports hot-swap for communication modules. The PROFIBUS network will experience a brief interruption (typically 2-5 seconds) during module replacement, but slave devices remain powered and resume communication automatically.

Order Your IC695PBM300 Today

Upgrade your industrial network infrastructure with proven PROFIBUS-DP master technology. Our inventory includes factory-sealed units with full traceability documentation, competitive pricing 15-30% below list, and same-day shipping for stock items. Technical pre-sales support ensures proper module selection and network design validation before purchase.

Contact our automation specialists at sale@ninermas.com or +0086 187 5021 5667 for volume pricing, custom configuration options, and application engineering assistance.
